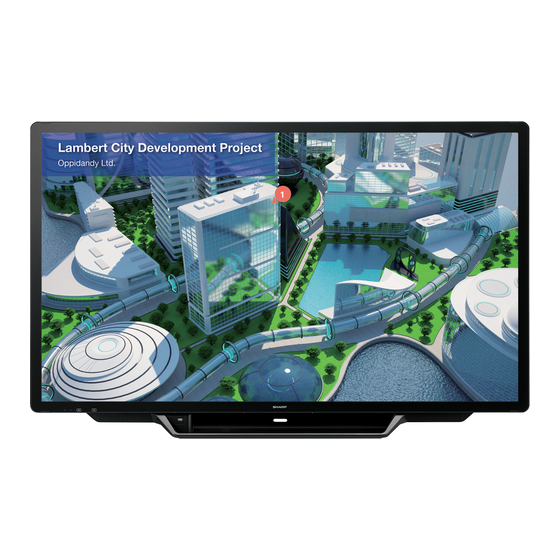

- Page 1 LCD MONITOR Touch pen Management Tool Version 3.0 OPERATION MANUAL Applicable models (as of September 2017) PN-70TH5/PN-80TH5/PN-L705H/PN-L805H PN-ZL06 (Available models differ according to region.)
-
Page 2: Table Of Contents
• Please understand that SHARP CORPORATION bears no responsibility for errors made during use by the customer or a third party, nor for any other malfunctions or damage to this software arising during use, except where indemnity liability is recognized under law. -
Page 3: Introduction
Introduction This software can be used to configure settings for touch action when using a touch pen or touch action on a computer connected to the video input terminal of an applicable model. To use a touch pen or touch action with a computer connected to applicable model, this software must be installed on the computer. The touch pen (Pointer pen) that is included with an applicable model is referred to as “active pen” in this manual. System Requirements Windows 7 (32-bit or 64-bit version), Windows 8.1 (32-bit or 64-bit version), Windows 10 (32-bit or 64-bit version) -
Page 4: Setting Up The Computer
Setting up the computer Install Caution • Insert the touch pen adapter into the LCD monitor before installing this software. • If an older version of this software is installed, remove (uninstall) the old version before installing this software. (See page 13.) •... -
Page 5: Showing Touch Panel / Touch Pen Information
Showing touch panel / touch pen information This software starts automatically. You can view information on the operation mode being set and active pen being used. 1. Click the Touch pen Management Tool icon ( ) on the taskbar. Touch Panel Device : Shows the connected monitor. Touch Panel Settings : Shows the current touch operation mode. -
Page 6: Touch Panel Settings
Touch panel settings 1. Click the Touch pen Management Tool icon ( ) on the taskbar. 2. Click the place on the touch panel settings that shows the operation mode. 3. Click each menu and change the settings. nTouch Operation Mode Setting Select operation mode of the touch panel. -
Page 7: Touch Pen Settings
Touch pen settings Change the active pen settings 1. Click the Touch pen Management Tool icon ( ) on the taskbar. 2. Click the active pen that you want to set in the touch pen list of the touch pen settings screen. 3. - Page 8 nPen Input pen pressure Shows the current amount of pen pressure. Start value of pen pressure detection Set how hard the active pen must be pressed to be recognized. Saturation value (100%) of pen pressure Set the amount of active pen pressure that is treated as the maximum pressure. Automatic setting Normally not used.
- Page 9 nFunction buttons Functions can be assigned to the function buttons 1 to 3 of an active pen. You can also specify whether or not the pointer function is assigned to function button 4. After selecting a function button, select the function to be assigned to the button. Function button 3 Function button 2 Function button 4...
- Page 10 nPointer Image Preview Shows the currently set pointer icon. Shape Set the shape of the pointer. Size Set the size of the pointer. Color Set the color of the pointer. Transparency Set the transmissivity of the pointer. Disable left click Select this checkbox to disable mouse left click by function button 4.
- Page 11 nChanging the shape or color of the pointer icon You can change the pointer icon settings while using the pointer function (while pressing function button 4). Only one active pen can be set at once. 1. To change the icon shape : Press function button 2 while pressing function button 4. To change the icon color : Press function button 3 while pressing function button 4.
-
Page 12: Registering(Pairing)/Unregistering An Active Pen
Registering(pairing)/unregistering an active pen Up to 4 active pens can be used simultaneously. To use the optional active pen, you must register the active pen (pairing). Up to 8 active pens can be registered. You can also cancel the registration of an active pen. nRegistering an active pen Perform active pen pairing for one pen at a time. -
Page 13: Uninstall
3. Click “Uninstall a program”. • If you are using icon view, click “Programs and Features”. 4. Select “SHARP Touch pen Management Tool” and click “Uninstall”. • Follow the on-screen instructions. • When the “User Account Control” screen appears, click “Yes” (or “Allow”). - Page 14 PM V3.0 EN17J(1)
