User Manual
Model 36X-P

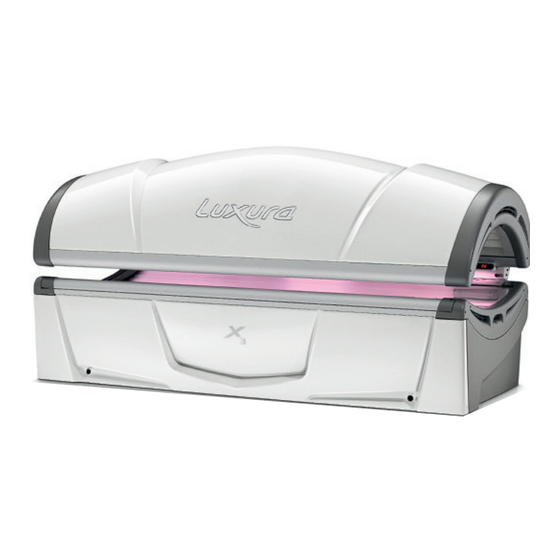

Luxura X3 36 SLi High Intensive 230V
12 MINUTES
MARK76X3002 Rev 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Luxura X3 and is the answer not in the manual?

Questions and answers

Related Manuals for ProSun Luxura X3

Summary of Contents for ProSun Luxura X3

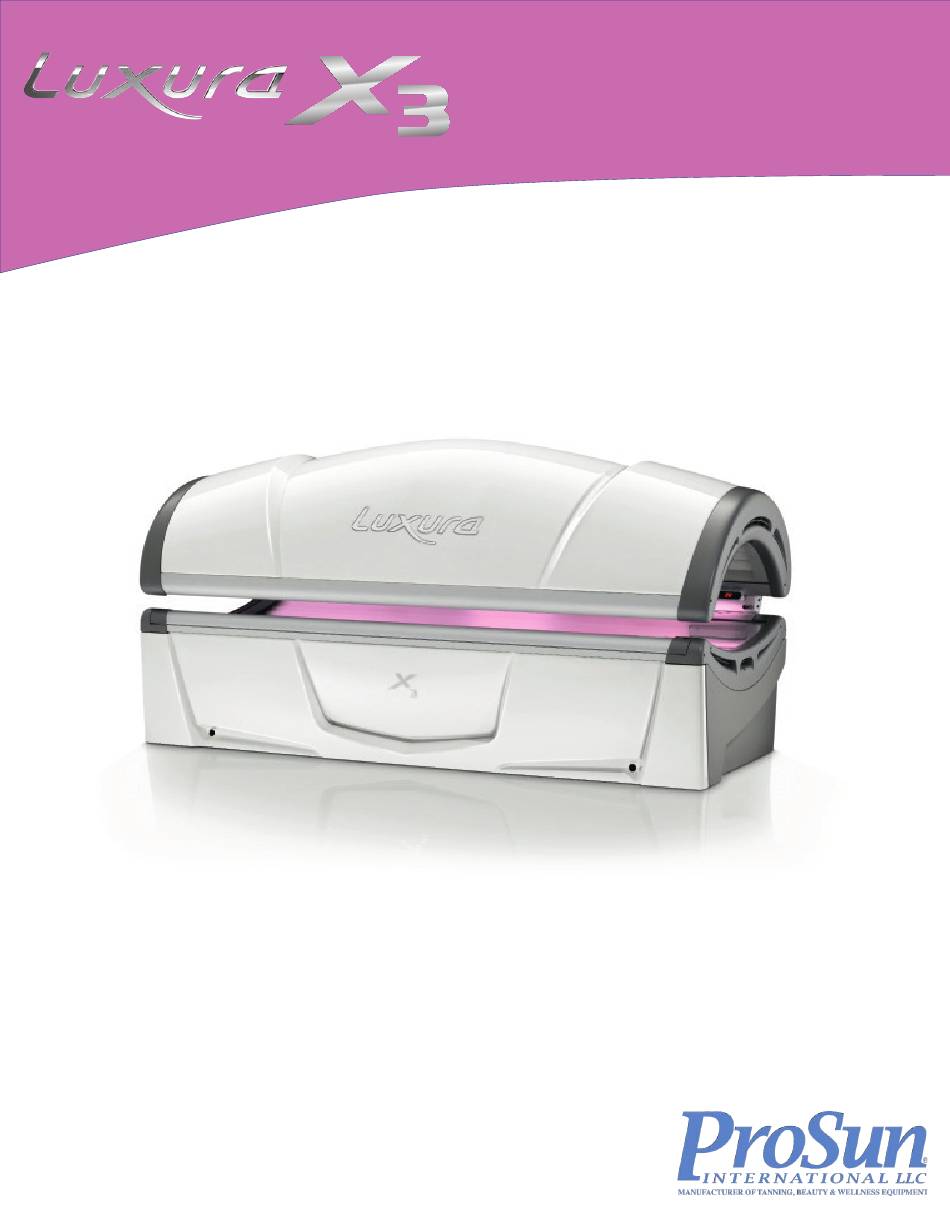

  • Page 1 User Manual Model 36X-P Luxura X3 36 SLi High Intensive 230V 12 MINUTES MARK76X3002 Rev 4...
  • Page 2 Contact Information ® C O N G R A T U L A T I O N S on your ProSun purchase! Please make sure you read this manual carefully before using this equipment and specifically the maintenance schedule. Keep this manual available for future reference. If you have any questions please contact ProSun directly.

  • Page 3: Table Of Contents

    Table of Contents Important Customer Information ................5 Who Should Use, Read, & Understand this Manual ........5 Indications For Use …………..…............5 Intended Use ..…........….......... 5 Warning Signs & Symbols …................. 5 Preparing the Product For Use ................8 Export ….......................
  • Page 4 How to Operate the Equipment ……………………………………………………….. 36 Choosing the Correct Exposure Time …………………………………………… 36 Normal Equipment Operation & Software …………………………………………… 37 Operating Modes ………………………………………………………………..37 Standby Mode ………………………………………………………...... 37 Tanning Mode ………………………………………………………...... 37 Cool Down Mode ………………………………………………………………..37 Service Mode ………………………………………………………………………… 37 Starting the Tanning Session ……………………………………………………..

  • Page 5: Important Customer Information

    Any service work outside of the preventative care table in this manual should be done by a ProSun authorized technician. This is a Class I ME Equipment, with Type B Applied Parts used for continuous use for a maximum of 12 minutes.
  • Page 6 High Voltage exists and is dangerous for human contact. UV Radiation hazard for Human Health Caution Symbol means to proceed with caution and follow instructions careful ESD-Sensitive devices, do not touch without using necessary proper precautions. Type B Applied Parts Symbols found on equipment and packaging: Follow and read instructions thoroughly prior to using equipment.
  • Page 7 Protective earth connections. Recyclable Material Polystyrene Cardboard Mixed Paper Wood Waste of electrical and electronic equipment must not be disposed as unsorted municipal waste. It must be collected separately, and must be disposed as per local regulations. Alternating Current. Single Phase Three phase alternating current.

  • Page 8: Preparing The Product For Use

    ProSun does not assume any liability if there is non-compliance outside of the intended sale territories of the United States or Canada. The exporter assumes their own risk by removing this equipment outside of the United States or Canada.

  • Page 9: Delivery

    Coordinate with ProSun installation department to set up delivery and installation details. In a commercial setting an external timer is required. ProSun recommends to use this accesory (T-Max Flushmount G2).
  • Page 10 ProSun and all authorized parties shall reserve the right to refuse to install equipment into any room which has not been properly prepared in accordance with the electrical specification and room requirements.

  • Page 11: Comissioning Of The Tanning Equipment

    Commissioning of the tanning equipment The equipment is initially commissioned by a certified ProSun technician. The device will be properly assembled and handed over ready for us. In order to properly commission the tanning equipment, the business owner must ensure that the location is ready prior to the equipment being installed.

  • Page 12: General Safety Information

    General Safety Information General Safety Notes: Any adult with any of the below issues should not use this tanning equipment. If you are unsure consult your doctor prior to use. Contraindication: This sunlamp product is contraindicated for use on persons under the age of 18 years.
  • Page 13 Allow at least 48 hours to pass between each tanning session. Tan based on the exposure sticker on the unit or in this manual. Skin Type I should not tan. As an owner you must properly instruct all users on using the exposure table located on the front of the bed and only tanning for the minutes based on their skin type.
  • Page 14 This tanning bed is an over the counter tanning device that emits ultra violet light in the UVB and UVA region of the spectrum intended for the cosmetic tanning of the human skin in adults. Only one user should tan in the unit at a time. Wear protective eyewear during the duration of the sesion to protect the eyes against UV radiation.

  • Page 15: The Tanning Process

    The Tanning process: The tanning unit you have purchased is designed to concentrate optimal levels of UVA, in conjunction with very low percentages of UVB, on the outermost layers of the skin, so as to stimulate the production of Melanic pigment, which is slightly pink in its dormant state, these causes it to turn brown after excretion.

  • Page 16: Tanning Sensitivity

    Tanning Sensitivity Before using a tanning device always check with your doctor first. *The following may increase skin sensitivity: • Perfumes and colognes containing furocoumarins. • Compounds from natural products such as plants and fruits (their natural oils can sensitize the skin to sunlight.

  • Page 17: Equipment Components & Description

    Components The tanning device consists of 3 parts, a canopy, bench and deco panel in the middle. In the diagram above, the different components have been outlined and described. Not all components are available in every country. MARK76X3002 Rev 4...

  • Page 18: Device Description

    Device Description X3 Canopy 1. Facials 2. Cover plate 3. Deco 4. Ballasts 5. Side Bars 6. Endcaps 7. Canopy Acrylic X3 Bench 1. Lamps 2. Cover plate 3. Side Bar 4. End Cap 5. Bench Acrylic 6. Hinges 7. Sound system option 8.

  • Page 19: Options For Device

    Options for Device The below items are options for this device and may not be included in your unit. These options do not affect the normal functioning of your device. Canopy Feet Head Bench 1. Facial Cooler 2. Mp3/Headphone connection 3.

  • Page 20: Lamp Configuration

    71" inches 160W LAMP7670130 R-UVA 160w ProTech II High Intensive 79" inches 180W LAMP7670128 R-UVA 180w XL 2 Meters Luxura X3 36 Sli High Intensive - Spare parts Acrylic Bench ACRY7821786 Acrylic Canopy ACRY7821803 Goggles ACCE2501629 20 MARK76X3002 Rev 4...

  • Page 21: Dimensions

    90.1 inch Dimensions 90.1 inch 90.1 inch 92.5 inch 33.5 in 33.5 in 33.5 in 45.0 in 45.0 in 45.0 in 90.1 inch 45.2 in 45.2 in 53.7in 33.5 in 53.7in 20.0 in 20.0 in 45.0 in 49.2 in 47.2 in 47.2 in 49.2 in 61.0 in...

  • Page 22: Signs And Labels On Equipment

    Be sure to always have these labels on your equipment, if they become ilegible or are missing contact ProSun for replacement. Labels on units are differently sized than in descriptions below. Each label is listed in the following pages for clear description of what is written on each label.
  • Page 23 2. X3 Label The X3 label is attached to the front right panel on the outside of the unit. 3. 18 and Older Label Age warning label stating no one under the age of 18 should use this product. This label is located on the front of the unit visible to the user.
  • Page 24 6. Danger Label 5. Warning Label This label is located on the front of the This label is located on the front of the unit unit on the door panel, visible to the on the door panel, visible to the user. user.
  • Page 25 8. Serial Label The serial label is located on the back of the unit and is the identifier for the unit. This includes the serial number and conformity marking. 9. Connection Label This label is located on the back of the unit where the power goes into the unit and explains the different connection options for the electrical.

  • Page 26: Technical Data

    Technical Data Electrical Specifications Luxura X3 36 Sli High Intensive Power consumption rating: 21 Amp Electrical Rating: 230V 3~ 30A 60Hz Rated Fuses: 30 amp 3-pole Continuous Operation: Continuous operation for a maximum of 12 minutes. Classification: Type B Applied Parts...

  • Page 27: Electrical Requirements

    Please insure that your electrician and/or installer, reads this user’s manual carefully prior to the installation of your ProSun unit. You will need a buck booster if voltage requirements are not met. Service personnel should be authorized by ProSun to perform work on equipment and should have knowledge of equipment and read the full manual.

  • Page 28: Electrical Connections

    Electrical Connections Live Components Risk of fatal injury due to electrical shock when touching live parts. DANGER! Risk of electrical Shock To avoid the risk of electrical shock, this equipment must only be connected to a supply mains with protective earth. WARNING! Both the power supply and the related connection work must comply with national standards.

  • Page 29: Tanning Bed Standards

    Electromagnetic environment - Guidance RF emissions Group 1 The Luxura X3 Model 36X-P uses RF energy only for according to CISPR 11 its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
  • Page 30 Guidance and Manufacturer’s Declaration - Electromagnetic Immunity The Luxura X3 Model 36X-P is intended for use in the electromagnetic environment specified below. The customer or the user of the Luxura X3 Model 36X-P should assure that it is used in such an environment.
  • Page 31 Non life supporting ME Equipment The Luxura X3 Model 36X-P is intended for use in the electromagnetic environment specified below. The customer or the user of the Luxura X3 Model 36X-P should assure that it is used in such an environment.
  • Page 32 The Luxura X3 Model 36X-P is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Luxura X3 36 Model 36X-P can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Luxura X3 Model 36X-P as recommended below, according to the maximum output power of the communications equipment.

  • Page 33: Before Your Tanning Session

    Before your tanning session Check for any conditions mentioned in the manual that may prevent you from using the tanning equipment. Make-up and cosmetics Do not wear make-up when tanning. Clean skin absorbs the UV Light properly. Remove all make-up prior to tanning. Make-up clogs the pores in your face. The UV light from a tanning device re-opens these clogged pores.

  • Page 34: After The Tanning Session

    If used the warranty will be voided! ProSun® recommends the use of Lucasol One Step when cleaning acrylic sheets. Acrylics in tanning equipment are extremely porous and should not be cleaned/disinfected with non- approved products.

  • Page 35: Operation Of The Equipment

    Operation of Equipment Obligations of the business operator • As the business operator you are responsible for informing the user of the risks of tanning. • All danger and safety labels should be attached to the equipment and clearly visible to the user.

  • Page 36: How To Operate The Equipment

    How to operate the equipment Prior to operating the equipment check that the unit has been cleaned/disinfected and check for any damage to the acrylics. No other people should be in the vicinity of the equipment when in use, especially no children under the age of 18.

  • Page 37: Normal Equipment Operation & Software

    Normal Equipment Operation and software Before turning on the equipment make sure you have proper warning signs at your location. We recommend permanently placing a Warning sign on the wall close to the tanning bed such as the one below: WARNING •...

  • Page 38: Starting The Tanning Session

    Tanning Mode The following description is for a unit that has all possible features, some of these features may not be available for your unit or market. DANGER! Excessive dose of UV radiation Excessively prolonged tanning sessions may cause severe damage to skin and eyes.

  • Page 39: Stopping The Tanning Session

    Stopping the Tanning Session If the time in the session runs out naturally then the unit will go into a 3 minute cool-down. However if you need to stop the tanning session prior to end of the sesion you can do so by hitting the START/STOP Button.

  • Page 40: Customer Concerns

    Customer Concerns Failure to use protective eyewear may result in severe burns or other eye injury. If discomfort develops, stop using the tanning equipment immediately and seek medical advice from your physician. • Do not continue to use the tanning device if unexpected effects, such as itching, occur within 48 hours after the first tanning session.

  • Page 41: Storing The Device

    Waste of electrical and electronic equipment must be disposed as unsorted municipal waste. It must be collected separately, and must be disposed as per local regulations. Contact ProSun International LLC or an authorized representative for information concerning the decommissioning of your equipment.

  • Page 42: Control Functions

    Control Functions Not all options shown below are applicable on this device and in the US Market. General Controls: Function Description Additional Information Start Switches the UV lamps on Stop Switches the UV lamps off Hit stop once to pause the session and hit stop twice to end session.

  • Page 43: Indicator Lights

    Indicator Lights: All indicator lights will be on the display of the unit and will show green when ready to use or for selection purposes. The machine is set up for standard use with an external timer or a coinbox. If the machine must function without the external timer or coinbox, i.e.
  • Page 44 Controls in combination with an external timer or for coin-operated use: The sun bed will be started automatically when the external timer or coin-operated equipment switches on. The equipment will pause when the “stop” button is pressed once. If stop is pressed more than once, the equipment will remain paused.

  • Page 45: Reading The Hour Counters & Software

    Reading the hour counters and software To be able to read teh hour counter for the lamp hours, press the HIDDEN button and DECREASE body cooling button at the same time. The number that shows up multiplied by 10 is the total hours on your lamps.

  • Page 46: Error Messages

    Communication fault between control and switch parts. Error! Communication fault switch part. Error! Unknown phase. If one of these error messages appears on your display, you must stop using the unit immediately and contact ProSun. WARNING! 46 MARK76X3002 Rev 4...

  • Page 47: Care & Maintenance

    Accidental reactivation can result in serious accidents. Immediately after deenergizing the equipment, secure all switches or fuses used for deenergizing against being switched on again. For more maintenance information please visit our website at: www.prosun.com/customer-service MARK76X3002 Rev 4...

  • Page 48: Basic Care Maintenance

    The table below is a preventative care table that can be done by any unskilled person, if any service outside of this table is needed please contact ProSun immediately and this would should only be done by a certified technician.
  • Page 49 NOTE: For thorough cleaning and disinfection, the product you are using has to remain in contact with the surface that is being cleaned and disinfected for a specific amount of time, as mentioned on the instructions of the product. The specifc amount of time will depened on the type of cleaner/disinfectant that you are using.

  • Page 50: Cleaning & Disinfecting Acrylics

    Maintenance by skilled persons: ProSun recommends having an annual inspection by a certified technician to review connections, check for lose wiring, check the power cords and review all other high voltage components. At this time the certified technician can dust all electronic components.

  • Page 51: Troubleshooting Guide

    Damage to equipment by user or Contact ProSun for replacement. Non- cleaning skilled person can replace acrylic. Any troubleshooting outside of the above mentioned guide should be done by a certified technician. Contact ProSun to schedule service with a certified technician. MARK76X3002 Rev 4...

  • Page 52: Replacement Of Components

    Replacement of Components WARNING: Before doing any work on this machine, whether it be an unskilled person or a certified technician, ALWAYS disconnect the power at the main circuit breaker(or, if the main power cable has a wall plug, pull it out). WARNING! IMPORTANT: Only use manufacturer-authorized replacement components.

  • Page 53: Removing Acrylics

    Replacing Acrylics WARNING: Before obtaining access to terminals, all power supply circuits must be unplugged MARK76X3002 Rev 4...

  • Page 54: Replacing Facial Tanners

    Replacing the Facial Tanners Remove acrylics before removing face tanner 54 MARK76X3002 Rev 4...

  • Page 55: Replacing The Lamps

    Replacing the Lamps Remove acrylics before replacing lamps. Lamp replacement: Holding the lamp at both ends, turn it counter-clockwise until the bi-pins can slide easily out of the lamp holder socket, and slowly take it out of the unit. Clicks will be heard as the socket incrementally rotates.

  • Page 56: Assembly Introduction

    Assembly Introduction Required for assembly (not included): • Preferably 2 wrenches to tighten bolts and nuts • Power adapter kit (230V for commercial use, for warranty to apply voltage must be between 215-230 V) *Make sure you write the Serial Number (located on the Control Panel) down on the previous page and store the manual somewhere you can easily access.
  • Page 57 Symbols Warning symbol: People with long hair should wear a hairnet! Warning symbol: Wear the protective goggles provided Warning symbol: Attention please! Warning symbol: Sunbed should be disconnected from power source Warning symbol: Remove plug from socket Warning symbol: Not for household use Symbol: Facial tanner Symbol:...

  • Page 58: Assembly

    Assembly 58 MARK76X3002 Rev 4...
  • Page 59 MARK76X3002 Rev 4...
  • Page 60 60 MARK76X3002 Rev 4...
  • Page 61 MARK76X3002 Rev 4...
  • Page 62 62 MARK76X3002 Rev 4...
  • Page 63 MARK76X3002 Rev 4...
  • Page 64 64 MARK76X3002 Rev 4...
  • Page 65 MARK76X3002 Rev 4...
  • Page 66 66 MARK76X3002 Rev 4...

  • Page 67: Warranty

    PROSUN’s sole discretion. Prior to making any repairs PROSUN will advise the Purchaser of the nature of the problem and the cost to the Purchaser based on the proration of the defective system or component.
  • Page 68 CONSEQUENTIAL DAMAGES WITH RESPECT TO THE PRODUCTS DELIVERED HEREUNDER OR SUBSEQUENT USE THEREOF. 7. Limitation of Liability: PROSUN shall not be liable for any loss, damages, or penalty resulting from failure to perform any of its obligations under this Agreement due to major force or any cause beyond its reasonable control.
  • Page 69 Notes: MARK76X3002 Rev 4...
  • Page 70 ProSun International, LLC 2442 23rd Street North St Petersburg, FL 33713 www.ProSun.com 800-874-2776 Contraindication: This Product Is Contraindicated For Use On Persons Under The Age Of 18 Years. “Contraindication: This Product Must Not Be Used If Skin Lesions Or Open Wounds Are Present.” “Warning: This Product Should Not Be Used On Individuals Who Have Had Skin Cancer Or Have A Family History Of Skin Cancer.”...
