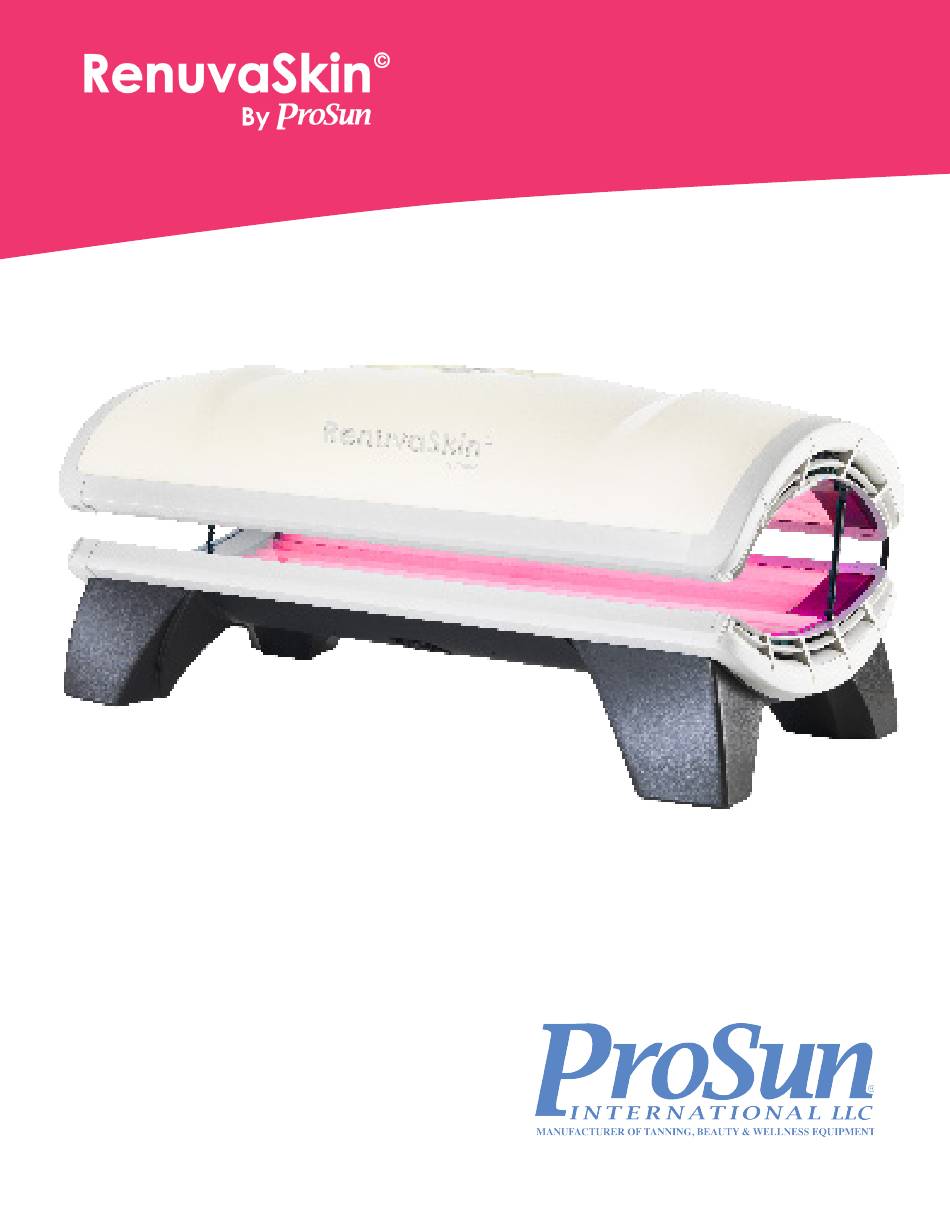

- Page 1 User's Manual 15 Minutes RenuvaSkin JD 3200 by ProSun 1 5 M I N U T E S ProSun International, LLC 2442 23rd Street North St Petersburg, FL 33713 www.ProSun.com 800-874-2776 E304-031...
-
Page 2: Table Of Contents
Table of Contents ® C O N G R A T U L A T I O N S on your ProSun purchase! Your new unit has been manufactured with the utmost care and attention and consists of high-quality parts. We are very proud of our products and it is very important for us that we deliver quality products. -
Page 3: Important Customer Information
Warning/Danger Label WARNING DANGER • Read the instruction booklet before using this • Follow instructions product • When using a folding combination machine with a • WEAR PROTECTIVE EYEWEAR -FAILURE TO DO canopy and bench, lie down on the bench and pull SO MAY RESULT IN SEVERE BURNS OR LONG the canopy down as far as it will go. -
Page 4: Lamps
Lamps Model Lamp RenuvaSkin JD 3200 Canopy: RenuvaSkin 18 x 75" 110W Bench: RenuvaSkin 14 x 71" 100W Exposure Recomendation Session Times • For optimum results use this product for a minimum period of 10-15 weeks. (Results may vary) •... -
Page 5: Electrical Requirement
Please insure that your electrician and/or installer, reads this user’s manual carefully prior to the installation of your ProSun unit. You will need a buck booster if voltage requirements are not met. -
Page 6: General Notes
OSHA, NEMA, local and national standards. • Expressed or implied on the part of ProSun®, its dealers, distributors or other designated agents, shall be contingent upon strict compliance with electrical, structural, and mechanical recommendations contained in this manual unless specified otherwise in the equipment sales order. - Page 7 * Unit can only be used by one(1) person during a session * Remain laying down during session, with face towards facials Canopy Feet Bench Head...
-
Page 8: Assembly
Assembly Introduction Required for assembly (not included): • 1 wrench to tighten bolts • Power adapter kit (220V for commercial use, for warranty to apply voltage must be between 218-230 V) *Make sure to write the Serial Number (located on the back of the canopy) down on the previous page and store the manual somewhere you can easily access. -
Page 9: Included Parts
Included Parts Make sure all parts are included before you begin. 2 Combi Arms FAMS6012171 1 Plastic Front Skirt (optional) 6 Combi Arm Screws bronze - CVPL 6012336 FASN1508828 red - CVPL 6513606 white - CVPL 6525156 2 Security Plates FAMS6012236 1 Gas Shock 4 Security Plate Screws... -
Page 10: Assembly
Assembly Carefully remove the bench from box and keep it face down. *Optional Front Skirt (if you do not have a plastic front skirt go to step 3) Retrieve 1 Plastic front skirt (located in canopy box) Remove the screw from the leg. bench Insert plastic front skirt and screw in place. - Page 11 Flip bench over. Retrieve 2 Combi Arms 6 Combi Arm Screws Remove the end cap filler. bench end cap filler combi arm Insert combi arm into bench and secure with screws. Repeat these steps on other side.
- Page 12 Remove the canopy from the box. Remove the end cap filler as done previously with the bench. While holding the canopy on each end attach it to the bench by sliding it onto the combi arms end cap filler canopy combi arm bench...
- Page 13 Retrieve 2 security plates 4 security plate screws Once the canopy is attached to the bench, secure the security plate into place with security plate screws. Repeat these steps on other side.
- Page 14 Retrieve 2 Gas shocks 4 Gas shock pivots 4 security clips While the canopy is in an open position, insert gas shock into the bench and into third hole on the canopy. Then insert gas shock pivots and secure with a security clip. If the canopy rises spontaneously move gas shock to hole 2...
- Page 15 The four end cap fillers that were removed need to be inserted back into the bench and canopy. End cap filler End cap filler...
- Page 16 *Optional Deco Shield Retrieve 1 Deco shield 2 deco shield screws 2 deco shield washers 2 deco shield nuts Insert the deco shield in between the canopy and bench. screw washer nut Secure by attaching the decor shield to combi arm.
- Page 17 On the back of the canopy you will see three chords: Plug "A" into your wall outlet (or into optional buck booster) Plug "B" in the bench "C" is used for the T-Max timer which is an optional additional feature (if you do not have a T-Max then the chord will remain unused) Used for optional t-max timer, see next page for...
-
Page 18: Addingt-Max
Optional T-Max Connection If the deco shield has an integrated t-max system follow the steps below. * For commercial use only Plug the male end (located on the back of deco shield) into the female end (located on the back of canopy) Back of canopy Male... - Page 19 If necessary unscrew the backing of the t-max timer to expose the 3 data ports. Connect the corresponding cables. Connection for Daisy Chain wireless adaption...
-
Page 20: Integrate T-Max
Optional T-Max Connection If you are adding a T-Max timer to your unit follow the steps below. * For commercial use only Remove the male end from the female (located on the back of the canopy) Back of canopy Male Female Pin 3 live... - Page 21 You will need an 18/2 speaker cable. Insert one end of the 18/2 cable into the J3 Contact on the back of the T-Max. Insert the other end into Pins 1 and 3 on the male part. Tighten screws to hold cables in place. **Make sure that the 18-2 cable is long enough to reach from the bed to the location of the T-Max timing display.
- Page 22 After all the appropriate cables connected, screw the top back on. Back of canopy Male Female...
- Page 23 Congratulations! Your RenuvaSkin JD 3200 is now ready for use. Refer to the operation instructions on the next page to use your new red light unit.
-
Page 24: Operation
Operation Note: Typically Stand-alone mode is for residential use and Remote mode is for commercial use All units come standard in remote-mode Start Stand-alone mode: By depressing start once the “+ and –“ buttons can be used to set the session time. Pressing for a second time will start the unit. - Page 25 Stand-alone mode: a. Reduce session time b. Reduce body cooler speed Coin mode: a. Reduce body cooler speed Stand-alone mode: a. Increase session time b. Increase body cooler speed Coin mode: a. Increase body cooler speed Face Switch the facial light on and off Switch the body cooler on and off...
- Page 26 General: The unit is generally set for use with external timer. When the unit has to operate in combination with an remote timer (remote mode), the internal time should be set to 0 minutes. If you want to use the unit in stand-alone mode follow the steps below: Press both "stop"...
- Page 27 Display messages: Overrule error (Switch print and/or display print defective) Filter glass defect (Filter glass of the face tanner is broken or glass protection is defective) or unit is overheated Communication error (No communication between switch print and display print) Note: When you receive one of the above error messages on your LCD display, you should stop using the unit and unplug it.
-
Page 28: Care And Maintenance
Care and Maintenance The Care and Maintenance in this section covers most of the difficulties that you may encounter under normal working circumstances. If your tanning bed fails to operate properly, please review the following steps before calling for service. THE BED YOU PURCHASED CONTAINS VOLTAGES WHICH ARE POTENTIALLY HAZARDOUS. - Page 29 Longevity of the acrylic sheets The acrylic sheets used in this machine should be changed between 1200 and 1500 hours of operation. If not, transmission could be greatly reduced. ProSun® recommends the use of Lucasol or Solacryl when cleaning acrylic sheets Longevity of the lamps Lamp lifespan is about 1,000 hours.
-
Page 30: Preventative Maintenance
Preventative Maintenance Schedule Frequency After Daily Weekly Monthly Each Session Click Strips are firmly in place Clean & Sanitize Bed Exterior Remove & Clean inside of acrylic sheets Dust Lamps Wipe & Vacuum fans & vents Clean all reflectors Inspect Acrylics for cracks & wear Check hinges bolts for proper tightness Inspect vent hoses for optimum ventilation... -
Page 31: Replacement Of Components
Replacement of Components WARNING: Before doing any repair or replacement work on this machine, ALWAYS disconnect the power at the main circuit breaker(or, if the main power cable has a wall plug, pull it out). Lamp replacement: Holding the lamp at both ends, turn it counter-clockwise until the bi-pins can slide easily out of the lamp holder socket, and slowly take it out of the unit. -
Page 32: Warranty
PROSUN’s sole discretion. Prior to making any repairs PROSUN will advise the Purchaser of the nature of the problem and the cost to the Purchaser based on the proration of the defective system or component. - Page 33 6. Exclusivity of Warranty: This warranty is the only warranty made by PROSUN and may only be modified or amended by a written instrument signed by a duly authorized officer of PROSUN. PROSUN’s sole and exclusive liability and Purchaser’s sole and exclusive remedy under this warranty shall be, at PROSUN’s option, to repair or replace, to the...
- Page 34 ProSun International, LLC 2442 23rd Street North St Petersburg, FL 33713 www.ProSun.com 800-874-2776...
