Bar Maintenance

To avoid asymmetrical wear on the bar, make sure it is turned
over periodically.
To keep the bar in perfect working order, proceed as follows
(Fig. 23):
• Grease the bearings on the nose sprocket.
• Clean the bar groove.
• Clean the lubrication holes.
• With a flat file, remove burr from the edges and level off
the guides.
Replace the bar whenever (Fig. 23):
• the groove is not as deep as the height of the drive links
(which must never touch the bottom);
• the inside of the guide is worn enough to make the chain
lean to one side.
You can purchase replacement parts for your iON16CS
chain saw by ordering online at snowjoe.com or, to order by
phone, contact Snow Joe + Sun Joe
®
1-866-SNOWJOE (1-866-766-9563).

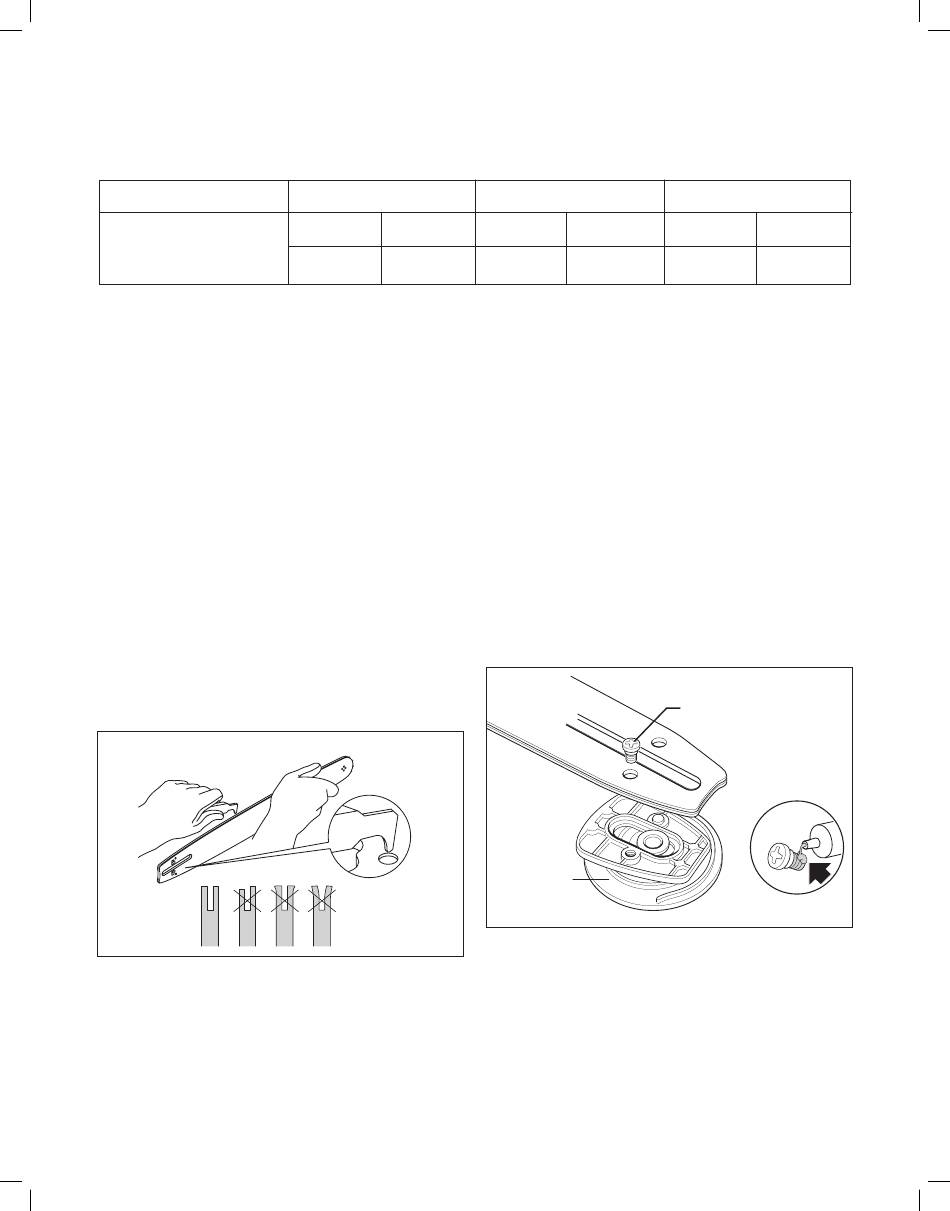

Fig. 23
Chain Pitch
inches mm
3/8
9.35
If it should be necessary to turn the bar over or replace it,
follow the instructions below (Fig. 24):
• carefully remove the casing, the chain and the bar;
• remove the screw using a Phillips screwdriver and remove
IMPORTANT! When initially assembled, a "threadlocker" was
inserted on the screw thread to prevent it from accidentally
working loose; this means that a certain amount of force will
be needed to remove the screw. Use a clamp to block the bar
in place and always use a suitable sized screwdriver.
• reassemble the tension adjuster on the other side of the
• apply a small amount of "threadlocker" on two or three
• replace the bar, the chain and the casing, following the
customer service at
®
18
Chain Gauge
mm
inches
0.050 1.3
the tension adjuster;
overturned bar, or on the new bar;
screw threads (following the instructions provided by the
manufacturer), then tighten the screw as far as possible;
assembly instructions in the "Bar and Chain Mounting"
section.
Fig. 24
Tension
adjuster
File Diameter
inches mm
13/64 5.2
Screw
