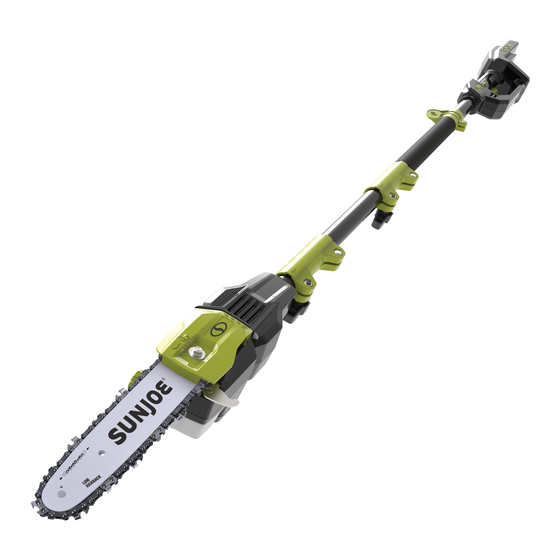

Cordless pole chain saw – core tool, 100-volt max, 0-inch

Advertisement

Quick Links

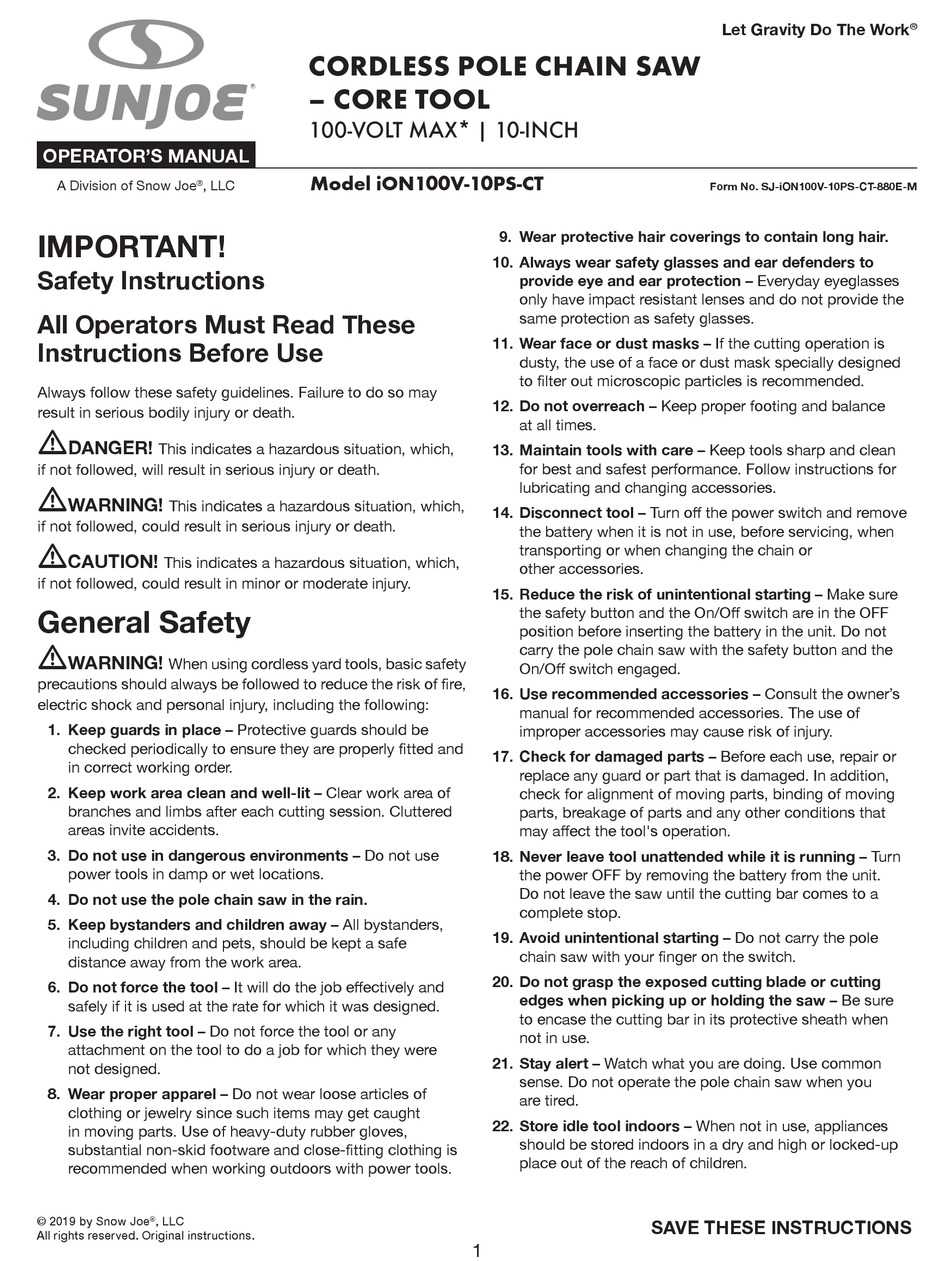

OPERATOR'S MANUAL
A Division of Snow Joe
, LLC
®
IMPORTANT!
Safety Instructions
All Operators Must Read These
Instructions Before Use
Always follow these safety guidelines. Failure to do so may
result in serious bodily injury or death.
m
DANGER!
This indicates a hazardous situation, which,
if not followed, will result in serious injury or death.
m
WARNING!
This indicates a hazardous situation, which,
if not followed, could result in serious injury or death.
m
CAUTION!
This indicates a hazardous situation, which,
if not followed, could result in minor or moderate injury.
General Safety
m
WARNING!
When using cordless yard tools, basic safety
precautions should always be followed to reduce the risk of fire,
electric shock and personal injury, including the following:
1. Keep guards in place – Protective guards should be
checked periodically to ensure they are properly fitted and
in correct working order.
2. Keep work area clean and well-lit – Clear work area of
branches and limbs after each cutting session. Cluttered
areas invite accidents.
3. Do not use in dangerous environments – Do not use
power tools in damp or wet locations.
4. Do not use the pole chain saw in the rain.
5. Keep bystanders and children away – All bystanders,
including children and pets, should be kept a safe
distance away from the work area.
6. Do not force the tool – It will do the job effectively and
safely if it is used at the rate for which it was designed.
7. Use the right tool – Do not force the tool or any
attachment on the tool to do a job for which they were
not designed.
8. Wear proper apparel – Do not wear loose articles of
clothing or jewelry since such items may get caught
in moving parts. Use of heavy-duty rubber gloves,
substantial non-skid footware and close-fitting clothing is
recommended when working outdoors with power tools.
© 2019 by Snow Joe
, LLC
®
All rights reserved. Original instructions.
CORDLESS POLE CHAIN SAW
– CORE TOOL
R
100-VOLT MAX* | 10-INCH
Model iON100V-10PS-CT
9. Wear protective hair coverings to contain long hair.
10. Always wear safety glasses and ear defenders to
provide eye and ear protection – Everyday eyeglasses
only have impact resistant lenses and do not provide the
same protection as safety glasses.
11. Wear face or dust masks – If the cutting operation is
dusty, the use of a face or dust mask specially designed
to filter out microscopic particles is recommended.
12. Do not overreach – Keep proper footing and balance
at all times.
13. Maintain tools with care – Keep tools sharp and clean
for best and safest performance. Follow instructions for
lubricating and changing accessories.
14. Disconnect tool – Turn off the power switch and remove
the battery when it is not in use, before servicing, when
transporting or when changing the chain or
other accessories.
15. Reduce the risk of unintentional starting – Make sure
the safety button and the On/Off switch are in the OFF
position before inserting the battery in the unit. Do not
carry the pole chain saw with the safety button and the
On/Off switch engaged.
16. Use recommended accessories – Consult the owner's
manual for recommended accessories. The use of
improper accessories may cause risk of injury.
17. Check for damaged parts – Before each use, repair or
replace any guard or part that is damaged. In addition,
check for alignment of moving parts, binding of moving
parts, breakage of parts and any other conditions that
may affect the tool's operation.
18. Never leave tool unattended while it is running – Turn
the power OFF by removing the battery from the unit.
Do not leave the saw until the cutting bar comes to a
complete stop.
19. Avoid unintentional starting – Do not carry the pole
chain saw with your finger on the switch.
20. Do not grasp the exposed cutting blade or cutting
edges when picking up or holding the saw – Be sure
to encase the cutting bar in its protective sheath when
not in use.
21. Stay alert – Watch what you are doing. Use common
sense. Do not operate the pole chain saw when you
are tired.
22. Store idle tool indoors – When not in use, appliances
should be stored indoors in a dry and high or locked-up
place out of the reach of children.
SAVE THESE INSTRUCTIONS
1
Let Gravity Do The Work
Form No. SJ-iON100V-10PS-CT-880E-M
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUNJOE iON100V-10PS-CT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SNOWJOE SUNJOE iON100V-10PS-CT

  • Page 1 Let Gravity Do The Work ® CORDLESS POLE CHAIN SAW – CORE TOOL 100-VOLT MAX* | 10-INCH OPERATOR’S MANUAL Model iON100V-10PS-CT A Division of Snow Joe , LLC ® Form No. SJ-iON100V-10PS-CT-880E-M IMPORTANT! 9. Wear protective hair coverings to contain long hair. 10.
  • Page 2 Specific Safety Rules For When using Pole Chain Saws 1. Use the pole chain saw only in daylight or good artificial light. 2. The use of power equipment can be regulated. Remember WARNING! SHOCK HAZARD! To protect yourself from to comply with legal regulations which may differ from one electrocution, do not operate the pole chain saw within location to another.
  • Page 3 After using • Watch for shifting of wood or other forces that may pinch the chain. 1. Always remove the battery from the tool before performing • Use extreme caution when re-entering a previous cut. any checks or maintenance. • Use the low-kickback chain and guide bar supplied with 2.
  • Page 4: Battery + Charger Safety Instructions

    ® ® battery pack in rain, snow or in damp or wet locations. at 1-866-SNOWJOE (1-866-766-9563). Do not use the battery pack or charger in the presence of explosive atmospheres (gaseous fumes, dust or flammable • Battery chemicals cause serious burns – Never let a materials) because sparks may be generated when inserting damaged battery pack contact the skin, eyes or mouth.
  • Page 5 • Store your battery pack and charger in a cool, dry 3. Store the battery packs in a cool place, ideally at 59°F place – Do not store the battery pack or charger where (15°C) and charged to at least 40%. temperatures may exceed 104ºF (40ºC), such as in 4.
  • Page 6 1-866-SNOWJOE (1-866-766-9563). 3. Electrical plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with grounded appliances. Unmodified plugs and matching outlets will reduce the risk of electric shock.
  • Page 7: Safety Symbols

    Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand Keep bystanders and children and follow all instructions in the a safe distance away.
  • Page 8 Save this manual for future reference. The opposite side The opposite side 14 15 Battery + Charger options available SOLD SEPARATELY at snowjoe.com iON100V-2.5AMP iON100V-5AMP iON100V-RCH 1. 10 inch cutting chain 8. Coupler on extension pole 16. Battery compartment 2.
  • Page 9: Carton Contents

    ® ® ® • 10 in. (25.4 cm) guide bar service center at 1-866-SNOWJOE (1-866-766-9563). • Socket wrench + blade screwdriver WARNING! When installing/replacing the guide bar and • Cutting bar sheath chain, use only identical replacement parts. Make sure the •...
  • Page 10 5. Starting at the tip, mount the chain drive links into the bar groove, leaving a loop at the back of the bar. The Fig. 2 chain will loosely fit until it is placed on the sprocket. (Figs. 5 & 6) NOTE: Make certain of the direction of the chain Sprocket cover...
  • Page 11 NOTE: To align the adjusting pin with the pin hole, move the adjusting pin backward as needed by adjusting the Fig. 10 chain tensioner screw counterclockwise with the supplied blade screwdriver (Fig. 8). Fig. 8 Chain tensioner Chain tensioner Blade screwdriver 10.
  • Page 12: Battery Charge Level Indicator

    In order to operate this pole chain saw, you will need to additionally purchase either the iON100V-2.5AMP or iON100V-5AMP lithium-ion battery and the 100 V quick charger (model iON100V-RCH). Battery and charger options available at snowjoe.com. Rear pole assembly Coupler Extension pole 2.
  • Page 13: Led Light

    In order to operate this pole chain saw, you will need to additionally purchase either the iON100V-2.5AMP or iON100V-5AMP lithium-ion battery and the 100 V quick charger (model iON100V-RCH). Battery and charger options available at snowjoe.com. iON100V-2.5AMP iON100V-5AMP WARNING! Charge only the iON100V-2.5AMP or...
  • Page 14: Charging The Battery

    Wait for a while and try to reinsert the battery into the charger. If the situation still persists, contact Snow Joe + Sun Joe customer service at 1-866-SNOWJOE ® ® (1-866-766-9563). Temperature abnormal...
  • Page 15: Preparing To Work

    – Something is wrong with fix the charger, contact the Snow Joe + Sun Joe customer ® ® the battery or the charger. service center at 1-866-SNOWJOE (1-866-766-9563). Contact Snow Joe ® Sun Joe customer service ® at 1-866-SNOWJOE (1-866-766-9563).
  • Page 16: Operation

    WARNING! Do not let familiarity with this type of tool Fig. 23 prevent you from taking all necessary precautions. Remember Oil tank cap that a careless fraction of a second is sufficient to inflict serious injury. WARNING! Do not cut trees near electrical wires. WARNING! Kickback may occur when the moving chain contacts an object at the upper portion of the tip of...
  • Page 17: Cutting Tips

    Basic Cutting Procedure 5. To turn the tool ON, push and hold the safety button (on either side) with your thumb and then squeeze the This unit is designed for trimming small branches and limbs On/Off switch with your fingers. Once the tool is running, up to 9.5 in.
  • Page 18: Maintenance

    ® ® • Keep the tree between you and the pole chain saw while at 1-866-SNOWJOE (1-866-766-9563) for all maintenance limbing. Cut from the side of the tree opposite the branch operations not foreseen in this manual. Any operation you are cutting.
  • Page 19: Chain Sharpening

    + Sun Joe dealer or call the Snow Joe ® ® ® tooth Sun Joe customer service center at 1-866-SNOWJOE ® (1-866-766-9563). Sharpening is necessary when: Cutting edge • the sawdust looks like dust; • cutting becomes more difficult; Depth limiter tooth •...
  • Page 20: Battery Caution + Disposal Information

    Snow Joe ® • If you drop the saw, carefully inspect it for damage. If the...
  • Page 21: Model + Serial Numbers

    Support If your Sun Joe iON100V-10PS-CT cordless pole chain saw ® requires service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. Model + Serial Numbers When contacting the company, reordering parts or arranging service from an authorized dealer, you will need to provide the model and serial numbers, which can be found on the decal located on the housing of the unit.
  • Page 22: Troubleshooting Tips

    Troubleshooting Troubleshooting Tips Most difficulties are easy to fix. Consult the troubleshooting table for common problems and their solutions. If you continue to experience problems or need repairs beyond these minor adjustments, please call 1-866-SNOWJOE (1-866-766-9563) for assistance. WARNING! Always remove the battery before performing any adjustments, maintenance or repairs to your cordless pole chain saw.
  • Page 23 NOTE: Accessories are subject to change without any obligation on the part of Snow Joe + Sun Joe . Accessories ® ® can be ordered online at snowjoe.com or via phone by contacting the Snow Joe + Sun Joe customer service center ® ®...
  • Page 24 NOTES...
  • Page 25 NOTES...
  • Page 26 NOTES...
  • Page 27 WHO CAN SEEK WARRANTY COVERAGE? Wearing parts like belts, augers, chains and tines are not covered under this warranty, and can be purchased at snowjoe.com or This Warranty is extended by Snow Joe + Sun Joe to the owner ®...
