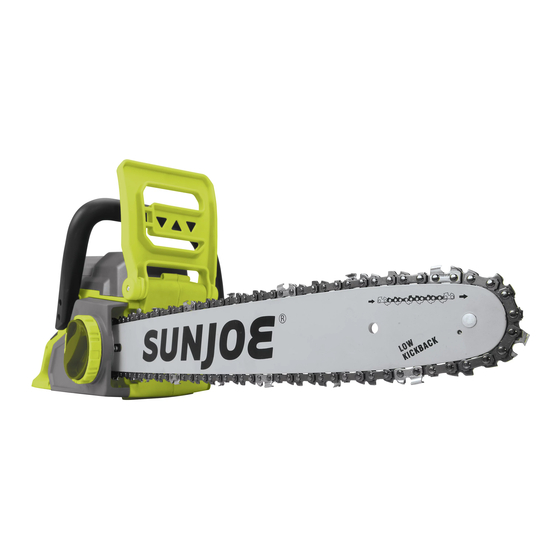

SNOWJOE SUNJOE iON16CS-CT Operator's Manual

40-volt 16-inch cordless chain saw - core tool

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

A Division of Snow Joe

, LLC

IMPORTANT!

Safety Instructions

All Operators Must Read These

Instructions Before Use

Read all the instructions contained in this manual. Keep this

manual in a safe place, so that the information is available at

all times. If you give the equipment to another person, make

sure to provide these operating instructions. Basic safety

precautions should always be followed to reduce the risk of

fire, electric shock, and personal injury.

Notice the personal safety alert symbol

manual to draw your attention to a WARNING given along

with the particular operating instruction. This means that

the operation requires special ATTENTION, CAUTION, and

AWARENESS.

Know Your Tool and Its Capabilities

This machine is a battery-powered portable chain saw that is

designed for residential use.

This machine is composed of an electric motor, which drives a

chain that runs on a bar.

The double braking system stops chain movement when the

motor is stopped or in the event of kickbacks while working.

Intended use

This machine was designed and manufactured for felling,

bucking, and delimbing trees or cutting wooden objects with

dimensions suitable for the cutting bar's capabilities.

Improper use

Any other use differing from the above mentioned applications

poses a serious hazard to the user and may damage both the

tool and your personal property. Examples of improper use

include, but are not limited to:

• trimming hedges;

• carving;

• sectioning pallets, crates, and various packing materials;

• sectioning furniture or other materials with nails, screws, or

other metal components;

• butchering meat;

, LLC

40-VOLT 16-INCH CORDLESS

CHAIN SAW – CORE TOOL

Model iON16CS-CT

used in this

• using the machine to lift, move, or split objects;

• using the machine while fastened to fixed supports.

Improper use of the machine will invalidate the warranty,

relieve the manufacturer from all liabilities, and the user will

consequently be liable for all and any damage or injury to

himself/herself or others.

General Power Tool

Safety Warnings

WARNING!

Read all safety warnings and all

instructions. Failure to follow the warnings and instructions

may result in electric shock, fire, and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your

battery-operated (cordless) power tool.

Work area safety

1. Keep the work area clean and well-lit. Cluttered, dark

areas invite accidents.

2. Do not operate power tools in explosive atmospheres,

such as in the presence of flammable liquids, gases, or

dust. Power tools create sparks ,which may ignite the

dust or fumes.

3. Keep children, bystanders, and pets a safe distance away

from the power tool during operation and as the machine

cools. Children must always be supervised to ensure that

they do not play with the equipment.

Electrical safety

1. Avoid body contact with earthed or grounded surfaces,

such as pipes, radiators, ranges, and refrigerators. There

is an increased risk of electric shock if your body is

earthed or grounded.

2. Do not expose power tools or chargers to rain or wet

conditions. Water entering a power tool or charger will

increase the risk of electric shock.

Personal safety

1. Stay alert, watch what you are doing and use common

sense when operating a power tool. Do not use a power

tool while you are tired or under the influence of drugs,

alcohol, or medication. A moment of inattention while

operating a power tool may result in serious personal

injury.

SAVE THESE INSTRUCTIONS

Form No. SJ-iON16CS-CT-880E-M

OPERATOR'S MANUAL

Table of Contents

Need help?

Do you have a question about the SUNJOE iON16CS-CT and is the answer not in the manual?

Questions and answers

Summary of Contents for SNOWJOE SUNJOE iON16CS-CT

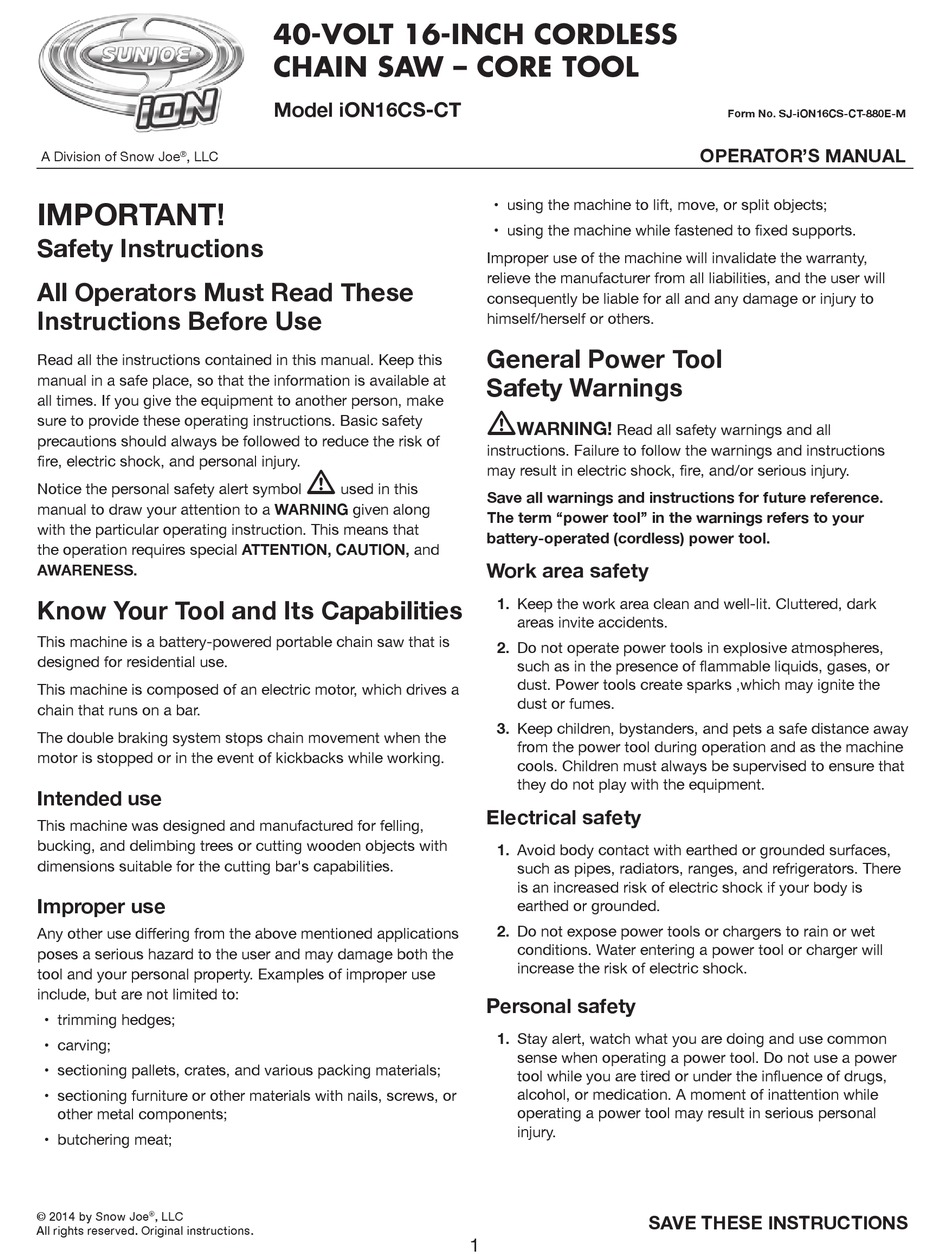

Page 1 40-VOLT 16-INCH CORDLESS CHAIN SAW – CORE TOOL Model iON16CS-CT Form No. SJ-iON16CS-CT-880E-M OPERATOR’S MANUAL A Division of Snow Joe , LLC ® IMPORTANT! • using the machine to lift, move, or split objects; • using the machine while fastened to fixed supports. Safety Instructions Improper use of the machine will invalidate the warranty, relieve the manufacturer from all liabilities, and the user will...
Page 2: Chain Saw Safety Warnings
2. Use personal protective equipment suited to your work 5. Maintain power tools with care to ensure safe operation conditions to help reduce personal injuries. This includes and optimal performance. Keep handles dry, clean, and a dust mask, rubber gloves, non-skid safety shoes, a hard free from oil and grease.
Page 3: Causes And Prevention Of Kickback
• When cutting a limb that is under tension, be cautious • Follow the manufacturer’s sharpening and maintenance of spring back. When the tension in the wood fibers is instructions for the saw chain. Decreasing the depth released, the spring-loaded limb may strike the operator gauge height can lead to increased kickback.
Page 4 • Do not burn or incinerate battery packs – Battery packs CAUTION! To reduce the risk of injury, charge the may explode, causing personal injury or damage. Toxic EcoSharp iBAT40 battery pack or the EcoSharp ® ® fumes and materials are created when battery packs are iBAT40XR battery pack only in their compatible chargers burned.
Page 5 7. Do not exhaustively discharge batteries. Exhaustive partially charged battery pack will result in overcharging and cell damage. Do not leave batteries in the charger for discharge will damage the battery cells. The most common cause of exhaustive discharge is lengthy storage days on end.
Page 6: Safety Symbols
Safety Symbols The following table depicts and describes safety symbols that may appear on this product. Read, understand and follow all instructions on the machine before attempting to assemble and operate. Symbols Descriptions Symbols Descriptions READ THE OPERATOR'S MANUAL(S) – Read, understand and follow all Keep bystanders and children a instructions in the user...
Page 7: Technical Data
Know Your Cordless Chain Saw Read the owner’s manual and safety rules carefully before operating your cordless chain saw. Compare the illustration below to the actual unit in order to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
Page 8: Carton Contents
Unpacking Bar and Chain Mounting WARNING! Always wear heavy-duty gloves when Carton Contents handling the bar and chain. Mount the bar and chain very • Cordless chain saw carefully so as not to impair the safety and efficiency of the machine.
Page 9: Preparing To Work
3. Mount the guide bar by inserting the stud bolt into the 6. Raise the guide bar and tighten the chain tension bar’s hole using the tension adjuster; move the bar adjustment knob securely (Fig. 6). towards the back of the machine body (Fig. 3). Fig.
Page 10: Adjusting The Chain Tension
Adjusting the Chain Tension To check that the brake works efficiently, proceed as follows: WARNING! – Start the motor by holding the front hand grip and Before performing any checks, push the front hand guard forward with your thumb adjustments, repairs, or maintenance on the machine, make (towards the guide bar).
Page 11: Battery Pack Operation
Battery Pack Operation • Use the battery charge indicator lights to determine when to charge your EcoSharp iBAT40 or EcoSharp ® ® iBAT40XR lithium-ion battery pack. The equipment is powered by a lithium-ion battery. The battery • You can "top-off" your battery pack's charge before starting pack is completely sealed and maintenance free.
Page 12: Charging A Hot Or Cold Battery Pack
5. When the bottom light turns green, the battery is fully 8. When charging is complete, remove the battery from the charged (Fig. 11). charger by pulling the push lock button and sliding the battery backward to unlock it from the charger (Fig. 12). Fig.
Page 13: Operation
Operation Operating Tips Starting the Machine WARNING! For your safety and that of others: 1. Insert the battery in its housing (Fig. 13). 1. Do not use the machine without reading the instructions carefully. Become acquainted with the controls and the proper use of the machine.
Page 14: Cutting Techniques
Cutting Techniques • To avoid the risk of fire, do not leave the machine with the engine hot on leaves or dry grass. Before felling or delimbing for the first time, practice sawing WARNING! logs on the ground or on trestles, so that you can get familiar It takes specific training to use the machine with the machine and the most suitable sawing techniques.
Page 15 • Limbing a tree Make the notch 1/3 the diameter of the tree, perpendicular to the direction of falls as illustrated (Fig. 17). Limbing is the process in which branches are removed from a fallen tree. When limbing, leave larger lower limbs to support Fig.
Page 16 ii) When the log is supported on one end (Fig. 19B), cut 1/3 iv) It is easier to saw a log using the spiked bumper the diameter from the underside (underbuck). Then make (Fig. 19D). the finished cut by overbucking to meet the first cut. –...
Page 17: Maintenance
• If there is excessive dirt or resin build-up, disassemble the During normal saw operation, the temperature of the chain chain and place it in a container with a suitable cleanser. will increase. The drive links of a correctly tensioned warm Then rinse it with clean water and treat it with a suitable chain will hang approximately 0.050 in.
Page 18 An authorized service center will sharpen the chain using the – the length of the cutting edges decreases to 5 mm or less; right tools to ensure minimum removal of material and even sharpness on all the cutting edges. – there is too much play between the links and the rivets. If you sharpen the chain yourself, use special round-section files with the right diameter depending on the type of chain Fig.
Page 19: Bar Maintenance
Bar Maintenance • reassemble the tension adjuster on the other side of the overturned bar, or on the new bar; To avoid asymmetrical wear on the bar, make sure it is turned • apply a small amount of “threadlocker” on two or three over periodically.
Page 20: Model And Serial Numbers
Proper Care for Battery/Charger WARNING! To reduce the risk of injury, always unplug the charger and remove the battery pack from the charger before performing any maintenance task. Never disassemble the battery pack or charger. Contact your Snow Joe ® Sun Joe dealer or the Snow Joe + Sun Joe...
Page 21: Troubleshooting
Troubleshooting Fault Possible Cause Remedy The motor does not start • No battery or not • Make sure that the battery is inserted correctly inserted correctly when you switch it on • Battery exhausted • Check charge status and recharge the battery The motor stops •...
Page 22 Accessories WARNING! ALWAYS use only authorized Snow Joe + Sun Joe replacement parts and accessories. NEVER use ® ® replacement parts or accessories that are not intended for use with this saw. Contact Snow Joe + Sun Joe if you are unsure ®...
