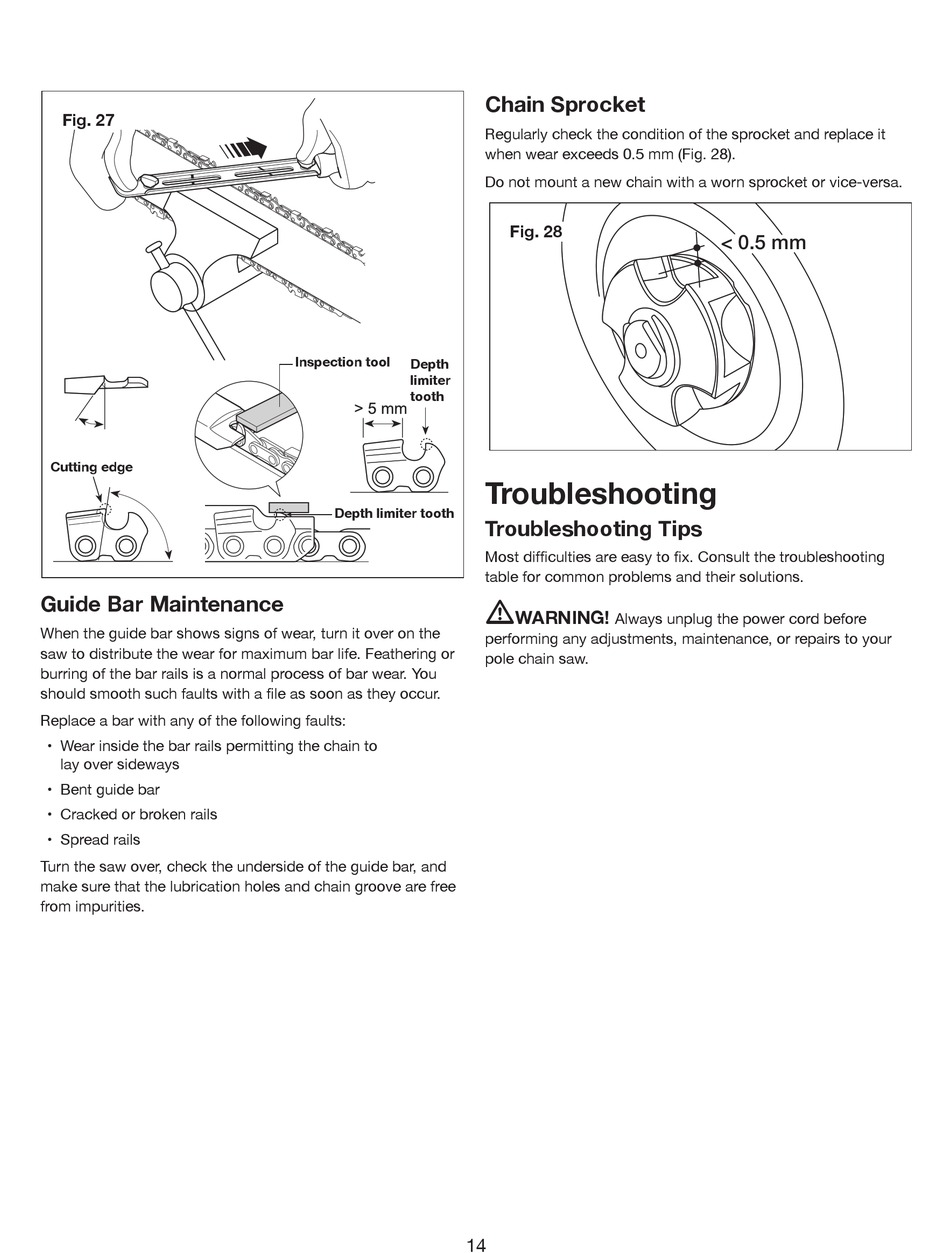

Chain Sprocket; Guide Bar Maintenance; Troubleshooting Tips - SNOWJOE Sunjoe SWJ802E Operator's Manual

Fig. 27
Cutting edge

Guide Bar Maintenance

When the guide bar shows signs of wear, turn it over on the
saw to distribute the wear for maximum bar life. Feathering or
burring of the bar rails is a normal process of bar wear. You
should smooth such faults with a file as soon as they occur.
Replace a bar with any of the following faults:
• Wear inside the bar rails permitting the chain to
lay over sideways
• Bent guide bar
• Cracked or broken rails
• Spread rails
Turn the saw over, check the underside of the guide bar, and
make sure that the lubrication holes and chain groove are free
from impurities.
Inspection tool
Depth
limiter
tooth
Depth limiter tooth
14

Chain Sprocket

Regularly check the condition of the sprocket and replace it
when wear exceeds 0.5 mm (Fig. 28).
Do not mount a new chain with a worn sprocket or vice-versa.
Fig. 28
Troubleshooting

Troubleshooting Tips

Most difficulties are easy to fix. Consult the troubleshooting
table for common problems and their solutions.
m
WARNING!
Always unplug the power cord before
performing any adjustments, maintenance, or repairs to your
pole chain saw.
< 0.5 mm
