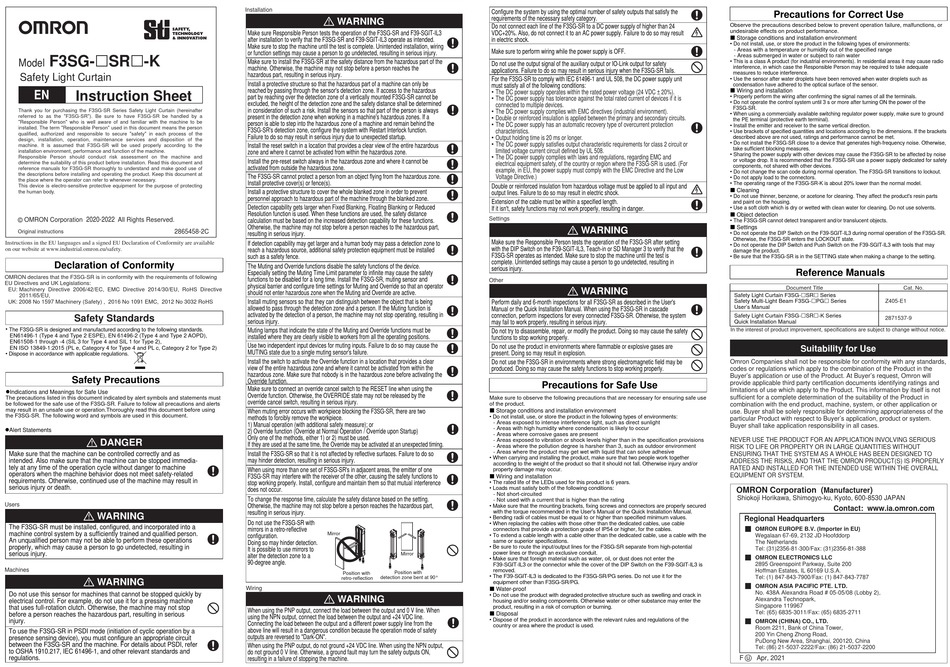

Omron F3SG SR K Series Instruction Sheet

F3SG-SR-K
Model
Safety Light Curtain
EN Instruction Sheet
Thank you for purchasing the F3SG-SR Series Safety Light Curtain (hereinafter
referred to as the "F3SG-SR"). Be sure to have F3SG-SR be handled by a
"Responsible Person" who is well aware of and familiar with the machine to be
installed. The term "Responsible Person" used in this document means the person
qualified, authorized and responsible to secure "safety" in each process of the
design, installation, operation, maintenance services and disposition of the
machine. It is assumed that F3SG-SR will be used properly according to the
installation environment, performance and function of the machine.
Responsible Person should conduct risk assessment on the machine and
determine the suitability of this product before installation. Read this document and
reference manuals for F3SG-SR thoroughly to understand and make good use of
the descriptions before installing and operating the product. Keep this document at
the place where the operator can refer to whenever necessary.
This device is electro-sensitive protective equipment for the purpose of protecting
the human body.
© OMRON Corporation 2020-2022 All Rights Reserved.
2865458-2C
Original instructions
Instructions in the EU languages and a signed EU Declaration of Conformity are available
on our website at www.industrial.omron.eu/safety.
Declaration of Conformity
OMRON declares that the F3SG-SR is in conformity with the requirements of following
EU Directives and UK Legislations:
EU: Machinery Directive 2006/42/EC, EMC Directive 2014/30/EU, RoHS Directive
2011/65/EU,
UK: 2008 No 1597 Machinery (Safety) , 2016 No 1091 EMC, 2012 No 3032 RoHS
Safety Standards
• The F3SG-SR is designed and manufactured according to the following standards.
EN61496-1 (Type 4 and Type 2 ESPE), EN 61496-2 (Type 4 and Type 2 AOPD),
EN61508-1 through -4 (SIL 3 for Type 4 and SIL 1 for Type 2),
EN ISO 13849-1:2015 (PL e, Category 4 for Type 4 and PL c, Category 2 for Type 2)
• Dispose in accordance with applicable regulations.

Safety Precautions

Indications and Meanings for Safe Use
The precautions listed in this document indicated by alert symbols and statements must
be followed for the safe use of the F3SG-SR. Failure to follow all precautions and alerts
may result in an unsafe use or operation.Thoroughly read this document before using
the F3SG-SR. The following word and symbols are used in this document.
Alert Statements
DANGER
Make sure that the machine can be controlled correctly and as
intended. Also make sure that the machine can be stopped immedia-
tely at any time of the operation cycle without danger to machine
operators when the machine behavior does not meet safety-related
requirements. Otherwise, continued use of the machine may result in
serious injury or death.

Users

WARNING
The F3SG-SR must be installed, configured, and incorporated into a
machine control system by a sufficiently trained and qualified person.
An unqualified person may not be able to perform these operations
properly, which may cause a person to go undetected, resulting in
serious injury.

Machines

WARNING
Do not use this sensor for machines that cannot be stopped quickly by
electrical control. For example, do not use it for a pressing machine
that uses full-rotation clutch. Otherwise, the machine may not stop
before a person reaches the hazardous part, resulting in serious
injury.
To use the F3SG-SR in PSDI mode (initiation of cyclic operation by a
presence sensing device), you must configure an appropriate circuit
between the F3SG-SR and the machine. For details about PSDI, refer
to OSHA 1910.217, IEC 61496-1, and other relevant standards and
regulations.

Installation

WARNING
Make sure Responsible Person tests the operation of the F3SG-SR and F39-SGIT-IL3
after installation to verify that the F3SG-SR and F39-SGIT-IL3 operate as intended.
Make sure to stop the machine until the test is complete. Unintended installation, wiring
or function settings may cause a person to go undetected, resulting in serious injury.
Make sure to install the F3SG-SR at the safety distance from the hazardous part of the
machine. Otherwise, the machine may not stop before a person reaches the
hazardous part, resulting in serious injury.
Install a protective structure so that the hazardous part of a machine can only be
reached by passing through the sensor's detection zone. If access to the hazardous
part by reaching over the detection zone of a vertically mounted F3SG-SR cannot be
excluded, the height of the detection zone and the safety distance shall be determined
in consideration of such a risk. Install the sensors so that part of the person is always
present in the detection zone when working in a machine's hazardous zones. If a
person is able to step into the hazardous zone of a machine and remain behind the
F3SG-SR's detection zone, configure the system with Restart Interlock function.
Failure to do so may result in serious injury due to unexpected startup.
Install the reset switch in a location that provides a clear view of the entire hazardous
zone and where it cannot be activated from within the hazardous zone.
Install the pre-reset switch always in the hazardous zone and where it cannot be
activated from outside the hazardous zone.
The F3SG-SR cannot protect a person from an object flying from the hazardous zone.
Install protective cover(s) or fence(s).
Install a protective structure to cover the whole blanked zone in order to prevent
personnel approach to hazardous part of the machine through the blanked zone.
Detection capability gets larger when Fixed Blanking, Floating Blanking or Reduced
Resolution function is used. When these functions are used, the safety distance
calculation must be based on the increased detection capability for these functions.
Otherwise, the machine may not stop before a person reaches to the hazardous part,
resulting in serious injury.
If detection capability may get larger and a human body may pass a detection zone to
reach a hazardous source, additional safety protection equipment must be installed
such as a safety fence.
The Muting and Override functions disable the safety functions of the device.
Especially setting the Muting Time Limit parameter to infinite may cause the safety
functions to be disabled for a long time. Install the F3SG-SR, muting sensor and
physical barrier and configure time settings for Muting and Override so that an operator
should not enter hazardous zone when the Muting and Override are active.
Install muting sensors so that they can distinguish between the object that is being
allowed to pass through the detection zone and a person. If the Muting function is
activated by the detection of a person, the machine may not stop operating, resulting in
serious injury.
Muting lamps that indicate the state of the Muting and Override functions must be
installed where they are clearly visible to workers from all the operating positions.
Use two independent input devices for muting inputs. Failure to do so may cause the
MUTING state due to a single muting sensor's failure.
Install the switch to activate the Override function in a location that provides a clear
view of the entire hazardous zone and where it cannot be activated from within the
hazardous zone. Make sure that nobody is in the hazardous zone before activating the
Override function.
Make sure to connect an override cancel switch to the RESET line when using the
Override function. Otherwise, the OVERRIDE state may not be released by the
override cancel switch, resulting in serious injury.
When muting error occurs with workpiece blocking the F3SG-SR, there are two
methods to forcibly remove the workpiece.
1) Manual operation (with additional safety measure); or
2) Override function (Override at Normal Operation / Override upon Startup)
Only one of the methods, either 1) or 2) must be used.
If they are used at the same time, the Override may be activated at an unexpected timing.
Install the F3SG-SR so that it is not affected by reflective surfaces. Failure to do so
may hinder detection, resulting in serious injury.
When using more than one set of F3SG-SR's in adjacent areas, the emitter of one
F3SG-SR may interfere with the receiver of the other, causing the safety functions to
stop working properly. Install, configure and maintain them so that mutual interference
does not occur.
To change the response time, calculate the safety distance based on the setting.
Otherwise, the machine may not stop before a person reaches the hazardous part,
resulting in serious injury.
Do not use the F3SG-SR with
mirrors in a retro-reflective
Mirror
configuration.
Doing so may hinder detection.
It is possible to use mirrors to
Mirror
alter the detection zone to a
90-degree angle.
Position with
Position with
detection zone bent at 90°
retro-reflection

Wiring

WARNING
When using the PNP output, connect the load between the output and 0 V line. When
using the NPN output, connect the load between the output and +24 VDC line.
Connecting the load between the output and a different power supply line from the
above line will result in a dangerous condition because the operation mode of safety
outputs are reversed to "Dark-ON".
When using the PNP output, do not ground +24 VDC line. When using the NPN output,
do not ground 0 V line. Otherwise, a ground fault may turn the safety outputs ON,
resulting in a failure of stopping the machine.
Configure the system by using the optimal number of safety outputs that satisfy the
requirements of the necessary safety category.
Do not connect each line of the F3SG-SR to a DC power supply of higher than 24
VDC+20%. Also, do not connect it to an AC power supply. Failure to do so may result
in electric shock.
Make sure to perform wiring while the power supply is OFF.
Do not use the output signal of the auxiliary output or IO-Link output for safety
applications. Failure to do so may result in serious injury when the F3SG-SR fails.
For the F3SG-SR to comply with IEC 61496-1 and UL 508, the DC power supply unit
must satisfy all of the following conditions:
• The DC power supply operates within the rated power voltage (24 VDC ± 20%).
• The DC power supply has tolerance against the total rated current of devices if it is
connected to multiple devices.
• The DC power supply complies with EMC directives (industrial environment).
• Double or reinforced insulation is applied between the primary and secondary circuits.
• The DC power supply has an automatic recovery type of overcurrent protection
characteristics.
• Output holding time is 20 ms or longer.
• The DC power supply satisfies output characteristic requirements for class 2 circuit or
limited voltage current circuit defined by UL 508.
• The DC power supply complies with laws and regulations, regarding EMC and
electrical equipment safety, of the country or region where the F3SG-SR is used. (For
example, in EU, the power supply must comply with the EMC Directive and the Low
Voltage Directive.)
Double or reinforced insulation from hazardous voltage must be applied to all input and
output lines. Failure to do so may result in electric shock.
Extension of the cable must be within a specified length.
If it isn't, safety functions may not work properly, resulting in danger.

Settings

WARNING
Make sure the Responsible Person tests the operation of the F3SG-SR after setting
with the DIP Switch on the F39-SGIT-IL3, Teach-in or SD Manager 3 to verify that the
F3SG-SR operates as intended. Make sure to stop the machine until the test is
complete. Unintended settings may cause a person to go undetected, resulting in
serious injury.

Other

WARNING
Perform daily and 6-month inspections for all F3SG-SR as described in the User's
Manual or the Quick Installation Manual. When using the F3SG-SR in cascade
connection, perform inspections for every connected F3SG-SR. Otherwise, the system
may fail to work properly, resulting in serious injury.
Do not try to disassemble, repair, or modify the product. Doing so may cause the safety
functions to stop working properly.
Do not use the product in environments where flammable or explosive gases are
present. Doing so may result in explosion.
Do not use the F3SG-SR in environments where strong electromagnetic field may be
produced. Doing so may cause the safety functions to stop working properly.

Precautions for Safe Use

Make sure to observe the following precautions that are necessary for ensuring safe use
of the product.
 Storage conditions and installation environment
• Do not install, use, or store the product in the following types of environments:
- Areas exposed to intense interference light, such as direct sunlight
- Areas with high humidity where condensation is likely to occur
- Areas where corrosive gases are present
- Areas exposed to vibration or shock levels higher than in the specification provisions
- Areas where the pollution degree is harsher than 3, such as outdoor environment
- Areas where the product may get wet with liquid that can solve adhesive
• When carrying and installing the product, make sure that two people work together
according to the weight of the product so that it should not fall. Otherwise injury and/or
property damage may occur.
 Wiring and installation
• The rated life of the LEDs used for this product is 6 years.
• Loads must satisfy both of the following conditions:
- Not short-circuited
- Not used with a current that is higher than the rating
• Make sure that the mounting brackets, fixing screws and connectors are properly secured
with the torque recommended in the User's Manual or the Quick Installation Manual.
• Bending radii of cables must be equal to or higher than specified minimum values.
• When replacing the cables with those other than the dedicated cables, use cable
connectors that provide a protection grade of IP54 or higher, for the cables.
• To extend a cable length with a cable other than the dedicated cable, use a cable with the
same or superior specifications.
• Be sure to route the input/output lines for the F3SG-SR separate from high-potential
power lines or through an exclusive conduit.
• Make sure that foreign material such as water, oil, or dust does not enter the
F39-SGIT-IL3 or the connector while the cover of the DIP Switch on the F39-SGIT-IL3 is
removed.
• The F39-SGIT-IL3 is dedicated to the F3SG-SR/PG series. Do not use it for the
equipment other than F3SG-SR/PG.
 Water-proof
• Do not use the product with degraded protective structure such as swelling and crack in
housing and/or sealing components. Otherwise water or other substance may enter the
product, resulting in a risk of corruption or burning.
 Disposal
• Dispose of the product in accordance with the relevant rules and regulations of the
country or area where the product is used.

Precautions for Correct Use

Observe the precautions described below to prevent operation failure, malfunctions, or
undesirable effects on product performance.
 Storage conditions and installation environment
• Do not install, use, or store the product in the following types of environments:
- Areas with a temperature or humidity out of the specified range
- Areas submerged in water or subject to rain water
• This is a class A product (for industrial environments). In residential areas it may cause radio
interference, in which case the Responsible Person may be required to take adequate
measures to reduce interference.
• Use the sensor after water droplets have been removed when water droplets such as
condensation have adhered to the optical surface of the sensor.
 Wiring and installation
• Properly perform the wiring after confirming the signal names of all the terminals.
• Do not operate the control system until 3 s or more after turning ON the power of the
F3SG-SR.
• When using a commercially available switching regulator power supply, make sure to ground
the PE terminal (protective earth terminal).
• Install the emitter and receiver to the same vertical direction.
• Use brackets of specified quantities and locations according to the dimensions. If the brackets
described above are not used, ratings and performance cannot be met.
• Do not install the F3SG-SR close to a device that generates high-frequency noise. Otherwise,
take sufficient blocking measures.
• Sharing the power supply with other devices may cause the F3SG-SR to be affected by noise
or voltage drop. It is recommended that the F3SG-SR use a power supply dedicated for safety
components, not shared with other devices.
• Do not change the scan code during normal operation. The F3SG-SR transitions to lockout.
• Do not apply load to the connectors.
• The operating range of the F3SG-SR-K is about 20% lower than the normal model.
 Cleaning
• Do not use thinner, benzene, or acetone for cleaning. They affect the product's resin parts
and paint on the housing.
• Use a soft cloth which is dry or wetted with clean water for cleaning. Do not use solvents.
 Object detection
• The F3SG-SR cannot detect transparent and/or translucent objects.
 Settings
• Do not operate the DIP Switch on the F39-SGIT-IL3 during normal operation of the F3SG-SR.
Otherwise, the F3SG-SR enters the LOCKOUT state.
• Do not operate the DIP Switch and Push Switch on the F39-SGIT-IL3 with tools that may
damage the product.
• Be sure that the F3SG-SR is in the SETTING state when making a change to the setting.
Reference Manuals
Document Title Cat. No.
Safety Light Curtain F3SG-SR Series
Safety Multi-Light Beam F3SG-PG Series Z405-E1
User's Manual
Safety Light Curtain F3SG-SR-K Series
2871537-9
Quick Installation Manual
In the interest of product improvement, specifications are subject to change without notice.
Suitability for Use
Omron Companies shall not be responsible for conformity with any standards,
codes or regulations which apply to the combination of the Product in the
Buyer's application or use of the Product. At Buyer's request, Omron will
provide applicable third party certification documents identifying ratings and
limitations of use which apply to the Product. This information by itself is not
sufficient for a complete determination of the suitability of the Product in
combination with the end product, machine, system, or other application or
use. Buyer shall be solely responsible for determining appropriateness of the
particular Product with respect to Buyer's application, product or system.
Buyer shall take application responsibility in all cases.
NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS
RISK TO LIFE OR PROPERTY OR IN LARGE QUANTITIES WITHOUT
ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO
ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT(S) IS PROPERLY
RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL
EQUIPMENT OR SYSTEM.
OMRON Corporation ( )
Manufacturer
Shiokoji Horikawa, Shimogyo-ku, Kyoto, 600-8530 JAPAN
Contact: www.ia.omron.com
Regional Headquarters
OMRON EUROPE B.V. (Importer in EU)
Wegalaan 67-69, 2132 JD Hoofddorp
The Netherlands
Tel: (31)2356-81-300/Fax: (31)2356-81-388
OMRON ELECTRONICS LLC
2895 Greenspoint Parkway, Suite 200
Hoffman Estates, IL 60169 U.S.A.
Tel: (1) 847-843-7900/Fax: (1) 847-843-7787
OMRON ASIA PACIFIC PTE. LTD.
No. 438A Alexandra Road # 05-05/08 (Lobby 2),
Alexandra Technopark,
Singapore 119967
Tel: (65) 6835-3011/Fax: (65) 6835-2711
OMRON (CHINA) CO., LTD.
Room 2211, Bank of China Tower,
200 Yin Cheng Zhong Road,
PuDong New Area, Shanghai, 200120, China
Tel: (86) 21-5037-2222/Fax: (86) 21-5037-2200
F u Apr, 2021
