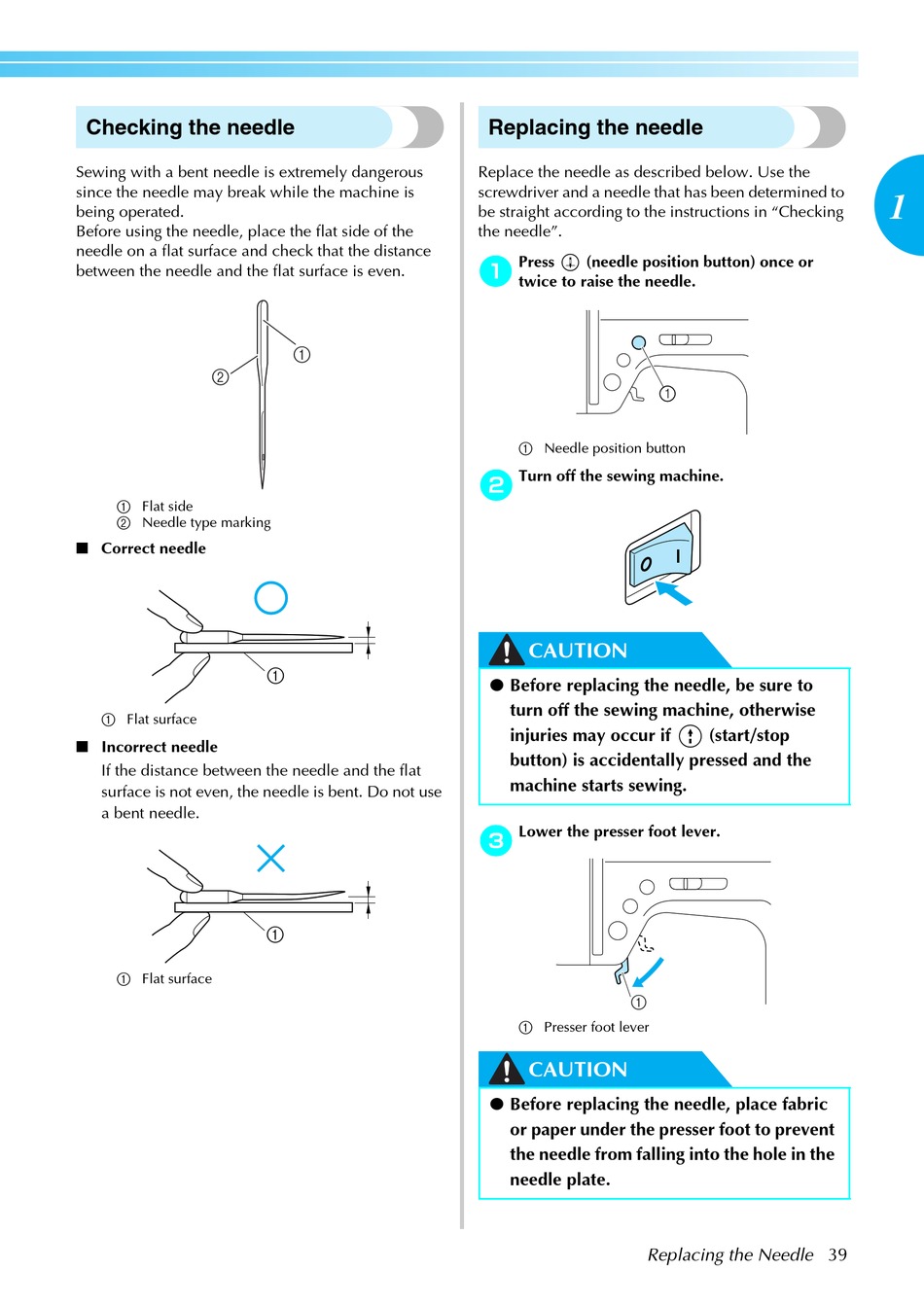

Checking the needle

Sewing with a bent needle is extremely dangerous
since the needle may break while the machine is
being operated.
Before using the needle, place the flat side of the
needle on a flat surface and check that the distance
between the needle and the flat surface is even.
a Flat side
b Needle type marking
■ Correct needle
a Flat surface
■ Incorrect needle
If the distance between the needle and the flat
surface is not even, the needle is bent. Do not use
a bent needle.
a Flat surface
1
2
1
1

Replacing the needle

Replace the needle as described below. Use the
screwdriver and a needle that has been determined to
be straight according to the instructions in "Checking
the needle".
a Press (needle position button) once or
twice to raise the needle.
a Needle position button
b Turn off the sewing machine.
CAUTION
● Before replacing the needle, be sure to
turn off the sewing machine, otherwise
injuries may occur if
button) is accidentally pressed and the
machine starts sewing.
c Lower the presser foot lever.
a
a Presser foot lever
CAUTION
● Before replacing the needle, place fabric
or paper under the presser foot to prevent
the needle from falling into the hole in the
needle plate.

Replacing the Needle 39

(start/stop
