UTILITY STITCHES

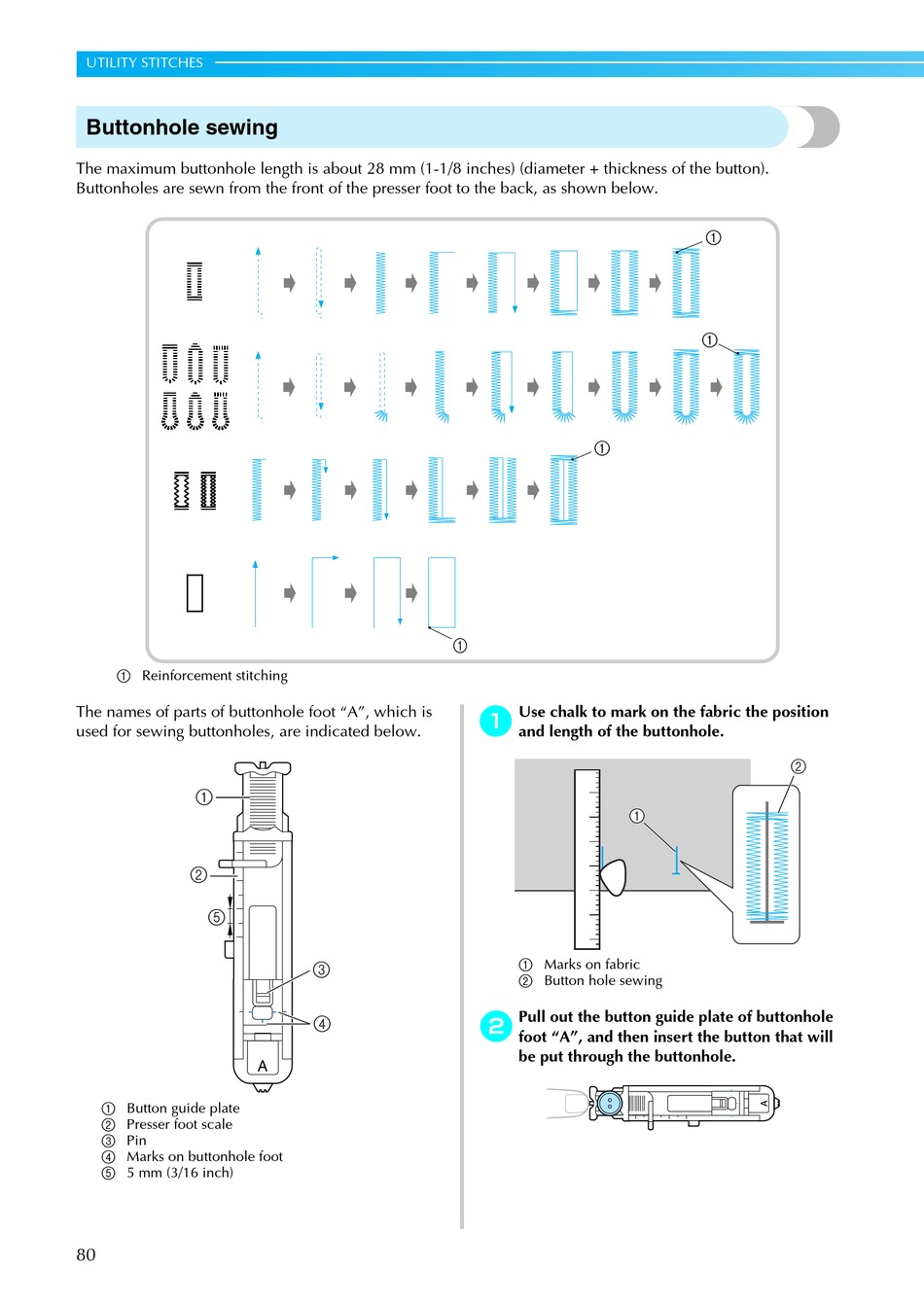

Buttonhole sewing

The maximum buttonhole length is about 28 mm (1-1/8 inches) (diameter + thickness of the button).
Buttonholes are sewn from the front of the presser foot to the back, as shown below.
a Reinforcement stitching
The names of parts of buttonhole foot "A", which is
used for sewing buttonholes, are indicated below.
1
2
5
a Button guide plate
b Presser foot scale
c Pin
d Marks on buttonhole foot
e 5 mm (3/16 inch)
80
3
4
A
1
1
a Use chalk to mark on the fabric the position
and length of the buttonhole.
a Marks on fabric
b Button hole sewing
Pull out the button guide plate of buttonhole
b
foot "A", and then insert the button that will
be put through the buttonhole.
1
1
2
1
