APPENDIX

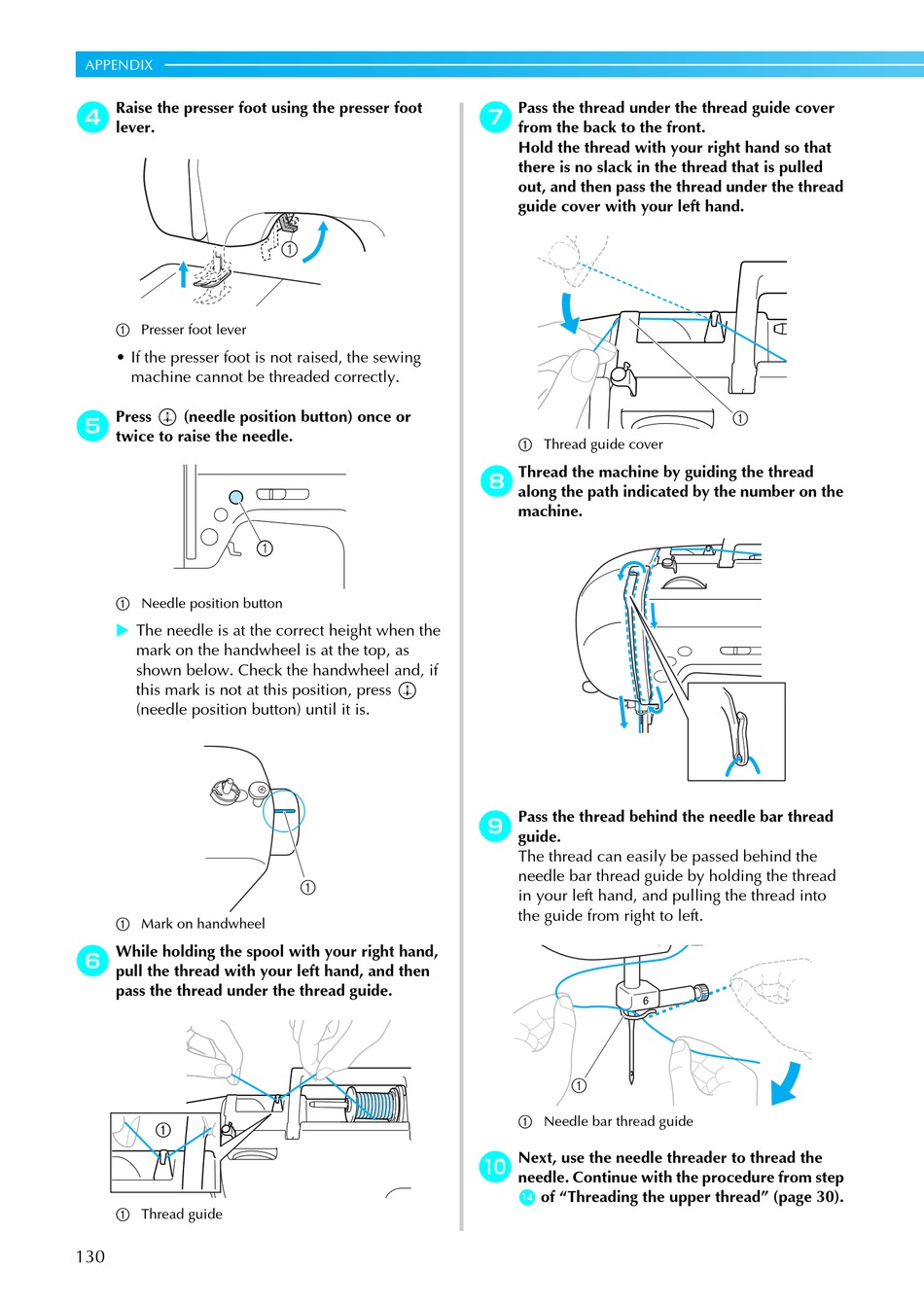

d Raise the presser foot using the presser foot
lever.
a Presser foot lever
• If the presser foot is not raised, the sewing
machine cannot be threaded correctly.
e Press (needle position button) once or
twice to raise the needle.
a Needle position button
The needle is at the correct height when the
mark on the handwheel is at the top, as
shown below. Check the handwheel and, if
this mark is not at this position, press
(needle position button) until it is.
a Mark on handwheel
f While holding the spool with your right hand,
pull the thread with your left hand, and then
pass the thread under the thread guide.
1
a Thread guide
130
a
g Pass the thread under the thread guide cover
from the back to the front.
Hold the thread with your right hand so that
there is no slack in the thread that is pulled
out, and then pass the thread under the thread
guide cover with your left hand.
a Thread guide cover
h Thread the machine by guiding the thread
along the path indicated by the number on the
machine.
Pass the thread behind the needle bar thread
i
guide.
The thread can easily be passed behind the
needle bar thread guide by holding the thread
in your left hand, and pulling the thread into
the guide from right to left.
a
a Needle bar thread guide
j Next, use the needle threader to thread the
needle. Continue with the procedure from step
n
of "Threading the upper thread" (page 30).
a
