GETTING READY

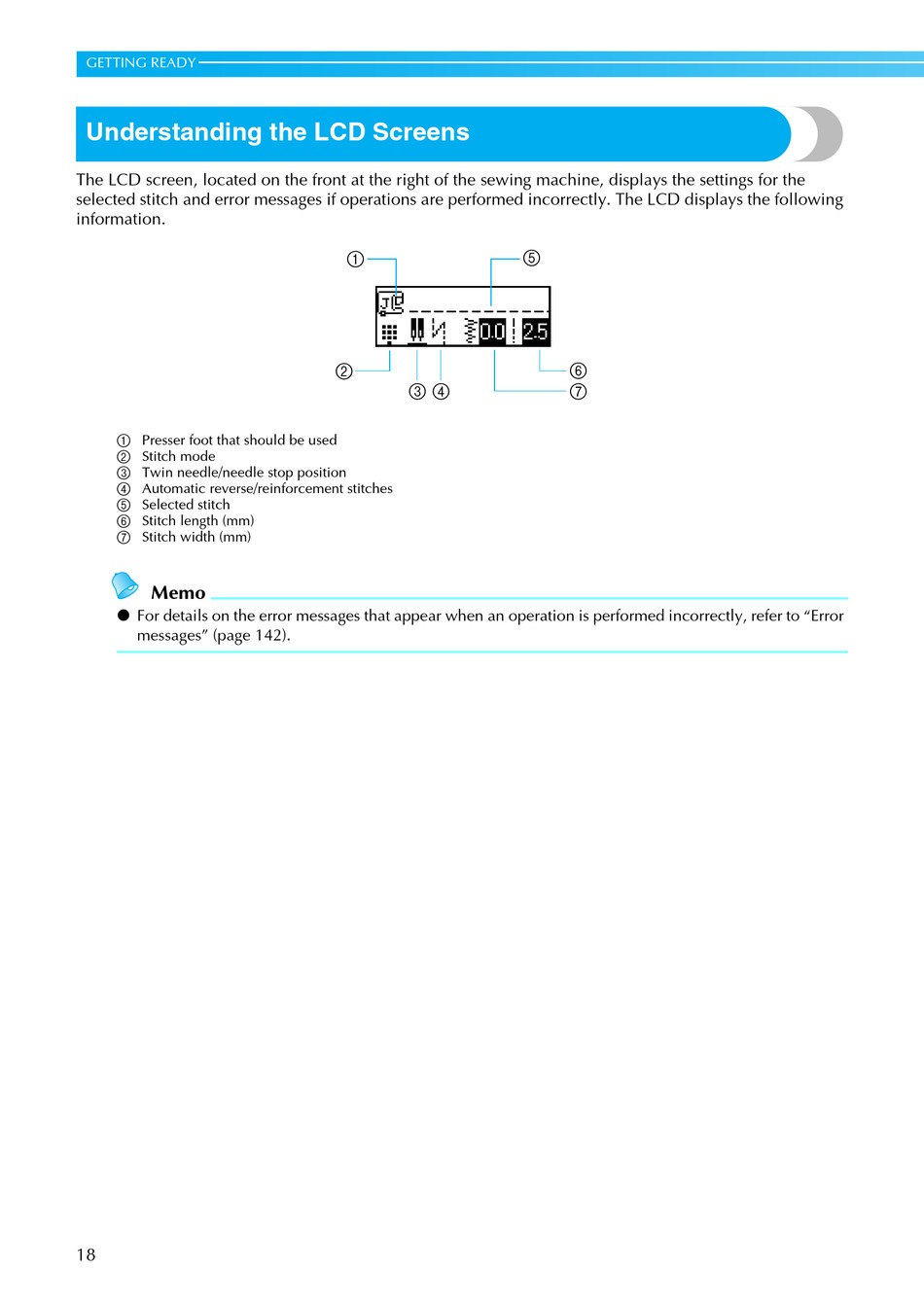

Understanding the LCD Screens
The LCD screen, located on the front at the right of the sewing machine, displays the settings for the
selected stitch and error messages if operations are performed incorrectly. The LCD displays the following
information.
a Presser foot that should be used
b Stitch mode
c Twin needle/needle stop position
d Automatic reverse/reinforcement stitches
e Selected stitch
f Stitch length (mm)
g Stitch width (mm)
Memo
For details on the error messages that appear when an operation is performed incorrectly, refer to "Error
messages" (page 142).
18
1
2
3 4
5
6
7
