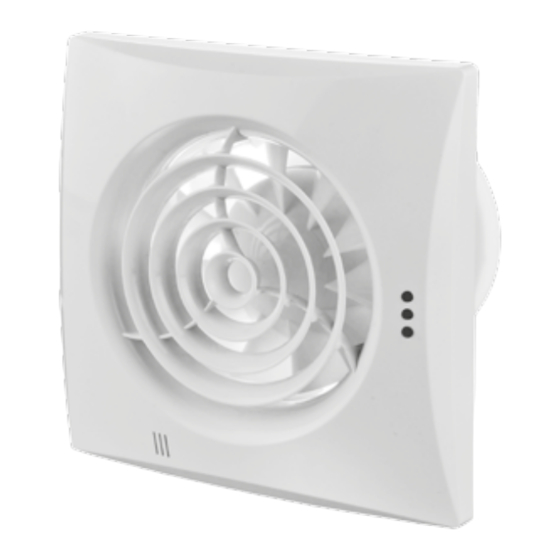

- Page 1 AXIAL FAN Calm dMEV DC 100 USER’S MANUAL...
-
Page 2: Table Of Contents
CONTENTS Delivery set ................................................6 Brief description ..............................................6 Operating guidelines ............................................6 designation key ..............................................7 Installation and set-up............................................. 7 Fan options ................................................8 Fan operation setup ............................................8 Technical maintenance ........................................... 11 Storage and transportation regulations ....................................11 Manufacturer’s warranty .......................................... - Page 3 BLAUBERG VENTILATOREN GmbH is happy to offer you a new innovation product, the Calm dMEV DC 100 fan. The solid team of high-qualified professionals with many years of working experience, technological innovations in design and production, high-quality components and materials from the top worldwide producers have become the precondition for the best fans in theirs class.
- Page 4 FOLLOW THE USER’S MANUAL REQUIREMENTS TO ENSURE DURABLE AND TROUBLE-FREE OPERATION OF THE UNIT. Disconnect the unit from power supply prior to any connection, servicing, maintenance, and repair operations. Only qualified electricians with a work permit for electrical units up to 1000 V are allowed for installation and maintenance.
- Page 5 impurities, sticky substances, or fibrous materials. • Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. • Do not close or block the intake or extract vents in order to ensure the efficient air flow. •...
-
Page 6: Delivery Set
DELIVERY SET — 1 pc. Screws and dowels — 4 pcs. Plastic screwdriver (for all models with a timer) — 1 pc. User’s manual — 1 pc. Packing box — 1 pc. BRIEF DESCRIPTION The unit described herein is an axial fan for exhaust ventilation of small to medium-sized premises heated during winter. The fan is designed for connection to ø100 mm air ducts. -
Page 7: Designation Key
DESIGNATION KEY Calm dMEV DC 100 X Х Voltage _ : 220-240 V/50 Hz SELV – safety extra low voltage of 12 V/50 Hz Extra options: S — pull cord switch Т — turn-off delay timer Н — humidity sensor and turn-off delay timer Outlet duct diameter [mm] DC –... -
Page 8: Fan Options
FAN OPTIONS Calm dMEV DC 100 (S) Т fans are equipped with a turn-off delay timer. The unit operates at the set constant speed. VT models are equipped with a cord-operated switch. The fan switches to the intensive mode upon control voltage application to input terminal LT by an external switch (e.g. - Page 9 Speed setting (Trickle) Speed 1 Speed 2 Speed 3 Speed 4 ON DIP ON DIP ON DIP ON DIP 0 l/s 6 l/s 8 l/s 13 l/s Intensive mode (Boost) ON DIP ON DIP 15 l/s Turn-off delay timer ON DIP ON DIP ON DIP ON DIP...
- Page 10 Humidity threshold ON DIP ON DIP ON DIP ON DIP 60 % 70 % 80 % 90 % Selecting the installation diagram – Jumper 1 (J1) Diagram 1 Diagram 2 Diagram 3 See Fig. 5-7 Turn-on delay timer – Jumper 2(J2) 60 s Jumper 2 Jumper 1...
-
Page 11: Technical Maintenance
TECHNICAL MAINTENANCE The fan maintenance periodicity is at least once per 6 months. Maintenance steps: • Disconnect the fan from power supply and make sure electricity has been turned off (Fig. 15). • Remove the front and the decorative panels, wipe the fan with a dry cloth or a brush (Fig. 16). •... -
Page 12: Manufacturer's Warranty
MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Council Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and CE-marking Directive 93/68/EEC. This certificate is issued following test carried out on samples of the product referred to above. - Page 13 • Redesign or engineering changes to the unit. • Replacement and use of any assemblies, parts and components not approved by the manufacturer. • Unit misuse. • Violation of the unit installation regulations by the user. • Violation of the unit control regulations by the user. •...
- Page 14 ø99...
- Page 15 Diagram 1 Diagram 2 Diagram 3 0,3 m (Top view)
- Page 17 Calm dMEV DC 100 T, ST Calm dMEV DC 100 T, ST Turn-on delay timer activation* Operation at Trickle speed Pull cord switch to ON Fan runs at Boost speed Fan runs at Boost speed *— See the turn-on delay timer wiring diagram on page 10.
- Page 18 Calm dMEV DC 100 T, ST Operation at Trickle speed Pull cord switch to ON S switch to ON Turn-on delay Fan runs at Boost speed timer activation Fan runs at Boost speed Pull cord switch to OFF S switch to ON Turn-off...
- Page 19 Calm dMEV DC 100 H, SH Turn-on delay timer activation* Fan runs at Boost speed *— See the turn-on delay timer wiring diagram on page 10. Calm dMEV DC 100 H, SH Работа на Trickle скорости Humidity exceeds S switch to ON...
- Page 23 Quality Inspector’s Stamp Sold by (name and stamp of the seller) Manufacture Date Purchase Date...
- Page 24 Calm dMEV DC 100 SELV www.blaubergventilatoren.de B162-1EN-02 Calm dMEV DC 100...
