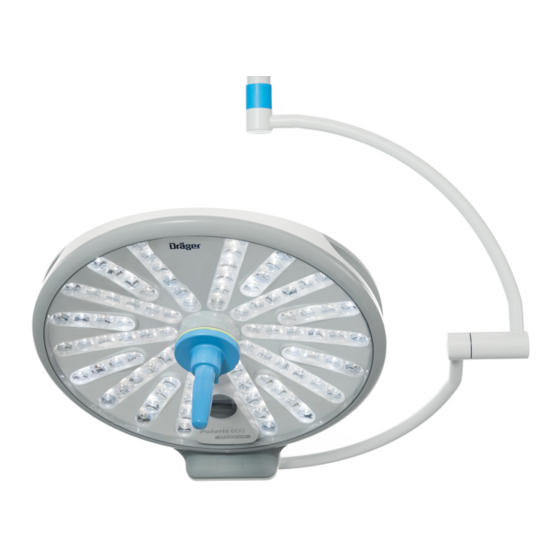

Dräger Polaris 600 Manual
Hide thumbs
Also See for Polaris 600:
- Instructions for use manual (96 pages) ,
- Supplement to the instructions for use (104 pages) ,
- Instructions for use manual (106 pages)
Advertisement
Available languages
Available languages
Quick Links
Polaris 600
de
Ergänzung, Seite 2
en
Supplement, page 4
WARNING
To properly use this medical device,
read and comply with the instructions
for use and this supplement. For cor-
rect assembly of this medical device,
read and comply with all assembly in-
structions and this supplement.
Replacing the adapter
on the Multidisplay
Advertisement
Related Manuals for Dräger Polaris 600
Summary of Contents for Dräger Polaris 600
- Page 1 Polaris 600 Ergänzung, Seite 2 Supplement, page 4 Replacing the adapter WARNING To properly use this medical device, on the Multidisplay read and comply with the instructions for use and this supplement. For cor- rect assembly of this medical device, read and comply with all assembly in- structions and this supplement.
-
Page 2: Informationen Zur Gebrauchsanweisung
WARNUNG Montage- Sachnummer Ausgabe anweisung Zur korrekten Verwendung des Medizinpro- dukts die Gebrauchsanweisung und diese Er- Polaris 600 9054735 1 – 2014-08 gänzung lesen und beachten. und höher Zur korrekten Montage des Medizinprodukts Diese Ergänzung den Dokumenten beilegen. alle Montaganweisungen und diese Ergän- Diese Ergänzung vervollständigt die Informationen... -
Page 3: Technische Daten
Deutsch Vorgehen 3 Den Adapter und die Sicherungsscheiben ent- sorgen. Am Displayhalter (4) muss der Adapter (3) zum Federam (1) gewechselt werden. 4 Den neuen Adapter (5) auf den Displayhalter setzen. 1 Alle Innensechskantschrauben (2) M4 x 16 mm von dem Adapter des Displayhalters (3) lösen. 5 Die Innensechskantschrauben (2) mit Loctite Typ 222 in den Adapter einsetzen. - Page 4 Supplement to the instructions for use and the assembly instructions WARNING Assembly ins- Part number Edition tructions To properly use this medical device, read and Polaris 600 9054736 1 – 2014-08 comply with the instructions for use and this and higher supplement. For correct assembly of this medical device, ...
-
Page 5: Technical Data
English Procedure 3 Dispose of the adapter and the lock washers. On the display mount (4), the adapter (3) for the spring arm (1) must be changed. 4 Place the new adapter (5) on the display mount. 5 Apply Loctite 222 and insert the hexagon 1 Unfasten all M4 x 16 mm hexagon socket socket screws (2) into the adapter. - Page 6 This page has been left blank intentionally. Supplement Polaris...
- Page 7 This page has been left blank intentionally. Supplement Polaris...
- Page 8 Manufacturer Drägerwerk AG & Co.KGaA Moislinger Allee 53 – 55 D-23542 Lübeck Germany +49 451 8 82-0 +49 451 8 82-20 80 http://www.draeger.com 9512051 – GA 6932.155 me © Drägerwerk AG & Co.KGaA Edition: 1 – 2023-04 Dräger reserves the right to make modifications to the medical device without prior notice.
