Maintenance
8.2

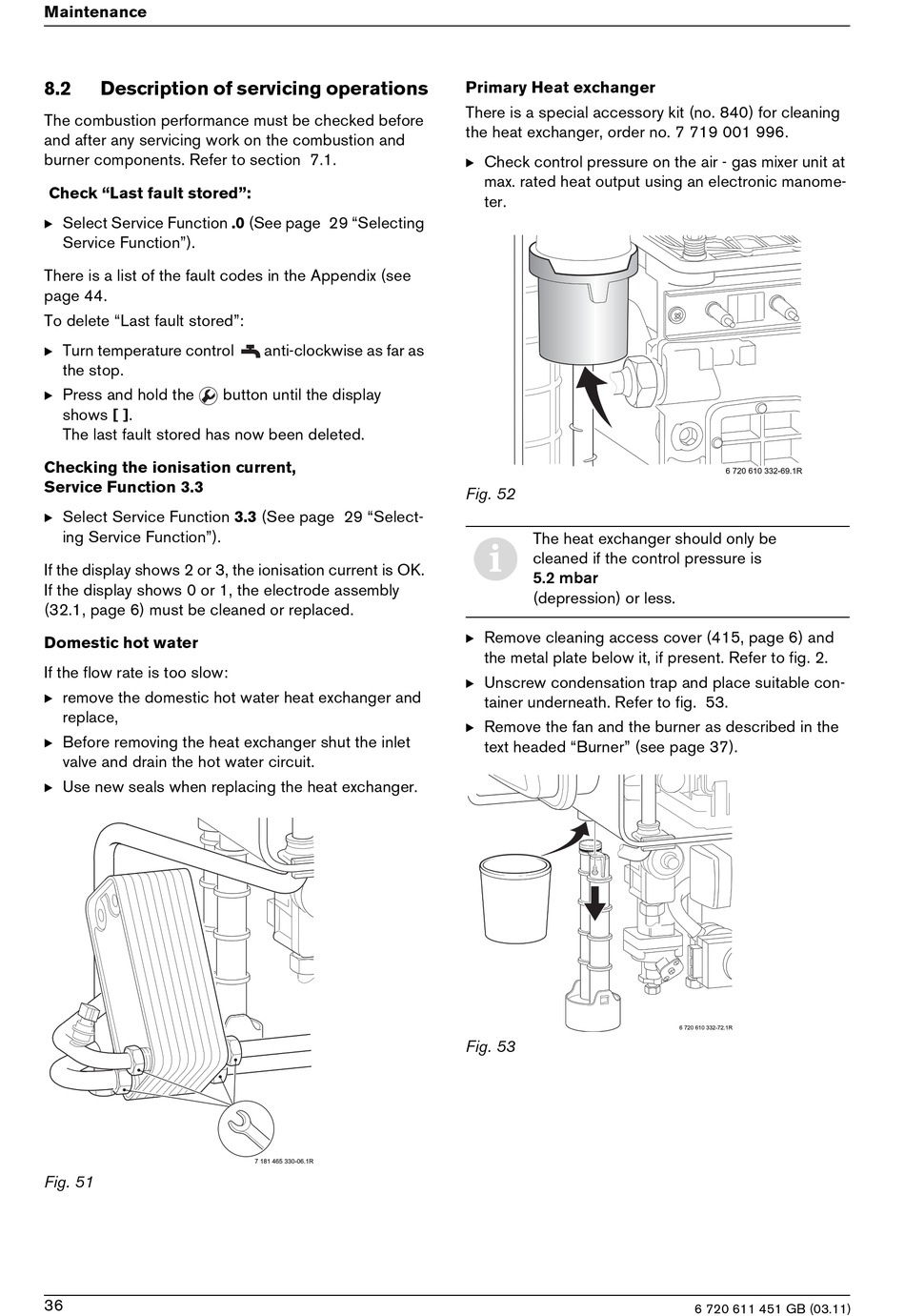

Description of servicing operations

The combustion performance must be checked before
and after any servicing work on the combustion and
burner components. Refer to section 7.1.
Check "Last fault stored":
B Select Service Function .0 (See page 29 "Selecting
Service Function").
There is a list of the fault codes in the Appendix (see
page 44.
To delete "Last fault stored":
B Turn temperature control
the stop.
B Press and hold the
shows [ ].
The last fault stored has now been deleted.
Checking the ionisation current,
Service Function 3.3
B Select Service Function 3.3 (See page 29 "Select-
ing Service Function").
If the display shows 2 or 3, the ionisation current is OK.
If the display shows 0 or 1, the electrode assembly
(32.1, page 6) must be cleaned or replaced.
Domestic hot water
If the flow rate is too slow:
B remove the domestic hot water heat exchanger and
replace,
B Before removing the heat exchanger shut the inlet
valve and drain the hot water circuit.
B Use new seals when replacing the heat exchanger.
Fig. 51
36
anti-clockwise as far as
button until the display
7 181 465 330-06.1R
Primary Heat exchanger
There is a special accessory kit (no. 840) for cleaning
the heat exchanger, order no. 7 719 001 996.
B Check control pressure on the air - gas mixer unit at
max. rated heat output using an electronic manome-
ter.
Fig. 52
The heat exchanger should only be
i
cleaned if the control pressure is
5.2 mbar
(depression) or less.
B Remove cleaning access cover (415, page 6) and
the metal plate below it, if present. Refer to fig. 2.
B Unscrew condensation trap and place suitable con-
tainer underneath. Refer to fig. 53.
B Remove the fan and the burner as described in the
text headed "Burner" (see page 37).
Fig. 53
6 720 610 332-69.1R
6 720 610 332-72.1R
6 720 611 451 GB (03.11)
