Maintenance Manual
SR0818E/SR1018E/SR1218E/SR1418E
Rough Terrain

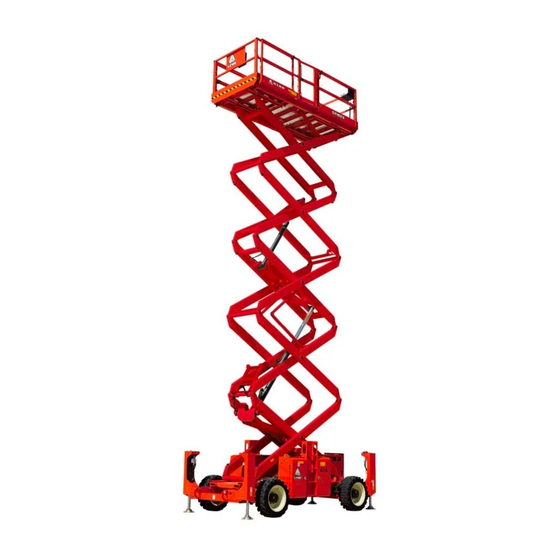

Mobile Elevating Work Platform
△
WARNING
!
Before operation and maintenance, the
drivers and service personnel shall
always read and thoroughly understand
all information in this manual. Failure to
do so may result in, fatal accidents or
personal injury.
This manual must be kept with this
machine at all times.
LINGONG HEAVY MACHINERY CO., LTD.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LGMG SR0818E
Summary of Contents for LGMG SR0818E
- Page 1 Maintenance Manual SR0818E/SR1018E/SR1218E/SR1418E Rough Terrain Mobile Elevating Work Platform △ WARNING Before operation and maintenance, the drivers and service personnel shall always read and thoroughly understand all information in this manual. Failure to do so may result in, fatal accidents or personal injury.
- Page 2 L i n g o n g H e a v y M a c h i n e r y C o . , L t d . Add: 12th Floor, Building 3, Lushangguoaocheng, 9777 Jingshi Road, Lixia District, Jinan, China Tel: 86-0531-67605017 Fax: 86-0531-67605017 Technical service: 86-0531-67605017 Web: www.LGMG.com.cn Accessories sales: 86-0531-67605016...
-
Page 3: Table Of Contents
Maintenance Manual of Rough Terrain Mobile Elevating Work Platform Contents Foreword ....................III Safety Precautions ..................IV Chapter 1 Maintenance ................1 1.1 Compliance ..................3 1.2 Checking the Safety Manual ............. 3 1.3 Checking the Labels and Signs............3 1.4 Checking for Damaged, Loose or Missing Parts ....... -
Page 4: Foreword
The user shall load the platform strictly according to the load rating of the platform. Do not overload the platform or make any modifications to the platform without permission from LGMG. The operation regulations and preventions in this manual are only applicable for the... -
Page 5: Safety Precautions
Maintenance Manual of Rough Terrain Mobile Elevating Work Platform Safety Precautions Operators should be aware of and follow the current national and local safety regulations, and if there are no national or local regulations, the safety instructions in this manual should apply. Most of the accidents are caused by failure to follow the requirements on the machine operation and maintenance. -
Page 6: Chapter 1 Maintenance
Maintenance Manual of Rough Terrain Mobile Elevating Work Platform Chapter 1 Maintenance... - Page 7 Maintenance Manual of Rough Terrain Mobile Elevating Work Platform...
-
Page 8: Compliance
Only LGMG approved parts and consumables can be used. Check all the labels for clarity and damage and Function test shall be always conducted immediately replace any damaged or illegible upon maintenance. -
Page 9: Checking The Wires
Maintenance Manual of Rough Terrain Mobile Elevating Work Platform result in unsafe operating conditions. See the "Operating Instruction" section. Check the entire equipment for damage 1.5 Checking the Wires and incorrect installation or loss of parts, This check should be performed every 250 including: h or quarterly, whichever comes first. -
Page 10: Checking The Battery
Maintenance Manual of Rough Terrain Mobile Elevating Work Platform △ △ NOTICE：Do not apply excessive CAUTION: Adding a terminal insulating grease to harness protector and an anti-corrosion sealant connectors, pins or sockets. can help eliminate the corrosion on the battery terminals and cables. 1.6 Checking the Battery 1.7 Checking the Electrical Good battery condition is critical to normal... -
Page 11: Checking The Hydraulic Tank Vent Cap
Maintenance Manual of Rough Terrain Mobile Elevating Work Platform good conditions. Failure of the tires and wheels 1.10 Checking the Leakage of may cause the machine to roll over. Failure of Hydraulic Oil finding and repairing the problem in time may Check for leakage every 8 h or every day. -
Page 12: Replacing The Hydraulic Tank Air Filter
Maintenance Manual of Rough Terrain Mobile Elevating Work Platform Be careful of hot oil. Exposure to hot 1.12 Replacing the Hydraulic oil may cause severe burns. Tank Air Filter △ This step should be performed It should be replaced every 1000 h or yearly, when the machine is stopped. -
Page 13: Visual Inspection Of The Hydraulic Oil
Maintenance Manual of Rough Terrain Mobile Elevating Work Platform hydraulic oil level should be at the "LH" replaced, continue the scheduled quarterly position of the level gauge (long level maintenance inspection. gauge) or 1 / 2 - 2 / 3 position of the level 1.15 Test or Replace the gauge (short level gauge). -
Page 14: Checking The Oil Level In The Reducer
Maintenance Manual of Rough Terrain Mobile Elevating Work Platform remove the key from the key switch △ and hang a warning sign on the Component damage hazard. After equipment. installing the hydraulic tank, make sure to open the two hydraulic tank △... -
Page 15: Replacing The Reducer Gear Oil
Maintenance Manual of Rough Terrain Mobile Elevating Work Platform Repeat this step for each reducer. 1.18 Checking or Replacing Condition Oil viscosity brand the Scissor Arm Slide Block 30°C＜The lowest 85W/140 temperature This step should be performed every 1000 h or -10°C＜The lowest 85W/90 temperature＜30°C... -
Page 16: Maintenance Schedule
Maintenance Manual of Rough Terrain Mobile Elevating Work Platform 1.20 Maintenance Schedule Routine Inspection and Maintenance Intervals △ NOTE: The working hours are based on the engine working time, and the operation cycle is calculated from the date of production. Maintenance Period Maintenance Routine... - Page 17 Maintenance Manual of Rough Terrain Mobile Elevating Work Platform pressure is normal system Check if the lifting ● ● ● ● ● pressure system is normal Check if the steering ● ● ● ● ● system pressure is normal Check the permeability of the ●...
-
Page 18: Chapter 2 Schematic Diagram
Maintenance Manual of Rough Terrain Mobile Elevating Work Platform Chapter 2 Schematic Diagram... - Page 19 Maintenance Manual of Rough Terrain Mobile Elevating Work Platform...
- Page 20 Maintenance Manual of Mobile Elevating Work Platform SR0818E/SR1018E/SR1218E--Electrical schematic diagram...
- Page 21 Maintenance Manual of Mobile Elevating Work Platform SR1418E--Electrical schematic diagram...
- Page 22 Maintenance Manual of Mobile Elevating Work Platform SR0818E/SR1018E--Hydraulic schematic diagram...
- Page 23 Maintenance Manual of Mobile Elevating Work Platform SR1218E/SR1418E--Hydraulic schematic diagram...
