SEA CORONA S Fitting And Connection Instructions

Sistemi Elettronici
di Apertura Porte e Cancelli
International registered trademark n. 804888
Corona S is a non quick grafting operator with aluminium guide.
Corona RP is a quick grafting operator with steel guide.
Corona S/RP is a ceiling actuator easy to install and noiseless
thanks to the slowdown in the last phases of opening and closing.
It is provided with an electronic speed control which allows the
mechanical parts subjected to stress to be saved.
The anticrushing safety is assured by an electronic system
which, set during installation, stops the door in opening and
reverses during closing phase.
Corona S/RP irreversibility avoids the use of electro-locks while
guaranteeing maximum security during forcing attempts.
A Manual Release ensures door operation also in case of power
failure.
OPERATORS FOR SECTIONAL GARAGE DOORS
up to 2,4 H x 3,5 L m up to 2,4 H x 3,5 L m
MAX DOOR MAX DOOR
DIMENSIONS DIMENSIONS
up to 2,4 H x 5 L m up to 2,4 H x 5 L m
OPERATORS FOR BALANCED OVERHEAD DOORS WITH SPRINGS
up to 2,3 H x 3 L m up to 2,3 H x 3 L m
MAX DOOR MAX DOOR
DIMENSIONS DIMENSIONS
up to 2,3 H x 4 L m up to 2,3 H x 4 L m
OPERATORS FOR COUNTERBALANCED OVERHEAD DOORS
up to 2,7 H x 3 L m up to 2,7 H x 3 L m
MAX DOOR MAX DOOR
DIMENSIONS DIMENSIONS
up to 2,7 H x 4 L m up to 2,7 H x 4 L m

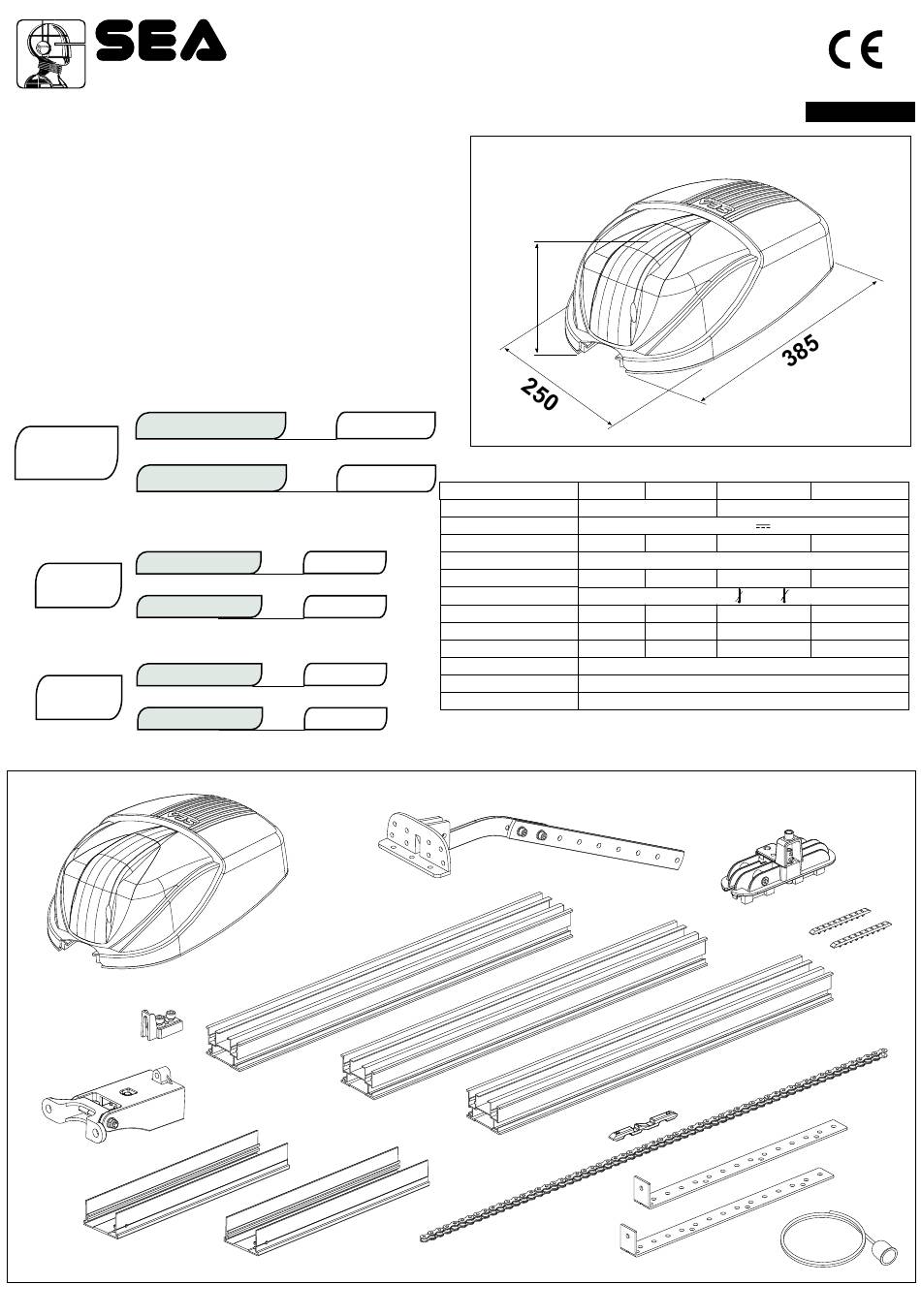

MAIN PARTS OF THE CORONA S OPERATOR
67410622
®
CORONA S/RP
FITTING AND CONNECTION INSTRUCTIONS
CORONA 60 CORONA 60
CORONA 110 CORONA 110
CORONA 60 CORONA 60
CORONA 110 CORONA 110
CORONA 60 CORONA 60
CORONA 110 CORONA 110
DIMENSIONS (mm)
140
TECHNICAL DATA CORONA 60 CORONA 110 CORONA 60 110V CORONA 110 110V
Power Supply
Motor Supply
Power
Opening Speed
Frequency of use
Operating temperature
Weight
Max Pushing (N)
Max Traction (N)
Protection degree
Anticrushing clutch
Limit switch
Note: The frequency of use is valid only for the first hour at an
outside temperature of 20°C .
Rev 00 - 02/2012
230 V (±5%) 50/60 H 110 V (±5%) 50/60 H
24 V
140 W 370W 140 W
adjustable
60% 40% 60%
-20°C + 60°C
13 kg 14 kg 13 kg
600 1100 600
600 1100 600
IP 20
electronic
Miicro switch
ENGLISH
Fig. 1
370W
40%
14 kg
1100
1100
Fig. 2
