- Page 1 LT -3600RF LED Controller V3.0 User Instructions Page 1 of 8 LT-3600RF LED Controller V3.00 USER INSTRUCTIONS Pls kindly read through instructions before use...
- Page 2 Page 2 of 8 ， Forword， Thanks for choosing our LT-3600RF Controller. Before installation and use, we strongly recommend you to read through this manual carefully. If device has been damaged during transport, please report it to your supplier immediately.

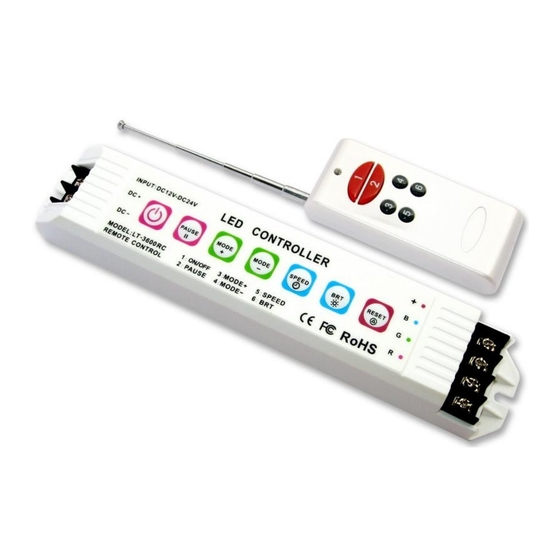

- Page 3 LT -3600RF LED Controller V3.0 User Instructions Page 3 of 8 Product Brief LT-3600RF multi function LED controller is a universal RGB controller with high-performance, adopted the most advanced PWM control technology. It’s dedicated to control entire RGB color changes of LED lights with 4 wires (common anode), such as RGB LED module, LED strip, LED tape, LED wall washer, floodlight, LED under water lamp and other LED lights.
- Page 4 LT -3600RF LED Controller V3.0 User Instructions Page 4 of 8 Can rest at current color and color depth by selecting PAUSE function. Can restore to default settings with the newly added RESET button. Used as a standalone controller or to work together with LT-3060, realizing infinite power expansion to connect any quantity of LED lights.
- Page 5 LT -3600RF LED Controller V3.0 User Instructions Page 5 of 8 7 color skipping Red, green, blue, yellow, purple, cyan, white 7-color shipping White color strobe White（with all red, green and blue on）strobe 3 color smooth Red, green and blue 3-color gradual changes Full color smooth All 7-color gradual changes...
- Page 6 LT -3600RF LED Controller V3.0 User Instructions Page 6 of 8 Sign Button Description ON/OFF：Turn on/off the controller ON/OFF Any button can start the controller at off status Pause：Press this button will rest at current PAUSE color, press it again, will continue to change. MODE+ Mode+：Press this button to select next mode Mode-：Press this button &...
- Page 7 LT -3600RF LED Controller V3.0 User Instructions Page 7 of 8 Ⅶ. Conjunction diagram, working with 3060 power amplifier （ connected to LED module as an example）...
- Page 8 LT -3600RF LED Controller V3.0 User Instructions Page 8 of 8 Ⅷ. Exception Handles Malfunction Causation Settle 1. No power from plug 1. Check the socket 2. Power supply protector 2. Check the malfunction， No Light works re-power on 3. Incorrect connection 3.
