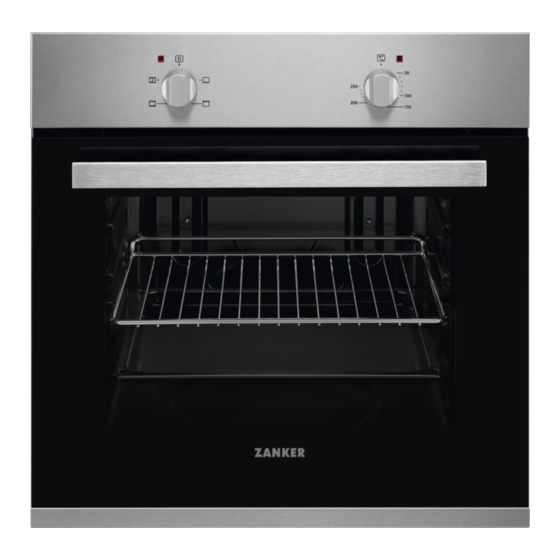

- Page 1 User Manual Oven KOB10402XB...
-
Page 2: Table Of Contents
Subject to change without notice. VISIT OUR WEBSITE TO: Get usage advice, brochures, trouble shooter, service and repair information: www.zanker.de/support Safety information Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. -
Page 3: Safety Instructions
General Safety Only a qualified person must install this appliance and replace the cable. • Do not use the appliance before installing it in the built-in structure. • Disconnect the appliance from the power supply before carrying out any • maintenance. - Page 4 Ventilation opening mini- 560x20 mm Cable types applicable for installation or replace- mum size. Opening placed ment for Europe: on the bottom rear side H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2- Mains supply cable length. 1100 mm F (T90), H05 BB-F Cable is placed in the right corner of the back side...
- Page 5 • Clean regularly the appliance to prevent the Warning! Risk of damage to the deterioration of the surface material. appliance. • Clean the appliance with a moist soft cloth. Use only • To prevent damage or discoloration to the enamel: neutral detergents.
-
Page 6: Installation
Installation Building in Warning! Refer to Safety chapters. min. 550 min. 560 min. 550 min. 560 Securing the oven to the cabinet... -
Page 7: Product Description
Product description General overview Control panel Power lamp / symbol Knob for the heating functions Control knob (for the temperature) Temperature indicator / symbol Air vents for the cooling fan Heating element Lamp Cavity embossment - Aqua cleaning container Shelf positions Accessories •... - Page 8 How to set: Heating function Step 3 When the cooking ends, turn the knobs Step 1 Turn the knob for the heating functions to the off position to turn off the oven. to select a heating function. Step 2 Turn the control knob to select the tem- perature.
-
Page 9: Using The Accessories
Using the accessories Inserting accessories Warning! Refer to Safety chapters. Wire shelf: Push the shelf between the guide bars of the shelf support and make sure that the feet point down. Baking tray: Push the tray between the guide bars of the shelf support. - Page 10 Cooking times your cookware, recipes and quantities when you use Cooking times depend on the type of food, its this appliance. consistency, and volume. Initially, monitor the performance when you cook. Find the best settings (heat setting, cooking time, etc.) for Conventional Baking - recommended accessories Use the dark and non-reflective tins and containers.
- Page 11 (°C) (min) Poached meat, 0.25 baking tray or dripping pan 40 - 50 Shashlik, 0.5 kg baking tray or dripping pan 25 - 35 Cookies, 16 pieces baking tray or dripping pan 20 - 30 Macaroons, 20 baking tray or dripping pan 40 - 45 pieces Muffins, 12 pieces...
-
Page 12: Care And Cleaning
(°C) (min) Short Conventional Baking 20 - 35 Preheat the oven for bread Cooking tray 10 minutes. Toast, 4 - 6 Grill Wire shelf max. 2 - 4 minutes first Preheat the oven for pieces side; 2 - 3 mi- 3 minutes. - Page 13 How to use: Aqua Clean Step 3 Set the temperature to 90 °C. This cleaning procedure uses humidity to remove remaining fat and food particles from the oven. Step 4 Let the oven work for 30 min. Step 5 Turn off the oven. Step 1 Pour water into the cavity embossment: 150 ml.
-
Page 14: Troubleshooting
90° Step 7 Clean the glass panels with water and soap. Dry the glass panels carefully. Do not clean the glass panels in the dishwasher. Step 8 After cleaning, install the glass panel and the oven door. When installed correctly the door trim clicks. Make sure that you install the internal glass panel in the seats correctly. -
Page 15: Energy Efficiency
Serial number (S.N.) ......... Energy efficiency Product Information and Product Information Sheet* Supplier's name Zanker Model identification KOB10402XB 944068059 Energy Efficiency Index 95.1 Energy efficiency class Energy consumption with a standard load, conventional mode 0.77 kWh/cycle Number of cavities Heat source... -
Page 16: Environmental Concerns
Energy saving before the end of cooking. The residual heat inside the oven will continue to cook. The oven has features which help you Use the residual heat to warm up other dishes. save energy during everyday cooking. Keep food warm Make sure that the oven door is closed when the oven Choose the lowest possible temperature setting to use operates. - Page 20 www.electrolux.com/shop 867360753-A-272021...
