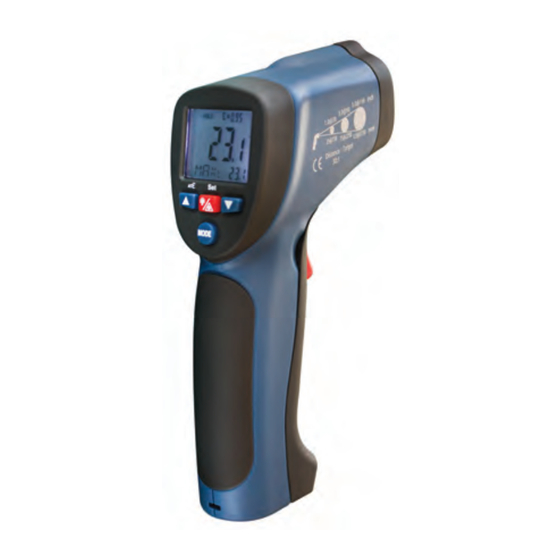

REED R2005 Instruction Manual

Non-contact infrared thermometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model
Pantone 534 Blue - 100/80/30/5
Non-Contact Infrared
Pantone 485 Red - 10/100/100/5
Thermometer
Pantone 123 Yellow - 0/27/100/
www
R2005
reedinstruments
Black
Instruction
Manual
com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R2005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for REED R2005

Summary of Contents for REED R2005

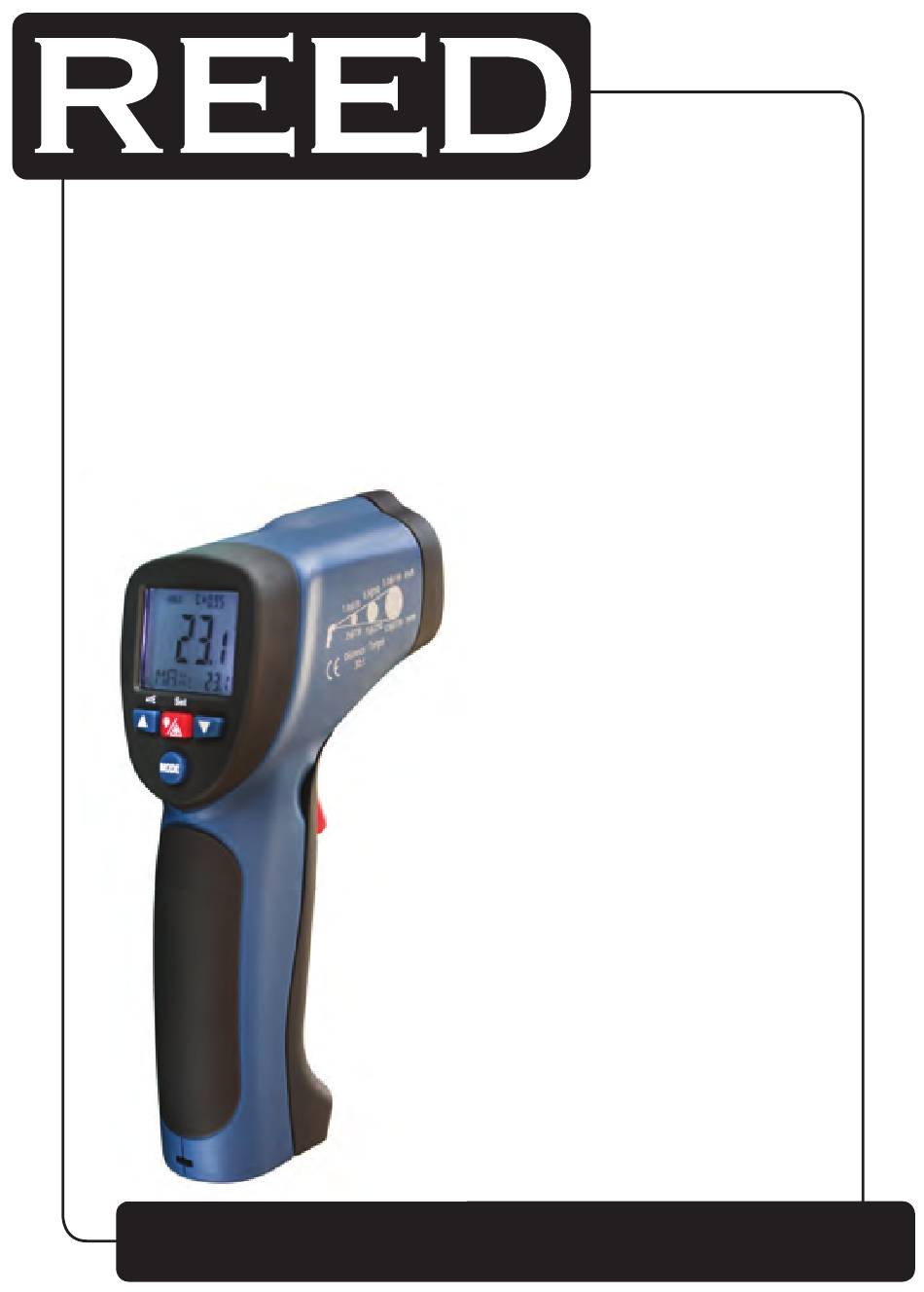

  • Page 1 Black R2005 Model Pantone 534 Blue - 100/80/30/5 Non-Contact Infrared Pantone 485 Red - 10/100/100/5 Thermometer Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments...

  • Page 2: Table Of Contents

    Notes....................11-12 Maintenance.&.Cleaning................12 Introduction Thank. you. for. your. purchase. of. this. REED. Infrared. Thermometer.. This. . instrument. offers. non-contact. (infrared). temperature. measurement. capability.. The. built-in. laser. pointer. increases. target. accuracy. while. . the. backlight. LCD. and. handy. push-buttons. combine. for. convenient,. .

  • Page 3: Features

    Features: •. Precise.non-contact.temperature.measurement •. Type.K.temperature.measurement •. Unique.flat.surface,.modern.housing.design •. Built-in.laser.pointer •. Automatic.Data.Hold. •. Automatic.power.off •. °C/°F.switch •. Emissivity,.digitally.adjustable.from.0.10.to.1.0 •. MAX,.MIN,.DIF,.AVG.record •. Data.Logger.(LOG) •. LCD.with.backlight •. Automatic.range.selection •. Resolution.0.1ºC.(0.1ºF) •. Trigger.lock •. High.and.Low.alarms •. Measure.emissivity Applications: Food.preparation,.safety.and.fire.inspectors,.plastic.molding,.asphalt,. marine.and.screen.printing,.measure.ink.and.dryer.temperature,.HVAC/R,. diesel,.fleet.maintenance.and.much.more. Safety •. Use.extreme.caution.when.the.laser.beam.is.turned.on. •.

  • Page 4: Distance.&.Spot.size

    Distance & Spot Size As.the.distance.(D).from.the.object.increases,.the.spot.size.(S).of.the.area. measured.by.the.unit.becomes.larger..The.relationship.between.distance. and.spot.size.for.each.unit.is.listed.below..The.focal.point.for.each.unit.is. 914mm.(36”)..The.spot.sizes.indicate.90%.encircled.energy. Specifications: TK measurement: TK.Temperature.Range .-50.to.1370°C.(-58.to.2498°F) Resolution -50.to.1370°C 0.1°C -58.to.1999.9°F 0.1°F 2000.to.2498°F 1°F Accuracy -50.to.1000°C ±1.5%.of.reading.+3°C.(+5°F) 1000.to.1370°C ±1.5%.of.reading.+2°C.(+3.6°F) IR Measurement: IR.Temperature.Range -50.to.1050°C.(-58.to.1922°F)..Distance.:.Spot.size 30:1 Resolution 0.1°C.(0.1°F) Accuracy -50.to.-20°C.(-58.to.-4°F) ±5°C.(±9°F) Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow -20.to.200°C.(-4.to.392°F)
  • Page 5 Specifications con’t: Response.Time:. Less.than.1.second Spectral.Response:. 8~14um Emissivity:. Digitally.adjustable.from.0.10.to.1.0 Over.Range.Indication:.LCD.will.show.“-0L”,”0L” Polarity:. Automatic.(no.indication.for.positive.polarity);. Minus.(-).sign.for.negative.polarity Diode.Laser:. Output.<1mW,.Wavelength.630~670nm,. Class.2.(II).laser.product Operating.Temp.:. 0.to.50°C.(32.to.122°F) Storage.Temp.:. –20.to.60°C.(-4.to.140°F) Relative.Humidity:. 10%~90%.RH.operating,.<80%RH.storage Power.Supply:. 9V.battery,.NEDA.1604A.or.IEC.6LR61,.. or.equivalent Dimensions:. 100.x.56.x.230mm.(3.9.x.2.2.x.9.0”) Weight:. 290g.(10.2.oz) Safety:. “CE”.Comply.with.EMC Notes: •. Accuracy:.Given.at.18.to.28°C.(64.to.82°F),.less.than.80%.RH. •. Field of View:.Make.sure.that.the.target.is.larger.than.the.unit’s.spot. size..The.smaller.the.target,.the.closer.you.should.be.to.it..When.. accuracy.is.critical,.make.sure.the.target.is.at.least.twice.as.large.. as.the.spot.size. Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0...

  • Page 6: Front.panel.description

    Front Panel Description 1-.. IR.Sensor 2-... Laser.Pointer.Beam 3-... LCD.Display. 4-... Down.Button 5-... Up.Button 6-... Mode.Button 7-.. Laser/Backlight.Button 8-. Measurement.Trigger 9-. Handle.Grip 10-. Battery.Cover Indicators 1-. Data.Hold 2-. Measuring.indication 3-. Emissivity.symbol.&.value 4-. °C/°F.symbol 5-. Auto.Emissivity 6-. Lock.&.Laser.“ON”.symbols 7-. High.&.low.alarm.symbols 8-. Temperature.values.for.the.MAX,.MIN,.DIF,.AVG.HAL,.LAL.TK.and.. 9-.

  • Page 7: Buttons

    Buttons 1-. Up.button.(for.EMS,HAL,LAL,LOG) 2-. MODE.button.(for.cycling.through.the.. mode.loop) 3-. Down.button.(for.EMS,HAL,LAL,LOG) 4-. Laser/Backlight.On/Off.button.(pull.trigger.. and.press.button.to.activate.laser/backlight) MODE Button Function This.infrared.thermometer.measures.Maximum.(MAX),. Minimum.(MIN),.Differential.(DIF),.and.Average.(AVG).Tem- peratures..Each.time.you.take.a.reading,.this.data.is.stored. and.can.be.recalled.with.the.MODE.button.until.a.new. measurement.is.taken..When.the.trigger.is.pulled.again,. the.unit.will.begin.measuring.in.the.last.mode.selected. Pressing.the.MODE.button.also.allows.you.to.access. the.High.Alarm(HAL),.Low.Alarm(LAL),Emissivity(EMS). and.data.logger(LOG). MODE -.Each.time.you.press.MODE,.you.advance. through.the.mode.cycle..Pressing.the.MODE.button.. also.allows.you.to.access.the.Type.K.Temperature. Measurement. The.diagram.on.the.left.shows.the.sequence.of.. functions.in.the.MODE.cycle Switching C/F, LOCK ON/OFF & SET ALARM 1-. . C/F Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0...

  • Page 8: Measurement.operation

    To.lock.the.unit.on.for.continuous.measurement,.slide.the.middle.switch. LOCK ON/OFF.to.the.right..If.the.trigger.is.pulled.while.the.unit.is.locked. on,.the.laser.and.backlight.will.be.turned.on.if.they.have.been.activated.. When.the.unit.is.locked.on,.the.backlight.and.laser.will.remain.on.unless.it. is.turned.off.using.the.Laser/Backlight.button.on.the.keypad. To.activate.the.alarms,.please.slide.the.bottom.switch.SET ALARM. to.the.right. To.set.values.for.the.High.Alarm.(HAL),.Low.Alarm.(LAL).and.Emissivity. (EMS),.firstly.activate.the.display.by.pulling.the.trigger.or.pressing.the. MODE.button,.then.press.the.MODE.button.until.the.appropriate.code. appears.in.the.lower.left.corner.of.the.display,.press.the.UP.and.DOWN. buttons.to.adjust.the.desired.values. Measurement Operation 1).Hold.the.meter.by.its.handle.grip.and.point.it.toward.the.surface.. to.be.measured. 2).Pull.and.hold.the.trigger.to.turn.the.meter.on.and.begin.testing... The.display.will.light.if.the.battery.is.good..Replace.the.battery.. if.the.display.does.not.light. 3).While.measuring,.the.SCAN.display.icon.will.appear.in.the.upper.left. corner.of.the.LCD. 4).Release.the.trigger.and.the.HOLD.icon.will.appear.on.the.LCD.. indicating.that.the.reading.is.being.held. 5).The.meter.will.automatically.power.off.approximately.7.seconds.after. the.trigger.is.released..Unless.the.unit.is.locked.on. How to obtain Emissivity? In.the.EMS.mode,.press.and.hold.the.Laser/Backlight.button.until.. Blue - 100/80/30/5 Pantone 534 Blue the.“EMS”.icon.on.the.left.side.of.LCD.blinking..At.this.time,.“. 3 =.--”. Yellow - 0/27/100/0 Pantone 123 Yellow will.appear.at.the.upper.side.of.the.LCD;.IR.temperature.value.will.be.in.

  • Page 9: Data.logger

    How to obtain Emissivity? con’t Contact.the.Type.K.probe.to.the.object.surface.and.test.the.temperature. of.same.point.with.IR.measurement..After.both.values.are.stable,.press. UP.or.DOWN.button.for.confirmation..Then,.emissivity.of.the.object.will.be. shown.at.the.upper.side.of.the.LCD. Press.MODE.button.or.trigger.to.enter.normal.measurement. Notes: 1..When.the.IR.value.is.not.corresponding.to.the.TK.value,.or.IR.and.TK. tested.the.different.points,.no.emissivity.will.be.obtainable.or.a.wrong. emissivity.will.be.obtained. 2..The.temperature.of.the.target.should.be.higher.than.the.environment. temperature..Normally,.100°C.is.suitable.for.obtaining.a.higher.accuracy. emissivity..After.obtaining.the.emissivity,.if.the.difference.between.the.IR. value.(in.the.middle.of.LCD).and.TK.value.(at.the.lower.side.of.LCD).is. too.big,.the.obtained.emissivity.will.be.incorrect..It’s.necessary.to.obtain. a.new.emissivity. Data Logger Storing Data Your.thermometer.is.capable.of.storing.up.to.20.data.locations..The.. infrared.temperature.and.temperature.scale.(°C.or.°F).are.also.stored. Infrared To.store.data.from.an.infrared.reading,.pull.the.trigger..While.holding.the. trigger,.press.the.MODE.button.until.LOG.appears.in.the.lower.left.corner. of.the.display;.a.log.location.number.will.be.shown..If.no.temperature.has. been.recorded.in.the.shown.LOG.location,.4.dashes.will.appear.in.the. lower.right.corner..Aim.the.unit.at.the.target.area.you.want.to.record,.and. press.the.laser/backlight.button..The.recorded.temperature.will.appear. Blue - 100/80/30/5 Pantone 534 Blue in.the.lower.right.corner..To.select.another.log.location,.press.the.up.and. Yellow - 0/27/100/0 Pantone 123 Yellow down.keys.

  • Page 10: Battery.replacement

    Recalling Data To.recall.stored.data.after.the.unit.shuts.off,.press.the.MODE.button.until. LOG.appears.in.the.lower.left.corner..A.LOG.location.number.will.be.shown. below.LOG,.and.the.stored.temperature.for.that.location.will.be.displayed.. To.move.to.another.LOG.location,.press.the.UP.and.DOWN.keys. Log Clear Function The.“Log.clear”.function.allows.you.to.quickly.clear.all.logged.data.points.. This.function.can.only.be.used.when.the.unit.is.in.LOG.mode..It.can.be. used.when.the.user.has.any.number.of.LOG.locations.stored. You.should.only.use.the.“LOG.clear”.function.if.you.want.to.clear.all.the. Log.location.data.that.is.stored.in.unit’s.memory..The.“LOG.clear”.function. works.as.follows: 1..While.in.LOG.mode,.press.the.trigger,.and.then.press.the.“down”.arrow. button.until.you.reach.LOG.location.“0”..This.can.only.be.done.when. the.trigger.is.pulled..LOG.location.“0”.cannot.be.accessed.by.using.the. “up”.arrow.button. 2..When.LOG.location.“0”.shows.in.the.display,.press.the.laser/back- light.button..A.tone.will.sound,.and.the.LOG.location.will.automatically. change.to.“1”,.signifying.that.all.data.locations.have.been.cleared. 3..Measurement.considerations:. Holding.the.meter.by.its.handle,.point.the.IR.sensor.toward.the.object. whose.temperature.is.to.be.measured..The.meter.automatically.com- pensates.for.temperature.deviations.from.ambient.temperature..Keep. in.mind.that.it.will.take.up.to.30.minutes.to.adjust.to.wide.ambient. temperatures.being.measured.followed.by.high.temperature.measure- ments,.some.time.(several.minutes).is.required.after.the.low.(and.before. the.high).temperature.measurements.are.made..This.is.a.result.of.the. cooling.process,.which.must.take.place.for.the.IR.sensor. Battery Replacement Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow 1..When.battery.power.is.not.sufficient,.LCD.will.display.“...

  • Page 11: Notes

    Notes: How it Works This.REED.Infrared.Thermometer.measures.the.surface.temperature.of.an. object..The.unit’s.optics.sense.emitted,.reflected,.and.transmitted.energy,. which.is.collected.and.focused.onto.a.detector..The.unit’s.electronics. translate.the.information.into.a.temperature.reading.which.is.displayed.on. the.unit..In.units.with.a.laser,.the.laser.is.used.for.aiming.purposes.only. Field of View Make.sure.that.the.target.is.larger.than.the.unit’s.spot.size..The.smaller. the.target,.the.closer.you.should.be.to.it..When.accuracy.is.critical,.make. sure.the.target.is.at.least.twice.as.large.as.the.spot.size. Distance & Spot Size As.the.distance.(D).from.the.object.increases,.the.spot.size.(S).of.the.area. measured.by.the.unit.becomes.larger..See.Graphic.on.Page.4. Locating a Hot Spot To.find.a.hot.spot.aim.the.thermometer.outside.the.area.of.interest,.then. scan.across.with.an.up.and.down.motion.until.you.locate.hot.spot. Reminders 1..Not.recommended.for.use.in.measuring.shiny.or.polished.metal. . surfaces.(stainless.steel,.aluminum,.etc.)..See.Emissivity. 2..The.unit.cannot.measure.through.transparent.surfaces.such.as. . glass..It.will.measure.the.surface.temperature.of.the.glass.instead. 3..Steam,.dust,.smoke,.etc.,.can.prevent.accurate.measurement.. . by.obstructing.the.unit’s.optics. Emissivity Emissivity.is.a.term.used.to.describe.the.energy-emitting.characteristics.of. materials..Most.(90%.of.typical.applications).organic.materials.and.painted.or.

  • Page 12: Maintenance.&.Cleaning

    0.78 Mortar. 0.89.to.0.91 Iron.oxides. 0.78.to.0.82 Brick. 0.93.to.0.96 Textiles. 0.90 Maintenance & Cleaning: •. Repairs.or.servicing.that.are.not.covered.in.this.manual.should.only.. be.performed.by.qualified.personnel..REED.Instruments.is.qualified.. to.handle.this.for.you..Contact.us.at.1-800-561-8187.or.. info@reedinstruments.com Blue - 100/80/30/5 Pantone 534 Blue •. Periodically.wipe.the.case.with.a.dry.cloth..Don’t.use.abrasives.. Yellow - 0/27/100/0 Pantone 123 Yellow or.solvents.on.this.instrument. Red - 10/100/100/5 Pantone 485 Red •. When.servicing,.use.only.specified.replacement.parts.
