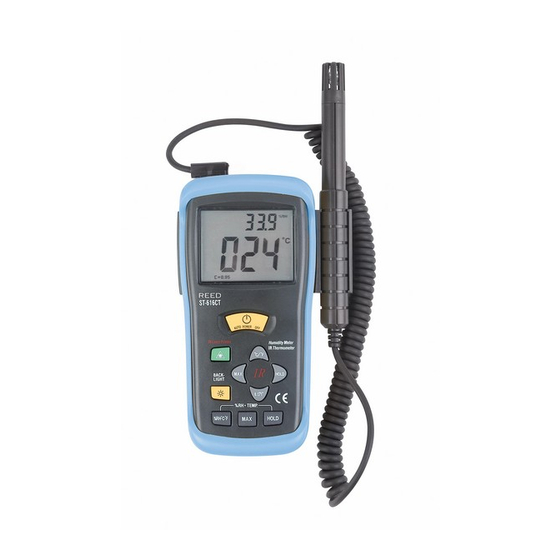

REED ST-616CT Instruction Manual

Infrared thermo-hygrometer
Hide thumbs

Advertisement

Quick Links

Download this manual

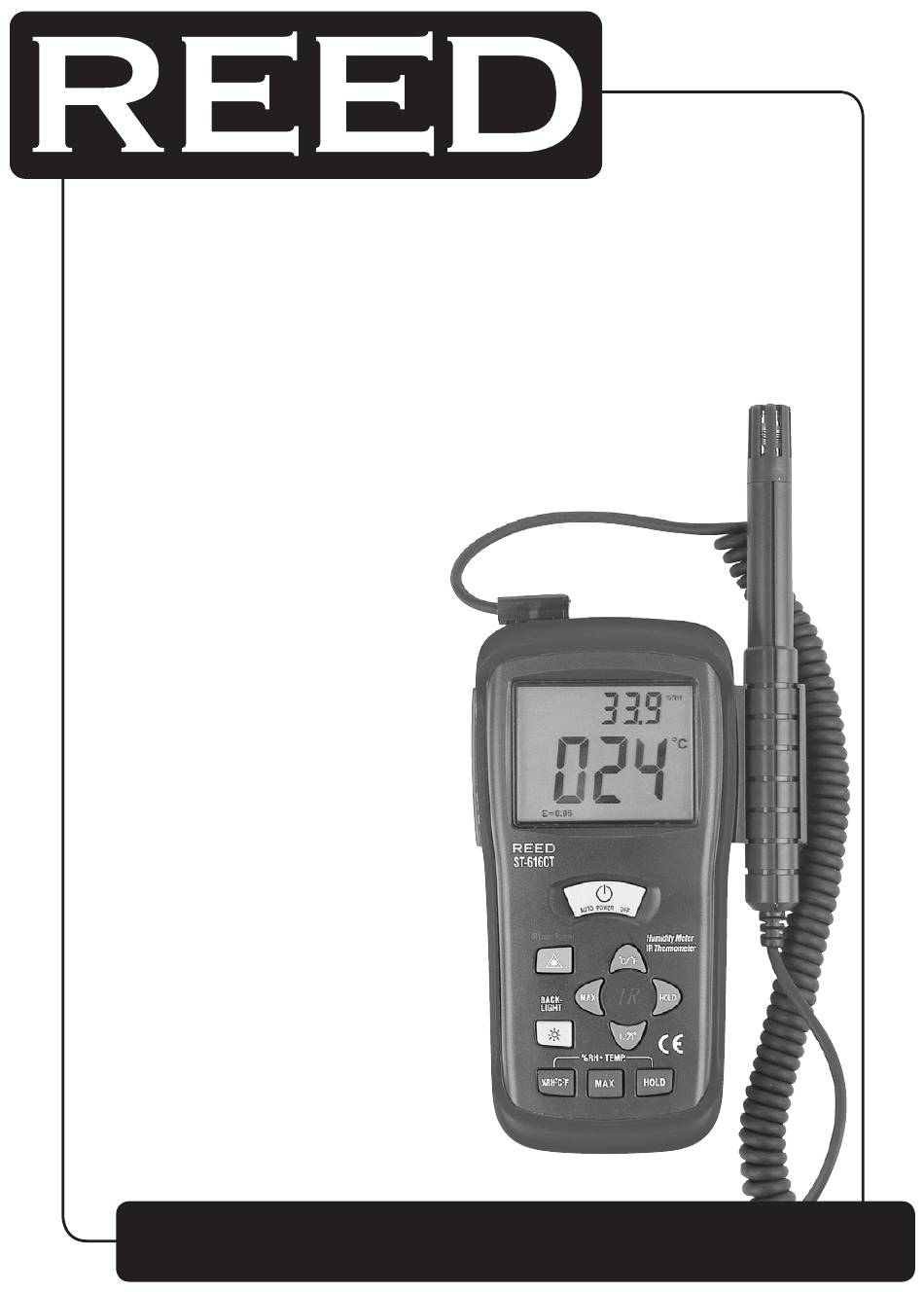

ST-616CT
Model
Infrared
Thermo-Hygrometer
Instruction
Manual
reedinstruments
www
com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST-616CT and is the answer not in the manual?

Questions and answers

Related Manuals for REED ST-616CT

Summary of Contents for REED ST-616CT

  • Page 1 ST-616CT Model Infrared Thermo-Hygrometer Instruction Manual reedinstruments...

  • Page 2: Table Of Contents

    Table of Contents Safety..................... 2 Features..................3 Specifications................4-5 Instrument.Description..............6-7 Operating.Instructions...............8-10 Battery.Replacement..............11 Safety •. Use.extreme.caution.when.the.laser.beam.is.turned.on. •. Do.not.point.the.laser.beam.to.your.eye,.another.person’s.eye.or.the. eye.of.an.animal. •. Do.not.point.the.laser.beam.toward.a.reflective.surface.that.can.strike. your.eye. •. Do.not.point.the.laser.beam.towards.an.explosive.gas. For.service.on.this.or.any.other.REED.product.or.information.on.other. REED.products,.contact.REED.Instruments.at.info@reedinstruments.com. reedinstruments...

  • Page 3: Features

    Features •. An.easy-to-use.infrared.thermometer.and.humidity.meter.in.. one.compact.unit •..User.selectable.°F.or.°C •..Large,.easy.to.read,.backlit.LCD.with.dual.display •..Max.and.Hold.function,.Auto.shut.off •..Fixed.0.95.emissivity.covers.90%.of.surface.applications •..Includes.battery.and.carrying.case Wide range of applications Food.preparation,.safety.and.fire.inspectors,.plastic.molding,.asphalt,. marine,.screen.printing,.measure.ink,.dryer.temperature,.diesel.and.fleet. maintenance. Field of View The.meter’s.field.of.view.is.8:1,.meaning.that.if.the.meter.is.8.inches.from. the.target,.the.diameter.of.the.object.being.tested.must.measure.at.least. 1”..Other.distances.are.shown.below.in.the.field.of.view.diagram..Refer.to. the.chart.printed.on.the.meter.for.more.information. Distance (D) to Spot Size (S) ...........Laser ..............reedinstruments...

  • Page 4: Specifications

    Specifications General Specifications Temperature.Range:.. -58.to.932°F.(-50.to.500°C) Resolution:.. 0.1.up.to.200°;.1°.over.200° Accuracy:.. ±2%.of.reading Humidity.Range:.. 0.to.100%.RH Resolution:.. 0.1%.RH Accuracy:.. ±3.5%.RH Optical.Resolution:.. 8:1.Distance.to.Spot.Size.Ratio Emissivity:.. Fixed.at.0.95 Response.Time:.. <.1.second Display:.. Dual.backlit.LCD IR.Spectral.Response:. 6.to.14um Sample.Rate:. 2.5.times/second Operating.Temp.:. 32.to.122°F.(0.to.50°C) Operating.%.RH:. Max..80%.RH Over.Range.Indication:. LCD.will.show.“OL” Power.Off:. Automatic.shut.offf.after.10.minute,.approx. Battery.Life:.. 1.x.9V.alkaline.battery Dimensions:.. 5.9.x.3.x.1.6”.(150.x.75.x.40mm) Weight:.. 7.1.oz.(200g) Optional.Accessories:.
  • Page 5 Infrared Thermometer Specifications Range Resolution Accuracy -50.0 to -50.0 to -20.0°C 0.1°C + 5°C 200.0°C -20.0 to 200.0°C ± 2% of reading or + 2°C 200 to 500°C 1°C ± 2% of reading or + 2°C -58.0 to -58.0 to -4.0°F 0.1°F + 9°F 200.0°F...

  • Page 6: Instrument.description

    Instrument Description 1.-.Laser.pointer.beam....2.-.IR.sensor 3.-.%RH.and.Probe.temperature.measurement.reading 4.-.Infrared.thermometer.measurement.reading 5.-.Power.(ON/OFF).button 6.-.°C/°F.(IR.TEMP.).button 7.-.IR.measurement.data.hold.button 8.-.0.1º/1º(IR.TEMP.).button 9.-.IR.temperature.Laser.pointer.button 10.-.IR.measurement.MAX.hold.button 11.-.Backlight.button 12.-.%RH/°C/°F.(Probe.temperature).button 13.-.%RH/°C/°F.(Probe.temperature).measurement.data.hold.button 14.-.%RH/°C/°F.(Probe.temperature).measurement.MAX.hold.button 15.-.Humidity.and.Probe.temperature.sensor reedinstruments...
  • Page 7 LCD Display 1.- 188.8.%RH°C°F..%RH.and.probe.temperature.measurement.reading. 2.-..MAX (1)... %RH.and.probe.temperature.MAX.Hold. 3.-..HOLD (1) ..%RH.and.Probe.temperature.MAX.Hold 4.-..–1888.°C°F..IR.measurement.reading....... 5.-..°C....Temperature.°C.(Celsius) 6.-.°F....Temperature.°F.(Fahrenheit) 7.-.MAX.(2).... IR.MAX.Hold 8.-.HOLD.(2)... IR.Data.Hold... 9.-. IR.Laser.Point. 10.-.E=0.95.... IR.Fixed.emissivity.(0.95) 11.-. . LOW.battery.indicator reedinstruments...

  • Page 8: Operating.instructions

    Operating Instructions ON/OFF button Read.the.measured.IR.Temperature.(°C/°F).and.Relative.Humidity.simul- taneously.on.the.LCD.of.the.meter..The.meter.automatically.turns.itself.off. approximately.10.minutes.after.not.being.used.. %RH /°C/°F (probe temperature) button Select.the.Relative.Humidity.units.(%RH).or.the.probe.temperature.(air. temperature).units.(°C.or.°F).using.the°C/°F.buttons. Selecting infrared thermometer range (0.1º/ 1º) Use.the.0.1º/1º.button.to.select.the.temperature.range. Selecting the display resolution The.thermometer.allows.two.resolution.choices: High.resolution:.0.1°C.or.0.1°F Low.resolution:.1°C.or.1°F Overload display (OL) The.digital.display.will.indicate.OL.when.the.input.exceeds.the.measurement. range.selected..If.measuring.above.199.9º,.change.the.resolution.to.1º. Data Hold button Press.the.Data.Hold.button.to.freeze.the.reading.on.the.display..“HOLD”. will.appear.on.the.display..Press.the.button.again.to.release.the.display. MAX Hold button To.hold.the.highest.reading.on.the.LCD,.press.the.MAX.hold.button..
  • Page 9 Infrared thermometer measurement considerations Holding.the.meter,.point.the.IR.sensor.toward.the.object.being.measured.. The.meter.automatically.compensates.for.temperature.deviations.from. ambient.temperatures..Keep.in.mind.that.it.will.take.up.to.30.minutes.to. adjust.to.wide.ambient.temperatures..Several.minutes.is.required.after.the. low.and.before.the.high.temperature.measurements.are.taken. This.is.due.to.the.cooling.process.which.must.take.place.for.the.IR.sensor. Relative humidity measurement and air temperature considerations Always.operate.the.instrument.in.such.a.position.that.you.can.read.read.the. liquid.crystal.display.(LCD).or.that.the.digital.display.is.directed.upwards. Infrared thermometer notes: How.it.Works Infrared.thermometers.measure.the.surface.temperature.off.an.object.. The.intrument’s.optic.reflected.sense.and.transmitted.energy.is.collected. and.focused.onto.a.detector..The.instrument’s.electronics.translate.the. information.into.a.temperature.reading.which.is.displayed.on.the.display.. The.laser.is.used.for.aiming.purposes.only. Field.off.View Make.sure.that.the.target.is.larger.than.the.instrument’s.spot.size... The.smaller.the.target,.the.closer.you.should.be.to.it..When.accuracy.is. critical,.make.sure.the.target.is.at.least.twice.as.large.as.the.spot.size. Distance.&.Spot.Size. As.the.distance.(D).from.the.object.increases,.the.spot.size.(S).off.the.area. measured.becomes.larger..See.diagram.on.Page.3. Locating.a.Hot.Spot To.find.a.hot.spot.aim.the.thermometer.outside.the.area.of.interest,.then. scan.across.with.an.up.and.down.motion.until.you.locate.the.hot.spot. Reminders 1.. Not.recommended.for.use.in.measuring.shiny.or.polished.metal.sur- faces.(stainless.steel,.aluminum,.etc)..See.emissivity.chart.on.Page.10.
  • Page 10 Emissivity Most.(90%.of.typical.applications).organic.materials.and.painted.or. oxidized.surfaces.have.an.emissivity.of.0.95.(pre-set.in.the.instrument).. Inaccurate.readings.will.result.from.measuring.shiny.or.polished.metal. surfaces..To.compensate,.cover.the.surface.to.be.measured.with.mask- ing.tape.or.flat.black.paint..Allow.time.for.the.tape.to.reach.the.same. temperature.as.the.material.underneath.it..Measure.the.temperature.of.the. tape.or.painted.surface. Emissivity Values Substance Thermal.. Substance Thermal.. Emissivity Emissivity Asphalt. 0.90.to.0.98 Cloth.(black) 0.98 Concrete. 0.94 Human.skin .0.98 Cement. 0.96 Leather. 0.75.to.0.80 Sand. 0.90 Charcoal.(powder) 0.96 Earth. 0.92.to.0.96 Lacquer. 0.80.to.0.95 Water. 0.92.to.0.96 Lacquer.(matt) 0.97 Ice.

  • Page 11: Battery.replacement

    Battery Replacement 1..As.battery.power.is.no.longer.sufficient,.the.display.will.show..indicating.that.it’s.time.to.replace.the.current.battery.with.a.new.. battery..(9V). 2..Open.the.battery.cover,.remove.the.old.battery.from.the.instrument.and. replace.with.the.new.9-Volt.battery..Place.the.battery.cover.back.onto. the.instruments.... For.service.on.this.or.any.other.REED.product.or.information.on.other. REED.products,.contact.REED.Instruments.at.info@reedinstruments.com. Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ reedinstruments...
  • Page 12 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ reedinstruments...
