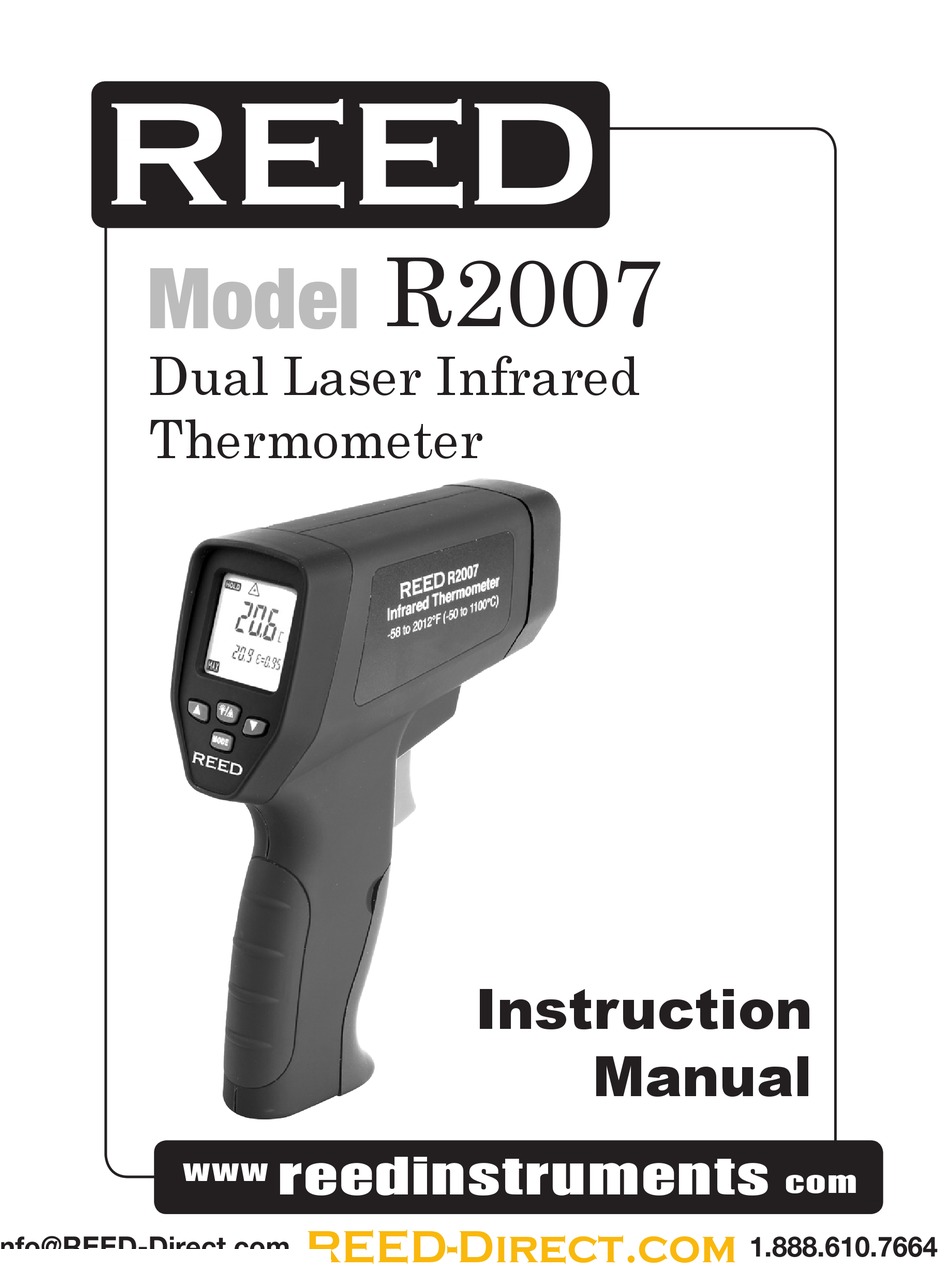

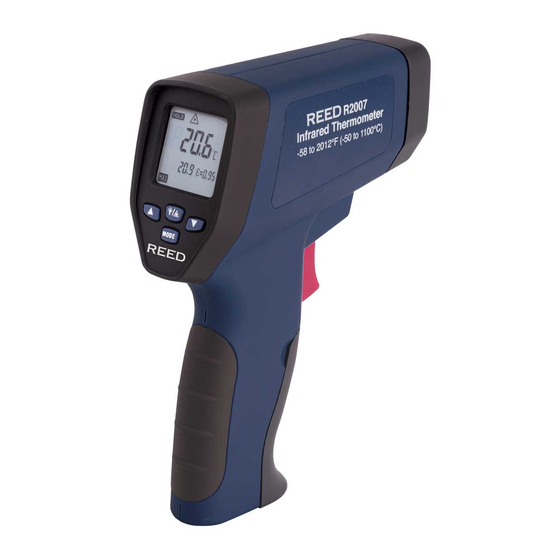

- Page 1 Black R2007 Model Dual Laser Infrared Pantone 534 Blue - 100/80/30/5 Pantone 485 Red - 10/100/100/5 Thermometer Pantone 123 Yellow - 0/27/100/ Instruction Manual reedinstruments REED-Direct.com nfo@REED-Direct.com 1.888.610.7664...
-
Page 2: Table Of Contents
Yellow - 0/27/100/0 Pantone 123 Yellow • Do not allow the laser light beam to impinge on any gas Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow which can explode Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black Rich Black - 20/20/20/100 REED-Direct.com nfo@REED-Direct.com 1.888.610.7664 Pantone 534 Blue - 100/80/30/5... -
Page 3: Features
Yellow - 0/27/100/0 Pantone 123 Yellow Weight 197g (7.0oz) Red - 10/100/100/5 Pantone 485 Red Included Soft carrying case and battery Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black Rich Black - 20/20/20/100 REED-Direct.com nfo@REED-Direct.com 1.888.610.7664 Pantone 534 Blue - 100/80/30/5... -
Page 4: Notes
Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black Rich Black - 20/20/20/100 REED-Direct.com nfo@REED-Direct.com 1.888.610.7664 Pantone 534 Blue - 100/80/30/5... -
Page 5: Instrument Description
Pantone 123 Yellow Operating Instructions Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow 1. Hold the meter and point it toward the surface to be measured. Blue - 100/80/30/5 Pantone 534 Blue 2. Pull and hold the Trigger to turn the meter on and begin measuring, reedinstruments Black Rich Black - 20/20/20/100 REED-Direct.com nfo@REED-Direct.com 1.888.610.7664 Pantone 534 Blue - 100/80/30/5... -
Page 6: Applications
Yellow - 0/27/100/0 Pantone 123 Yellow the MODE button, then press the MODE button until the appropriate Red - 10/100/100/5 Pantone 485 Red selection appears in the lower left corner of the display, press the UP and Yellow - 0/27/100/0 Pantone 123 Yellow DOWN buttons to adjust the desired values. Blue - 100/80/30/5 Pantone 534 Blue reedinstruments Black Rich Black - 20/20/20/100 REED-Direct.com nfo@REED-Direct.com 1.888.610.7664 Pantone 534 Blue - 100/80/30/5... -
Page 7: Cleaning
Cleaning Periodically wipe the case with a dry cloth. Don’t use abrasives or sol- vents on this instrument Notes How it Works This REED Infrared Thermometer measures the surface temperature of an object. The unit’s optics sense emitted, reflected, and transmitted energy which is collected and focused onto a detector. The unit’s electronics translate the information into a temperature reading which is displayed on the unit. In units with a laser, the laser is used for aiming purposes only. Field of View Make sure that the target is larger than the unit’s spot size. The smaller the target, the closer you should be to it. When accuracy is critical, make sure the target is at least twice as large as the spot size. Distance & Spot Size As the distance (D) from the object increases, the spot size (S) of the area measured by the unit becomes larger. See Graphic on Page 4. Locating a Hot Spot To find a hot spot aim the thermometer outside the area of interest, then scan across with an up and down motion until you locate hot spot. Emissivity Emissivity is a term used to describe the energy-emitting characteristics of materials. Most (90% of typical applications) organic materials and painted or oxidized surfaces have an emissivity of 0.95 (pre-set in the unit). Inaccurate readings will result from measuring shiny or polished metal surfaces. To compensate, cover the surface to be measured with masking Blue - 100/80/30/5 Pantone 534 Blue... -
Page 8: Emissivity
0.90 Battery Replacement 1. When battery power is not sufficient, LCD will display “ ” and replacement with one new 9V battery is required 2. Open battery cover, take out the battery from the instrument and replace with a new 9V battery and place the battery cover back into place Blue - 100/80/30/5 Pantone 534 Blue For service on this or any other REED product or information on other Yellow - 0/27/100/0 Pantone 123 Yellow REED products, contact REED Instruments at info@reedinstruments.com Red - 10/100/100/5 Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
