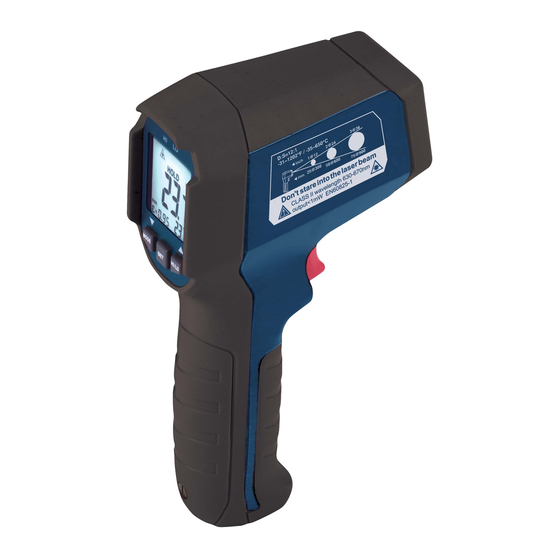

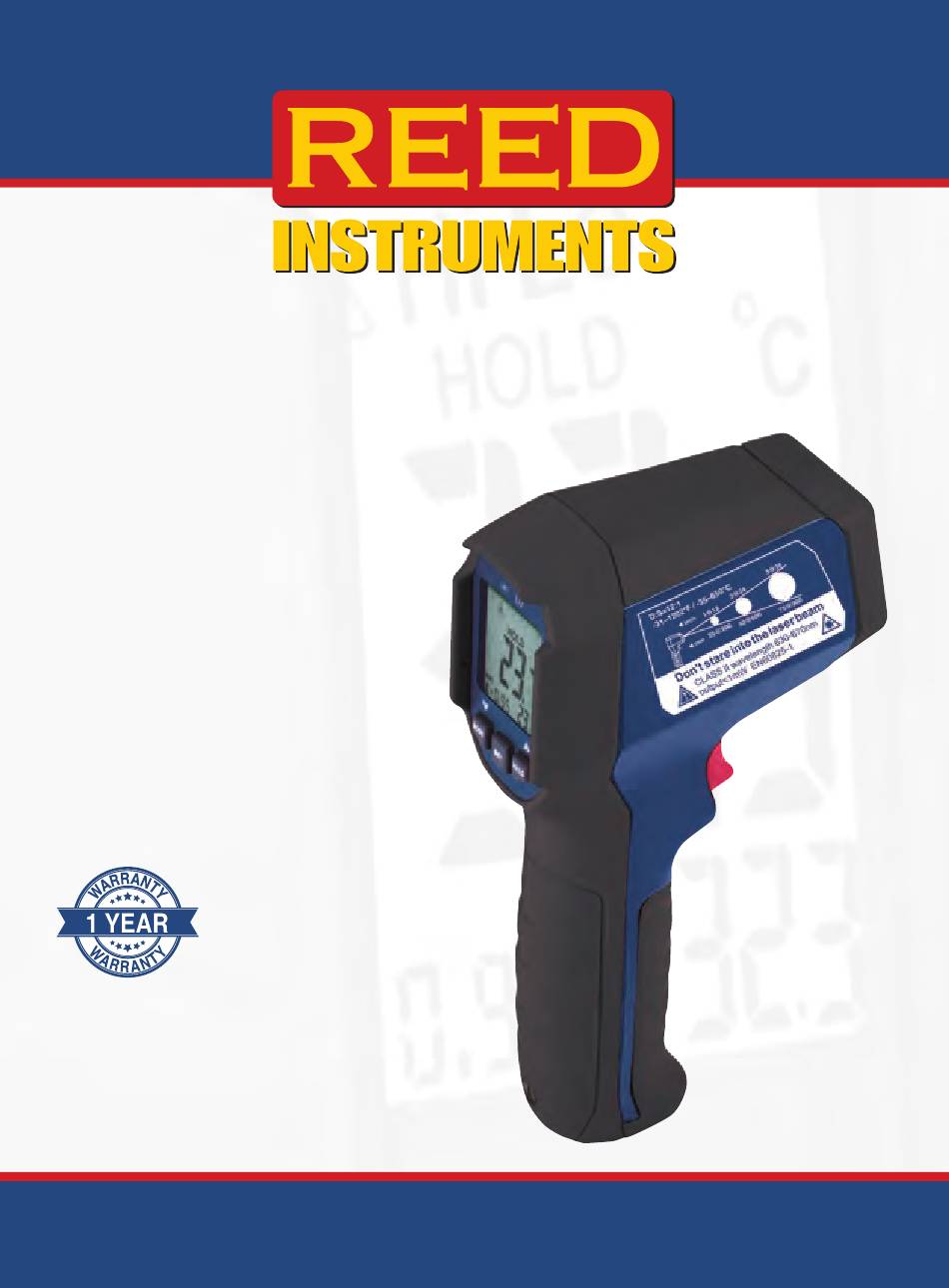

- Page 1 R2310 Infrared Thermometer Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Turning High and Low Alarms ON/OFF ..........13 Battery Replacement ................... 14 Applications ....................14 Appendix: Emissivity Chart ..............15-16 Product Care ....................17 Product Warranty ..................17 Product Disposal and Recycling ..............17 Product Support ..................18 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 3: Introduction
Introduction Thank you for purchasing your REED R2310 Infrared Thermometer. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. -
Page 4: Features
• Carrying Case • Battery Specifications Temperature Range: -31 to 1202°F (-35 to 650°C) Accuracy: ≥32°F (0°C):±3.6°F (1.8°C) or ±1.8% rdg., whichever is greater <32°F (0°C:±3.6°F+0.1°F (1.8°C+0.1°C)/rdg. Resolution: 0.1°F (0.1°C) Optical Resolution (D:S): 12:1 Spectral Response: 8 to 14µm Emissivity: 0.1 to 1.0 (Adjustable) Response Time: 250ms Backlit Display: Display Hold: High/Low Alarms: Alarm Indicators: LED (High: Red, Low: Blue) continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 5 Laser Type: Class II Low Battery Indicator: Power Supply: 9V battery Battery Life: Approx. 10 hours (with continuous use, backlight on) Product Certifications: CE, RoHS, IP65, Drop Tested Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: -4 to 140°F (-20 to 60°C) Operating Humidity Range: 10 to 90% Maximum Operating Altitude: 6561' (2000m) Maximum Storage Altitude: 39370' (12000m) Dimensions: 7.4 x 4.7 x 2.2" (189 x 118 x 55mm) Weight: 10.3oz (292g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 6: Instrument Description
Instrument Description 1. Laser Pointer Beam 7. Set Button 2. IR Sensor 8. High/Low Alarm Button/ Up Arrow 3. Trigger 9. Handle Grip 4. High/Low Alarm Indicators 10. Battery Cover 5. LCD Display 11. Battery Compartment Screw 6. Mode Button/Down Arrow 12. Tripod Mount REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 7: Display Description
Display Description Temperature Measurement Trigger Lock Laser ON High and Low Limit Alarm Low Battery Temperature Measurement Active Measurement Data Hold Unit of Measurement Temperature Measurement Value Mode Emissivity Temperature Measurement Value from Selected Mode REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Distance & Spot Size
Distance & Spot Size REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 9: Operating Instructions
2 minutes. Pull the trigger again to stop measuring and the icons will disappear and the icon will appear. The thermometer will keep the last measured value until the unit turns off. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 10: Maximum, Minimum, Average And Differential Functions
DOWN buttons to set temperature value. Press the UP and DOWN buttons to add or subtract 1. Hold the UP or DOWN buttons to add or subtract 10 temperature values. The instrument will exit the setup after 5 seconds of inactivity. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Setting The Low Temperature Alarm
DOWN buttons to set the values. Press the UP and DOWN buttons to add or subtract 0.01 unit and/or hold the UP and DOWN buttons to add or subtract 0.1. The thermometer will exit the setup after 5 seconds of inactivity. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 12: Switching The Unit Of Measure (°F/°C)
To turn the lock measurement on or off, press the SET button six times to enter lock measurement setup. Use the UP and DOWN buttons to feature on or off. The thermometer will exit the setup after 5 seconds of inactivity. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 13: Turning High And Low Alarms On/Off
Turning High and Low Alarms ON/OFF Press the button to enter alarm setup screen. Press the button again to toggle through the alarm functions. High/Low alarms on. High alarm on. Low alarm on. No alarm set. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 14: Battery Replacement
The battery should be replaced when is displayed. Remove the screw with a flat screwdriver and open the battery cover. Replace the 9V battery. Place the battery cover back and tighten the screw. Applications • Verify mechanical (bearings, motors) or electrical (circuit breaker boxes) equipment • Calibration and control of heater and oven temperatures • Monitoring materials in processes involving heating and/or cooling • Quality control monitoring • Research and development applications • Automotive diagnostics • Conduct HVAC energy audits REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 15: Appendix: Emissivity Chart
Hastelloy: Alloy 0.3-0.8 Inconel: Oxidization, 0.7-0.95, 0.3-0.6, 0.15 Sand-Blasting, Electro Burnishing Iron: Oxidization, Rusting 0.5-0.9, 0.5-0.7 Iron (Casting): Oxidization, 0.6-0.95, 0.2, 0.2-0.3 Non-Oxidization, Casting Iron (Forging): Passivation Lead: Rough, Oxidization 0.4, 0.2-0.6 Molybdenum: Oxidization 0.2-0.6 Nickel: Oxidization 0.2-0.5 Platinum: Black continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... - Page 16 Graphite, Silicone Carbide Ceramics 0.95 Clay 0.95 Concrete 0.95 Cloth Glass: Convex, Smooth, 0.76-0.8, 0.92-0.94, 0.78-0.82 Lead-Boron Plates 0.96 Stone Products 0.93 Plaster 0.8-0.95 0.98 Limestone 0.98 Paper 0.95 Plastics 0.95 Water 0.93 Soil 0.9-0.98 Wood 0.9-0.95 REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 17: Product Care
REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. -
Page 18: Product Support
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 19 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
