Summary of Contents for REED R2300

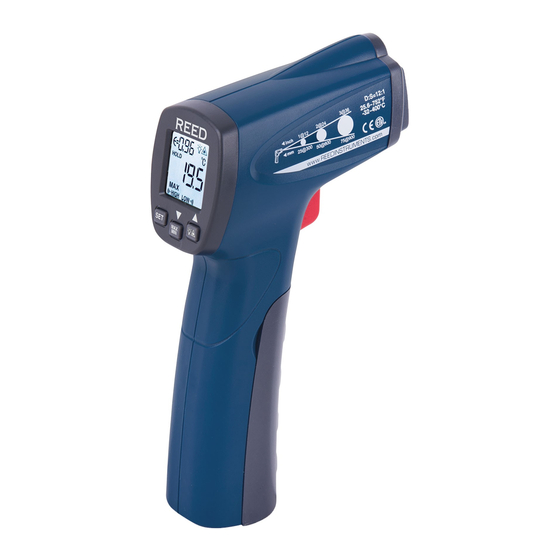

- Page 1 R2300 Infrared Thermometer Instruction Manual REED-Direct.com info@REED-Direct.com 1.888.610.7664...
-
Page 2: Table Of Contents
Setting the Low Temperature Alarm ............ 10 Appendix: Emissivity Chart ..............11-12 Fault Diagnostics ..................13 Battery Replacement ................13 Applications ....................14 Product Care .................... 14 Product Warranty ..................14 Product Disposal and Recycling .............. 15 Product Support ..................15 REED-Direct.com info@REED-Direct.com 1.888.610.7664... -
Page 3: Introduction
Introduction Thank you for purchasing your REED R2300 Infrared Thermometer. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet stated product specifications. -
Page 4: Features
Accuracy: ±4°F (2°C) or ±2% rdg. Resolution: 0.1°F (0.1°C) Optical Resolution (D:S): 12:1 Spectral Response: 8 to 14µm Emissivity: 0.1 to 1.0 (Adjustable) Response Time: 500ms Backlit Display: Display Hold: High/Low Alarms: Alarm Indicators: Yes (Beeping) Max/Min: F/C Switchable: Laser Type: Class II Low Battery Indicator: Power Supply: 9V battery Product Certifications: CE, ETL, RoHS Battery Life: Approx. 10 hours (with continuous use, backlight on) continued... REED-Direct.com info@REED-Direct.com 1.888.610.7664... -
Page 5: Instrument Description
32 to 104°F (0 to 40°C) Storage Temperature: -4 to 140°F (-20 to 60°C) Operating Humidity Range: <90% Maximum Operating Altitude: 6561' (2000m) Maximum Storage Altitude: 39370' (12000m) Dimensions: 6.0 x 4.3 x 1.6" (153 x 108 x 40mm) Weight: 6.5oz (185g) Instrument Description 1. LCD Display 5. Laser Pointer Beam 2. Set Button 6. IR Sensor 3. MAX/MIN/DOWN 7. Trigger Arrow Button 8. Battery Cover 4. Backlight/Laser Toggle/ UP Arrow Button REED-Direct.com info@REED-Direct.com 1.888.610.7664... -
Page 6: Display Description
Display Description Emissivity Laser ON Temperature Measurement Active Measurement Data Hold Maximum or Minimum Value Low Battery Backlight Indicator Unit of Measurement High and Low Limit Alarm Alarm On/Off REED-Direct.com info@REED-Direct.com 1.888.610.7664... -
Page 7: Distance & Spot Size
Distance & Spot Size REED-Direct.com info@REED-Direct.com 1.888.610.7664... -
Page 8: Operating Instructions
Pull and hold the trigger after aiming at the target. The icon will flash, indicating that the target temperature is being measured. When the trigger is released, the icon will disappear and the icon will appear indicating that measurement has stopped and the last measured temperature will remain on-screen until another measurement is taken. continued... REED-Direct.com info@REED-Direct.com 1.888.610.7664... -
Page 9: Entering Setting Mode
Once the desired selection has been made, press and hold the SET button for 3 seconds to save the selection and resume normal operation. continued... REED-Direct.com info@REED-Direct.com 1.888.610.7664... -
Page 10: Setting The High Temperature Alarm
Press and hold the for quicker value adjustment. Press decrease the temperature value. Press and hold the for quicker value adjustment. Once the desired adjustments have been made, press and hold the SET button for 3 seconds to save the selected low alarm temper- ature and resume normal operation. REED-Direct.com info@REED-Direct.com 1.888.610.7664... -
Page 11: Appendix: Emissivity Chart
Copper: Oxidization, Electric 0.4-0.8, 0.6 Terminal Board Hastelloy: Alloy 0.3-0.8 Inconel: Oxidization, 0.7-0.95, 0.3-0.6, 0.15 Sand-Blasting, Electro Burnishing Iron: Oxidization, Rusting 0.5-0.9, 0.5-0.7 Iron (Casting): Oxidization, 0.6-0.95, 0.2, 0.2-0.3 Non-Oxidization, Casting Iron (Forging): Passivation Lead: Rough, Oxidization 0.4, 0.2-0.6 Molybdenum: Oxidization 0.2-0.6 Nickel: Oxidization 0.2-0.5 Platinum: Black continued... REED-Direct.com info@REED-Direct.com 1.888.610.7664... - Page 12 Carbon: Non-Oxidization, Graphite, 0.8-0.9, 0.7-0.8, 0.9 Silicone Carbide Ceramics 0.95 Clay 0.95 Concrete 0.95 Cloth Glass: Convex, Smooth, Lead-Boron 0.76-0.8, 0.92-0.94, 0.78-0.82 Plates 0.96 Stone Products 0.93 Plaster 0.8-0.95 0.98 Limestone 0.98 Paper 0.95 Plastics 0.95 Water 0.93 Soil 0.9-0.98 Wood 0.9-0.95 REED-Direct.com info@REED-Direct.com 1.888.610.7664...
-
Page 13: Fault Diagnostics
2. Environmental 2. Only operate under condition exceeding stated environmental instrument's conditions maximum tempera- ture of 40ºC (104ºF) Battery Replacement The battery should be replaced when is displayed. Remove the battery cover. Replace the 9V battery. Close the battery cover. REED-Direct.com info@REED-Direct.com 1.888.610.7664... -
Page 14: Applications
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. -
Page 15: Product Disposal And Recycling
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 16 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! REED-Direct.com info@REED-Direct.com 1.888.610.7664...
