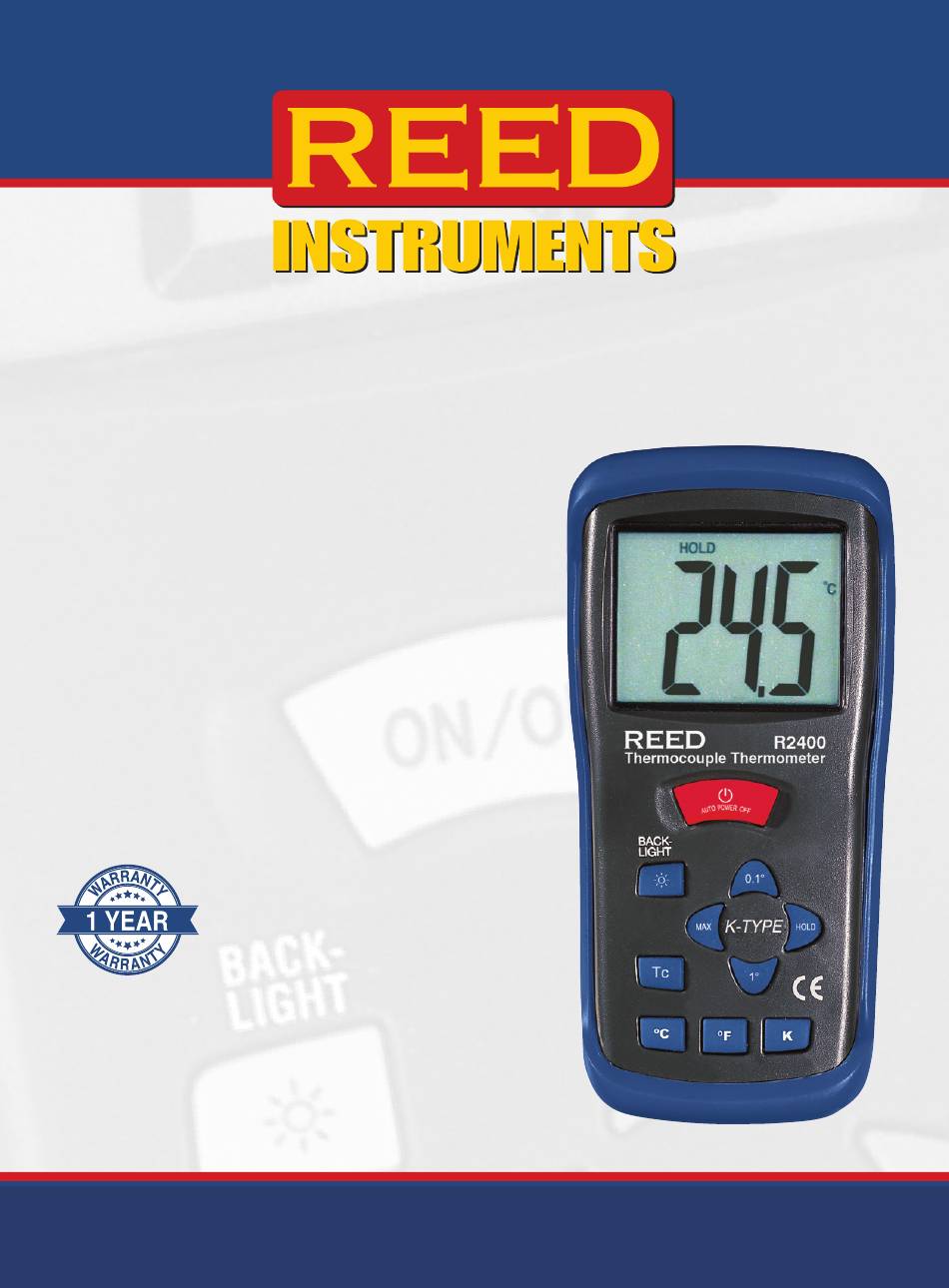

- Page 1 R2400 Type K Thermocouple Thermometer Instruction Manual www.REEDINSTRUMENTS.com REED-Direct.com info@REED-Direct.com 1.888.610.7664...
-
Page 2: Table Of Contents
Product Disposal and Recycling ..............10 Product Support ..................10 Introduction Thank you for purchasing your REED R2400 Type K Thermocouple Thermometer. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Product Quality
If a certificate of calibration is required please contact the nearest authorized REED distributor or authorized Service Center. Please note an additional fee for this service will apply. Safety • Never attempt to repair or modify your instrument. Dismantling your... -
Page 4: Features
Features • Type K thermocouple thermometer • Large, easy-to-read backlit LCD display • User selectable °C, °F or Kelvin • Max and Data Hold functions • User selectable resolution of 0.1 or 1°F (0.1 or 1°C) • Tripod mount for long-term monitoring • Low battery indicator and auto shut off Included • Protective Boot • Beaded Wire Probe • Carrying Case • Battery www.REEDINSTRUMENTS.com REED-Direct.com info@REED-Direct.com 1.888.610.7664... -
Page 5: Specifications
Yes (after 15 minutes) Kick Stand: Tripod Mountable: Low Battery Indicator: Power Supply: 1 x 9V Battery Product Certifications: Operating Temperature: 32 to 104°F (0 to 40°C) Storage Temperature: 14 to 140°F (-10 to 60°C) Operating Humidity Range: 10 to 90% Dimensions: 6.4 x 3.0 x 1.5" (162 x 76 x 38.5mm) Weight: 7.4oz (210g) www.REEDINSTRUMENTS.com REED-Direct.com info@REED-Direct.com 1.888.610.7664... -
Page 6: Instrument Description
Instrument Description ° ° R2400 Thermocouple Thermometer BACK- LIGHT ° ° 1 ° ° 1. Data HOLD Indicator 9. MAX Button 2. Thermocouple Input Jack 10. Data Hold Button 3. Temperature Measurement 11. Temperature Compensation Indicator Button 4. MAX Indicator 12. 1° Resolution Button 5. Temperature Unit of Measure 13. °C Button 6. Power Button 14. Kelvin Unit of Measurement... -
Page 7: Operating Instructions
Note: If switching the resolution does not resolve the issue verify that the thermocouple probe is properly connected and the leads are not damaged. Data Hold • Press the HOLD button to freeze the displayed reading. • Press the button again to resume normal operation. continued... www.REEDINSTRUMENTS.com REED-Direct.com info@REED-Direct.com 1.888.610.7664... -
Page 8: Max Value
Remove the protective boot by pulling it over the top of the meter. Remove the small Phillips head screw on the rear of the meter. Open the battery compartment and replace the 9V battery. Re-assemble the meter before operating. www.REEDINSTRUMENTS.com REED-Direct.com info@REED-Direct.com 1.888.610.7664... -
Page 9: Accessories And Replacement Parts
• Medical • Pharmaceutical • Industrial and Commercial Temperature Applications • R&D and Educational Establishments • Food Service Product Care To keep your instrument in good working order we recommend the following: • Store your product in a clean, dry place. • Change the battery as needed. • If your instrument isn't being used for a period of one month or longer please remove the battery. • Clean your product and accessories with biodegradable cleaner. Do not spray the cleaner directly on the instrument. Use on external parts only. www.REEDINSTRUMENTS.com REED-Direct.com info@REED-Direct.com 1.888.610.7664... -
Page 10: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 11 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! www.REEDINSTRUMENTS.com REED-Direct.com info@REED-Direct.com 1.888.610.7664...
- Page 12 REED-Direct.com info@REED-Direct.com 1.888.610.7664...
