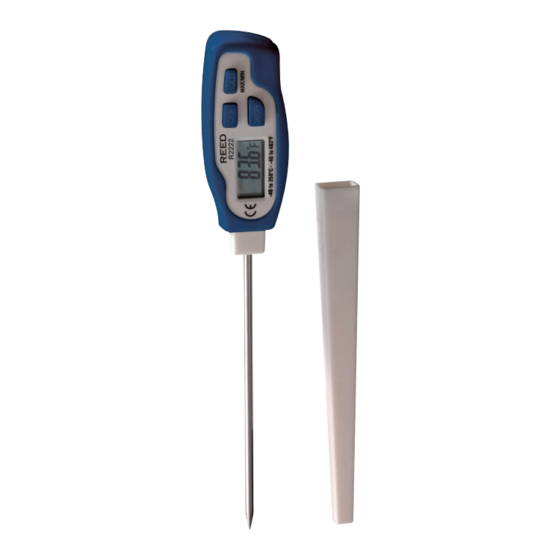

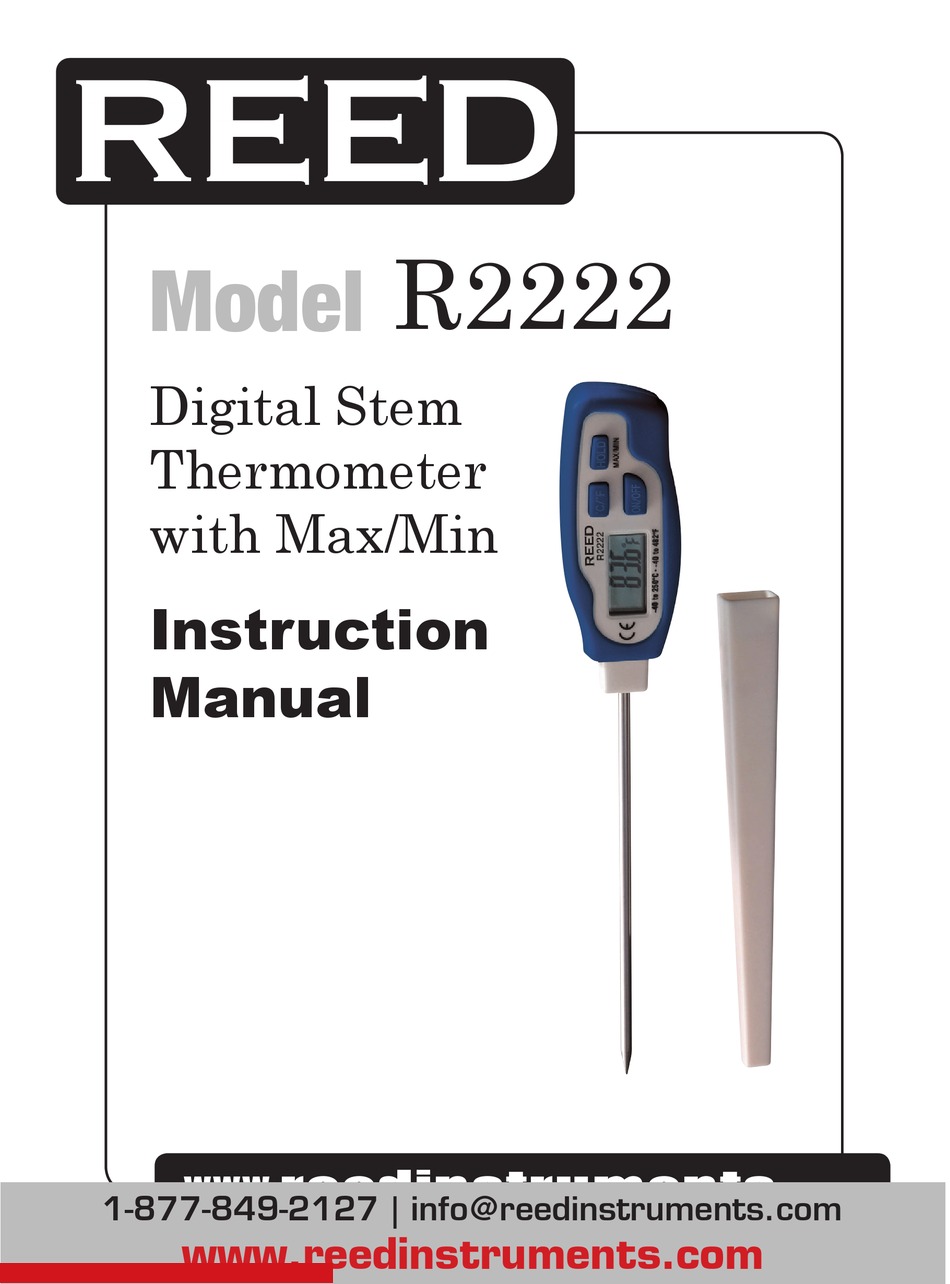

- Page 1 Black R2222 Model Pantone 534 Blue - 100/80/30/5 Pantone 485 Red - 10/100/100/5 Digital Stem Pantone 123 Yellow - 0/27/100/ Thermometer with Max/Min Instruction Manual reedinstruments 1-877-849-2127 | info@reedinstruments.com www.reedinstruments.com...
-
Page 2: Specifications
Features • Stainless steel stem thermometers offer a quick response and laboratory accuracy • Easy to read LCD display • Fahrenheit/Celsius switchable • Display updates every 2 seconds • Auto power off • Max/Min memory records highest and lowest temperatures • Data Hold button lets you freeze a reading Specifications Temperature Range: -40 to 482°F (-40 to 250°C) Resolution: 0.1°C or °F Accuracy: ±1.5% ±2° full scale Sampling Time: 2.0 seconds Power Supply: One LR44 (1.5V) battery (included) Auto Shut-Off: Approx 20 minutes Dimentions/Weight: 211 x 32 x 19mm/ 35g Includes: Protective probe cover and battery Operating Instructions To use the thermometer, remove the protective sheath, press the ON/OFF button and insert at least 1/2 of the stem into the testing area. The current temperature will be displayed. To save the battery life, the thermometer will automatically turn off after approximately 20 minutes. Changing °F to °C Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0... - Page 3 ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow For service on this or any other REED product or information on other Red - 10/100/100/5 Pantone 485 Red REED products, contact REED Instruments at info@reedinstruments.com Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue 1-877-849-2127 | info@reedinstruments.com...
- Page 4 Notes _________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ Blue - 100/80/30/5 Pantone 534 Blue Yellow - 0/27/100/0 Pantone 123 Yellow Red - 10/100/100/5 ________________________________________________ Pantone 485 Red Yellow - 0/27/100/0 Pantone 123 Yellow Blue - 100/80/30/5 Pantone 534 Blue...
