PN. 128142 2-26-19
Bistro Touch
Operating Instruction Manual
Model B-10-TCH
1-800-325-7867
3650 NEW TOWN BLVD ST. CHARLES MO 63301
WWW.NEWCOCOFFEE.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bistro Touch B-10-TCH and is the answer not in the manual?

Questions and answers

Summary of Contents for Newco Bistro Touch B-10-TCH

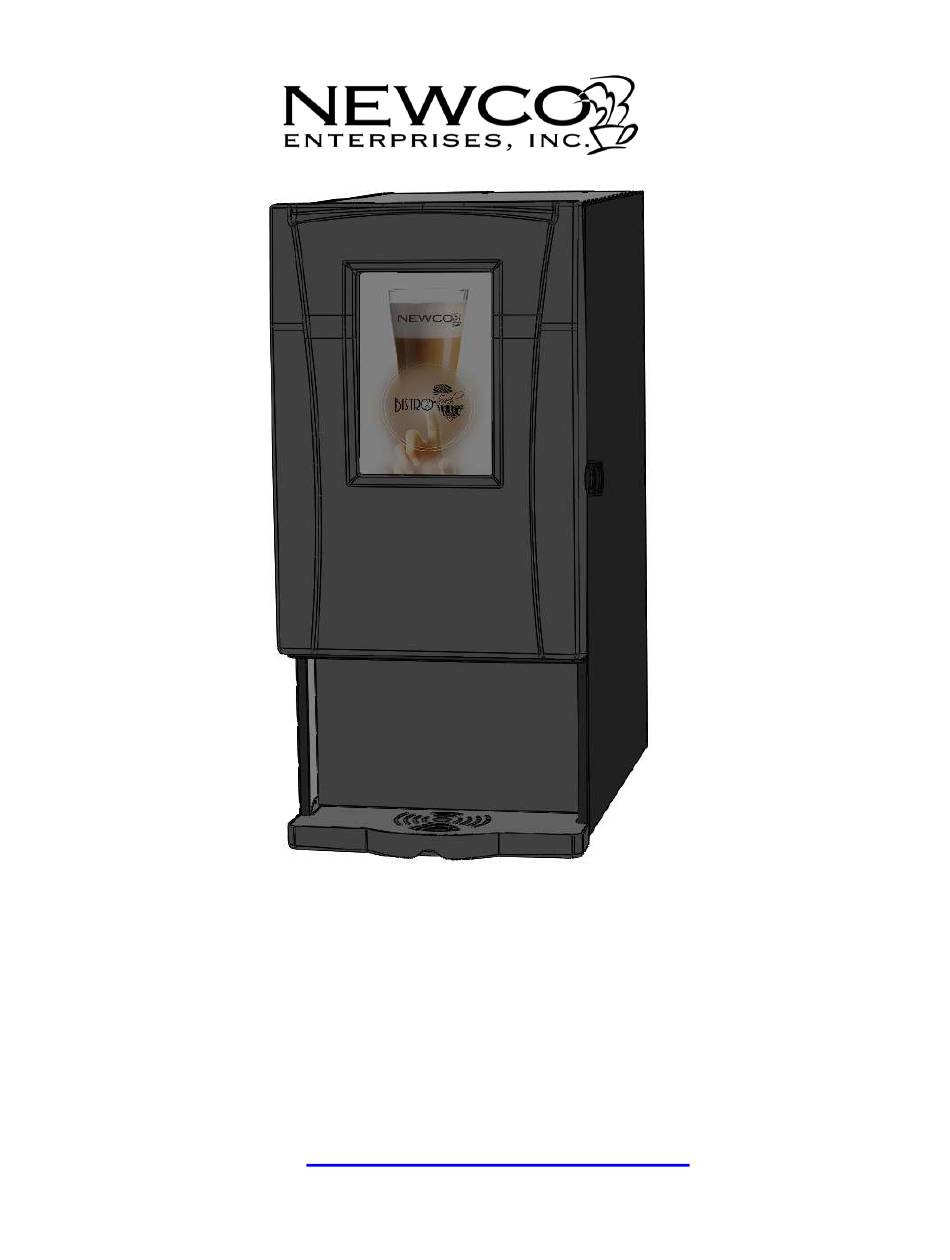

  • Page 1 PN. 128142 2-26-19 Bistro Touch Operating Instruction Manual Model B-10-TCH 1-800-325-7867 3650 NEW TOWN BLVD ST. CHARLES MO 63301 WWW.NEWCOCOFFEE.COM...
  • Page 2: Table Of Contents

    Table of Contents Introduction & Newco Product Warranty ........4 Machine Dimensions & Specifications ........5 Machine Features ................. 6 Plumbing Connections ..............7 Plumber’s Installation Instructions ..........7 Electrical Hook-Up ................ 7 Installation Instructions ............... 8 Set up instructions for Bistro Touch Machine ......9 Product Installation Procedure ............
  • Page 3 Warning Labels NOTICE: Read and follow all notices posted on this machine. Do not damage or destroy these notices as they are for your protection WARNING  DO NOT OVERLOAD CIRCUIT.  ALWAYS ELECTRICALLY GROUND THE CHASSIS OR ADAPTOR PLUG. ...
  • Page 4: Introduction & Newco Product Warranty

    (800) 556-3926 or by writing to PO Box 852, Saint Charles, MO 63302; 2) if requested by Newco, shipping the defective equipment prepaid to an authorized Newco service location; and 3) receiving prior authorization from Newco that the defective equipment is under warranty.
  • Page 5: Machine Dimensions & Specifications

    Machine Dimensions & Specifications 120 VAC-1600W HEATER-15A USA POWER SUPPLY 120 VAC-1400W HEATER-15A CANADIAN POWER SUPPLY 1/2 GALLON TANK 6-20 OZ CUP SIZE TEMPERATURE RANGE 140-205F DRIP TRAY PRODUCT & SELECTION DRIP TRAY SWITCH GRATE & DISPLAY WATER INLET & PRODUCT POWER DISPENSE...
  • Page 6: Machine Features

    Machine Features  NO CALIBRATION NEEDED-PLUG & PLAY  TOUCH SCREEN OPERATION  CUSTOMIZED LOGO SCREEN  DECAF BUTTON SWITCHES TO DECAF BIB  WHIPPER RINSE BUTTON  AUTOMATIC POWDER LEVEL RESET  PRE-PROGRAMMED DRINK RECIPES  6-8-10-12-16-20 OUNCE DRINK CHOICES ...
  • Page 7: Plumbing Connections

    Plumbing Connections Plumber’s Installation Instructions CAUTION: Disconnect Power to machine before proceeding with plumbing installation. Attach water line to water filter, rear of machine. Flush water line before installing machine. Machine should be connected to COLD WATER LINE ONLY. Water pressure should be at least 40 lbs. For less than a 25 ft run, use 1/4" copper tubing and connect to 1/2"...
  • Page 8: Installation Instructions

    Installation Instructions WARNING: - Read and follow installation instructions before plugging or wiring in machine to electrical circuit. Warranty will be void if machine is connected to any voltage other than that specified on the nameplate serial tag. Machine must be on a flat and level surface. Plug or wire in machine to appropriate voltage as noted on the brewer serial tag.
  • Page 9: Set Up Instructions For Bistro Touch Machine

    Rotate dispense nozzles down into whipper bowl. Product Installation Procedure Fig. 1 Fig. 2 Fig. 3  Open product box and remove the BIB product. Place in Coffee BIB Tray, Fig. 2, (Newco PN 121929) as shown in Fig. 3.
  • Page 10 Product Installation Procedure Cont’d Fig. 4  Remove the plastic insert from the BIB fitment as shown in Figure 4. Fig. 5 Using finger and thumb only to prevent over-tightening,  thread the BIB connector on to the BIB fitment until seated as shown in Figure 5.
  • Page 11: Touch Screen Shutdown Procedure

    Product Installation Procedure Cont’d Fig. 6  Place the product in the storage compartment as shown in Figure 6. Fig. 7 Position the tubing as shown in Figure 7-repeat for 2  BIB- NOTE COFFEE BIB IS LH CONNECTOR AND DECAF BIB IS RH CONNECTOR SEE PAGE 5...
  • Page 12: Touch Screen Startup Procedure

    Touch Screen Startup Instructions 1 . OPEN DOOR, PRESS AND HOLD ON/OFF BUTTON FOR 10 SECONDS. RELEASE BUTTON WHEN DISPLAY SHOWS STARTUP SCREEN 2 . WAIT 30 SECONDS-- THEN CYCLE POWER SWITCH TO ‘ON’ POSITION. NOTE: THIS MACHINE IS DESIGNED TO BE RUN WITH POWER CYCLED ON AT ALL TIMES.
  • Page 13 Touch Screen Shutdown Instructions When storing machine, or if loss of power occurs, the tablet should be shutdown using the following procedure: 1 . OPEN DOOR, PRESS AND HOLD ON/OFF BUTTON FOR 10 SECONDS—RELEASE WHEN DISPLAY CHANGES TO POWER DOWN OPTIONS 2 .
  • Page 14 Machine Startup Instructions Fill and install 4lb hoppers with nozzles turned up, Chocolate on left and Milk on right. Make sure “button” on bottom of hopper is seated in slot in sheet metal. Slight manual rotation of the auger gear may be necessary to seat hopper in correct location. Rotate dispense nozzles down into whipper bowl.
  • Page 15 Brewing Drinks To dispense a drink, place a cup under the dispense area, press a brew selection To dispense a drink, place a cup under the dispense area, press a brew selection To dispense a drink, place a cup under the dispense area, press a brew selection To dispense a drink, place a cup under the dispense area, press a brew selection , choose a cup size and press “Brew”...
  • Page 16 Drink Submenu Coffee Cup Size Strength Indicator Indicator Cup Size Selections Cup Strength Small –Medium- Selections Large Use to Change Mild –Regular- Bold Cup Size Use to Change Default 8-10-12 Coffee Strength Default Regular Brew Return Button Button Starts Returns to Brewing Main Drink Cycle...
  • Page 17 Turns on dispense Light in Cup Area Total Water Usage Water filter Reset OFF, Dispense Only, Always On Total Gallons of water Primary Newco Server Select this after changing Default is Dispense Only dispensed* (Future Use) filters to reset water filter Secondary Server Global Ratio (Reg &...
  • Page 18 Programming-Cont’d. Drink Selection Menu Drink Selection Menu Ability to turn Drink Selections and/or Cup Sizes On or Off Cup Size Choices are 6-8-10-12-16-20 Ounces or OFF Drink Strengths are Mild-Regular-Bold Iced Drinks can be turned Off or Default Cup size Determines which cup size will Dispense by Default Exit Drink Selection Mode Pump Cleaning and Priming...
  • Page 19: Machine Startup Procedure

    Programming-Cont’d SECONDARY PROGRAMMING MODE (SERVICE MENU) RECIPES AND CALIBRATION TAP 3 TIMES ON CENTER OF TOP THEN TAP 3 TIMES ON CENTER OF BOTTOM BAR TO ENTER SECONDARY PROGRAMMING MODE IF A BREWING ICON IS ACCIDENTLY TOUCHED USE THE RETURN ARROW TO TRY AGAIN CALIBRATION RECIPE ENTRY-SEE...
  • Page 20: Programming

    Programming-Cont’d SCROLL THROUGH RECIPES BY Note: Changing the SELECTING RECIPE values in these NUMBER AS SHOWN recipes can result THEN USE PLUS in changes in cup AND MINUS (+ -) volume and taste BUTTONS TO profile and should SCROLL UP AND be performed by DOWN authorized...
  • Page 21: Custom Logo (Sleep Screen)-Wifi Setup

    Custom Logo-Wifi Setup TURN OFF POWER TO MACHINE USING SWITCH AT LOWER LEFT REAR OF MACHINE WIFI SETUP CAN ALSO BE ACCESSED FROM “Local Setup” MENU-UNDER “Network Setup” (pg. 17) 1. TOUCH TO ACCESS 2. PRESS “Settings” ICON PRESS “Wifi” ICON TO ACCESS APPLICATION TO ACCESS WIFI WIFI SETUP &...
  • Page 22 Install Custom Logo (Sleep Screen) TAP 3 TIMES TO ENTER ANDROID VERSION) PROGRAMMING MODE --IF A THIS ADDRESS IS UNIQUE FOR BREWING ICON IS ACCIDENTLY TOUCHED USE THE RETURN EVERY MACHINE. NOTE THAT IT IS USED FOR THE HOST ARROW TO TRY AGAIN ADDRESS WHEN SETTING UP COMMUNICATION SITE Install Logo Instructions-Custom Sleep Screen (Android Version)
  • Page 23 Install Logo Instructions-Custom Sleep Screen (APPLE IOS VERSION) OPEN THE APP AND SLELCT INSTALL THE “ITRANSFER” APP ONTO FTP/FTPS/ SFTH, ADD SERVER, A LOCAL PHONE OR TABLET. CONNECT THE LOCAL PHONE OR TABLET TO THE SAME WIFI NETWORK AS THE BISTRO-TOUCH. APPLICATION EXAMPLE SHOWN IS “ITRANSFER”...
  • Page 24 Install Logo Instructions-Custom Sleep Screen Cont’d 7. STATUS ON BISTRO- 8. TO SELECT A FILE TO 9. SELECT THE TOUCH MACHINE CHANGES TRANSFER SELECT THE DIRECTORY WHERE THE TO Connected-Waiting for UPLOAD BUTTON IMAGE FILE TO BE transfer TRANSFERRED RESIDES 10.
  • Page 25: Daily Cleaning

    Daily Cleaning Instructions 1. Push and hold “Rinse” Button until water runs clear (Rinses Mixing bowl and Coffee Mix Chamber) Empty and remove cup 2. Rotate Tab on Whipper Base Counterclockwise to “Five O- Clock” 3. Pull and rotate Dispense Nozzle away from Whipper Bowl 4.
  • Page 26 Whipper Disassembly 767376 WHIPPER STEAM CAP 767195 WHIPPER MOTOR 767196 BASE, WHIPPER MOUNTING 767197 WHIPPER IMPELLER 767365 WHIPPER BOWL 767200 WHIPPER NOZZLE 781566 WHIPPER SEAL (REPLACE AFTER 2500 CYCLES)
  • Page 27: Cleaning & Sanitizing

    Cleaning & Sanitizing Instructions Fig. 1 Fig. 2 1. Remove product from storage area and disconnect BIB connectors as shown in figures 1 & 2.
  • Page 28 Cleaning & Sanitizing Instructions-Cont’d Fig. 3 2. Place an empty container in the dispense area of the machine as shown in figure 3.
  • Page 29 Cleaning & Sanitizing Instructions-Cont’d Fig. 4 1. Connect the cleaning solution to the BIB connector for Pump and connect cleaning BIB (PN 900083) as shown in figure 4.
  • Page 30: Cleaning Instructions

    Cleaning Instructions 1. Remove the product BIBs from the machine and connect a BIB of cleaning solution to the PUMP 1 (COFFEE) BIB connector as shown in figs. 1-4 pages 27-29. 2. Enter Cleaning and Priming Menu (Page 18) 3. Press the Clean Pumps button on the display panel to enter Cleaning Mode.
  • Page 31: Weekly Sanitizing Instructions

    Weekly Sanitizing Instructions Following daily cleaning instructions on page 27. Remove the bag connector from the product box and disassemble or prop open the internal valve to allow free flow of product through the connector. NOTE: Cutting the mating fittings from an empty bag makes an excellent “free flowing” connector for this purpose.
  • Page 32: Service Notes

    Service Notes & Troubleshooting Load Software Update Future updates to the Touch Screen Software will be delivered via e-mail. Instructions for updating the firmware from a Smart Phone or Tablet will be included in the e-mail. These error screens will display a servic *Usually repairing a bad connection or replacing the indicated motor will remedy the problem.
