Bistro 10 T3
Operating Instruction Manual
Model B-10-T3
1-800-325-7867
3650 NEW TOWN BLVD
ST. CHARLES MO 63301
WWW.NEWCOCOFFEE.COM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bistro 10 T3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Newco Bistro 10 T3

Summary of Contents for Newco Bistro 10 T3

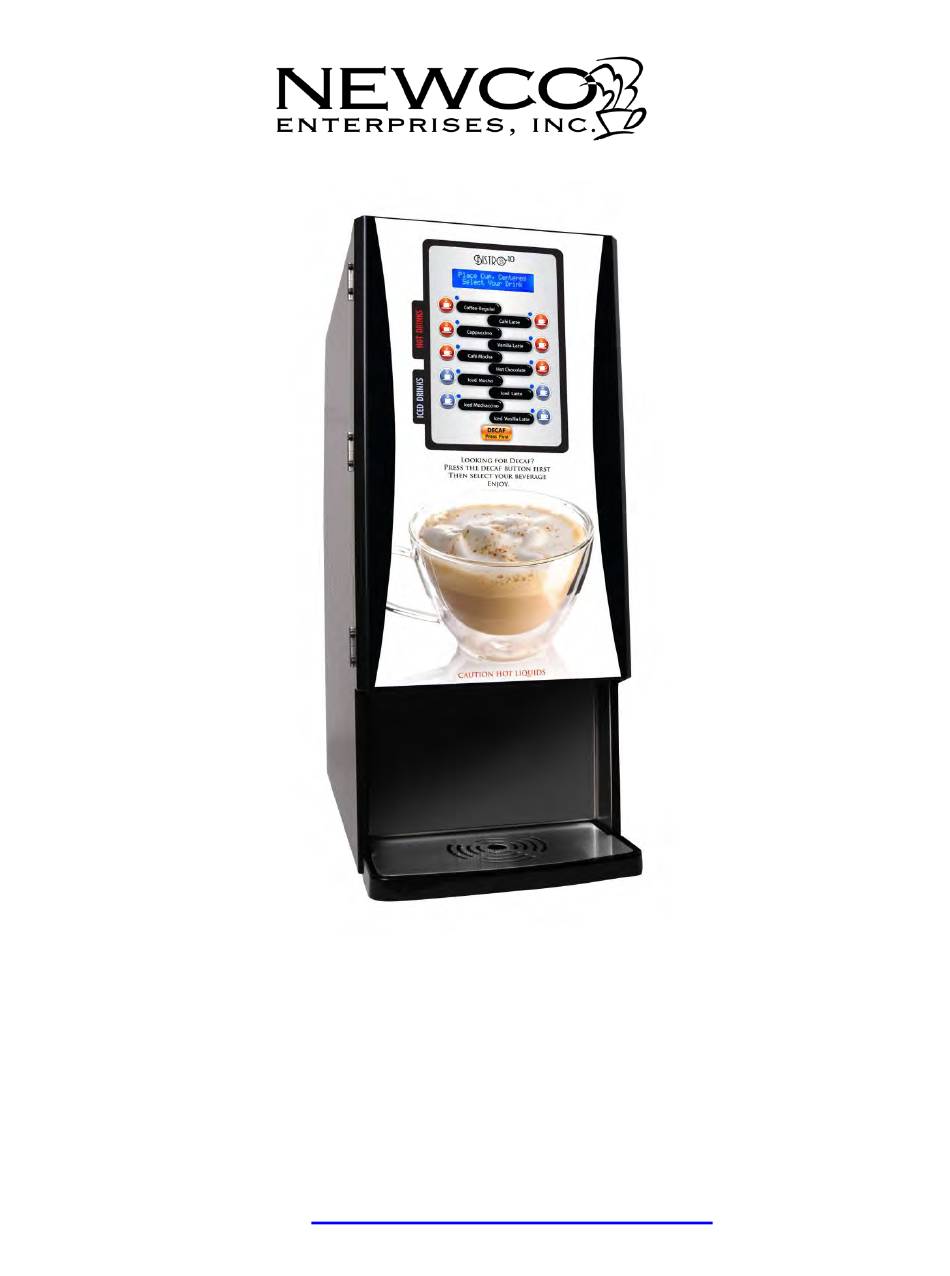

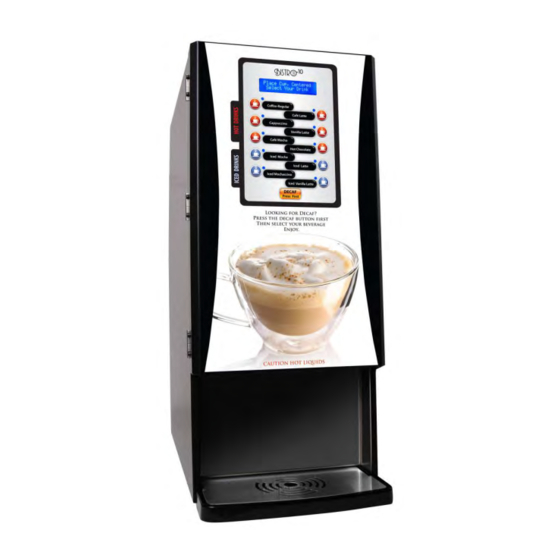

  • Page 1 Bistro 10 T3 Operating Instruction Manual Model B-10-T3 1-800-325-7867 3650 NEW TOWN BLVD ST. CHARLES MO 63301 WWW.NEWCOCOFFEE.COM...

  • Page 2: Table Of Contents

    Table of Contents Introduction & Newco Product Warranty .... 4 Machine Dimensions & Specifications ....5 Machine Features ..........6 Plumbing Connections ......... 7 Installation Instructions ........8 Set up instructions for Bistro 10 T-3 Machine ... 9 Product Installation Procedure ......9 Drink Selection and Keypad Display ....
  • Page 3 Warning Labels NOTICE: Read and follow all notices posted on this machine. Do not damage or destroy these notices as they are for your protection WARNING  DO NOT OVERLOAD CIRCUIT.  ALWAYS ELECTRICALLY GROUND THE CHASSIS OR ADAPTOR PLUG. ...

  • Page 4: Introduction & Newco Product Warranty

    SHALL BE LIMITED, AT NEWCO’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall Newco be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.

  • Page 5: Machine Dimensions & Specifications

    Machine Dimensions & Specifications 120 VAC-1600W HEATER-15A USA POWER SUPPLY 120 VAC-1400W HEATER-15A CANADIAN POWER SUPPLY 1/2 GALLON TANK 8-12 OZ CUP SIZE TEMPERATURE RANGE 180-205F DRIP TRAY & PRODUCT DRIP TRAY SELECTION GRATE SWITCH & DISPLAY PRODUCT WATER DISPENSE INLET AREA &...

  • Page 6: Machine Features

    Machine Features  NO CALIBRATION NEEDED-PLUG & PLAY  DECAF BUTTON SWITCHES TO DECAF BIB  WHIPPER RINSE BUTTONS  AUTOMATIC POWDER LEVEL RESET  PRE-PROGRAMMED DRINK RECIPES  BUTTON ASSIGNMENT FOR RECIPES  INDEPENDENT POWDER HOPPER COUNTDOWN & RESET ...

  • Page 7: Plumbing Connections

    Plumbing Connections Plumber’s Installation Instructions CAUTION: Disconnect Power to machine before proceeding with plumbing installation. Attach water line to water filter, rear of machine. Flush water line before installing machine. Machine should be connected to COLD WATER LINE ONLY. Water pressure should be at least 40 lbs. For less than a 25 ft. run, use 1/4" copper tubing and connect to 1/2"...

  • Page 8: Installation Instructions

    Installation Instructions WARNING: - Read and follow installation instructions before plugging or wiring in machine to electrical circuit. Warranty will be void if machine is connected to any voltage other than that specified on the nameplate serial tag. Machine must be on a flat and level surface. Plug or wire in machine to appropriate voltage as noted on the brewer serial tag.

  • Page 9: Set Up Instructions For Bistro 10-T3 Machine

    3 times and the display will change to “Place cup, Centered- Select Your Drink” Product Installation Procedure Fig. 1 Fig. 2 Fig. 3  Open product box and remove the BIB product. Place in Coffee BIB Tray, Fig. 2, (Newco PN 121929) as shown in Fig. 3.
  • Page 10 Product Installation Procedure Cont’d Fig. 4  Remove the plastic insert from the BIB fitment as shown in Figure 4. Fig. 5 Using finger and thumb only to prevent over-tightening,  thread the BIB connector on to the BIB fitment until seated as shown in Figure 5.
  • Page 11 Product Installation Procedure Cont’d Fig. 6  Place the product in the storage compartment as shown in Figure 6. Fig. 7 Position the tubing as shown in Figure 7-repeat for 2 BIB-  NOTE COFFEE BIB IS LH CONNECTOR AND DECAF BIB IS RH CONNECTOR SEE PAGE 5...

  • Page 12: Drink Selection And Keypad Display

    Drink Selection and Keypad Display MESSAGE DISPLAY PRODUCT AREA SELECTION BUTTON SELECTION INDICATOR LIGHT IMPORTANT NOTE: PRESSING DECAF BUTTON ONCE WILL CHANGE ALL PROGRAM DRINKS TO DECAF FOR 60 ACCESS SECONDS. AND RESET BUTTON AFTER DRINK HAS DISPENSED OR TIMES OUT DRINKS RETURN TO REGULAR COFFEE Programming Instructions To enter into “Programming Mode”, hold the ‘Decaf’...
  • Page 13 2. Press “Café Latte” Button to toggle Select Menu display Install Sanitizing solution-Push Decaf Button to Start Sanitation Cycle (See Page 24) Push & Hold Newco Decaf Button to Prime Pump (See Page 25) Left Whipper Seal Remaining (Remaining powdered drink cycles before changing the whipper seal)
  • Page 14 Programming-Cont’d Setup 1. Press “Coffee-Regular” Button to Select “Setup” 2. Press “Café Latte” Button to Toggle display Water Temperature Setting (170-205 F) Buzzer volume 0-25 Filter Monitoring (On or Off) 3. Use to Filter size 500 1000 1500 5000 gallons (Only displays if “ON”) Change Energy Save (Off, Semi [140F], Full [0FF] Energy Time -.5 to 4.0 Hrs After Last push (Only displays if “ON”)
  • Page 15 Programming-Cont’d Assigning Recipes To buttons 1. Press Button to Select “Setup” 2. Toggle Selection to “Assign Recipes” 3. Select Assign Recipes 5. Select Recipe to be 4. Scroll Up & Assigned a Down Recipe Button Choices with these Two 6. All lights Buttons will Flash Depressing a...
  • Page 16 Recipe List Coffee 6oz Mild Hot Cocoa16oz Mild Car Latte 6oz Dbl 172 Ice Van Lat 12oz Reg 229 Iced Cappo 16oz Reg Coffee 6oz Reg Hot Cocoa 16oz Reg Car Latte 6oz Tpl 173 Ice Van Lat 12oz Bld 230 Iced Cappo 16oz Bold Coffee 6oz Bold Hot Cocoa16oz Bold Car Latte 8oz Sgl...
  • Page 17 Programming-Cont’d Changing “Call For Service” Number Note: Whenever the machine detects a service problem, a description of the problem and a “Call for Service” Telephone Number Scrolls across the Display. This number can be changed during machine Set-Up. Select the “Call for Service # in the “Set-Up” Menu 1.

  • Page 18: Programming -Machine Calibration

    Programming -Machine Calibration Factory Defaults Value Left Mix Bowl Cal 20.0 Right Mix Bowl Cal 20.0 Calibration Left Auger Speed 1. Press Button to Select “Calibration” Left Auger Cal 2. Toggle Selection to “Calibration” Ctr Auger Speed Ctr Auger Cal 4.
  • Page 19 Machine Calibration-Cont’d “Left Auger Speed (Flavored)”, this is the left or flavored auger delivery duty cycle value, 1-10, to adjust the auger motor speed for delivering powdered product. This value should remain at 9 or 10 for most powdered products. Value is set at 9 at the factory.

  • Page 20: Programming-Changing The Drink Recipes

    Programming-Changing the Drink recipes NOTE: Editing and Changing the Name Changing the Drink recipes of a “No Recipe” recipe will Create a “New” Drink for that Recipe #. 1. Press to Select Recipe Entry 3. Select Recipe to be Viewed or Edited 4.

  • Page 21: Daily Cleaning

    Daily Cleaning 1. Place empty cup in dispense area 2. Push and hold “Rinse” Button until water runs clear (Rinses Mixing bowl and Coffee Mix Chamber) Empty and remove 3. Rotate Tab on Whipper Base Counterclockwise to “Five O- Clock” 4.

  • Page 22: Whipper Disassembly

    Whipper Disassembly 767376 WHIPPER STEAM CAP 767195 WHIPPER MOTOR 767196 BASE, WHIPPER MOUNTING 767197 WHIPPER IMPELLER 767365 WHIPPER BOWL 767200 WHIPPER NOZZLE 781566 WHIPPER SEAL (REPLACE AFTER 2500 CYCLES)

  • Page 23: Cleaning & Sanitizing Instructions

    Cleaning & Sanitizing Instructions Fig. 1 Fig. 2 1. Remove product from storage area and disconnect BIB connectors as shown in figures 1 & 2.
  • Page 24 Cleaning & Sanitizing Instructions-Cont’d Fig. 3 2. Place an empty container in the dispense area of the machine as shown in figure 3.
  • Page 25 Cleaning & Sanitizing Instructions-Cont’d 3. Connect the flushing Fig. 4 solution to the BIB connector from the pump as shown in figure 4 Flush Product & Type of Fittings: 900044: Easy Clean Flush Solution removed from the box. 900044: Easy Clean Flush Solution 400137: QCD Fitting 107117: Scholle Fitting...
  • Page 26 Daily Sanitizing Instructions 1. Remove the product BIBs from the machine and connect a BIB of sanitizing solution to the PUMP 1 BIB connector as shown in figs. 1- 4 pages 23-25 2. Enter “Programming Mode” by pressing and holding “Reset” button 3.
  • Page 27 Weekly Cleaning Instructions 1. Following daily cleaning instructions above page 25 2. Remove the bag connector from the product box and disassemble or prop open the internal valve to allow free flow of product through the connector. NOTE: Cutting the mating fittings from an empty bag makes an excellent “free flowing”...

  • Page 28: Service Notes

    Service Notes This machine uses advanced diagnostics to alert the operator should any of the motors or motor controllers sense the motors are not turning at the correct rate or sense a bad connection. These errors highlighted by a scrolling display such as “Call for Service—(Left Auger) Motor Error”, and the Service Number entered during machine set-up will be displayed.

  • Page 29: Wiring Diagram

    Wiring Diagram...
