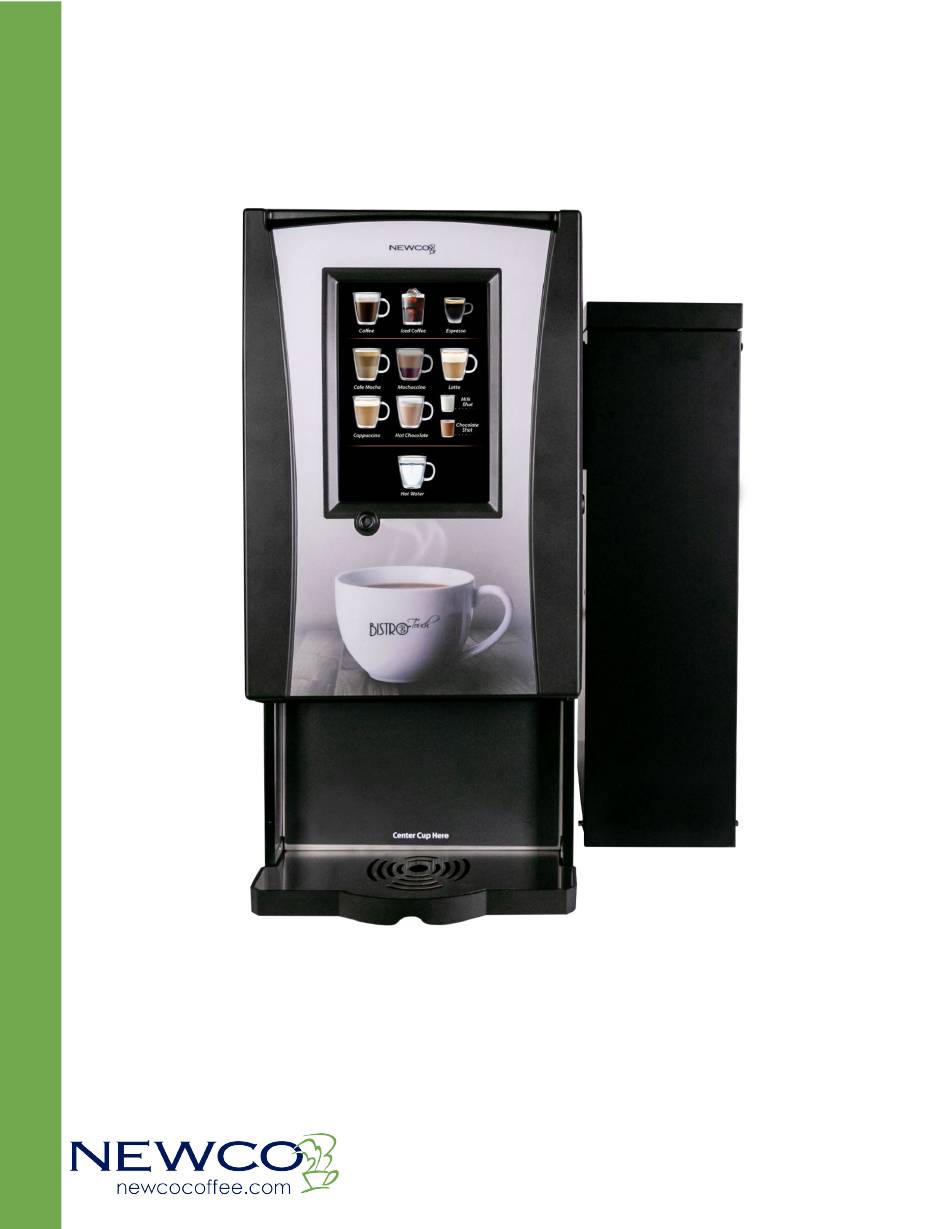

BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL
BISTRO TOUCH LARGE CAPACITY
NEWCO ENTERPRISES INC,
3650 NEW TOWN BLVD SAINT CHARLES, MO 63301
1-800-325-7867
For brewer PN 128280
Shown with side car accessory, 128269-BPC
To order Brewer and Side Car together, order PN 128302
Technical Service: 1-800-556-3926
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Newco BISTRO TOUCH LARGE CAPACITY
Summary of Contents for Newco BISTRO TOUCH LARGE CAPACITY
- Page 1 BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL BISTRO TOUCH LARGE CAPACITY NEWCO ENTERPRISES INC, 3650 NEW TOWN BLVD SAINT CHARLES, MO 63301 1-800-325-7867 For brewer PN 128280 Shown with side car accessory, 128269-BPC To order Brewer and Side Car together, order PN 128302...
-
Page 2: Maintenance Information
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL NEWCO CONTACT INFORMATION ADDRESS NEWCO ENTERPRISES INC, 3650 NEW TOWN BLVD SAINT CHARLES, MO 63301 CUSTOMER SERVICE PHONE 1-800-325-7867 TECHNICAL SERVICE PHONE 1-800-556-3926 1-636-925-0029 WEBSITE newcocoffee.com CUSTOMER SERVICE AND SALES EMAIL sales@newcocoffee.com... -
Page 3: Table Of Contents
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL TABLE OF CONTENTS Warranty ----------------------------------------------------------------------------------- 4 Servicing Your Machine --------------------------------------------------------------- 5 Draining the Hot Water Tank --------------------------------------------------------------- 5 Whipper Maintenance Instructions ------------------------------------------------------ 6 Replacing the Pump Heads -------------------------------------------------------------- 11 Side Car Accessory Product Installation --------------------------------------------- 13... -
Page 4: Warranty
AT NEWCO’S SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall Newco be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages. -
Page 5: Servicing Your Machine
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL SERVICING YOUR MACHINE All Servicing and Repairs are to be done by an authorized Service Technician. Before servicing, machine power must be disconnected from power and hot water tank must be drained. -
Page 6: Whipper Maintenance Instructions
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL WHIPPER MAINTENANCE INSTRUCTIONS For Bistro Touch Large Capacity WARNING: Unplug machine power and read through all instructions carefully before servicing your machine. CAUTION: Before beginning any servicing on the brewer, ensure power is turned off and disconnected. - Page 7 BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL To Enter Programming (continued) Select “Maintenance” CAUTION: Do not press “Whipper Seal Reset” unless you are replacing the Whipper Seal (PN 781566) NOTE: You must press “Exit Maintenance Mode” then “Exit Programming” before turning off machine power.
- Page 8 BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL To Remove the Whipper Parts from the Machine (continued) 7. Remove the impeller from the motor shaft. Note: The impeller is set securely in place. You may need a bit of force to remove it.
- Page 9 BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL Reinstalling the Whipper Assembly (continued) STEP TWO: LUBRICATE WHIPPER SEAL & INSTALL WHIPPER BASE ONTO WHIPPER MOTOR SHAFT 1. Cover the hole in the whipper seal with one finger. 2. Fill the seal with food grade lubricant (PN 900039) 3.
- Page 10 BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL STEP THREE: INSTALL THE IMPELLER ONTO THE MOTOR SHAFT (continued) 3. Slide the impeller onto the motor shaft. An audible click will be heard when the impeller is correctly set into place...
-
Page 11: Replacing The Pump Heads
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL REPLACING THE PUMP HEADS For Bistro Touch Large Capacity ACCESSING THE PUMP HEADS 1. Disconnect BIB liquid concentrate. Remove liquid product from sidecar or cabinet. 2. Rotate hopper elbows upward and remove product hoppers from cabinet. - Page 12 BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL REPLACING THE PUMP HEADS For Bistro Touch Large Capacity REPLACING THE PUMP HEADS 1. Prep the motor shaft by buffing directly outward with emery cloth. 2. Position the new pump head assembly so that the tube with the duck bill tip is on the RIGHT side.
-
Page 13: Side Car Accessory Product Installation
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL SIDE CAR ACCESSORY PRODUCT INSTALLATION Technical Service: 1-800-556-3926... -
Page 14: Machine Parts
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL MACHINE PARTS EXTERIOR Side Car Accessory PN 128269-BPC 783092-BPC PANEL, RIGHT SIDE EXTERIOR 1 EA 128148 LABEL, PLACE CUP, BISTRO TOUCH 1 EA 783078-BPC PANEL, LEFT SIDE EXTERIOR 1 EA 122054... -
Page 15: Side Car Accessory
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL SIDE CAR ACCESSORY 128269-BPC SIDECAR ACCESSORY, BISTRO TOUCH LARGE CAPACITY 128270-BPC DOOR, SIDE CAR ASSEMBLY 1 EA 128335 LABEL, BAG IN BOX INSTRUCTIONS, SIDECAR* 1 EA 102065 MAGNET, DOOR 1 EA... -
Page 16: Back Panel
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL BACK PANEL 100821 LABEL, WARNING, ELECTRIC SHOCK 1 EA 128360 PANEL, BACK, BISTRO LARGE CAPACITY 1 EA 103600 FAN WITH HARNESS 1 EA 122165 CONVERTER, POWER ASSEMBLY 24AC/ 12DC 1 EA... - Page 17 BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL BACK PANEL 101025 LABEL, WARNING AUTO FAUCET 1 EA 128313 LABEL SET, PUMP/ROAST 1&2 1 EA 101012 LABEL, PLUMBING INSTRUCTIONS 1 EA 100817 LABEL,WARNING,PRECAUTIONS 1 EA 111667 NUT, 3/8-16 4 EA...
-
Page 18: Inlet Area
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL INLET AREA INLET ASSEMBLY FOR VALVE ASSEMBLY W/ VALVE ELBOW PN 111775 PN 120378 (Includes PNs 6-9 from table below) 101037 DECAL, GROUND SYMBOL 1 EA 128289 PLATE ADAPTOR FITTING, BISTRO... -
Page 19: Door
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL DOOR 128334 DOOR ASSEMBLY 1 EA 128231 TABLET, BISTRO,10IN, PRETECH 1 EA 122051 DOOR FRAME, BISTRO TOUCH, PLASTIC 1 EA 123654 LABEL ,BISTRO TOUCH, PRETECH 1 EA 120558 LOCK ASSEMBLY 1 EA... - Page 20 BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL DOOR 104023 HOOK,BRUSH HOLDER 1 EA 111622 BRUSH 1 EA 121301 MAGNET,1/2*1-IN*1/4 1 EA 128193 LATCH, EXTENDED ARM, BISTRO TOUCH 1 EA 128126-BPC PANEL, DOOR, BPC, BISTRO TOUCH 1 EA 128333...
-
Page 21: Cabinet
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL CABINET 103416 SWITCH, MOMENTARY, PUSH/PULL 2 EA 123056 LABEL, MILK, HOPPER, BISTRO 1 EA 123057 LABEL, CHOCOLATE, HOPPER, BISTRO 1 EA 128294 HOPPER, SHELF GUIDE ASSEMBLY 1 EA Technical Service: 1-800-556-3926... - Page 22 BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL CABINET 128262 LABEL, HOT WATER OUT/ COFFEE AND DECAF OUT 1 EA 101938 GROMMET 2 EA 123068 COUPLER 2 EA 128154 TUBE, SILICONE, RIGHT ANGLE, 2.50" 1 EA 123118 TUBE, SILICONE, RIGHT ANGLE, 4.0"...
-
Page 23: Hoppers
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL HOPPERS 128314 HOPPER ASSEMBLY, LEFT HAND, BISTRO TOUCH 1 EA 128315 HOPPER ASSEMBLY, 8LB 1 EA 123057 LABEL, CHOCOLATE HOPPER 1 EA 767201 HOPPER ELBOW, LEFT 1 EA 128112 HOPPER ASSEMBLY, RIGHT HAND, BISTRO TOUCH... -
Page 24: Whipper Assembly
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL WHIPPER ASSEMBLY 767377 WHIPPER ASSEMBLY 1 EA 767195 MOTOR, WHIPPER 1 EA 781566 WHIPPER SEAL 1 EA 767196 BASE, WHIPPER 1 EA 767197 IMPELLER, WHIPPER 1 EA 767365 BOWL, WHIPPER 1 EA... -
Page 25: Fan Motor
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL FAN MOTOR 781040 BULKHEAD, CAPPAC WATER (2 of 2) 2 EA 781647 MOTOR, BLOWER, MINI CAPP 1 EA 128163 SUPPORT, BLOWER, BISTRO TOUCH 1 EA 767398 HOSE, BLACK, PVC 1 EA... -
Page 26: Pumps
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL PUMPS PUMP HEAD REPLACEMENT KIT PN 127299 128303 PUMP W/ HARNESS & MOTOR 2 EA 120436 WIREFORM CLIP, MIXING CHAMBER 1 EA 128185 RETAINER, MIXING CHAMBER 1 EA 104161 CHAMBER, MIXING, DOUBLE STEM... - Page 27 BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL PUMPS 708131 JOHN GUEST QC UNION 2 EA 123132 SILICONE TUBE, 3.50” 1 EA 780084 BRACKET, SUCTION MOUNT 1 EA 781718 MANIFOLD, SUCTION, BISTRO 1 EA * See pg. 28 for more information...
-
Page 28: Tank Assembly
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL TANK ASSEMBLY DUMP VALVE, 110V DUMP VALVE, 12V COFFEE MIXING BOWL DUMP VALVE, 12V HOT WATER 128141 TANK ASSEMBLY 1 EA DUMP VALVE, MULLER, 110V & GROMMET 123111 (COFFEE) 1 EA DUMP VALVE, MULLER, 12V &... -
Page 29: Tank Lid Assembly
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL TANK LID ASSEMBLY 120899 TANK LID ASSEMBLY, 1600W 1 EA 500350 GROMMET, PROBE, BUSHNG, 5/16 1 EA 120927 TANK LID, PUNCHED 1 EA 500398 KIT, PROBE, 1.818" 1 EA 111593 THERM, MAN,VERTAB... -
Page 30: Overflow Tube
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL OVERFLOW TUBE 121895 OVERFLOW TUBE 1 EA 120159 ELBOW, 3/8X3/8 1 EA Technical Service: 1-800-556-3926... -
Page 31: Motors & Electrical Components
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL MOTORS & ELECTRICAL COMPONENTS 101035 GROMMET, STRAIN RELIEF, POWER CORD 1 EA 781843 POWER CORD 1 EA 128192 18GA WHITE TEF 6-5B POWER SWITCH 1 EA 128191 18GA BLACK TEF 6-5B POWER SWITCH... - Page 32 BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL MOTORS & ELECTRICAL COMPONENTS 122091 RELAY,12VDC 1 EA 103016 14GA VIOLET/BLACK 10 TEF 1S-2N 1 EA 120580 14GA VIOLET/BLACK 5 TEF 2-2 1 EA 781587 MOTOR, AUGER 2 EA Technical Service: 1-800-556-3926...
- Page 33 BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL MOTORS & ELECTRICAL COMPONENTS 100340 OUTLET, CONVENIENCE 1 EA 782530 POWER SUPPLY CHARGER, PRETECH TABLET 1 EA 782531 USB CORD, PRETECH TABLET 1 EA 105115 TRANSFORMER, 120VP, 24VCT 40VA 1 EA...
-
Page 34: Main Control Board
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL MAIN CONTROL BOARD 128281 CONTROL BOARD ASSEMBLY, BISTRO LARGE CAPACITY 1 EA 783060 HARNESS, TRANSFORMER/ TANK, BISTRO TOUCH 1 EA 783062 HARNESS, COMMUNICATION, BISTRO TOUCH 1 EA 128140 HARNESS & LED, BISTRO TOUCH... -
Page 35: Auxiliary Board
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL AUXILIARY BOARD 128324 AUXILIARY BOARD ASSEMBLY, BISTRO LARGE CAPACITY 1 EA 783057 HARNESS, TRANSFORMER #2, BISTRO TOUCH 1 EA 783062 HARNESS, COMMUNICATION, BISTRO TOUCH 1 EA 123025 HARNESS, RINSE, BISTRO TOUCH... -
Page 36: Wiring Diagram
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL WIRING DIAGRAM Technical Service: 1-800-556-3926... -
Page 37: Miscellaneous
BISTRO TOUCH LARGE CAPACITY PARTS LIST PN 112116 20250507BL MISCELLANEOUS 900083 CLEANER,EASY CLEAN 1 EA 780868 LUBRICANT,FOOD GRADE, 0.25oz 1 EA Technical Service: 1-800-556-3926...
