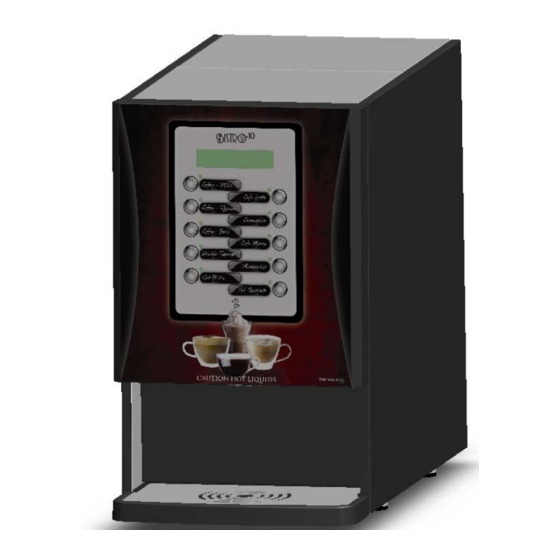

- Page 1 Bistro 10 Operating Instruction Manual Model B-10 1-800-325-7867 3650 NEW TOWN BLVD ST. CHARLES MO 63301 WWW.NEWCOCOFFEE.COM...
-
Page 2: Table Of Contents
Table of Contents Introduction & Newco Product Warranty ....4 Machine Dimensions & Specifications ......5 Machine Features ............6 Plumbing Connections ..Error! Bookmark not defined. Installation Instructions..........8 Set up instructions for Bistro 10 Machine ....9 Product Installation Procedure........9 Drink Selection and Keypad Display ...... -
Page 3: Warning Labels
Warning Labels NOTICE: Read and follow all notices posted on this machine. Do not damage or destroy these notices as they are for your protection WARNING DO NOT OVERLOAD CIRCUIT. ALWAYS ELECTRICALLY GROUND THE CHASSIS OR ADAPTOR PLUG. DO NOT DEFORM PLUG OR CORD. FOLLOW NATIONAL AND LOCAL ELECTRICAL CODES. -
Page 4: Introduction & Newco Product Warranty
(800) 556-3926 or by writing to PO Box 852, Saint Charles, MO 63302; 2) if requested by Newco, shipping the defective equipment prepaid to an authorized Newco service location; and 3) receiving prior authorization from Newco that the defective equipment is under warranty. -
Page 5: Machine Dimensions & Specifications
Machine Dimensions & Specifications 120 VAC-1600W HEATER-15A USA POWER SUPPLY 120 VAC-1400W HEATER-15A CANADIAN POWER SUPPLY 1/2 GALLON TANK 8-12 OZ CUP SIZE TEMPERATURE RANGE 180-205F PRODUCT SELECTION SWITCH CHOCOLATE & LATTE & INGREDIENT DISPLAY CABINET WATER INLET & POWER SWITCH DRIP TRAY PRODUCT... -
Page 6: Machine Features
Machine Features • NO CALIBRATION NEEDED-PLUG & PLAY • WHIPPER RINSE BUTTON • AUTOMATIC POWDER LEVEL RESET • PRE-PROGRAMMED DRINK RECIPES • BUTTON ASSIGNMENT FOR RECIPES • INDEPENDENT POWDER HOPPER COUNTDOWN & RESET • CUSTOM CALL FOR SERVICE NUMBER • POWER SAVE & POWER DOWN OPTION •... - Page 7 Plumber’s Installation Instructions CAUTION: Disconnect Power to machine before proceeding with plumbing installation. Attach water line to water filter, rear of machine. Flush water line before installing machine. Machine should be connected to COLD WATER LINE ONLY. Water pressure should be at least 40 lbs. For less than a 25 ft run, use 1/4" copper tubing and connect to 1/2"...
-
Page 8: Installation Instructions
Installation Instructions WARNING: - Read and follow installation instructions before plugging or wiring in machine to electrical circuit. Warranty will be void if machine is connected to any voltage other than that specified on the nameplate serial tag. Machine must be on a flat and level surface. Plug or wire in machine to appropriate voltage as noted on the brewer serial tag. -
Page 9: Set Up Instructions For Bistro 10 Machine
BUTTON, WATER WILL DISPENSE UNTIL BUTTON IS RELEASED, OR TIMES OUT AT 12 SECONDS Product Installation Procedure Fig. 1 Fig. 2 Fig. 3 • Open product box and remove the BIB product. Place in Coffee BIB Tray, Fig. 2, (Newco PN 121929) as shown in Fig. 3. - Page 10 Product Installation Procedure Cont’d Fig. 4 • Remove the plastic insert from the BIB fitment as shown in Figure 4. Fig. 5 • Using finger and thumb only to prevent over-tightening, thread the BIB connector on to the BIB fitment until seated as shown in Figure 5.
- Page 11 Product Installation Procedure Cont’d Fig. 6 • Place the product in the storage compartment as shown in Figure 6. Fig. 7 • Position the tubing as shown in Figure 7...
-
Page 12: Drink Selection And Keypad Display
PROGRAM ACCESS AND RESET BUTTON Programming Instructions To enter into “Programming Mode”, hold the ‘Newco Logo’ button for 7 seconds.(Note: Sanitation mode will display after 2 seconds, continue holding button until ”Maintenance” is displayed.) Select Menu Maintenance The machine readout will display in the Message Display Area. - Page 13 1. Press Button to Select “Maintenance” 2. Press “LATTE” Button to toggle Select Menu display Install Sanitizing solution-Push Newco Coffee Logo to Start Sanitation Cycle (See Page 24) Push & Hold Newco Coffee Logo to Prime Pump (See Page 25)
- Page 14 Programming-Cont’d Setup 1. Press Button to Select “Setup” 2. Press Button to Toggle display Water Temperature Setting (170-205 F) Buzzer volume 0-25 Filter Monitoring (On or Off) 3. Use to Filter size 500 1000 1500 5000 gallons (Only displays if “ON”) Change Energy Save (Off, Semi [140F], Full [0FF] Values...
- Page 15 Programming-Cont’d Assigning Recipes To buttons 1. Press Button to Select “Setup” 2. Toggle Selection to “Assign Recipes” 3. Select Assign Recipes 5. Select Recipe to be Assigned a 4. Scroll Up & Button Down Recipe Choices with these Two 6. All lights will Buttons Flash Depressing a...
- Page 16 Programming-Cont’d Changing “Call For Service” Number Note: Whenever the machine detects a service problem, a description of the problem and a “Call for Service” Telephone Number Scrolls across the Display. This number can be changed during machine Set-Up. Select the “Call for Service # in the “Set-Up” Menu 1.
-
Page 17: Programming -Machine Calibration
Programming -Machine Calibration Factory Defaults Value Mix Bowl Cal 26.0 Calibration Left Auger Speed 1. Press Button to Select “Calibration” Left Auger Cal 2. Toggle Selection to “Calibration” Right Auger Speed Right Auger Cal 4. Press Button to Toggle display Coffee Cal 23.0 Mix Bowl Calibration Value (Ounces) - Page 18 “Right Auger Speed” (Milk), this is the right or milk product auger delivery duty cycle value, 1-10, to adjust the auger motor speed for delivering powdered product. This value should remain at 9 or 10 for the Wolfgang Puck powdered products. Value is set at 9 at the factory. Right Auger (Milk)
-
Page 19: Programming-Changing The Drink Recipes
Programming-Changing the Drink recipes NOTE: Editing and Changing the Name of Changing the Drink recipes a “No Recipe” recipe will Create a “New” Drink for that Recipe #. 1. Press to Select Recipe Entry 3. Select Recipe to be Viewed or Edited 4. -
Page 20: Daily Cleaning
Daily Cleaning (See Illustrations on Pages 21-23) 1. Place empty cup in dispense area 2. Push and hold “Rinse” Button until water runs clear (Rinses Mixing bowl and Coffee Mix Chamber) Empty and remove cup 3. Rotate Tab on Whipper Base Counterclockwise to “Five O- Clock”... -
Page 21: Whipper Disassembly
Whipper Disassembly 767376 WHIPPER STEAM CAP 767195 WHIPPER MOTOR 767196 BASE, WHIPPER MOUNTING 767197 WHIPPER IMPELLER 767365 WHIPPER BOWL 767200 WHIPPER NOZZLE 781566 WHIPPER SEAL (REPLACE AFTER 2500 CYCLES) -
Page 22: Cleaning & Sanitizing Instructions
Cleaning & Sanitizing Instructions Fig. 1 Fig. 2 1. Remove product from storage area and disconnect BIB connectors as shown in figures 1 & 2. - Page 23 Cleaning & Sanitizing Instructions-Cont’d Fig. 3 2. Place an empty container in the dispense area of the machine as shown in figure 3.
- Page 24 Cleaning & Sanitizing Instructions-Cont’d Fig. 4 Fig. 5 3. Connect the sanitizing solution adaptor (PN 120513) to the BIB connector for Pump and connect sanitizing BIB (PN 120509) as shown in figures 4 & 5.
- Page 25 PUMP BIB connector as shown in figs. 1-4 pages 21-23 2. Enter “Sanitation Mode” by pressing and holding “Newco ” logo button for 2 seconds. 3. Display will change to “Install Sanitizing solution” “Press Reset to Start Sanitation Cycle”.
- Page 26 Weekly Cleaning Instructions 1. Following daily cleaning instructions above page 24 2. Remove the bag connector from the product box and disassemble or prop open the internal valve to allow free flow of product through the connector. NOTE: Cutting the mating fittings from an empty bag makes an excellent “free flowing”...
-
Page 27: Service Notes
Service Notes This machine uses advanced diagnostics to alert the operator should any of the motors or motor controllers sense the motors are not turning at the correct rate or sense a bad connection. These errors highlighted by a scrolling display such as “Call for Service— (Left Auger) Motor Error”, and the Service Number entered during machine set-up will be displayed. -
Page 28: Wiring Diagram
Wiring Diagram...
