Unpacking
Inspect the device in order to check any damages which may have occurred during transportation.
Package material, once removed, must be discarded/recycled according to local laws of the destination
country.
It's absolutely forbidden to handle the product by means of the electric power cable. It is recommended to lift
the pump from the motor end and place it vertically on the filter, then lower it down in the place chosen.

Installation

The internal diameter of the delivery pipe must never be smaller than the diameter of the pump connection
port: G 11/4 (DN 32) and with a free vertical segment of at least 2 m before the non return valve.
The pump must be installed in the vertical position with the delivery connection facing upwards.
The pump can be installed immersed (min 100mm) or submersed (max 20 m) either standing on a bottom
surface or suspended.

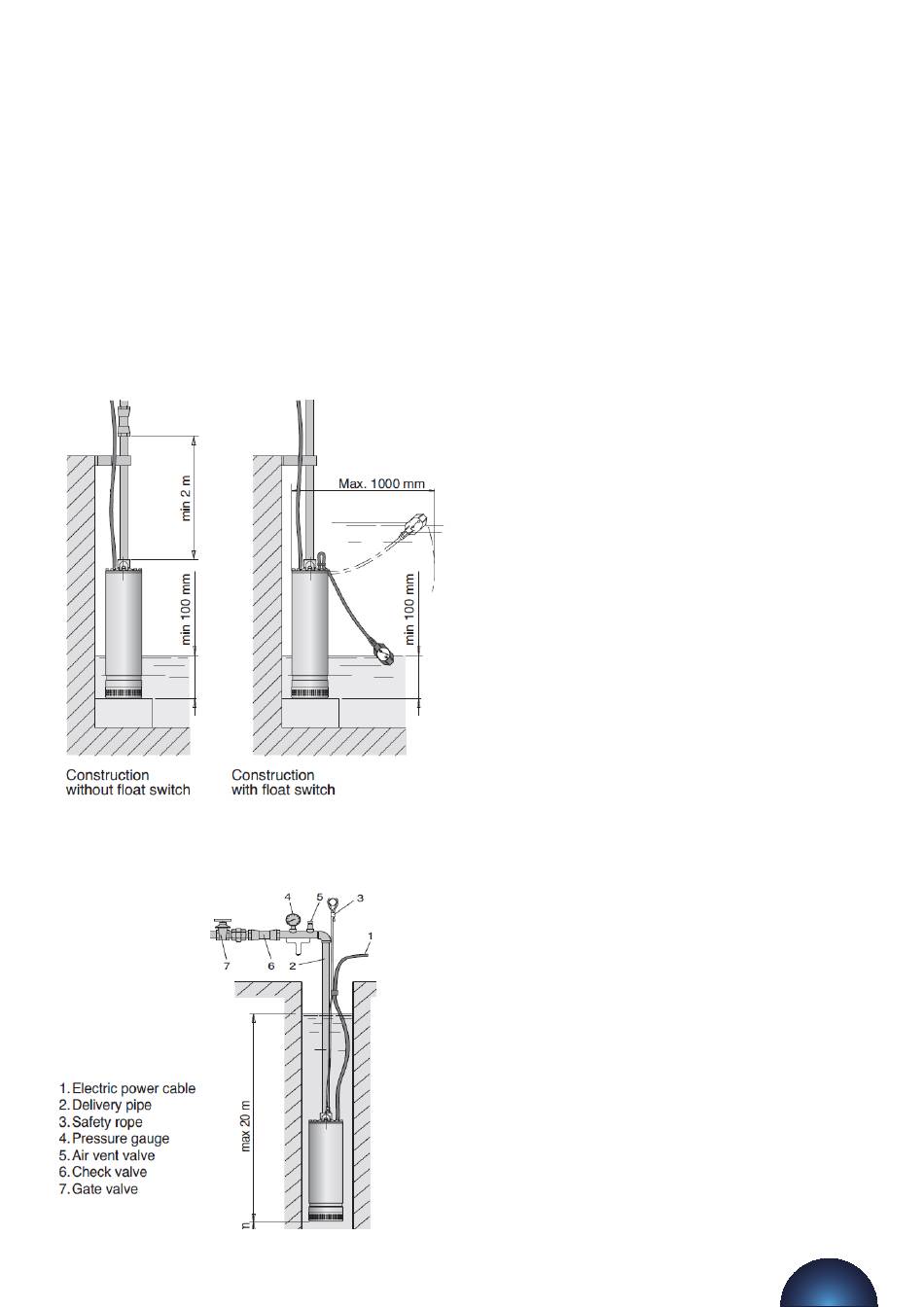

Pump in the standing position
The pump can be rested on the flat bottom surface of a tank. When sand or slime deposits are expected to
form, mount the pump on a surface raised from the bottom level so that abrasive matter is not lifted.
Pump in the suspended position
flowpac compact
311S Pump Manual
9
