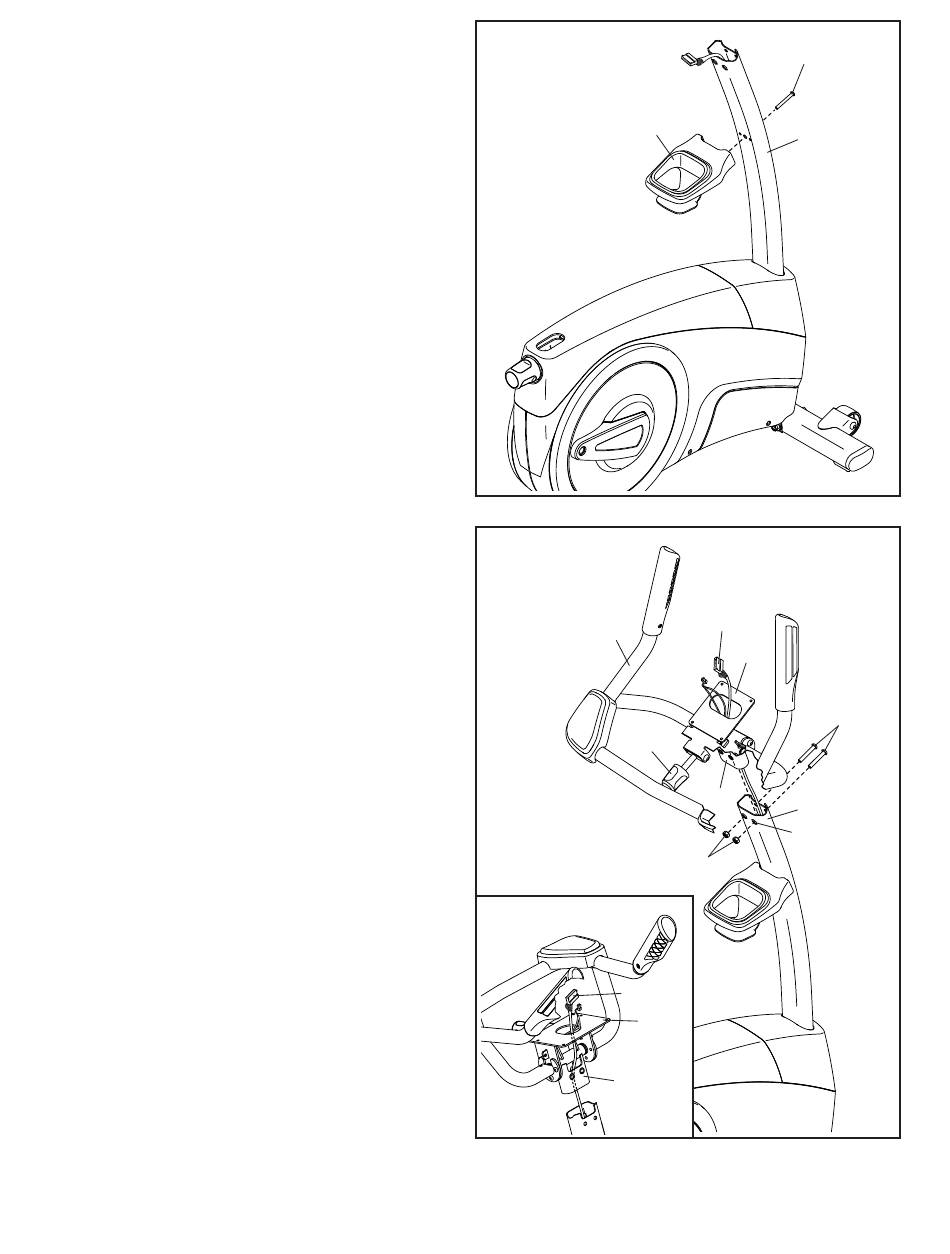

5. Attach the Accessory Tray (8) to the Upright (4)
with an M6 x 50mm Screw (89).
6. Have a second person hold the Handlebar (5)
near the Upright (4).
See the inset drawing. Route the Upper Wire
(87) through the Pivot Post (78) and the Pivot
Bracket (71) as shown. Tip: It may be easier to
route the Upper Wire if you adjust the angle
of the Pivot Bracket by turning the Console
Knob (77).
Tip: Avoid pinching the wires. Insert the Pivot
Post (78) into the Upright (4).
Attach the Pivot Post (78) with two M8 x 50mm
Bolts (70) and two M8 Locknuts (43); make
sure that the Locknuts are in the hexagonal
holes (A).
