CONTENTS:
Page 1
Specifications
Page 2
Warning Information
Page 3
Assembly
Page 4
Operating Instructions
Page 4
Preventative Maintenance
Page 5
Troubleshooting
Page 6
Jack Diagram
Page 7
Jack Parts Listing
Page 8
Saddle Diagram
Page 9
Saddle Parts Listing
Page 10
Pump Diagram
Page 11
Pump Parts Listing
Page 12
Warranty Information
Rated Capacity
Stroke 1st Stage
Stroke 2nd Stage
Low Height
High Height
Front Tilt
Rear Tilt
Base Width
Operation
Weight
SPECIFICATIONS
1,100 LBS
19"
20"
37"
78"
28°
49°
28x32"
Air Assist
170 LBS
Page 1

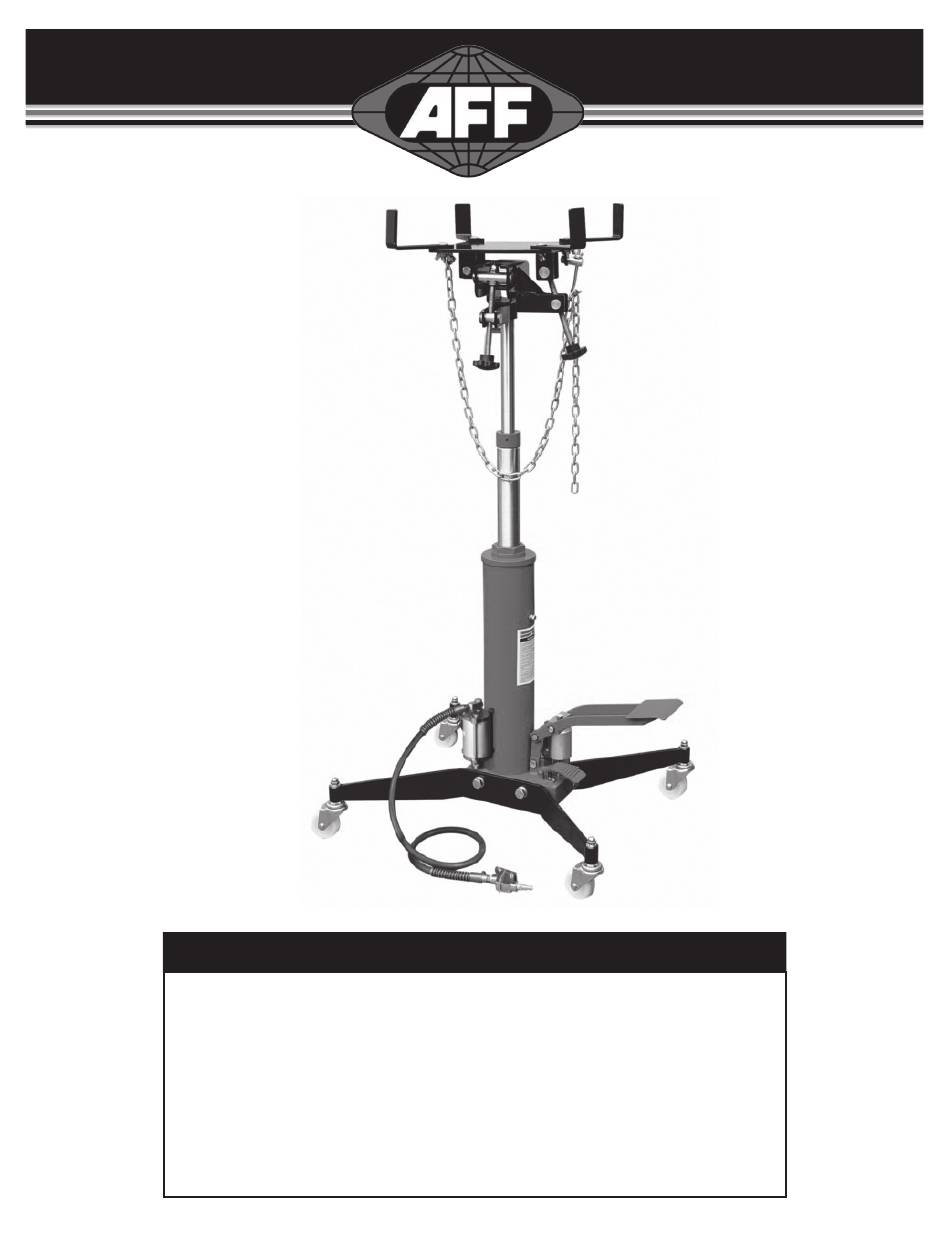

1,100 Lbs Air Assist 2 Stage Transmission Jack
INSTRUCTION MANUAL
Model 3052A
Advertisement
Table of Contents
Related Manuals for AFF 3052A
Summary of Contents for AFF 3052A
- Page 1 Model 3052A 1,100 Lbs Air Assist 2 Stage Transmission Jack INSTRUCTION MANUAL CONTENTS: Page 1 Specifications Page 2 Warning Information Page 3 Assembly Page 4 Operating Instructions Page 4 Preventative Maintenance Page 5 Troubleshooting Page 6 Jack Diagram Page 7...
- Page 2 • Use of the product is limited to the removal, installation, and transportation in the lowered position of transmissions, transfer cases, and transaxles. • If any part of the equipment needs repaired or replaced please contact an AFF authorized repair center.
- Page 3 ASSEMBLY 1. Refer to the parts diagrams for identification, location, and position of parts. 2. Take out all parts from box. 3. Secure caster with foot brake (47) and regular caster (5) onto the leg base (43) by using nut (44,) lock washer (45,) and washer (46.) Secure the other 2 casters on the opposite leg base using the same hardware.
-
Page 4: Preventative Maintenance
OPERATING INSTRUCTIONS Lift the vehicle to the desired work height and support the vehicle in accordance with the lift manufacturer’s recommended support procedure and all the instructions and warnings in this manual. Use an under hoist stand rated greater than the weight of the engine to support the engine before unbolting the transmission from the engine or bolting the transmission to the engine. -
Page 5: Troubleshooting
● The release pedal is working improperly ● Check the release pedal for anything abnormal ● Inner leaking ● Contact an AFF authorized repair depot ● Unit still does not operate ● Contact an AFF authorized repair depot Page 5... - Page 6 JACK DIAGRAM Page 6...
- Page 7 JACK PARTS LIST Parts No. Description Parts No. Description Dust ring Pump O-ring U-limited U-ring Lock washer Oil cup Screw Caster Release pedal Second piston rod Retainer ring Cotter pin Dust ring Washer O-ring Foot pedal U-ring Retainer ring Round nut Connect rod O-ring First piston rod...
- Page 8 SADDLE DIAGRAM Page 8...
- Page 9 SADDLE PARTS LIST Parts No. Description Parts No. Description Bolt Adjusted Handle Block Bolt Plate Cover Washer Bolt Saddle Base Chain Hook Plate Carrier Hook Base Washer Pin2 Washer Bear Retainer Ring Washer Pin1 Chain Retainer Ring Bolt Cotter Pin Page 9...
-
Page 10: Pump Diagram
PUMP DIAGRAM Page 10... -
Page 11: Pump Parts List
PUMP PARTS LIST PARTS No. DESC PARTS No. DESC Screw Screw Steel Ball Steel Ball Steel Ball Base O-Ring Spring Pin Cover Screw Dust Cover Spring Dust Plunger Washer Big Pump Core Screw O-Ring Spring Washer Spring Spring O-Ring Small Pump Core Push Rod Washer Copper Washer... -
Page 12: Warranty Information
WARRANTY INFORMATION 1 YEAR LIMITED WARRANTY SureWerx USA Inc. warrants, to the final purchaser, jacks and related service equipment distributed by it to be free from defects in material and workmanship for a period of 1 year from date of sale. This warranty covers SureWerx USA Inc. and Viking branded products. If a jack or related equipment is determined to be defective during the warranty period, it will be repaired or replaced without charge provided that the equipment is shipped, transportation charges prepaid and with proof of purchase to SureWerx USA Inc.
