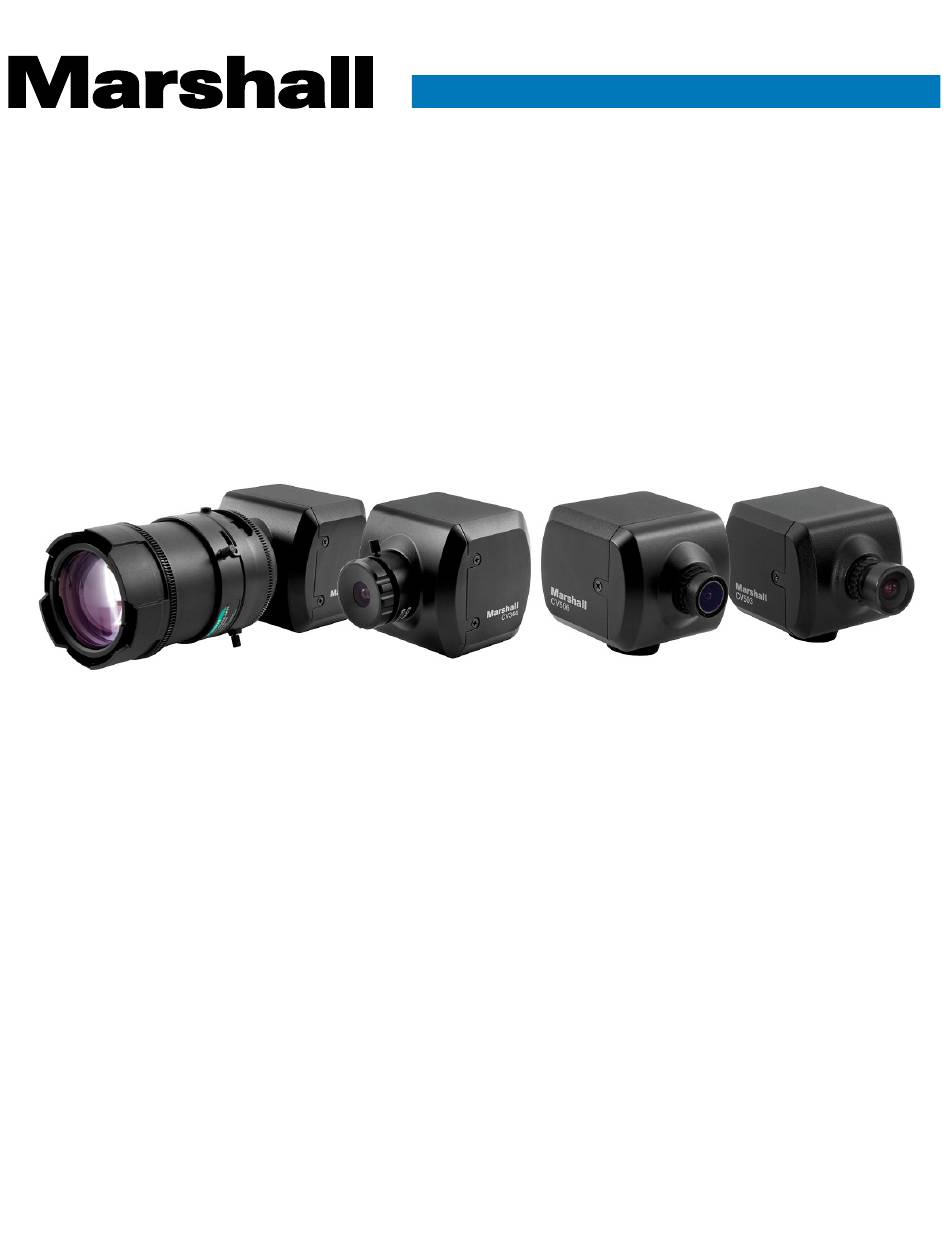

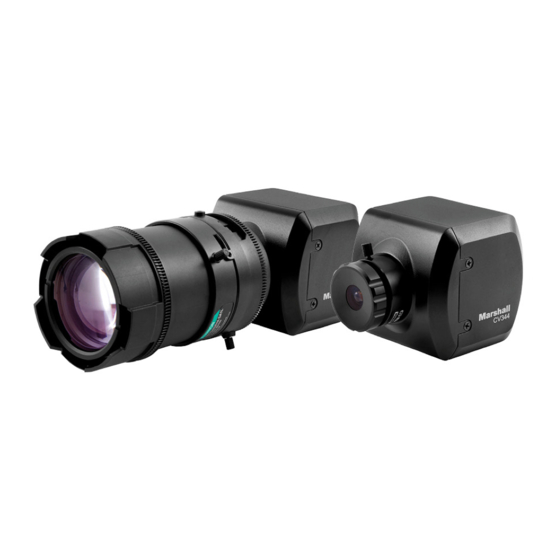

  • Page 1 B r o a d c a s t A / V D i v i s i o n CV503, CV504, CV506, CV508, CV346, CV348 Miniature, Micro, Compact POV Cameras User Manual...
  • Page 2: Table Of Contents

    CV503, CV504, CV506, CV508, CV346, CV348 Manual 1. General Information Thank you for your purchase of a Marshall Miniature or Compact Camera. Table of Contents The Marshall Camera team recommends thoroughly reading this guide for a deep understanding of on-screen-display (OSD) menus, breakout cable operation, settings adjustment explanation, troubleshooting, and other critical information.
  • Page 3: Menu Structure

    CV503, CV504, CV506, CV508, CV346, CV348 Manual 2. Menu Structure SETUP SUB MENU SUB MENU AUDIO SAMPLE BITS SETUP SUB MENU SUB MENU LENS SHADING CONTRAST ONE PUSH BRIGHTNESS INDOOR WB CONTROL SATURATION OUTDOOR BLUE MANUAL EDGE ENHANCE IMAGE CONTROL...
  • Page 4: Osd Joystick And Button

    CV503, CV504, CV506, CV508, CV346, CV348 Manual 3. OSD Joystick and Button 4. WB CONTROL Select WB CONTROL using the UP or DOWN button. You can change between AUTO, ATW, PUSH, and MANUAL using the LEFT or RIGHT buttons. • ATW: Continuously adjusts camera color balance in accordance with any change in color temperature.
  • Page 5: Ae Control

    CV503, CV504, CV506, CV508, CV346, CV348 Manual 5. AE CONTROL 6. DAY / NIGHT Select AE CONTROL using the UP or DOWN button. You can select one sub-mode using the UP or Select DAY / NIGHT using the UP or DOWN button. You can select one sub-mode from AUTO, DOWN buttons.
  • Page 6: Audio

    CV503, CV504, CV506, CV508, CV346, CV348 Manual 7. AUDIO 8. IMAGE CONTROL Select AUDIO using the UP or DOWN button and enter ON using SEL button. You can select one Select IMAGE CONTROL using the UP or DOWN button. sub-mode using the UP or DOWN buttons.
  • Page 7: Special

    CV503, CV504, CV506, CV508, CV346, CV348 Manual 9. SPECIAL 10. SETUP Select SPECIAL using the UP or DOWN button. CAMERA setup can be adjusted from this menu. You can select DEFOG, MOTION DETECT, BACKLIGHT, DEFECT PIXEL, and FLICKER DETECT using You can select CAMERA ID, Communication, System Info, and Output Format using the UP or DOWN the UP or DOWN buttons.
  • Page 8: Reset

    CV503, CV504, CV506, CV508, CV346, CV348 Manual 11. RESET 12. EXIT Select RESET using the UP or DOWN buttons. Select EXIT using the UP or DOWN button. • RESET: Reset the camera settings the factory defaults or user setting value.
  • Page 9: Troubleshooting

    Warranty 13. TROUBLESHOOTING For Warranty information please refer to Marshall website page: https://marshall-usa.com/company/warranty.php Before sending the camera for repair, please check below to make sure that the camera is installed correctly. If it still does not perform adequately, please consult with your supplier. Problem Solutions a.
