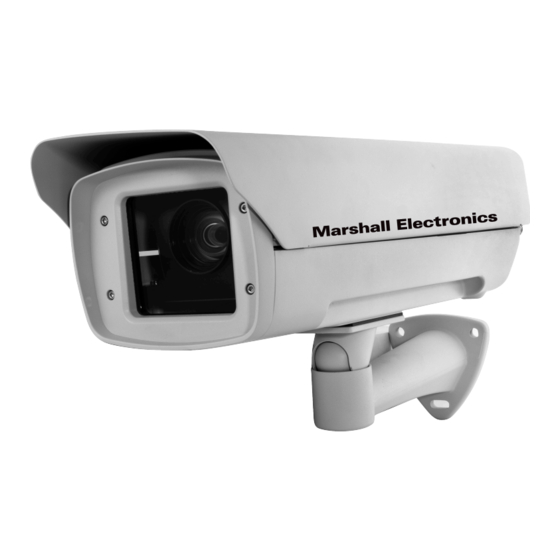

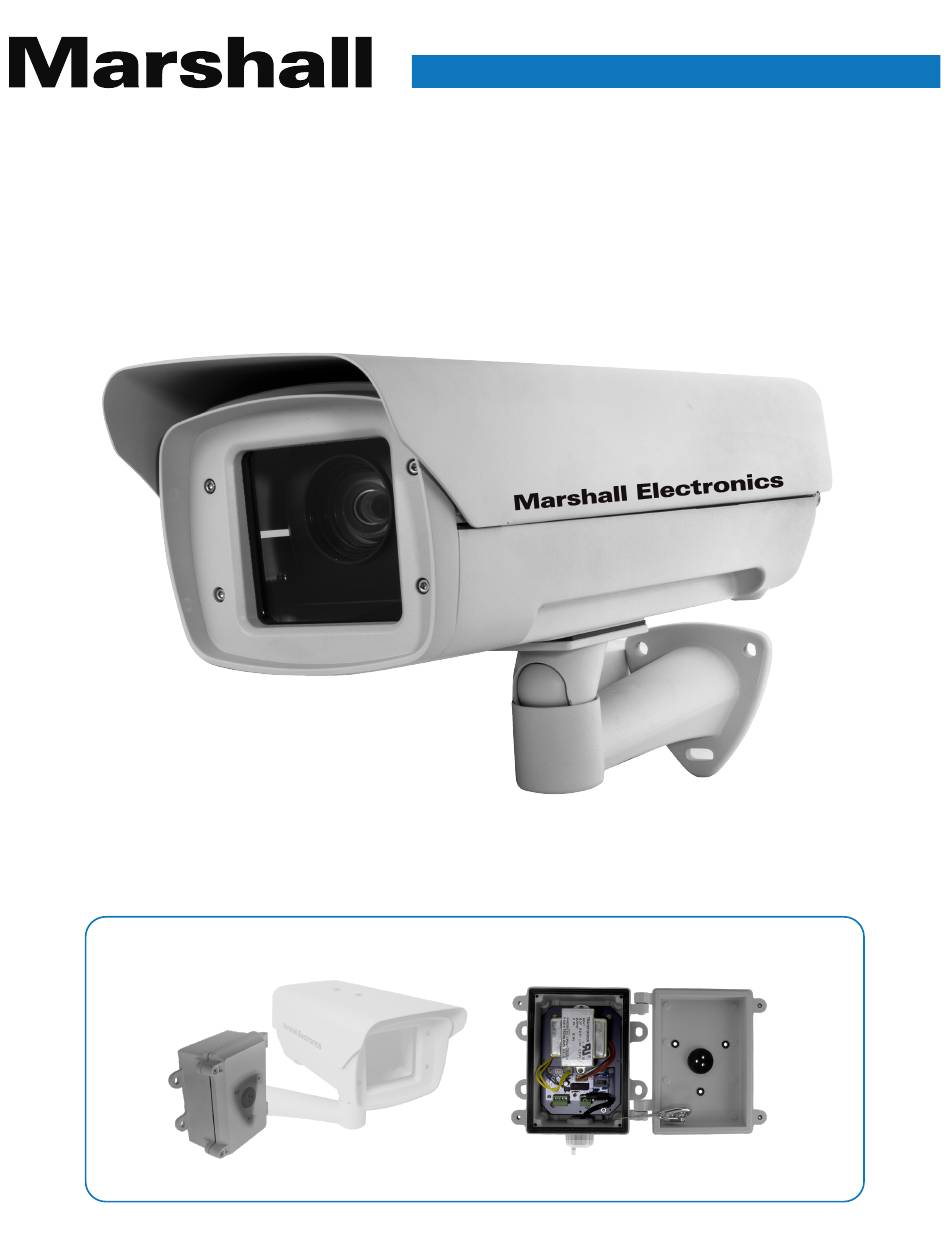

- Page 1 B r o a d c a s t A / V D i v i s i o n CV-H20-HFL Compact Weatherproof Camera Housing with Fan & Heater User Manual Optional Weather Proof Power Supply CV-H20-PWR* *To avoid the risk of hazard, the CV-H20-PWR is strongly recommended for use with this product.
- Page 2 Table of Contents Table of Contents Equipment Safety ....................3 Installation ......................4 Cable Assembly ....................5 Camera and Wall Mount Bracket Assembly ............. 6 Dimensions ......................7 Important Safeguards ..................8...
- Page 3 CV-H20-HFL Manual Safe Use of Equipment CAUTION WARNING To reduce the risks of an electric shock, do not expose inside of this unit to rain or moisture. Installation on a rainy day may also cause fog around the capsule. Installation Installation shall be done by qualified installer only and should conform to all local codes.
- Page 4 CV-H20-HFL Installation The unit must be properly and securely mounted to a supporting structure capable of sustaining the weight WARNING of unit. Using stainless screws is recommended. Cables Box camera outdoor housing L704P-2.0 Power cable to camera (2.0mm DC Plug)
- Page 5 CV-H20-HFL Manual Cable Assembly AC 24V OUT (Internal cable connected) AC 24V HEATER AC 24V IN (Internal cable connected) AC 24V POWER IN DC 12V FAN DC 12V OUT AC 24V OUT AC 24V Wire Terminal Connector to Camera L704P-2.0...
- Page 6 Camera/ Wall Mount Bracket Assembly...
- Page 7 CV-H20-HFL Manual Dimensions www.marshall-usa.com...
- Page 8 IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS 1. Read Instructions – All the safety and operating instructions should be read before CAUTION operating the unit. 2. Retain Instructions – The safety and RISK OF ELECTRIC SHOCK! operating instructions should be retained for future reference. CAUTION: TO REDUCE THE RISK OF 3.
