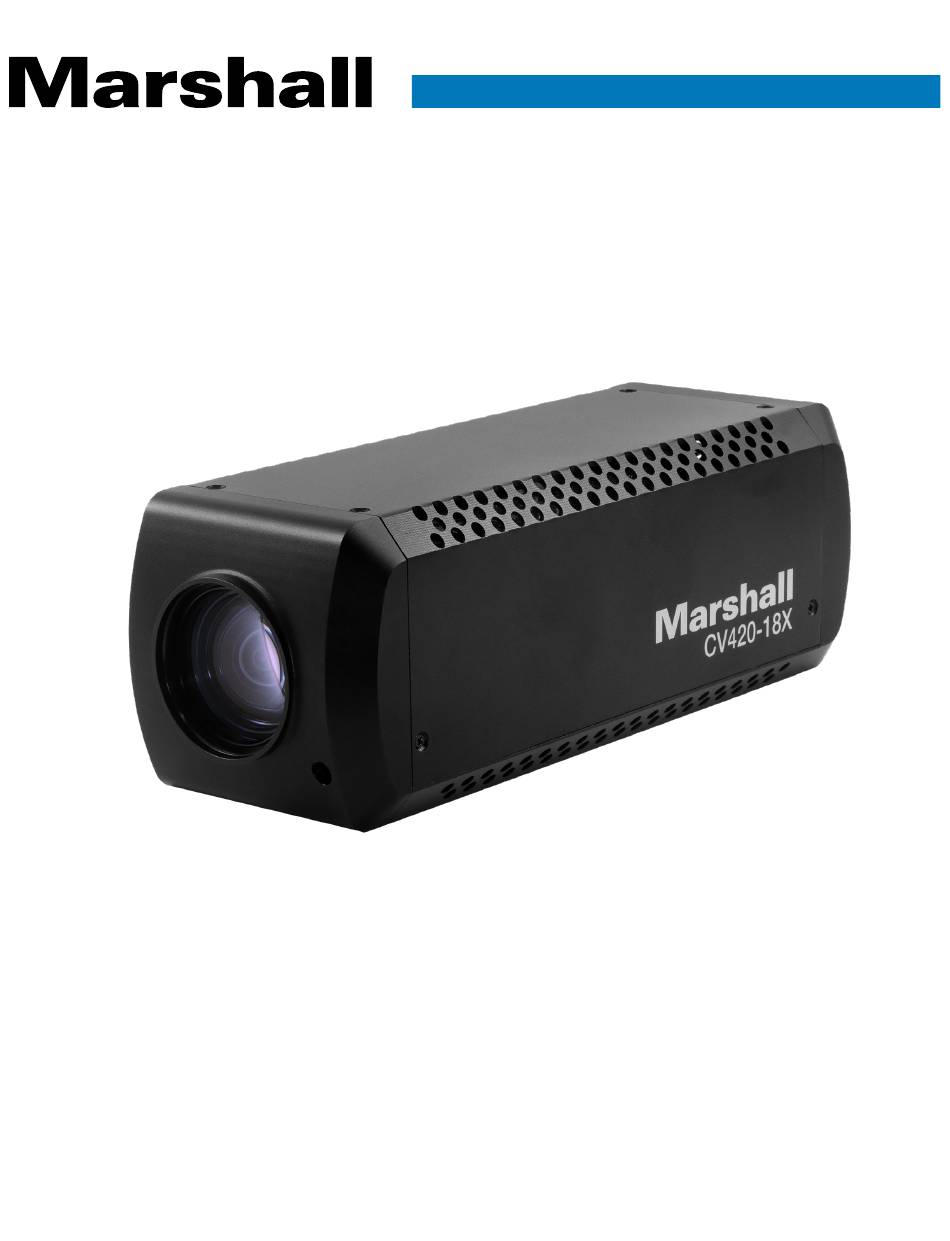

- Page 1 B r o a d c a s t A / V D i v i s i o n CV420-18X 4K60/UHD6 18x Zoom Camera User Manual [Firmware Version 0.43]...
-
Page 2: Table Of Contents
9. IMAGE CONTROL • 12V Power Supply 10. SPECIAL The CV420-18X Camera utilizes a built-in 18x optical zoom lens. 11. SETUP 12. RESET Each camera comes set to default at 1920x1080p @ 30fps out of the box; which can be changed in the OSD Menu to a variety of resolutions and framerates. -
Page 3: Menu Structure
CV420-18X Manual 2. Menu Structure Setup Sub Menu Sub Menu Setup Sub Menu Sub Menu MIC/LINE AUDIO LEVEL AUDIO MIC ATTENUCATOR ONE PUSH SAMPLE BITS WB CONTROL INDOOR CONTRAST OUTDOOR BRIGHTNESS BLUE SATURATION MANUAL AGC MAX EDGE ENHANCE SENS UP... -
Page 4: Osd Joystick And Button
CV420-18X Manual 3. OSD Joystick and Button 4. WB CONTROL Select WB CONTROL using the UP or DOWN button. You can change between AWB, ATW, PUSH, and MANUAL using the LEFT or RIGHT buttons. • AWB: Continuously adjusts camera color balance in accordance with any change in color temperature changes within the range of 3,000°K to 8,000°K. -
Page 5: Ae Control
CV420-18X Manual 5. AE CONTROL 6. FOCUS CONTROL Select AE CONTROL using the UP or DOWN button. You can select one sub-mode using the UP or Select FOCUS CONTROLl using the UP or DOWN button. You can change between AUTO and DOWN buttons. -
Page 6: Day / Night
CV420-18X Manual 7. DAY / NIGHT 8. AUDIO Select DAY / NIGHT using the UP or DOWN button. You can select one sub-mode from AUTO, Select AUDIO using the UP or DOWN button and enter ON using SEL button. You can select one COLOR, and NIGHT using the UP or DOWN buttons. -
Page 7: Image Control
CV420-18X Manual 9. IMAGE CONTROL 10. SPECIAL Select IMAGE CONTROL using the UP or DOWN button. Select SPECIAL using the UP or DOWN button. You can select CONTRAST, HUE, and image related menu using the UP or DOWN buttons. You can select BINNING, FREEZE, and HDR using the UP or DOWN buttons. -
Page 8: Reset
CV420-18X Manual 11. SETUP 12. RESET CAMERA setup can be adjusted from this menu. Select RESET using the UP or DOWN button. You can select CAMERA ID, Communication, System Info, and Output Format using the UP or DOWN buttons. MENU... -
Page 9: Troubleshooting
CV420-18X Manual 13. EXIT 14. TROUBLESHOOTING Select EXIT using the UP or DOWN button. Problem Solutions Nothing appears a. Check that all connected devices are powered on. on the screen. b. Confirm that the voltage is correct. c. Confirm that the power supply provides enough current to power the MENU camera. - Page 10 Warranty Marshall Electronics warranties to the first consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of two years from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty.
