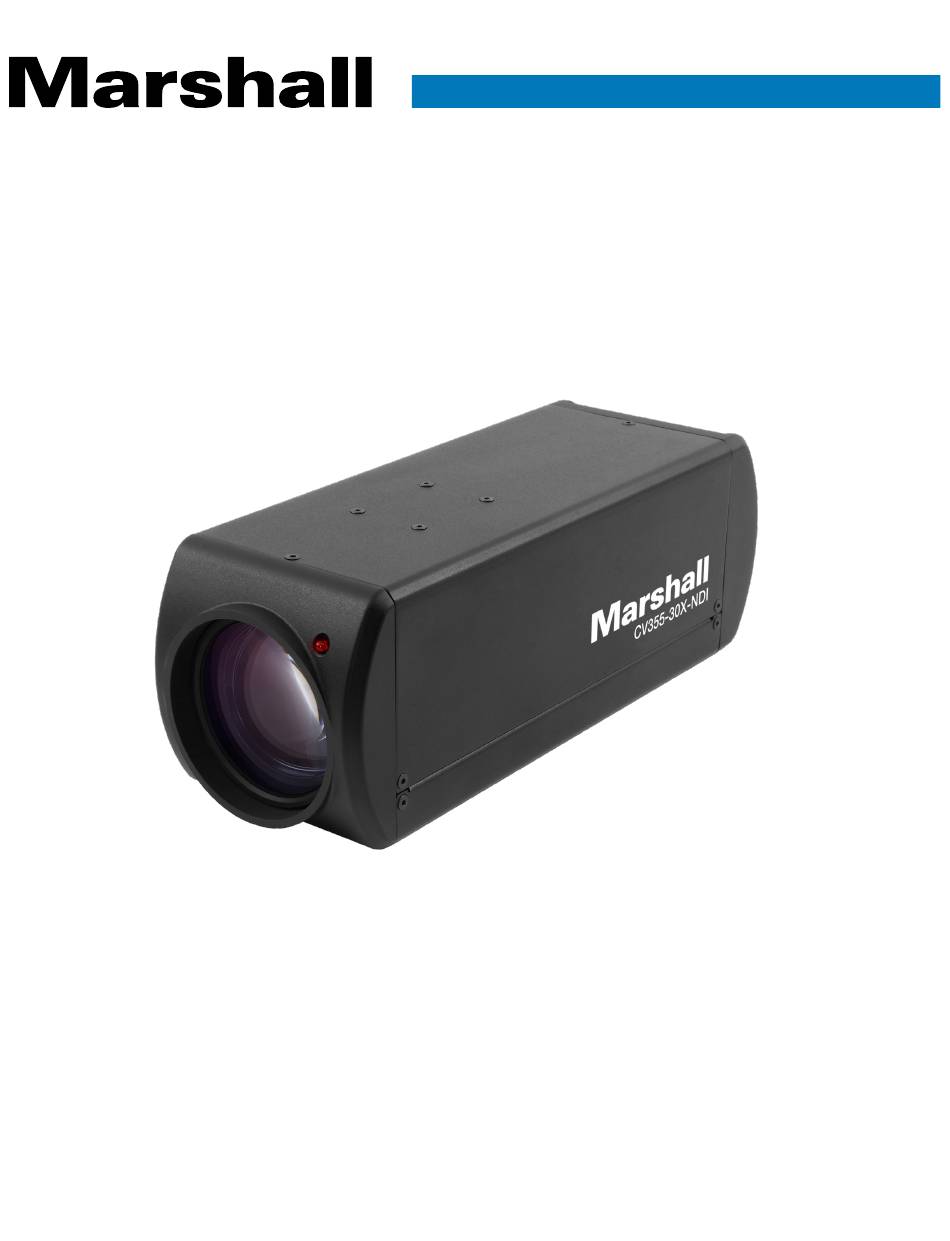

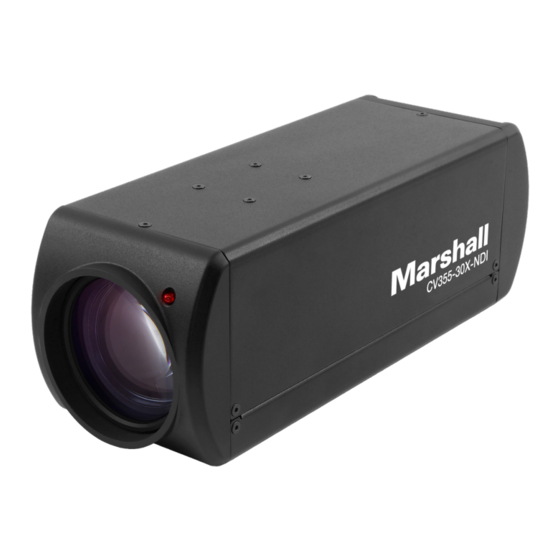

  • Page 1 B r o a d c a s t A / V D i v i s i o n CV355-30X-NDI 30X NDI®|HX Box Camera User Manual [Firmware Version 0.43]...
  • Page 2: Table Of Contents

    CV355-30X-NDI Manual Copyright Information Table of Contents Copyrights © Marshall Electronics Incorporated. All rights reserved. 1. Safety Instructions 2. Package Contents Marshall Electronics is a trademark of Marshall Electronics Incorporated 3. Function Introduction Copying, reproducing or transmitting this file is not allowed if a license is not provided by 3.1 I/O Functions Introduction...
  • Page 3: Safety Instructions

    1.3 Do not place the product on an unstable trolley, stand or table. 1.4 Do not use the product near water or source of heat. This section explains how to quickly configure the Marshall CV355-30X-NDI camera with NDI®|HX. 1.5 Use attachments only as recommended.
  • Page 4: Package Contents

    CV355-30X-NDI Manual 4. Cleaning 2. Package Contents 4.1 Unplug all the cables before cleaning. Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners or allow any liquids to enter camera body. CV355-30X-NDI Power Cord Power Adapter 5.
  • Page 5: Tally Indicator Light Function Description

    Tally Mode : 8x 01 7E 01 0A 01 0p FF p = 0 : OFF p = 4 : On (half-brightness) p = 5 : On (full-brightness) HDMI Cable/3G-SDI Cable 4. Installation Instructions 4.1 Installation Basics 4.1.1 CV355-30X-NDI Dimensions Monitor or HDTV www.marshall-usa.com...
  • Page 6 CV355-30X-NDI Manual 4.2.2 Connecting to Internet 4.2.4 Connecting RS-232 For details of web page connection setting and description, please refer to Chapter 5 Network • RS-232 serial connection Function Settings Description. With RS-232 in/out, at most 7 Marshall cameras can be connected.
  • Page 7: Network Function Settings

    2. If the camera is connected to the computer directly, the computer IP address must be modified to have the same network segment as the camera. For example, the factory-preset default IP address of CV355-30X-NDI is 192.168.100.100. The computer IP address must be set with the same subnet, such as 192.168.100.101, so that the computer can be connected correctly with the camera •...
  • Page 8: Web Page Function Description

    CV355-30X-NDI Manual 5.2.2 Using the Browser to View the Images 5.3 Web Page Function Description • Open the browser, and enter the URL of CV355-30X-NDI in the IP address bar 5.3.1 Login Screen e.g.: http://192.168.100.100 (default IP address) • Enter administrator’s account and password...
  • Page 9 CV355-30X-NDI Manual 5.3.2 Viewing In Real Time 5.3.3 Account Management Item. Function Descriptions Add user account Enter a username and password to add a new user Permission setting Set the new account management permissions User Type Admin Operator Viewer Item.
  • Page 10 CV355-30X-NDI Manual 5.3.4 System Configurations 5.3.5 Video Settings Item. Function Descriptions Item. Function Descriptions Resolution Set the resolution of the camera, resolutions supported by the camera are as follows: Camera name Modify the camera name • Camera names are limited to 1-12 characters •...
  • Page 11 CV355-30X-NDI Manual 5.3.6 Camera Settings White balance • Mode: Select the color temperature mode • Auto • Indoor • Outdoor • One Push WB • • Manual • Sodium Lamp • Open Push Trigger: One push color temperature is adjustable when the white balance mode is set to “One Push Trigger”...
  • Page 12 CV355-30X-NDI Manual 5.3.7 Picture Settings 5.3.8 Audio Settings Item. Function Descriptions Item Function Descriptions Audio Enable Turn on/off sound Picture effect Set picture effect, Off / Film / Black and White Audio In Type Set MIC In/Line In 2D noise reduction...
  • Page 13 CV355-30X-NDI Manual 5.3.9 Network Settings 5.3.10 Time Settings Item. Function Descriptions Network Network setting of camera. Change of setting is available only when DHCP function is closed. SNTP Setting Set SNTP Server IP Item. Function Descriptions Port Setting Set HTTP and HTTPS ports. The default values are Port 80 and Port 81 respectively...
  • Page 14 CV355-30X-NDI Manual 5.3.11 Maintenance 5.3.12 About Item. Function Descriptions Camera ID Display the camera name Item. Function Descriptions Firmware Version Display the firmware version of the camera Firmware Update Detail Information Display the completed firmware version of the camera Serial Number Display the camera serial No.
  • Page 15: Troubleshooting

    Marshall Electronics warranties to the first consumer that this device will, under normal use, This chapter describes problems you may encounter while using CV355-30X-NDI. If you have be free from defects in workmanship and materials, when received in its original container, for questions, please refer to related chapters and follow all the suggested solutions.
