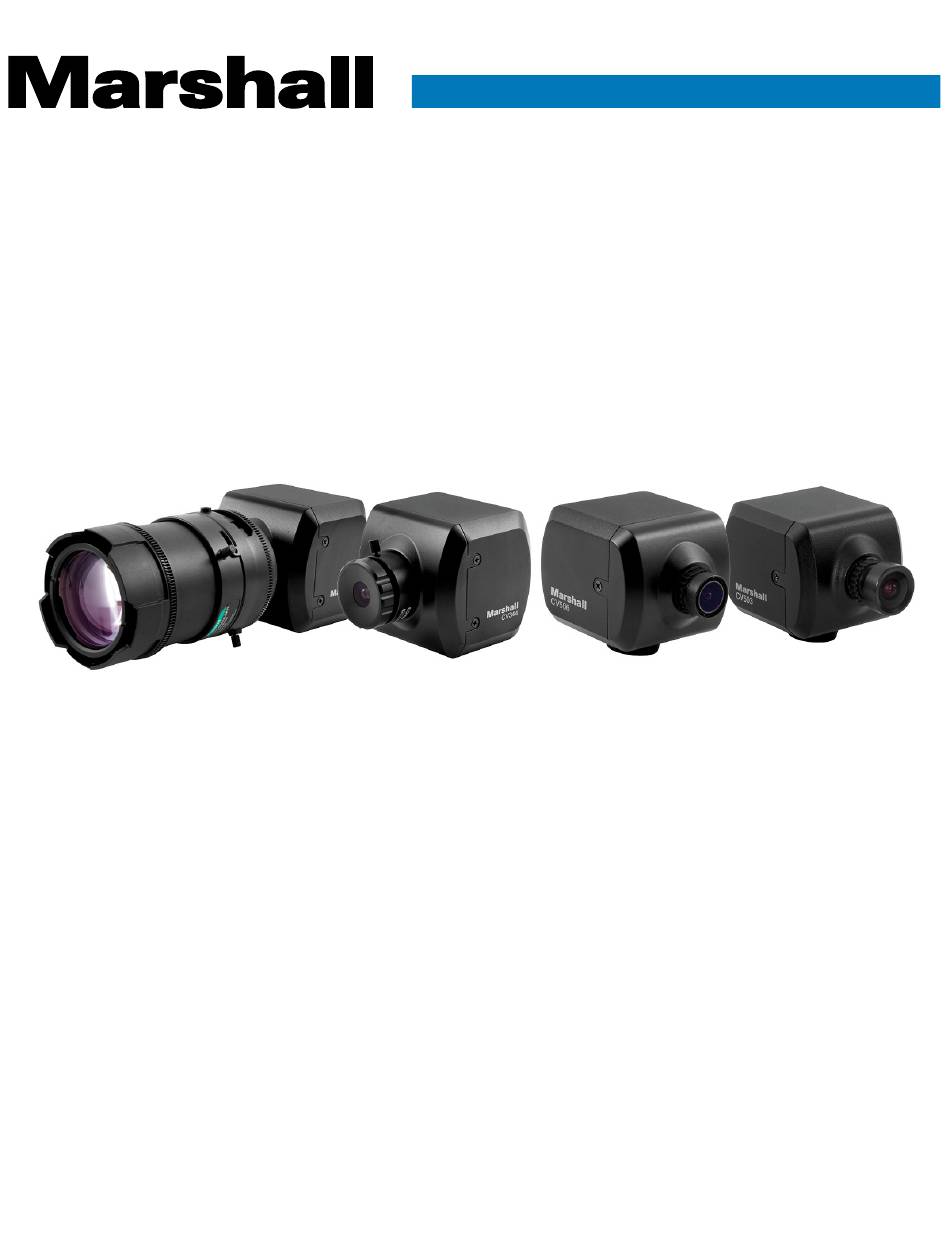

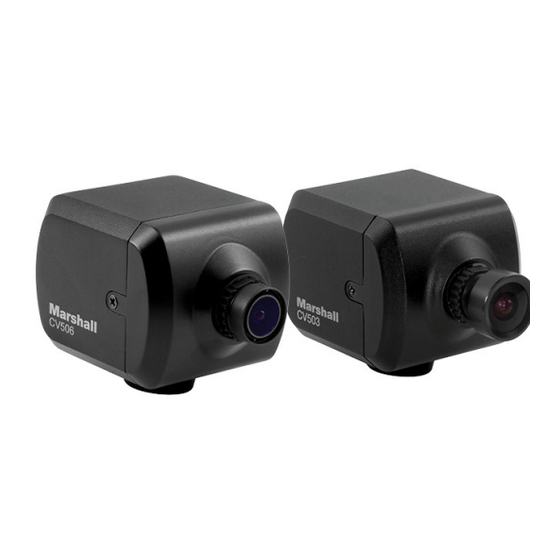

- Page 1 B r o a d c a s t A / V D i v i s i o n CV503, CV506, CV344, CV346 Compact & Miniature Full-HD Cameras User Manual...
-
Page 2: Table Of Contents
• C-Mount Lens Adapter (only used when using C-Mount lens) • 12V Power Supply 7. Audio The CV503/506 ships with a 3.6mm (72°AOV) M12 lens installed and is interchangeable to any 8. Image Control number of Marshall M12 lenses. 9. Special The CV344/346 Camera utilizes a CS/C lens mount and does not include a stock CS/C Lens. -
Page 3: Menu Structure
CV503/CV506/CV344/CV346 Manual 2. Menu Structure SETUP SUB MENU SUB MENU AUDIO SAMPLE BITS SETUP SUB MENU SUB MENU LENS SHADING CONTRAST ONE PUSH BRIGHTNESS INDOOR WB CONTROL SATURATION OUTDOOR BLUE MANUAL EDGE ENHANCE IMAGE CONTROL AUTO SATURATE AGC MAX AUTO EDGE... -
Page 4: Osd Joystick And Button
• INDOOR: Select this to adjust white balance to indoor lighting condition. • OUTDOOR: Select this to adjust white balance to outdoor lighting condition. AUDIO IN POWER I/O Cable (included in box) for CV503, CV506, CV344, CV346 1. SET Used to access the menu and confrim selection. MENU WB CONTROL 2. -
Page 5: Ae Control
CV503/CV506/CV344/CV346 Manual 5. AE CONTROL 6. DAY / NIGHT Select AE CONTROL using the UP or DOWN button. You can select one sub-mode using the UP or Select DAY / NIGHT using the UP or DOWN button. You can select one sub-mode from AUTO, DOWN buttons. -
Page 6: Audio
CV503/CV506/CV344/CV346 Manual 7. AUDIO 8. IMAGE CONTROL Select AUDIO using the UP or DOWN button and enter ON using SEL button. You can select one Select IMAGE CONTROL using the UP or DOWN button. sub-mode using the UP or DOWN buttons. -
Page 7: Special
CV503/CV506/CV344/CV346 Manual 9. SPECIAL 10. SETUP Select SPECIAL using the UP or DOWN button. CAMERA setup can be adjusted from this menu. You can select DEFOG, MOTION DETECT, BACKLIGHT, DEFECT PIXEL, and FLICKER DETECT using You can select CAMERA ID, Communication, System Info, and Output Format using the UP or DOWN the UP or DOWN buttons. -
Page 8: Reset
CV503/CV506/CV344/CV346 Manual 11. RESET 12. EXIT Select RESET using the UP or DOWN buttons. Select EXIT using the UP or DOWN button. • RESET: Reset the camera settings the factory defaults or user setting value. MENU WB CONTROL > MENU... -
Page 9: Troubleshooting
Warranty 13. TROUBLESHOOTING Marshall Electronics warranties to the first consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for Before sending the camera for repair, please check below to make sure that the camera is a period of two years from the purchase date.
