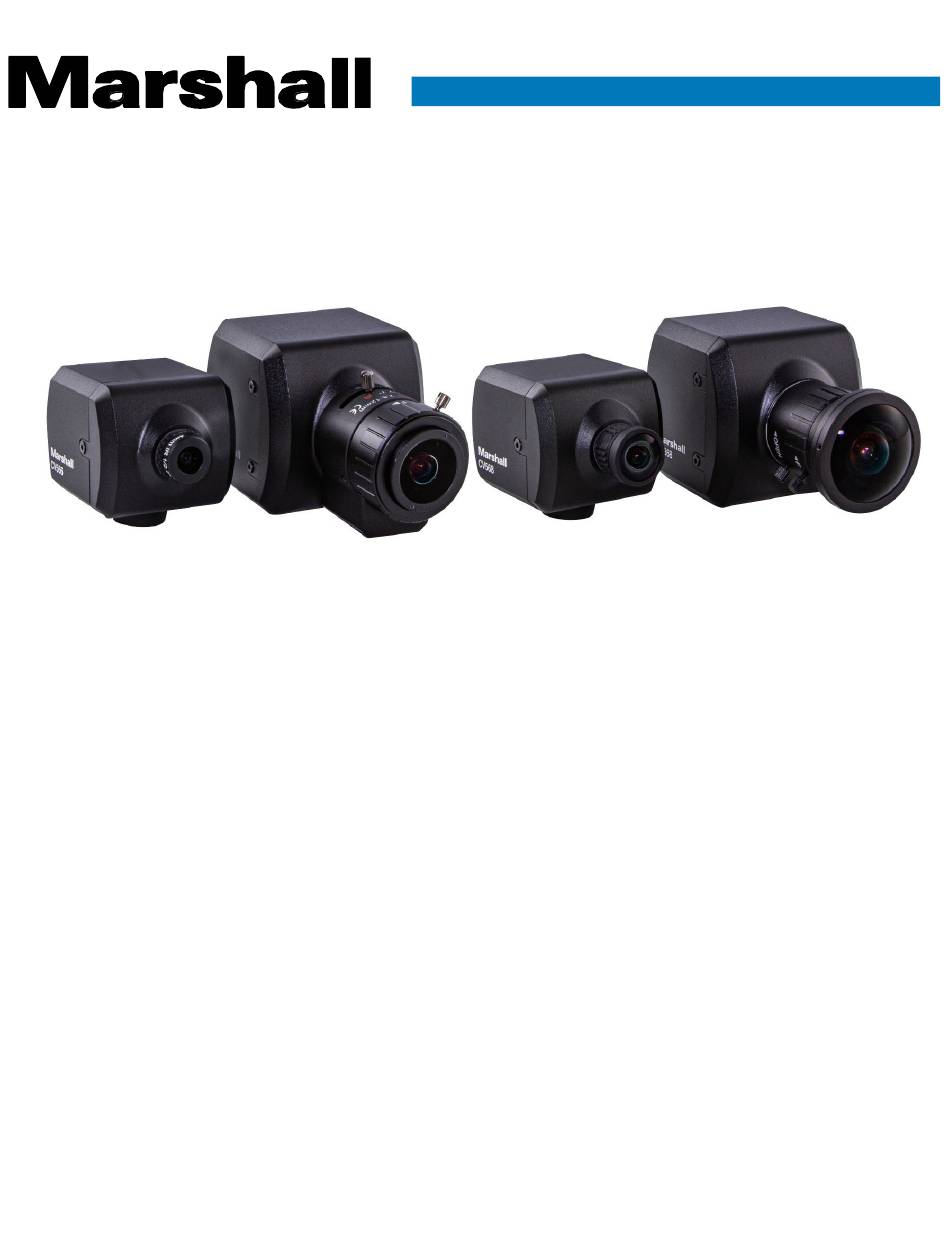

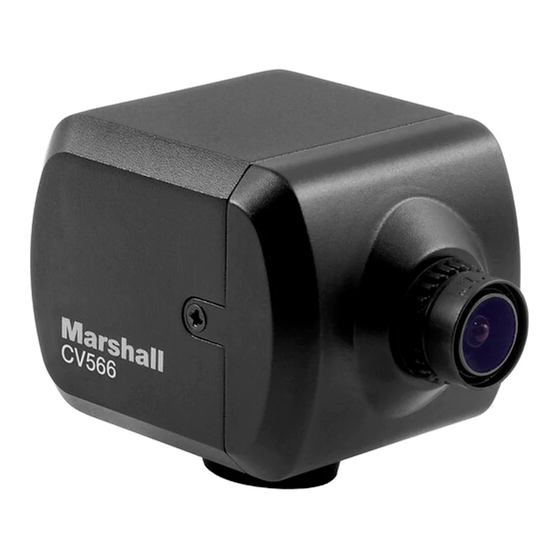

- Page 1 Br o a d c a s t A / V D iv is io n CV566, CV568, CV366, CV368 Compact & Miniature HD Genlock Cameras User Manual...
-
Page 2: Table Of Contents
........... . . 11 The CV566 ships with a 3.6mm lens installed and is interchangeable to any number of Marshall M12 lenses. -
Page 3: Menu Structure
CV566/CV568/CV366/CV368 Manual 2. Menu Structure SETUP SUB MENU SUB MENU SETUP SUB MENU SUB MENU BLUE OFFSET LENS SHADING RED OFFSET CONTRAST WB CONTROL ONE PUSH BRIGHTNESS INDOOR SATURATION OUTDOOR BLUE MANUAL IMAGE CONTROL EDGE ENHANCE AGC MAX AUTO SATURATE... -
Page 4: Osd Joystick And Button
CV566/CV568/CV366/CV368 Manual 3. OSD Joystick and Button 4. WB Control Select WB CONTROL using the UP or DOWN button. You can change between ATW, PUSH, and MANUAL using the LEFT or RIGHT buttons. • ATW: Continuously adjusts camera color balance in accordance with any change in color temperature. -
Page 5: Ae Control
& CV566). AUDIO > AGC MAX • NIGHT: When set to NIGHT mode, camera stays in B&W (and IR cut filter is removed for GENLOCK > AE BRIGHT CV366 & CV566). IMAGE CONTROL > LENS MODE MANUAL SPECIAL > RETURN PICTURE STYLE >... -
Page 6: Audio
CV566/CV568/CV366/CV368 Manual 7. AUDIO 8. GENLOCK Select AUDIO using the UP or DOWN button and enter ON using SEL button. You can select one sub- Select GENLOCK using the UP or DOWN button. mode using the UP or DOWN buttons. -
Page 7: Image Control
CV566/CV568/CV366/CV368 Manual 10. SPECIAL 9. IMAGE CONTROL Select SPECIAL using the UP or DOWN button. Select IMAGE CONTROL using the UP or DOWN button. You can select DEFOG, MOTION DETECT, BACKLIGHT, DEFECT PIXEL, and FLICKER DETECT using You can select LENS SHADING, CONTRAST, HUE, and image related menu using the UP or the UP or DOWN buttons. -
Page 8: Picture Style
CV566/CV568/CV366/CV368 Manual 11. PICTURE STYLE 12. SETUP Select PICTURE STYLE menu for color matrix tuning. CAMERA setup can be adjusted from this menu. You can adjust settings using the UP or DOWN buttons. You can select CAMERA ID, Communication, System Info, and Output Format using... -
Page 9: Reset
CV566/CV568/CV366/CV368 Manual 13. RESET 14. EXIT Select RESET using the UP or DOWN button. Select EXIT using the UP or DOWN button. • RESET: Reset the camera settings the factory defaults or user setting value. MAIN MENU MAIN MENU WB CONTROL >... -
Page 10: Warranty
CV566/CV568/CV366/CV368 Manual 15. TROUBLESHOOTING WARRANTY Marshall Electronics warranties to the first consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period Before sending the camera for repair, please check below to make sure that the camera is of two years from the purchase date.
