- Page 1 WELDING INVERTER PEGAS 160 E Smart PEGAS 200 E Smart OPERATING MANUAL ALFA IN a.s. © www.alfain.eu PEGAS 160-200 E Smart Manual EN 04...
-
Page 2: Table Of Contents
SAFETY INSTRUCTIONS AND WARNINGS ..........4 TECHNICAL DATA ..................6 EQUIPMENT ..................... 8 OPERATOR CONTROLS ................8 GETTING STARTED ................. 9 ROUTINE MAINTENANCE & INSPECTION ..........10 STATEMENT OF WARRANTY ..............11 DISPOSAL ....................12 ALFA IN a.s. © www.alfain.eu... -
Page 3: Introduction
3/12 1. INTRODUCTION Congratulations on your new ALFA IN product. We are proud to have you as our customer and will strive to provide you with the best service and reliability in the industry. This Operating Manual has been designed to instruct you on the correct use and operation of your ALFA IN product. -
Page 4: Safety Instructions And Warnings
The operator must be aware of all the special regulations which he needs to conform to when welding in enclosed spaces with a high risk of explosion. To prevent electric shock, we strongly suggest the following rules: ALFA IN a.s. © www.alfain.eu... - Page 5 Before opening the machine switch off the machine and disconnect it from the power socket. Only personnel authorised by this company can carry out maintenance on the machine. NOTE: Device complies with IEC 61000-3-12. ALFA IN a.s. © www.alfain.eu...
-
Page 6: Technical Data
Insulation class IP23S Protection Standards EN 60974-1; EN 60974-10 cl. A 112 x 274 x 215 Dimensions (w x l x h) Weight PEGAS 200 E Smart Method Mains voltage V/Hz 1x230/50-60 10 - 200 Welding current range Open-circuit voltage U... - Page 7 25 A. Attention! Do not connect to the interconnected voltage (delta voltage) (between 2 phases)! Replacement of the plug may only be performed by ALFA IN authorized service personnel. ALFA IN continuously strives to produce the best product possible and therefore reserves the right to change, improve or revise the specifications or design of this or any product without prior notice.
-
Page 8: Equipment

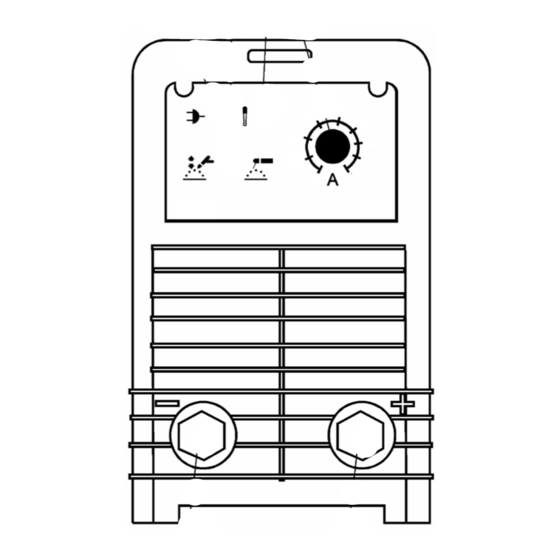

Box black 50x58,5x18 cm 6124 Pressure Reducer BASECONTROL Ar 2 manometers 6125 Pressure Reducer BASECONTROL CO2 2 manometers 706.1037 Torch SRT 17 4m V 35-50 Welding helmet S7S 5. OPERATOR CONTROLS Fig . 1 Main parts ALFA IN a.s. © www.alfain.eu... -
Page 9: Getting Started
2. Connect the work lead to positive terminal 6 and fasten it by turning the connector to the right. 3. Connect the work clamp to the work piece or at the welding table. 4. By means of the switch 2 select TIG ALFA IN a.s. © www.alfain.eu... -
Page 10: Routine Maintenance & Inspection
5. To clean the welder, disconnect it from the mains supply voltage then open the enclosure and use a vacuum cleaner to remove any accumulated dirt and ALFA IN a.s. © www.alfain.eu... -
Page 11: Statement Of Warranty
3. ALFA IN will repair or replace, at its discretion, any warranted parts or components that fail due to defects in material or workmanship within the warranty period. -
Page 12: Disposal
ALFA IN a.s. © www.alfain.eu...
