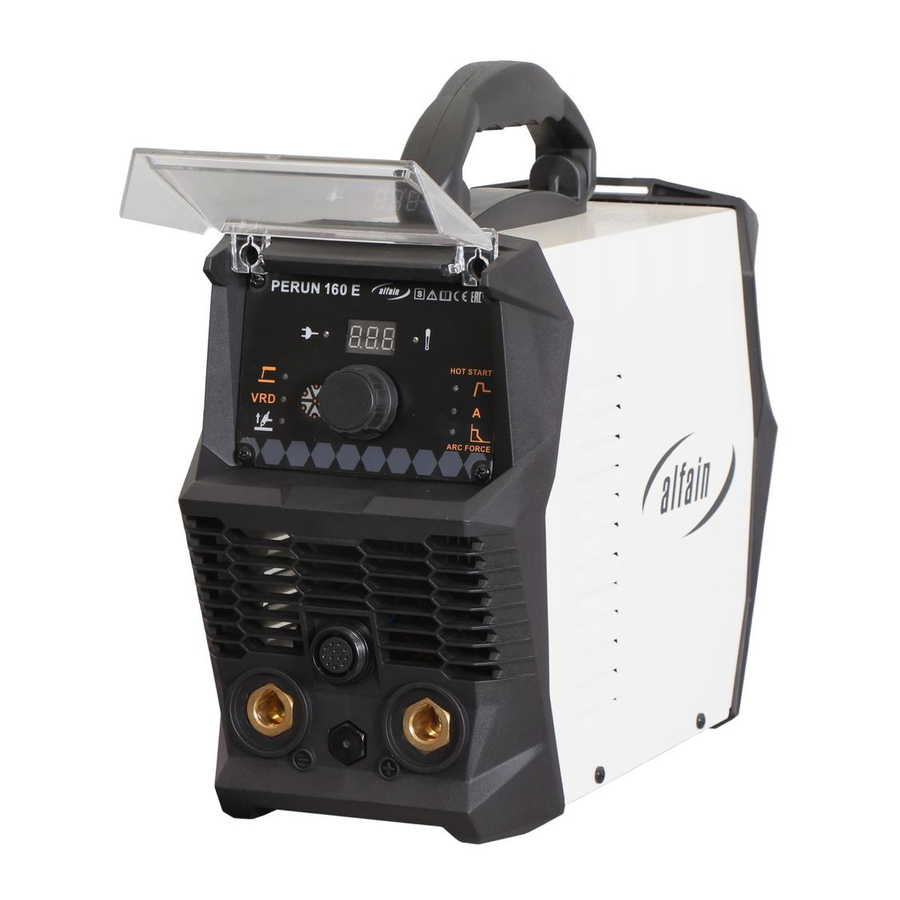

- Page 1 WELDING INVERTER PERUN 160 E PERUN 220 E OPERATING MANUAL ALFA IN a.s. © www.alfain.eu PERUN 160-220 E Manual EN 02...
-
Page 2: Table Of Contents
OPERATOR CONTROLS ................9 GETTING STARTED ................11 JOBS ....................... 13 RESET ....................14 10. ROUTINE MAINTENANCE & INSPECTION .......... 14 11. STATEMENT OF WARRANTY .............. 15 12. DISPOSAL ..................... 16 13. WARRANTY LIST .................. 16 ALFA IN a.s. © www.alfain.eu... -
Page 3: Introduction
3/16 1. INTRODUCTION Dear consumer, Company ALFA IN a.s. thanks you for buying our product and believe that you will be satisfied with our machine. Welding inverters PERUN 160 E – 220 E are designed for professional welding in MMA method (coated electrode) and in TIG method with touch ignition (LIFT ARC). -
Page 4: Safety Precautions
1. Before starting work with welding machine it is necessary to get familiar with applicable provisions of standards. 2. The welder must use protective equipment. 3. Before working on the electrical part, removing the cover or cleaning it is necessary to disconnect the device from the network. ALFA IN a.s. © www.alfain.eu... -
Page 5: Operating Conditions
3x2,5 mm The machine can be operated on a single-phase electric generator 10 kVA for PERUN 160 E and 12 kVA for PERUN 220 E (1x230V/50Hz) and more, which has ensured voltage stabilization ± 10%. Generators with lower power can damage the machine. -
Page 6: Technical Data
During operation, the device may be the source of interference. Caution We warn users, that they are responsible for possible interference from welding. 4. TECHNICAL DATA PERUN 160 E Method Mains voltage V/Hz 1x230/50-60 Welding current range... -
Page 7: Equipment
160 x 370 x 280 Weight ALFA IN continuously strives to produce the best product possible and therefore reserves the right to change, improve or revise the specifications or design of this or any product without prior notice. Such updates or changes do not entitle the buyer of equipment previously sold or shipped to the corresponding changes, updates, improvements or replacement of such items. - Page 8 8/16 Caution The torch must be selected according to the used current range. ALFA IN a.s. is not responsible for damage to the welding torches due to overload. OTHER ACCESSORIES Item No. Description Picture Welding Cable Set 2x 3m 35-...
-
Page 9: Operator Controls
Quick connector (+) Connector LED – TIG method is selected LED – MMA VRD method is selected LED – MMA method is selected Welding method switch MMA electrode MMA VRD LED of turning on the machine ALFA IN a.s. © www.alfain.eu... - Page 10 VRD immediately reduces the open-circuit voltage to 14 V. Inverters PERUN 160 E – 220 E generate the open-circuit voltage 70 V (MMA) and 70 V (TIG), which is safe and is in compliance with the standard EN 60974-1.
-
Page 11: Getting Started
8. Insert the appropriate coated electrode into the electrode holder and you may start welding. NOTE Prevent touching the electrode any metal material for in this mode the quick connectors A2 and A1 are under current. ALFA IN a.s. © www.alfain.eu... - Page 12 12/16 GETTING STARTED TIG TIG TORCH CONNECTION SCHEMA 5737 CONNECTOR ST 12 PIN MALE PIN NO. TORCH WITH POTENTIOMETER POTENTIOMETER (+) POTENTIOMETER (CENTER TAP) POTENTIOMETER (-) ALFA IN a.s. © www.alfain.eu...
-
Page 13: Jobs
2. Rotate the encoder A9 to move to the position -L-. By short pressing the encoder A9 confirm the position -L-. 3. The display A10 will show numbers from 2 to 10 for particular JOBs. Rotate ALFA IN a.s. © www.alfain.eu... -
Page 14: Reset
7. Troubleshooting and repairing of PERUN welding equipment should only be carried out only by suitably qualified or competent person. 8. A ‘competent person’ must be a person who has acquired through training, ALFA IN a.s. © www.alfain.eu... -
Page 15: Statement Of Warranty
3. ALFA IN will repair or replace, at its discretion, any warranted parts or components that fail due to defects in material or workmanship within the warranty period. -
Page 16: Disposal
As a warranty list serves proof of purchase (invoice) on which is the serial number of the machine, eventually a warranty list below, which is filled in by an authorized dealer. Serial number: Day, month (written in words) and year of sale: Stamp and dealer signature: ALFA IN a.s. © www.alfain.eu...
