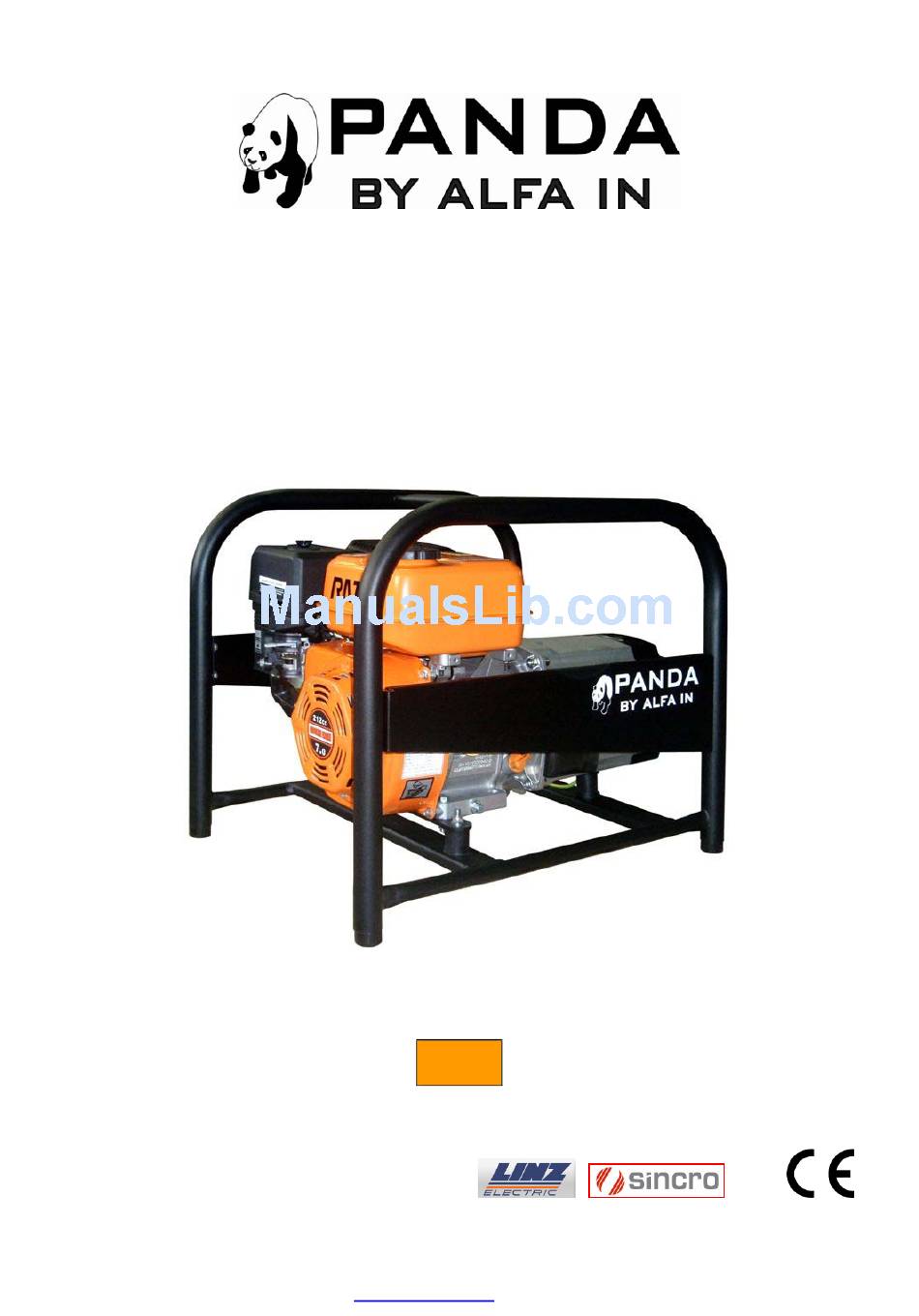

- Page 1 - 1 - User's manual PANDA Single-phase power generator PANDA 3010 ALFA IN a.s. © www.alfain.eu Verze 01...
-
Page 2: Table Of Contents
1. INTRODUCTION Dear consumer, Company ALFA IN a.s. thanks you for purchasing our product and believe that you will be satisfied with our machine. Congratulations on choosing a professional machine for independent power generator based on the gasoline engine. This equipment is designed for demanding applications, and it is made from the highest quality components under strict quality management system certified according to ČSN EN ISO 9001. -
Page 3: Safety Warning
Must not be combined PE and N ! ALFA IN a.s. © www.alfain.eu... -
Page 4: Operating Conditions
It is necessary to observe all the provisions of the used motor, which are listed in the user manual or the user manual engine. All interventions in el. equipment, as well as repairs must be performed only by authorized personnel. 4. DESCRIPTION AND EQUIPMENT ARRANGEMENT Fuel tank Sockets Power engine Alternator ALFA IN a.s. © www.alfain.eu... -
Page 5: Specification
10W 40 (-18°C - 50°C), 5W 40(- 40°C - 0°C) Gasoline unleaded > 91 IP Protection IP23 Oil sensor Breaker (230V) Voltage indication optional Counter operation’s hours optional Chassis optional Small bodywork optional Dimensions [mm] 600x460x475 Weight [kg] ALFA IN a.s. © www.alfain.eu... -
Page 6: Operation
1. Start the generator according to the instructions below. 2. Connect the appliances to the plugs, make sure not to exceed the maximum rated load of the outputs. 3. Make sure that the thermal fuse is ON. ALFA IN a.s. © www.alfain.eu... - Page 7 6. After a few seconds you turn the choke to the OFF position (5) - work equipment picks up speed, and its operation is fluent. NOTE: In the case of break rope starter have it replaced with a original HONDA spare part. Starter grip Choke Lever of the ignition switch Fuel valve ALFA IN a.s. © www.alfain.eu...
-
Page 8: Maintenance
100 hours of operation General inspection of equipment every 100 hours of operation Periods shorten up to ½ when the equipment is operated in extremely dusty or dirty environments Let make an authorized service partner ALFA IN a.s. © www.alfain.eu... - Page 9 Every 100 hours of operation (more often if operating in dusty or dirty conditions), remove the blower cover and other covers and clean them as well as other exterior surfaces if necessary. Make sure the vent caps are reinstalled and securely fastened. ALFA IN a.s. © www.alfain.eu...
- Page 10 NOTE: If the engine stalls or fails to start, turn the engine switch to the ON position and pull the starter handle, try to start the engine. If the oil warning, after a few seconds, blink- TURN OFF the motor. The amount of oil in the engine is not sufficient. Top up oil and start again. ALFA IN a.s. © www.alfain.eu...
-
Page 11: Storage Of Equipment
Problem rotor Not start Hard to start Suddenly stops Loses power Powered irregularly Strange noises Blackouts, irregular ignition Wounds from the exhaust Overheating High fuel consumption Dark smoke from exhaust The output is not a ALFA IN a.s. © www.alfain.eu... -
Page 12: Warranty And Post-Warranty Repairs
All rules regarding the warranty for the operation subject to the final consumer, and not mentioned above is further governed by the Civil Code, as amended and other relevantly related regulations. ALFA IN a.s. © www.alfain.eu... -
Page 13: Service Book
Replacing the air filter Changing the oil Removing the covers cooling and cleaning Check the wear of the spark plugs and cable General inspection of equipment RECORDS OF SERVICE CHECK Signature technician, firm, Date: stamp ALFA IN a.s. © www.alfain.eu...
