Dover PSG ALL-FLO MAX-PASS S Series Installation, Operation & Maintenance Instruction Manual

Dover PSG ALL-FLO MAX-PASS S Series Installation, Operation & Maintenance Instruction Manual

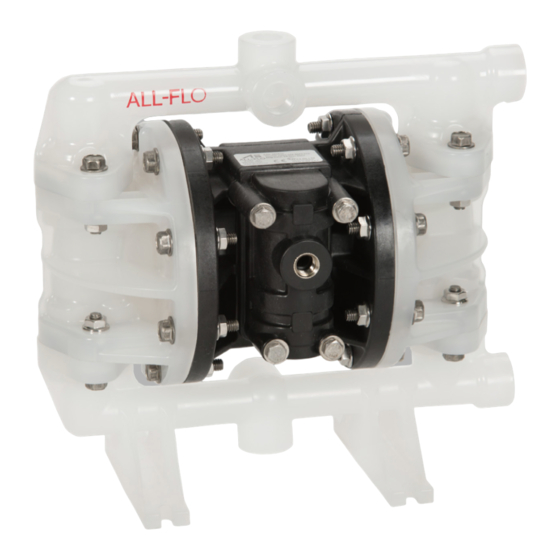

Plastic 1/2 inch solids handling air-operated double-diaphragm pump
Hide thumbs Also See for PSG ALL-FLO MAX-PASS S Series:

Advertisement

Quick Links

IOM
INSTALLATION OPERATION
& MAINTENANCE
S050 MAX-PASS
®
PLASTIC 1/2 INCH
S SERIES - SOLIDS HANDLING
AIR-OPERATED DOUBLE-DIAPHRAGM PUMP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSG ALL-FLO MAX-PASS S Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dover PSG ALL-FLO MAX-PASS S Series

  • Page 1 INSTALLATION OPERATION & MAINTENANCE S050 MAX-PASS ® PLASTIC 1/2 INCH S SERIES - SOLIDS HANDLING AIR-OPERATED DOUBLE-DIAPHRAGM PUMP...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS SECTION 1 WARNINGS, DANGERS AND CAUTIONS SECTION 2 MODEL DESIGNATION MATRIX SECTION 3 PRINCIPLES OF OPERATION SECTION 4 DIMENSIONAL DRAWINGS SECTION 5 PERFORMANCE CURVE SECTION 6 INSTALLATION, TROUBLESHOOTING AND MAINTENANCE INSTALLATION ..................8-9 TROUBLESHOOTING ..............10 OPERATION ..................11 MAINTENANCE ................11 SECTION 7 REPAIR AND ASSEMBLY...
  • Page 3: Warnings, Dangers And Cautions

    SECTION CAUTIONS — READ FIRST! READ THESE WARNINGS AND SAFETY PRECAUTIONS PRIOR TO WARNING = Hazards or unsafe practices which INSTALLATION OR OPERATION. FAILURE TO COMPLY WITH THESE could result in severe personal injury, INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND OR death or substantial property damage PROPERTY DAMAGE.
  • Page 4: Model Designation Matrix

    SECTION MODEL DESIGNATION MATRIX- PLASTIC SOLIDS SPECIAL OPTION (HARDWARE, FLUID CONNECTION TYPE VALVE SEAT/BACKUP MUFFLER, LUG) S = NPS (NPT/BSP) K = PVDF P = Polypropylene 7 = Stainless Steel Hardware, Standard Muffler AIR SECTION N = Nylon 8 = Stainless Steel Hardware, Premium Muffler P = Polypropylene Intermediate-Pneumatic Shift B = PTFE Coated Stainless Steel Hardware, O-RINGS...
  • Page 5: Principles Of Operation

    SECTION PRINCIPLES OF OPERATION HOW AN AIR OPERATED DOUBLE DIAPHRAGM PUMP WORKS The air-valve directs pressurized air behind the diaphragm on the right, causing the diaphragm on the right to move outward (to the right). Since both the right diaphragm and the left diaphragm are connected via a diaphragm rod, when the right diaphragm moves to the right, the left diaphragm (through the action of the diaphragm rod) moves to the right also.
  • Page 6: Dimensional Drawings

    SECTION 1/2” PUMP DIMENSIONS PLASTIC SOLIDS ALF-13130-E-02 All-Flo...
  • Page 7: Performance Curve

    SECTION PERFORMANCE CURVES Performance Specifications PERFORMANCE CURVE Max. Flow: 17 gpm (64.4 lpm) Max. Air Pressure: 120 psi (8.3 bar) Max. Solids: ” (9.5 mm) AIR CONSUMPTION (SCFM) Max. Suction Lift Dry: 15 ft-H O (4.6 m-H Max. Suction Lift Wet: 26 ft-H O (7.9 m-H Weight Polypropylene:...
  • Page 8: Installation, Troubleshooting And Maintenance

    SECTION INSTALLATION, TROUBLE- SHOOTING AND MAINTENANCE INSTALLATION Ensure that the air supply is sufficient for the PIPING volume of air required by the pump. Refer to product specifications for further details. For reliable Whenever possible ensure the pump is installed using operation, install a 5 micron air filter, air-valve and the shortest possible pipe lengths with the minimum pressure regulator.
  • Page 9 SUGGESTED INSTALLATION This illustration is a generic representation of an air operated double-diaphragm pump. ALF-13130-E-02 All-Flo...
  • Page 10: Troubleshooting

    TROUBLESHOOTING PROBLEM EFFECT/SOLUTION Pump Will Not Cycle Discharge line closed or plugged Discharge filter blocked Check valve stuck Air filter blocked Air supply valve closed Air supply hooked up to muffler side of pump Compressor not producing air or turned off Muffler iced or blinded Diaphragm ruptured Plant air supply line ruptured...
  • Page 11: Operation

    OPERATION MAINTENANCE The Air-Operated Double Diaphragm Pump requires Due to the unique nature of each application, periodic a minimum of 20 psig of air to operate, with some inspection of the pump is the best method to determine variation according to diaphragm material. Increasing a proper maintenance schedule.
  • Page 12: Repair And Assembly

    SECTION REPAIR AND ASSEMBLY PUMP WET END REMOVAL TOOLS NEEDED WARNING Prior to servicing the pump, ensure that the air and fluid 1) One Wrench, Inch lines are closed and disconnected. While wearing personal protective equip- ment, flush, drain and process liquid from the pump in a safe manner. 2) Two Wrenches, ½...
  • Page 13 STEP 8 STEP 9 Remove both “Outer Chambers” Using two Inch wrenches, STEP 7 from the “Intermediate”. remove “Outer Diaphragm Plate”, In order to remove both “Outer “Diaphragm”, “Inner Diaphragm Chambers”, using two ½ inch Plate” and “Flat Washer” from wrenches, remove eight “Hex Head one side of the pump.
  • Page 14: Air Valve Removal

    REPAIR AND ASSEMBLY AIR VALVE REMOVAL TOOLS NEEDED WARNING Prior to servicing the pump, ensure that the air and fluid 1) One Wrench, Inch lines are closed and disconnected. While wearing personal protective equip- ment, flush, drain and process liquid from the pump in a safe manner. 2) One Pick, General Purpose WARNING Maintenance must not be performed when a hazardous atmo-...
  • Page 15 STEP 7 STEP 8 STEP 9 Remove the “Air Valve Spool” from Using the pick, remove the “Lip Using the pick, remove the the main “Air-Valve Assembly”. Seal (Air Valve)” from the main second “Lip Seal (Air Valve)” from “Air-Valve Assembly”. the main “Air-Valve Assembly”.
  • Page 16: Pilot Valve Removal

    REPAIR AND ASSEMBLY PILOT VALVE REMOVAL TOOLS NEEDED WARNING Prior to servicing the pump, ensure that the air and fluid 1) One Screwdriver, Phillips #2 lines are closed and disconnected. While wearing personal protective equip- ment, flush, drain and process liquid from the pump in a safe manner. 2) Two Wrenches, Inch WARNING...
  • Page 17: Torque Specifications

    PILOT VALVE ASSEMBLY To assemble the pilot valve, reverse the order of disassembly. Should process fluid have contact with the pilot valve O-Rings, they should be replaced as swelling may occur and cause irregular operation. During assembly, ensure that the open side of the lip-seals are facing outward. Lubrication of the pilot sleeve assembly, with a non-synthetic lubricant, is recommended in order to facilitate re-assembly into the intermediate.
  • Page 18: Exploded Views And Parts Lists

    SECTION EXPLODED VIEW & PARTS LIST S050-SP*-****-*** PLASTIC SOLIDS ALF-13130-E-02 All-Flo...
  • Page 19 PARTS LIST - PLASTIC SOLIDS S050-SP*-****-*** ITEM DESCRIPTION QTY PUMP MODEL PART NO. MATERIAL AIR VALVE END PLUG ALL MODELS 11703-60 Polypropylene AIR VALVE SPOOL ALL MODELS 10480-31 Acetal AIR VALVE GASKET ALL MODELS 12116-19 Nitrile SHUTTLE PLATE ALL MODELS 10416-77 Ceramic SHUTTLE...
  • Page 20 PARTS LIST - PLASTIC SOLIDS S050-SP*-****-*** ITEM DESCRIPTION QTY PUMP MODEL PART NO. MATERIAL INTERMEDIATE ALL MODELS 11521-60 Polypropylene MUFFLER PLATE ALL MODELS 13111-60 Polypropylene MUFFLER ALL MODELS 13008-00 Polypropylene GASKET (Muffler Plate) ALL MODELS 12117-19 Nitrile LIP SEAL (Diaphragm Rod) ALL MODELS 12000-76 Nitrile...
  • Page 21: Elastomers And Repair Kits

    SECTION ELASTOMERS & REPAIR KITS WETTED ELASTOMERS BUNA-N (NITRILE) GEOLAST® is a general purpose elastomer used with water and is an injection molded thermoplastic material with many oils. Temperature range 10°F to 180°F (-12°C characteristics similar to Nitrile. Has excellent to 82°C).
  • Page 22: Warranty And Registration

    SECTION WARRANTY AND REGISTRATION WARRANTY. All All-Flo products shall be covered by the standard All-Flo Limited Warranty in effect at the time of shipment. This warranty (which may be modified by All-Flo at any time) provides: MATERIALS SOLD ARE WARRANTED TO THE ORIGINAL USER AGAINST DEFECTS IN WORKMANSHIP OR MATERIALS UNDER NORMAL USE (RENTAL USE EXCLUDED) FOR FIVE YEARS AFTER PURCHASE DATE.
  • Page 23 22069 Van Buren Street Grand Terrace, CA 92313-5651 USA P: +1 (440) 354-1700 F: +1 (440) 354-9466 all-flo.com All-Flo is committed to the pursuit of designing and manufacturing the highest quality product available to industry. Since the beginning in 1986, All-Flo engineers have used their extensive knowledge of today’s engineered materials, advanced air system logic and manufacturing techniques to develop the superior group of lube-free, air-operated diaphragm pumps found in this catalog.
