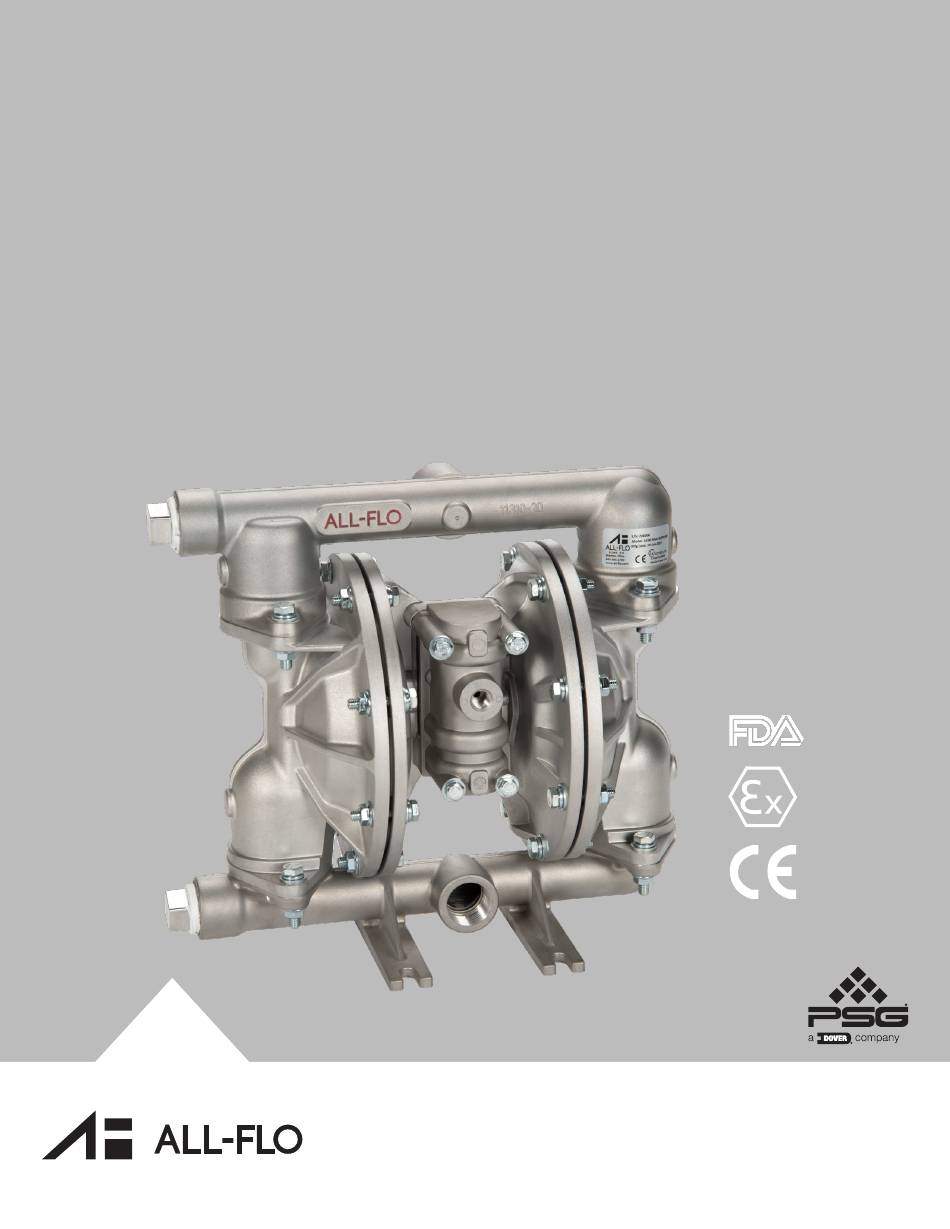

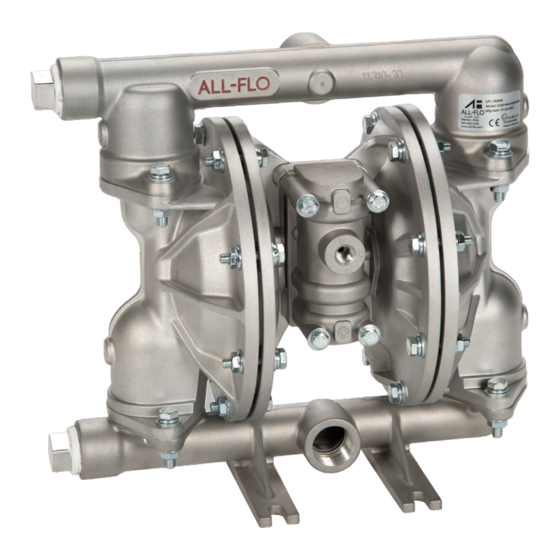

- Page 1 INSTALLATION OPERATION & MAINTENANCE S100 MAX-PASS ® METAL 1 INCH S SERIES - SOLIDS HANDLING AIR-OPERATED DOUBLE-DIAPHRAGM PUMP...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION 1 WARNINGS, DANGERS AND CAUTIONS SECTION 2 MODEL DESIGNATION MATRIX AND REPAIR KITS SECTION 3 PRINCIPLES OF OPERATION SECTION 4 DIMENSIONAL DRAWINGS SECTION 5 PERFORMANCE CURVES RUBBER DIAPHRAGMS ..............8 TPE DIAPHRAGMS ................8 PTFE DIAPHRAGMS ..............8 SECTION 6 INSTALLATION, TROUBLESHOOTING AND MAINTENANCE INSTALLATION .................. - Page 3 SECTION CAUTIONS — READ FIRST! READ THESE WARNINGS AND SAFETY PRECAUTIONS PRIOR TO WARNING = Hazards or unsafe practices which INSTALLATION OR OPERATION. FAILURE TO COMPLY WITH THESE could result in severe personal injury, INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND OR death or substantial property damage PROPERTY DAMAGE.
- Page 4 SECTION MODEL DESIGNATION MATRIX & REPAIR KITS- ALUMINUM FLUID CONNECTION TYPE VALVE SEAT/BACKUP SPECIAL OPTION (HARDWARE, MUFFLER, LUG) N = NPT 3 = Standard (Zinc Plated Steel Hardware, Plastic A = Aluminum Muffler) B = BSPT 4 = Zinc Plated Steel Hardware, Metal Muffler O-RINGS 7= Stainless Steel Hardware, Plastic Muffler AIR SECTION...
- Page 5 MODEL DESIGNATION MATRIX & REPAIR KITS - STAINLESS STEEL FLUID CONNECTION TYPE VALVE SEAT/BACKUP SPECIAL OPTION (HARDWARE, MUFFLER, LUG) N = NPT 7 = Standard (Stainless Steel Hardware, Plastic 3 = Stainless Steel Muffler) B = BSPT 8 = Stainless Steel Hardware, Metal Muffler O-RINGS B = PTFE Coated Stainless Steel Hardware, AIR SECTION...
- Page 6 SECTION PRINCIPLES OF OPERATION HOW AN AIR OPERATED DOUBLE DIAPHRAGM PUMP WORKS The air-valve directs pressurized air behind the diaphragm on the right, causing the diaphragm on the right to move outward (to the right). Since both the right diaphragm and the left diaphragm are connected via a diaphragm rod, when the right diaphragm moves to the right, the left diaphragm (through the action of the diaphragm rod) moves to the right also.
- Page 7 SECTION 1” PUMP DIMENSIONS ALUMINUM & STAINLESS STEEL 1.5” (38mm) 1.5” (38mm) 1/2”-14 FNPT (Air Inlet) 12.4” 11.6” (315mm) (295mm) 12.4” 11.6” (315mm) (295mm) 7.5” (191mm) 7.5” (191mm) 1.3” 1.3” (33mm) (33mm) 6.9” (175mm) 6.9” (175mm) 8.4” (213mm) 8.4” (213mm) 13.0”...
-
Page 8: Performance Curves
SECTION PERFORMANCE CURVES Performance Specifications PERFORMANCE CURVE (1” RUBBER)* PERFORMANCE CURVE (1" RUBBER MAX-PASS) Max. Flow: 46 gpm (174 lpm) DISCHARGE FLOW-Liters/Min. Max. Air Pressure: 120 psi (8.3 bar) (8,2) (83,9) Max. Solids: ” (19 mm) (6,8) (69,9) Max. Suction Lift Dry: 18 ft-H O (5.5 m-H AIR CONSUMPTION... -
Page 9: Installation, Troubleshooting And Maintenance
SECTION INSTALLATION, TROUBLESHOOTING AND MAINTENANCE INSTALLATION Ensure that the air supply is sufficient for the PIPING volume of air required by the pump. Refer to product specifications for further details. For reliable Whenever possible ensure the pump is installed using operation, install a 5 micron air filter, air-valve and the shortest possible pipe lengths with the minimum pressure regulator. - Page 10 SUGGESTED INSTALLATION This illustration is a generic representation of an air operated double-diaphragm pump. ALF-13151-E-02 All-Flo...
-
Page 11: Troubleshooting
TROUBLESHOOTING PROBLEM EFFECT/SOLUTION Pump Will Not Cycle Discharge line closed or plugged Discharge filter blocked Check valve stuck Air filter blocked Air supply valve closed Air supply hooked up to muffler side of pump Compressor not producing air or turned off Muffler iced or blinded Diaphragm ruptured Plant air supply line ruptured... -
Page 12: Operation
OPERATION MAINTENANCE The Air-Operated Double Diaphragm Pump requires Due to the unique nature of each application, periodic a minimum of 20 psig of air to operate, with some inspection of the pump is the best method to determine variation according to diaphragm material. Increasing a proper maintenance schedule. -
Page 13: Repair And Assembly
SECTION REPAIR AND ASSEMBLY PUMP WET END REMOVAL TOOLS NEEDED WARNING Prior to servicing the pump, ensure that the air and fluid 1) One Wrench, Inch lines are closed and disconnected. While wearing personal protective equip- ment, flush, drain and process liquid from the pump in a safe manner. 2) Two Wrenches, ½... - Page 14 STEP 7 STEP 8 STEP 9 In order to remove both “Outer Remove both “Outer Chambers” Using two ¾ Inch wrenches, Chambers”, using two ½ inch from the “Intermediate”. remove “Outer Diaphragm Plate”, wrenches, remove eight “Hex Head “Diaphragm”, “Inner Diaphragm Cap Screws (5/16”–18 x 1-3/8”)”, Plate”...
-
Page 15: Air Valve Removal
REPAIR AND ASSEMBLY AIR VALVE REMOVAL TOOLS NEEDED WARNING Prior to servicing the pump, ensure that the air and fluid 1) One Wrench, Inch lines are closed and disconnected. While wearing personal protective equip- ment, flush, drain and process liquid from the pump in a safe manner. 2) One Pick, General Purpose WARNING Maintenance must not be performed when a hazardous atmo-... - Page 16 STEP 7 STEP 8 STEP 9 Remove the “Air Valve Spool” from Using the pick, remove the “Lip Using the pick, remove the the main “Air-Valve Assembly”. Seal (Air Valve)” from the main second “Lip Seal (Air Valve)” from “Air-Valve Assembly”. the main “Air-Valve Assembly”.
-
Page 17: Pilot Valve Removal
REPAIR AND ASSEMBLY PILOT VALVE REMOVAL TOOLS NEEDED WARNING Prior to servicing the pump, ensure that the air and fluid 1) One Screwdriver, Phillips #2 lines are closed and disconnected. While wearing personal protective equip- ment, flush, drain and process liquid from the pump in a safe manner. 2) Two Wrenches, Inch WARNING... -
Page 18: Torque Specifications
PILOT VALVE ASSEMBLY To assemble the pilot valve, reverse the order of disassembly. Should process fluid have contact with the pilot valve O-rings, they should be replaced as swelling may occur and cause irregular operation. During assembly, ensure that the open side of the lip-seals are facing outward. Lubrication of the pilot sleeve assembly, with a non-synthetic lubricant, is recommended in order to facilitate re-assembly into the intermediate. -
Page 19: Exploded Views And Parts List
SECTION EXPLODED VIEW & PARTS LIST ALUMINUM & STAINLESS STEEL S100-*A*-****-*** ALF-13151-E-02 All-Flo... - Page 20 PARTS LIST - ALUMINUM & STAINLESS STEEL S100-*A*-****-*** ITEM DESCRIPTION QTY PUMP MODEL PART NO. MATERIAL DISCHARGE MANIFOLD S100-NAA-****-*** 11310-20-NPT-MP Aluminum S100-BAA-****-*** 11310-20-BSPT-MP Aluminum S100-NA3-****-*** 11310-26-NPT-MP Stainless Steel S100-BA3-****-*** 11310-26-BSPT-MP Stainless Steel ® MAX-PASS VALVE S100-BA3-*N**-*** 10911-11 Nitrile S100-BA3-*E**-*** 10911-15 EPDM S100-BA3-*V**-*** 10911-82...
- Page 21 PARTS LIST - ALUMINUM & STAINLESS STEEL S100-*A*-****-*** ITEM DESCRIPTION PUMP MODEL PART NO. MATERIAL AIR VALVE END PLUG ALL MODELS 11706-20 Aluminum ‡ MUFFLER ALL MODELS 13001-00 Standard MUFFLER (METAL) OPTIONAL 13009-00 Metal PIPE PLUG S100-NAA-****-*** 12265-20-NPT Aluminum S100-BAA-****-*** 12265-20-BSPT Aluminum S100-NA3-****-***...
- Page 22 SECTION ELASTOMERS & REPAIR KITS WETTED ELASTOMERS BUNA-N (NITRILE) GEOLAST® is a general purpose elastomer used with water and is an injection molded thermoplastic material with many oils. Temperature range 10°F to 180°F (-12°C characteristics similar to Nitrile. Has excellent to 82°C).
- Page 23 SECTION WARRANTY AND REGISTRATION WARRANTY. All All-Flo products shall be covered by the standard All-Flo Limited Warranty in effect at the time of shipment. This warranty (which may be modified by All-Flo at any time) provides: MATERIALS SOLD ARE WARRANTED TO THE ORIGINAL USER AGAINST DEFECTS IN WORKMANSHIP OR MATERIALS UNDER NORMAL USE (RENTAL USE EXCLUDED) FOR FIVE YEARS AFTER PURCHASE DATE.
- Page 24 22069 Van Buren Street Grand Terrace, CA 92313-5651 USA P: +1 (440) 354-1700 F: +1 (440) 354-9466 all-flo.com All-Flo is committed to the pursuit of designing and manufacturing the highest quality product available to industry. Since the beginning in 1986, All-Flo engineers have used their extensive knowledge of today’s engineered materials, advanced air system logic and manufacturing techniques to develop the superior group of lube-free, air-operated diaphragm pumps found in this catalog.
