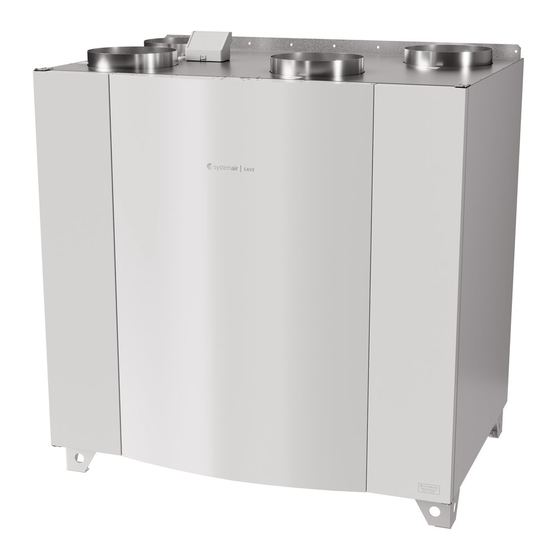

- Page 1 SAVE VTC 700 Installation instructions Document in original language | 333573 · v1.1...
- Page 2 This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Systemair is not liable or bound by warranty if these instructions are not adhered to during installation or service. 333573 | v1.1...
-
Page 3: Table Of Contents
Contents Overview ............1 General Description ........1 Warranty ..........1 Type label..........1 Important Safety Information ......1 Intended Use.........1 Admonitions .........2 Technical data ..........2 Dimensions and weight ......3 Duct connections........3 Installation recommendation regarding condensation ........4 3.3.1 Condensation inside of the unit .........4 3.3.2 Condensation outside of the unit .........4 Delivery, Transport, Storage.......4... -
Page 5: Overview
For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re- port. Systemair will require these in the case of a warranty claim. Type label Before calling your service representative, make a note of the specification and production number from the type label, which can be found next to the external connections and inside of the unit. -
Page 6: Admonitions
| Technical data • The system should operate continuously, and only be stopped for maintenance/service. • Do not connect tumble dryers to the ventilation system. • Make sure that filters are mounted before starting the unit. Admonitions Danger • Make sure that the mains supply to the unit is disconnected before performing any maintenance or electrical work! •... -
Page 7: Dimensions And Weight
Technical data | Dimensions and weight Fig. 2 Dimensions of right hand unit * Drainage. ** Height with mounting bracket. The unit weight is 160 kg. Duct connections Table 2 Symbol description Symbol Description Supply air Exhaust air Outdoor air Extract air Fig. -
Page 8: Installation Recommendation Regarding Condensation
| Delivery, Transport, Storage Position Description Right hand model (Supply air connection is situated on the right hand side of the unit viewed from the front) Left hand model (Supply air connection is situated on the left hand side of the unit viewed from the front) Installation recommendation regarding condensation 3.3.1... -
Page 9: Prerequisites For Installation
• Check completeness of the delivery. Verify that all ordered equipment is delivered before starting the installation. Any discrepancies from the ordered equipment must be reported to the supplier of Systemair products. Warning When opening the transport packaging, there is a risk of damage from sharp edges, nails, staples, splinters etc. -
Page 10: Access To Power Supply
| Installation drainage and other pollution sources like exhaust from traffic, etc. Exhaust air should ideally be led via a roof cowl to the outside and with a good distance from the outdoor air intake, windows, etc. Access to Power supply The SAVE VTC 700 is supplied with approximately 1 –... -
Page 11: Ventilation Duct Connection And Insulation
Make sure to use correct drain traps on both connections. The height (H) must be at least 60 mm. Drain traps are not included on deliv- ery and can not be obtained from Systemair. Note: Remove caps from the drainage holes inside the unit. -
Page 12: Main Circuit Board Layout
| Electrical Connections 1 Remove the front hatch by the use of an 8 mm Allen key, after which the hatch is tilted back and lifted off completely. Open the side panel by removing 4 screws. Remove the top cover plate (pos. 1) by removing 2 screws (pos. 2) in the lower front edge of the plate. -
Page 13: External Connections (Connection Board)
Electrical Connections | Position Description Connection to the external connection box Terminals for a heater Terminals for a TRIAC Terminals for the mains power supply Terminals for power supply of extract air fan Terminals for power supply of supply air fan Terminals for internal relative humidity/temperature sensor Analog input 1 —... -
Page 14: Before Starting The System
| Before Starting the System Position Description DO1–4 Freely configurable digital output. DO2 default configuration: Outdoor-/Exhaust Air Damper DO3 default configuration: Activate Cooling DO4 default configuration: Sum Alarm AO3–5 Freely configurable analog output. Actuator type 0–10V, 10–0V, 2–10V, 10–2V. AO3 default configuration: Heating (only for VTC 200/300/500/700, VTR 100/700 type models). AO4 default configuration: Cooling UI1–5 Freely configurable universal input. -
Page 15: Concluding Routines
Concluding Routines | Set speed of supply and extract air fans for each level. When finished, review your settings. It is possible to go back to previous menus and make modifications. Choose heating type or none. Reset filter changer timer if necessary. Finish startup wizard with OK button. -
Page 16: Eu Declaration Of Conformity
| EU Declaration of Conformity EU Declaration of Conformity Manufacturer EN 50106 Systemair UAB Safety of household and similar appliances – Particular Linų st. 101 rules for routine tests referring to appliances under the LT–20174 Ukmergė, LITHUANIA scope of EN 60 335-1. - Page 17 333573 | v1.1...
