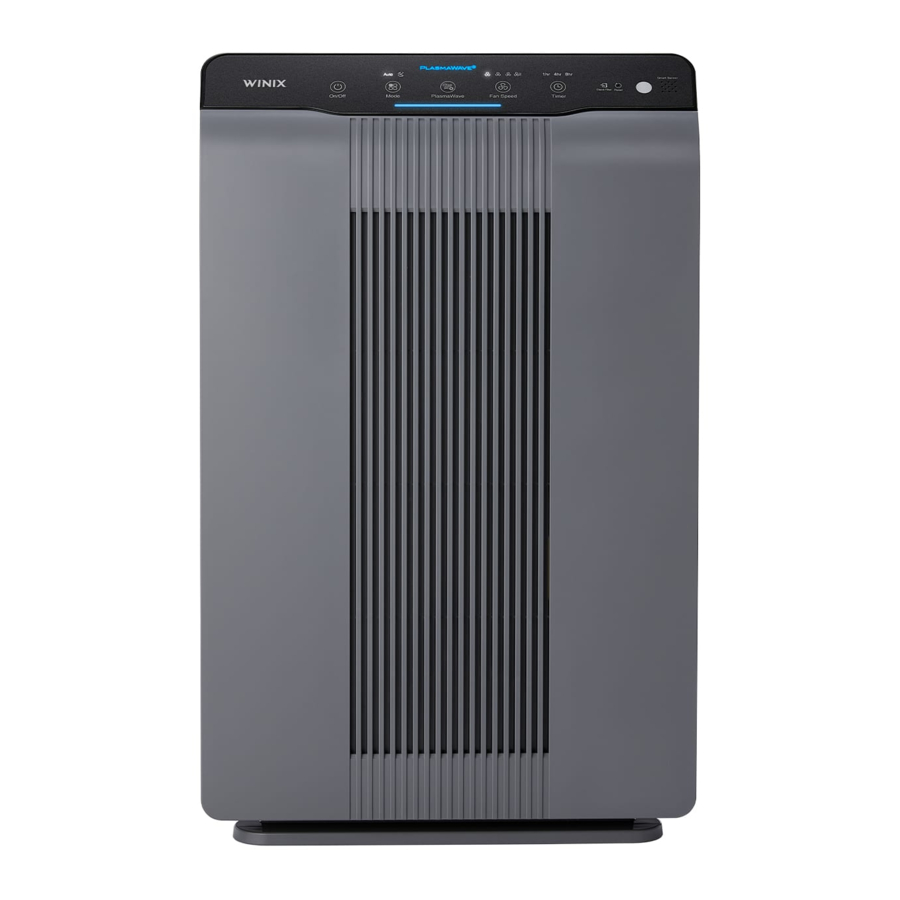

Winix 5300-2 - Air Purifier with PlasmaWave Manual

MODEL PART DIAGRAM

WHERE TO USE

Allow 12 ~ 18 in. of space between TVs, radios, and other electronics
Electromagnetic interference from certain electronics may cause product malfunction.

Place indoors away from direct sunlight
Direct exposure may cause product malfunction or failure.

Only place on hard, flat surfaces
Flimsy or slanted surfaces may result in abnormal noise and vibrations.

Allow at least 12~18 in. from walls for maximum air flow

CONTROL PANEL

1. Auto Indicator
   Indicates whether Auto Mode is enabled or disabled.
2. Sleep Indicator
   Indicates whether Sleep Mode is enabled or disabled.
3. PlasmaWave^® Indicator
   Indicates whether PlasmaWave^® is enabled or disabled.
4. Fan Speed Indicator
   Indicates the current fan speed.
5. Timer Indicator
   If timer has been set, the LED light indicates the set time of operation.
6. Filter Replacement Indicator
   LED light indicates when it is time to change the filter.
7. Light Sensor
   Detects the amount of ambient light in the environment.
8. Odor Sensor
   Detects the amount of odorous gas in the environment. When in Auto mode, the fan speed adjusts according to the detected amount of gas.
9. Power Button
   Turns the unit on or off.
   During the first 30 seconds of powering up, the Air Quality Indicator will cycle through Blue, Amber and Red colors. Odor Sensor takes approximately 4 minutes to detect the air quality in the environment before normal operation begins.
10. Mode Button
    Press to cycle through to set the mode of operation (Auto, Sleep).
    The unit will default to Auto with PlasmaWave^® enabled when first powered on.

• Auto Mode:
  • Auto Mode automatically adjusts fan speeds according to your indoor air quality. The fan speed will adjust to low when air quality is good, medium when fair, and to high when poor.
• Sleep Mode:
  • When Sleep Mode is activated, the Air Quality Indicator LED light is disabled.
  • Fan speed will automatically set to minimum speed (lower than 'Low') which will be nearly silent.
  • When Sleep Mode is active, PlasmaWave^® will be disabled, but it can be turned back on.

11. PlasmaWave^® Button
    Enables or disables PlasmaWave^®.
    "When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave®, it is normal and does not signify product failure." Press the PlasmaWave^® button when the unit is on to enable or disable this feature.
12. Air Quality Indicator
    Color coded LED light indicates one of three levels of Air Quality: Red (poor), Amber (fair), and Blue (good).
13. Fan Speed Button
    Enables manual operation of the unit's fan speeds.

• Press to cycle through and set the desired fan speed (Low, Medium, High, Turbo).

14. Timer Button
    Press to cycle through and set desired length of operation (1hr, 4hr, 8hr, [NO TIMER]).
15. Filter Reset Button
    After replacing the filter, turn on the unit and then use a thin object, such as a paper clip, to press the Filter Reset Button for 5 seconds.

4-STAGE AIR PURIFICATION

1. Pre-Filter
   Designed to catch larger airborne particles found indoors.
2. Activated Carbon Filter
   Reduces VOCs and household odors from cooking, pets, and smoke.

3. True HEPA Filter
   Captures 99.97%* of airborne allergens including; pollen, mold spores, dust, pet dander, microbes, and smoke. (*Particles as small as 0.3 microns in size.)

4. PlasmaWave^®Creates Hydroxyls which can help to reduce the presence of airborne Bacteria and Viruses.*(*Based on independent laboratory test conducted on Influenza A Virus H3N2, E. Coli, Pseudomonas Aeruginosa, Staphylococcis Aureus, Salmonella Typhimurium.)

MAINTENANCE

When to Replace Filters

Filter	Indicator Light	When to Service	When to Replace
Pre-Filter	none	Clean once every 14 days	Permanent
Activated Carbon Filter	none	Can NOT be WASHED	Replace every 3 months
True HEPA Filter	Check Filter		Last Approx. 12 months

• When the Check Filter Indicator LED is on, it is time to replace the True HEPA Filter and Activated Carbon Filter.
• Intervals between filter replacement may vary depending on environment.

INITIAL OPERATION

1. Remove the front panel by grasping its upper edge and gently pulling forward.

2. Remove the Pre-Filter, then the plastic bag of filters behind it.

3. Remove filters from protective plastic bag.

4. Install the filters until they fit securely in place.
   03. True HEPA Filter (back)
   02. Activated Carbon Filter (middle)
   01. Pre-Filter (front)

5. After filters are installed, close the front panel.

6. Insert the power cord into an electrical outlet.


REPLACING FILTERS

After replacing a filter, press the Filter Reset Button for at least 5 seconds.

CLEANING CARE

Cleaning the Filters

Use a vacuum cleaner or soft brush to clean the Pre-Filter

• If it is excessively soiled, rinse in room temperature water.
• Do not use detergent or soap.
• Allow the filter to dry for 24 hours or more before using.
• Intervals between filter cleaning may vary depending on the air quality in the environment.

NOTICE

• Do not use benzene, alcohol, or other volatile fluids, which may cause damage or discoloration.
• Do not use hot water over 104^oF.

Cleaning the Exterior & Interior

1. Open the front panel and clean the interior with a vacuum cleaner.
   • A handheld vacuum or hose attachment will work best.
2. Dampen a cloth with room temperature water and wipe down the interior and exterior of the unit.
3. Wipe the unit down with a clean, dry cloth.
   • Ensure no moisture remains before plugging the unit back in.

* For optimal performance, clean every 1 - 2 months.

NOTICE

• When cleaning the unit, always unplug the power cord first and then wait until the unit has cooled down.
• Never disassemble, repair, or modify this unit yourself.
• Do not use flammable sprays or liquid detergents.
• Do not allow children to clean or maintain the unit.
• Before cleaning or maintaining, ensure unit is unplugged.

SAFETY AND CAUTIONS

• If the power cord is damaged, it must be replaced by a special cord. Reassembly is available from the manufacturer or its service agent.
• This appliance is not intended for use by a person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge of the unit, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• This unit is not intended to be used to preserve documents or art conservation.

• Do not pull on the power cord when unplugging the unit
• Do not tie or knot the power cord when unit is in operation.
• If the unit becomes submerged in water, unplug it and contact customer service.
• Do not unplug or move the unit while in operation.
• Do not plug additional appliances into the same outlet or power supply.
• Do not touch the plug with wet hands.
• Unplug the unit when not in operation for extended periods of time.
• Do not place around heating elements.
• Do not use around mist or fumes from industrial oil or around large quantities of metallic dust.
• The cord can become damaged by forcefully bending, pulling, twisting, bundling, pinching or placing heavy objects on it.
• Do not install in any sort of motor or transport vehicle (trucks, boats, ships, etc.).
• Do not place in an area with excessive amounts of noxious gases.
• Do not place near any flammable materials (aerosols, fuel, gases etc.).
• Do not have the unit facing into wind or drafts.
• Do not place below any electrical outlet.
• Do not place in excessively humid areas where the unit may become wet.
• Do not place unit closer than 12 inches from the wall during operation. It may cause condensation on the wall and the surrounding area.

SAFETY INSTRUCTIONS

Thank you for purchasing a Winix air purifier. This product is for household use only.

FOR USING YOUR AIR PURIFIER:

Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire.

• Do not repair or modify the unit yourself.
• All repairs should be completed by a qualified Winix technician.
• The plug for this unit is polarized with one blade wider than the other. Do not force the plug into an electrical outlet. Do not alter the plug in any way. If the plug does not fit into the outlet, reverse the plug. If it still does not fit, contact a qualified technician to install a proper outlet.
• Do not use if the power cord or plug is damaged or the connection to the wall outlet is loose.
• Use AC 120V only.
• Do not damage, break, forcefully bend, pull, twist, bundle, coat, pinch, or place heavy objects on the power cord.
• Periodically remove dust from the power plug. This will reduce the risk of shock due to humidity build up.
• Remove the power plug from the outlet before cleaning the unit. When removing the power plug, grasp by holding the plug itself, never hold by the cord.

FOR USING YOUR AIR PURIFIER

• Do not block the intake or outlet vents.
• Do not use near hot objects, such as a stove.
• Do not use where the unit may come into contact with steam.
• Do not use the unit on its side.
• Keep away from products that generate oily residue, such as a deep fryer.
• Do not use detergent to clean the unit.
• Do not operate without a filter.
• Do not wash and reuse the True HEPA Filter and Carbon Filter.
• Hold the handle on the back of the unit to transport.
• Do not hold by the front panel.
• If the power plug is damaged, it must be replaced by the manufacturer or a qualified technician.
• Remove the power plug from the outlet when not in use.
• Do not handle the power plug with wet hands.
• Do not operate the unit when using indoor smoke- generating insecticides.
• Do not clean unit with benzene or paint thinner. Do not spray insecticides on the unit.
• Do not use the unit where it is humid or where the unit may become wet, such as the bathroom.
• Do not insert fingers or foreign objects into air intake or outlet.
• Do not use the unit near flammable gases. Do not use near cigarettes, incense, or other spark-creating items.
• Unit will not remove carbon monoxide emitted from heating appliances or other sources.

FREQUENTLY ASKED QUESTIONS

The unit does not turn on at all.

• Is the plug securely attached to the outlet?
  • Make sure the outlet has power going to it and ensure the plug is secured.
• Is there a power outage?
  • Check to see if other lights and electrical equipment are working and try again.

The unit doesn't work in Auto Mode.

• Has Auto Mode been selected?
  • Press the Fan Speed button until Auto Mode is selected.
• Is the sensor blocked or clogged?
  • Wipe Odor Sensor with wet cloth, then dry.

It vibrates and makes a lot of noise.

• Is it running on a slanted or uneven surface?
  • Move the unit to a hard, flat, even area.

The power plug and outlet feel hot.

• Is the plug securely plugged in?
  • Make sure the plug is properly plugged into the outlet.

There is a strange smell.

• Is it being used in a place with a lot of smoke, dust, or odors?
  • Clean the air intakes on either side and clean the Pre-Filter.
  • Replace the Activated Carbon Filter and True HEPA Filter.

The fan strength is weak. The unit is not purifying the air.

• Is the Check Filter Indicator light on?
  • Change the filters as required.

The display panel is dim.

• Is the Light Sensor blocked by debris?
  • When Auto Mode is on, Sleep Mode is automatically activated when the Light Sensor detects that the room is dark.

PRODUCT WARRANTY

The terms of the warranty are as follows:

1. This product is manufactured under stringent quality control and inspections.
2. The warranty will be voided if product failure is a result of negligence or misuse by the consumer.
3. A proof of purchase must be presented upon claiming a Product Warranty.
4. Store the proof of purchase in a safe place or register your product on winixamerica.com to upload your proof of purchase.
5. This warranty is valid only in the USA and Canada.

* for more information visit
https://winixamerica.com/terms-and-conditions/

After purchase, be sure to complete all of the above information.

UNIT SPECIFICATIONS

The exterior, design, and product specifications may be changed without prior notice to improve product performance.

Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's license-exempt RSS(s). Operation is subject to the following two conditions:

• This device may not cause interference.
• This device must accept any interference, including interference that may cause undesired operation of the device.

The energy efficiency of this ENERGY STAR certified model is measured based on a ratio between the model's CADR for smoke and the electrical energy it consumes, or CADR/Watt.

Contact Winix for product related inquiries and customer service

• Dedicated Call Center: ☎ (877) 699-4649
• Website: www.winixamerica.com

To expedite service, please specify the model name and number, the nature of the problem, your contact information, and your address.

• The product warranty is printed on the back of this guide.
• This product is manufactured for use only in USA/CA.
