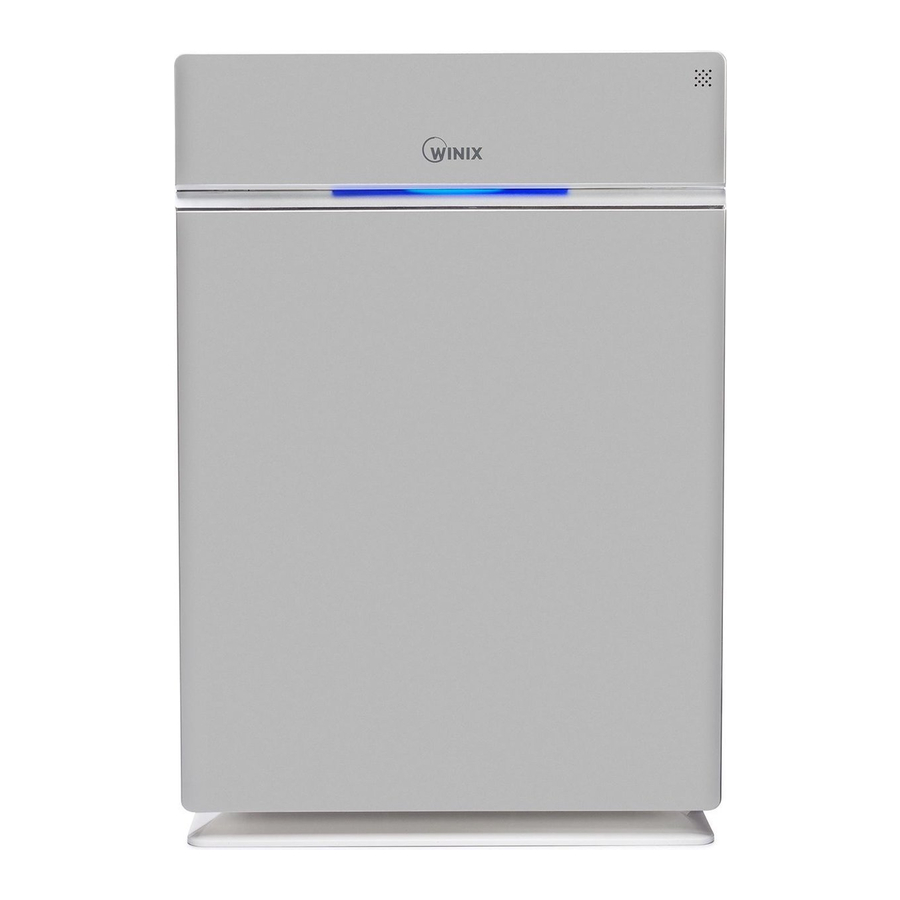

WINIX HR1000 - Wi-Fi Enabled 5-Stage Air Cleaner Manual

5-STAGE AIR PURIFICATION

PACKAGE CONTENTS

CONTROLS

Light Sensor
Detects the amount of ambient light within the environment, to adjust the brightness of the LED indicators.

WINIX SMART
Indicator LED light indicates when WINIX SMART is active with your unit.

Reset Button
After replacing a filter, press the RESET button for at least 5 seconds.

Smart Sensor
Automatically detects indoor air quality.

PlasmaWave® Indicator
Indicates whether PlasmaWave® is enabled or disabled.

Timer Indicator
If timer has been set, the LED light Indicates the set time of operation.

Wi-Fi Button
Enables or disables Wi-Fi function.

Power Button
Turns the unit on or off.

Child Lock
Indicator LED light indicates whether Child Lock mode is enabled or disabled.

Mode / Fan Speed Button
Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo)

Timer / Air Quality Button
Press to cycle through and set desired length of operation (1hr, 4hr, 8hr, [NO TIMER]). Press and hold for 3 seconds to enable or disable the Air Quality light.

Wi-Fi Strength Indicator
Displays the strength of the Wi-Fi connection.

PlasmaWave® / Child Lock Button
Enables or disables PlasmaWave®. Press and hold for 3 seconds to enable or disable the Child Lock mode.

WHERE TO USE

Allow 30 ~ 46 cm. of space between TVs, radios, and other electronic products
electromagnetic interference from certain electronics may cause product malfunction.

Place indoors away from direct sun light
direct exposure may cause product malfunction or failure.

Only place on hard, flat surfaces
flimsy or slanted surfaces may result in abnormal noise and vibrations.

Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit.

Do not use around mist or fumes from industrial oil or around large quantities of metallic dust

Do not install in any sort of motor or transport vehicle (trucks, boats, ships, etc.)

Do not place near any flammable materials (aerosols, fuel, gases etc.)

Do not place below any electrical outlet

Do not place around heating elements

Do not place in an area with excessive amounts of noxious gases

Do not have unit facing into wind or draft

Do not place in excessively humid areas where unit may become wet

This unit is not intended to be used to preserve documents or in art conservation.

INSTALLING THE FILTERS

This product comes with all of the required filters. The protective plastic wrap must be removed from the filters before use.

• Operating the unit without removing the plastic wrap may result in product failure.
• Unplug and make sure the unit is turned off before installing filters.
• The unit will automatically power off when front panel is opened.

1. Remove the front panel by grasping its upper edge and gently pulling towards yourself.
   • To remove the front panel, the latch at the lower edge of the panel must be released from its position.

2. Remove the filters from the unit, they are protected inside a plastic wrap.

3. Remove filters from protective plastic wrap.
   • Operating the unit without removing filters from plastic may cause abnormal noise, deformation, or fire as a result of overheating.

4. Install the filters until they fit securely in place.

   Filters must be installed in this order:
   1. Pre-filter (front)
   2. CD Carbon filter (middle)
   3. Anti-microbial True HEPA filter (rear)

• To install the pre-filter, insert bottom tabs into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until both sides audibly click into place.

5. Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until it magnetically snaps closed.

6. When to service and replace filters:

Filter	Indicator Light	When to service	When to replace
Pre-filter	none	Clean once every 14 days	Permanent
CD Carbon filter	Check Filter	Can NOT be WASHED	Lasts up to 12 months
Anti-microbial True HEPA filter

• Intervals between filter replacement may vary depending on environment.
• For optimal use, Pre-filter can be cleaned every 14 days which can extend the life of other filters.

SAFETY AND CAUTIONS

Before operating this equipment, carefully read and follow these safety cautions and instructions to avoid damage and ensure safe use.

Ensure filters are inserted before running unit
running unit without filters can shorten the units life and cause electric shock or injury.

Be sure foreign objects are NOT inserted into the vents on the unit
objects can include pins, rods, and coins.

Do not touch any part of the interior of the unit with wet hands
the high voltage may cause electric shock.

Ensure unit intake and outlet vents do not become blocked
blockage may lead to increased internal temperatures causing product failure and deformation.

Do not use the unit as a step stool or place heavy objects on it
personal injury may occur or product failure and deformation.

Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit.

Do not pull on the power cord when unplugging the unit

If the unit becomes submerged in water, unplug it and contact customer service

Do not plug additional appliances into the same outlet or power supply

Unplug unit when not in operation for extended periods of time

Do not tie or knot power cord when unit is in operation

Do not unplug or move the unit while in operation

Do not touch the plug with wet hands

Cord can become damaged by forcefully bending, pulling, twisting, bundling, pinching or placing heavy objects on it

• This appliance is not intended for use by a person (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

INITIAL OPERATION

1. Insert the unit plug into an electrical outlet.
   • The Control Panel lights will turn on and off

2. Press the [Power] button.
   During the first 4 minutes of power up, the Air Quality light will flash as the Smart Sensors measure the air quality in the environment, after which normal operation will begin.

3. By default, when the unit first powers on, the mode will be set to Auto with PlasmaWave® enabled.
   • When in Auto Mode the fan speed will be automatically adjusted according to the environments air quality.
   • PlasmaWave® works to remove harmful airborne contaminants.


• In Auto mode, as the indoor air quality improves, the fan speed will automatically be reduced to Low.
• When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave®, it is normal and does not signify product failure.

AUTO AND SLEEP

Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo)

1. Auto Mode
   Enables Auto operation based on the unit's air quality Smart Sensors.
   1. Press the Mode button to select Auto mode.
      • The mode LED light will indicate when 'Auto' mode has been selected, and operation will begin.
      • Each time the Mode button is pressed, the modes will be cycled. (Auto, Sleep, Low, Medium, High, Turbo)


• When in Auto Mode the fan speed is automatically adjusted according to the indoor air quality. As the indoor air quality improves, the fan speed will automatically be reduced. If the indoor air quality decreases the fan speed will automatically be increased.
• When unit is first started, Auto Mode is enabled and set to Low fan speed.

2. Sleep Mode
   1. Press the Mode button to select Sleep mode.

      • The mode LED light will indicate when 'Sleep' mode has been selected, and operation in that mode will begin.
        • When Sleep mode is selected, the fan speed is automatically set to Low. Fan speed can be changed by pressing the Fan Speed (Mode) Button.
        • When Sleep Mode is enabled, the Air Quality light is disabled.


MANUAL MODE, TIMER AND PLASMAWAVE

Every time the Mode button is pressed, the Mode LED light will cycle through the settings. (Auto, Sleep, Low, Medium, High, Turbo)

3. Manual Mode (setting fan speed)
   Users can opt to manually set the fan speed to Low, Medium, High, or Turbo.
   1. Press the Mode button to select the desired fan speed.

      • The mode LED light will indicate the selected fan speed, and operation will begin.

• When Manual Mode is in use, Auto and Sleep modes are automatically disabled

4. Timer
   The timer can be set for when you want the unit to run for a specified period of time.
   1. Select the desired period by pressing the Timer button.

      • The Timer LED light will indicate the selected length of operation.
      • Every time the Timer button is pressed the Timer LED light will cycle through the settings. (1hr, 4hr, 8hr, [NO TIMER]).
5. PlasmaWave
   By default, PlasmaWave® is enabled whenever the unit is powered on.
   1. Press the Plasma button when the power is on to enable or disable this feature.


CHILD LOCK, AIR QUALITY LED

6. Child Lock
   This feature prevents children from tampering with the control panel.
   1. Press and hold the Plasma/Child Lock button for 3 seconds to enable or disable the feature.

      • When the Child Lock indicator is lit, the feature is enabled.
      • When Child Lock is enabled, the control panel is locked and the settings cannot be changed.
      • To disable, press and hold the Child Lock button again for 3 seconds.
7. Air Quality LED Light
   The Air Quality LED light may be turned on or off.
   1. To turn the Air Quality LED light on or off, press and hold the Timer button for 3 seconds.

      • When on, the LED light will indicate the current indoor air quality according to three levels BLUE (good), AMBER (fair), RED (poor).

• When Auto Mode is enabled the Air Quality LED light may or may not be on, depending on the amount of ambient light in the room.
• When Sleep Mode is activated, the Air Quality Indicator light is turned off.

WINIX SMART

8. Connecting to WINIX SMART
   WINIX SMART allows you to conveniently control your air purifier from any location.
   WINIX SMART is optimized for the following specifications. Depending on your smart phone capabilities and service parameters, some functions may not be supported.
   ANDROID (ICS 4.12 Jellybean or later recommended)
   iOS (6.0 or later recommended - iPhone 4S or later)
   Before connecting to Smart Home
   • A Wi-Fi wireless router must be installed within range of the air purifier to use WINIX SMART.
   • Ensure Wi-Fi router matches the following specifications; 802.11b/g/n 2.4GHZ or for a dual-band wireless router (2.4GHz/5GHz), be sure to select 2.4GHz.
   • Be sure to have the Wi-Fi password handy.
   • During registration, please keep the air purifier, wireless router, and smart device within a 32 ft. radius.
   • Obstacles between the air purifier, wireless router, and smart device may cause weak reception.
   • Before connecting, users with a "Smart Network Switch" on their device should temporarily disable it.
   • Once WINIX SMART has been connected, the "Smart Network Switch" on your device can be enabled.

Setup

1. Download the WINIX SMART app on your device.
   • available via Google Play store or iTunes App store
2. Run the app and follow the setup guide to connect your device to the unit.
   • Select "New Unit" and choose HR1000 to connect to this model.
   • Read the notice and select "OK".
   • Enter the password to your Wi-Fi network.
   • Press and hold the Wi-Fi button on the unit's control panel until it beeps. *The Wi-Fi strength indicator will begin to blink*
   • Connect to the WINIX SMART network via your device's network menu.
   • Selecting "Next" will connect your unit to your device.
   • Define the unit settings (Name and Location).
   • When set up is complete, the WINIX SMART Indicator will light up.

• The WINIX SMART Indicator will only light up when the app is in direct use. If the app is closed it will turn off, but will light up again when the app is re-opened.
• The light will turn off if the app controls another Winix unit.

FILTER CARE

1. Changing Filters
   When the Check Filter indicator LED is on, it is time to replace both the Anti-microbial True HEPA and CD Carbon filters.

Filter	Indicator Light	When to service	When to replace
Pre-filter	-	Clean once every 14 days	Permanent
CD Carbon filter	Check FIlter	Can NOT be WASHED	Lasts up to 12 months
Anti-microbial True HEPA filter

• Intervals between filter replacement may vary depending on environment.
• For optimal use Pre-filter can be cleaned every 14 days which can extend the life of other filters.

Removing Filters
Ensure the unit is turned off and unplugged before removing filters.

• The unit will automatically power off when front panel is opened.

1. Remove the front panel by grasping its upper edge and gently pulling towards yourself.
   • To remove the front panel, the latch at the lower edge of the panel must be released from its position.

2. Press the tabs on the top edge to remove the 1 Pre-filter.

3. First remove the 2 CD Carbon filter and then the 3 Anti-microbial True HEPA filter by pulling on the numbered tags at the top of each filter.


• For optimal performance, only genuine Winix filters should be used with this unit.

2. Cleaning the Pre-filter
   Intervals between filter cleanings may vary depending on the air quality.
   Use a vacuum cleaner or soft brush to clean the Pre-filter. If it is excessively dirty, wash with room temperature water.
   • Use only water, do not use volatile substances such as alcohol or acetone.

   • If the pre-filter becomes damaged or in any way needs replacement:

Please contact your local dealer

• Do not use benzene, alcohol, or other volatile fluids, which may cause damage or discoloration.
• The Pre-filter is reusable after cleaning.
• Do not use hot water over 104°F or volatile fluids such as paint thinner.
• After washing the pre-filter, allow it to dry completely in a wellventilated area. Otherwise, it may develop a bad odor.

3. Filter Assembly and Replacement
   Filters should be re-installed in the reverse order of their removal.
   1. Insert the replacement

      2. CD Carbon filter (middle)
      3. Anti-microbial True HEPA filter (rear)
         Remove the protective plastic wrap from new filters. Operating the unit without removing the protective plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating.

2. Insert the 1 Pre-filter (front).

   • To install the pre-filter, insert bottom tabs into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until both sides audibly click into place.
3. Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until it magnetically snaps closed.


SMART SENSOR CARE

4. After replacing the filters, power on the unit. Once the unit running, press and hold the RESET button for 5 seconds.


4. Cleaning the Dust Sensor(continued Removing Filters)
   For optimal performance of the Dust Sensor, which detects airborne dust and ultrafine particles, clean it every two months. Clean it more frequently when the unit is running in a place with high dust levels.
   1. Open the Dust Sensor cover.

   2. Use a damp cotton swab to wipe the lens and intake area of the Dust Sensor.

      • To clean the sensor area, use only water. Do not use volatile substances such as alcohol or acetone.

3. Wipe away any remaining moisture with a dry cotton swab.


CLEANING CARE

4. Close the Dust Sensor cover.


5. Cleaning the exterior and interior

• Cleaning the exterior

  Wipe with a soft damp cloth using room temperature water. Afterwards, wipe it down with a clean dry cloth.
  • For optimal performance, clean the front panel 1-2 times a month.

• Cleaning the interior

  Open the front panel and clean the interior with a vacuum cleaner.
  • For optimal performance, clean the interior 1-2 times a month.

NOTICE

• When cleaning the unit, always unplug the power cord first and then wait until the unit has cooled off.
• Never disassemble, repair or modify this unit yourself
• Do not use flammable sprays or liquid detergents
• Do not allow children to clean or maintain the unit
• Before cleaning or maintaining, ensure unit is off and unplugged

FREQUENTLY ASKED QUESTIONS

Problem	Check/Actions to take
It does not turn on at all.	Is there a power outage? Check to see if other lights and electrical equipment are working and try again.
It doesn't work in Auto mode.	Has Auto mode been selected? Press the Mode button until Auto mode is selected. Is the sensor blocked or clogged? Clear the sensor using a vacuum cleaner.
It vibrates and makes a lot of noise.	Is it running on a slanted surface? Move the unit to a hard, flat area of the floor.
The power plug and outlet feel hot.	Is the plug securely plugged in? Make sure the plug is properly plugged into the outlet.
There is a strange smell.	Is it being used in a place with a lot of smoke, dust, or odors? Clean the air intakes on the front sides of the unit and clean the pre-filter. Contact customer service to confirm the exact cause. Replace the CD Carbon filter and Anti-microbial True HEPA filter.
The product is not purifying the air enough.	Is the Check Filter indicator light on? Replace the filters as required.

Documents / Resources

References

• High Quality Air Purifiers | WINIX Europe

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download WINIX HR1000 - Wi-Fi Enabled 5-Stage Air Cleaner Manual
