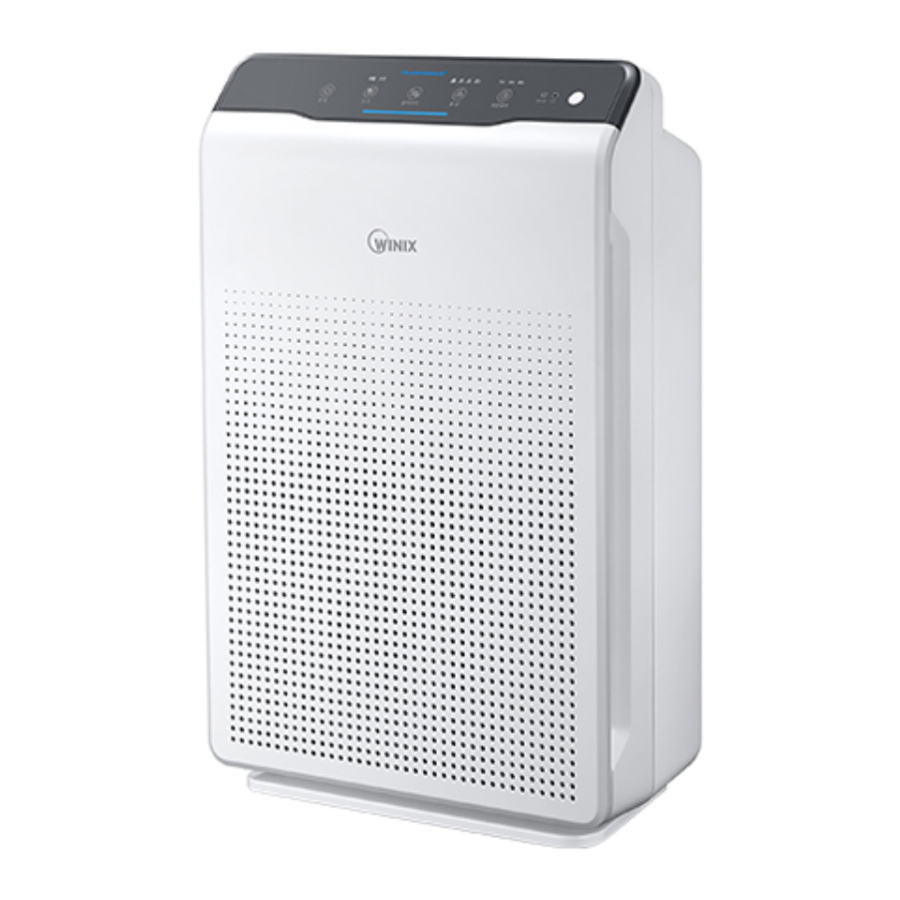

Winix ZERO AUS-1050AZBU - Air Purifier Manual
MODEL PART DIAGRAM
FRONT
BACK
WHERE TO USE
Allow 30 - 45 cm of space between TVs, radios, and other electronic products
electromagnetic interference from certain electronics may cause product malfunction.
Place indoors away from direct sun light
direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
flimsy or slanted surfaces may result in abnormal noise and vibrations.
CONTROLS
- Power Button
Turns the unit on or off. - Mode Button
Press to cycle through and set the desired mode of operation (Auto, Sleep). - PlasmaWave® Indicator
Indicates whether PlasmaWave® is enabled or disabled. - Fan Speed Indicator
Indicates the current fan speed. - Timer Indicator
If timer has been set, the LED light indicates the set time of operation. - Change Filter Indicator
LED light indicates when it is time to change the filter. - Light Sensor
Detects the amount of ambient light within the environment, to adjust the brightness of the LED indicators. - Air Quality Indicator
Color-coded LED indicates one of three levels of air quality. - PlasmaWave®Button
Enables or disables PlasmaWave®. - Fan Speed Button
Enables Manual operation of the unit. Press to cycle through and set the desired fan speed (Low, Medium, High, Turbo). - Timer Button
Press to cycle through and set desired length of operation (1hr, 4hr, 8hr,[NO TIMER]) - Reset Button
After replacing a filter, press the RESET button for at least 5 seconds.
INITIAL OPERATION
- Insert the power cord into an electrical outlet.
- Press the 'Power' button.
- By default, when the unit first powers on, the mode will be set to Auto with PlasmaWave® enabled.
- When in Auto mode, the fan speed will be automatically adjusted according to the environments air quality.
- PlasmaWave® works to remove harmful airborne contaminants.
NOTICE
- During the first 30 seconds of power up, the Air Quality Indicator will cycle through Blue, Amber and Red colors. The Particle Sensors take approximately 30 seconds to gauge the air quality in the environment, after which normal operation will begin.
NOTICE
- In Auto mode, as the indoor air quality improves, the fan speed will automatically be reduced to Low.
- When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave it is normal and does not signify product failure. To disable PlasmaWave ®
INSTALLING FILTERS
This product comes with all required filters. The protective plastic wrap must be removed from the filter before use.
※ Operating the unit without removing the plastic wrap may result in product failure.
※ Unplug and make sure the unit is turned off before installing filter.
- Remove the front panel by grasping its upper edge and gently pulling forward.
- Remove the filters from the unit, they are protected inside a plastic wrap.
- Remove filters from protective plastic wrap.
Operating the unit without removing filters from plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating. - Install the filters until they fit securely in place. Filters must be installed in this order:
- True HEPA Filter (rear)
- Deodorization Filter (middle)
- Pre-Filter (front)
To install the Pre-Filter, insert bottom tabs into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until sides audibly click into place.
- Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until the magnets pull the lid closed.
FILTER CARE
Know The Filters
When the Check Filter indicator LED is on, it is time to replace both the True HEPA and Deodorization Filters.
Filter | Indicator Light | When to service | When to replace |
Pre-Filter | none | Clean once every 14 days | Permanent |
Deodorization Filter | | Can NOT be WASHED | Lasts up to 12 months |
True HEPA Filter |
※ Intervals between filter replacement may vary depending on environment.
※ For optimal use, Pre-Filter can be cleaned once every 14 days which can extend the life of other filters.
To purchase replacement Winix filters: contact our authorized distributor 'Ausclimate' or visit the below web site.
Cleaning the filter
Intervals between filter cleaning may vary depending on the air quality.
- Use a vacuum cleaner or soft brush to clean the Pre-Filter. If it is excessively soiled, rinse in room temperature water.
- Do not use detergent or soap.
- Allow the filter to dry for 24 hours or more before using.
※If the Pre-Filter becomes damaged or in any way needs replacement:
Please contact your local dealer
NOTICE
- Do not use benzene, alcohol, or other volatile fluids, which may cause damage or discoloration.
- The Pre-Filter is reusable after cleaning, ensuring it is completely dry.
- Do not use hot water over 40oC or volatile fluids such as paint thinner.
- After washing the filter, allow it to dry completely in a well ventilated area. Otherwise, it may develop a bad odour.
PARTICLE SENSOR CARE
Particle Sensors Care
For optimal performance of the Particle Sensor, which detects airborne dust and ultrafine particles, clean it every two months. Clean it more frequently when the unit is running in a place with high dust levels.
- Open the Particle Sensor cover.
- Use a damp cotton swab 2 to wipe the lens and intake area of the Particle Sensor.
- To clean the sensor area, use only water. Do not use volatile substances such as alcohol or acetone.
- Wipe away any remaining moisture with a dry cotton swab.
- Close the Particle Sensor cover.
- The Particle Sensors • cover may be cleaned using a vacuum cleaner.
CLEANING CARE
Cleaning the Exterior & Interior
- Wipe with a soft damp cloth using room temperature water. Afterwards, wipe it down with a clean dry cloth.
- To keep unit in peak condition, clean every 1-2 months.
- Open the front panel and clean the interior with a vacuum cleaner.
- For optimal performance, clean every 1-2 months.
NOTICE
- When cleaning the unit, always unplug the power cord first and then wait until the unit has cooled down.
- Never disassemble, repair, or modify this unit yourself.
- Do not use flammable sprays or liquid detergents.
- Do not allow children to clean or maintain the unit. Before cleaning or maintaining, ensure unit is unplugged.
SAFETY AND CAUTIONS
Before operating this equipment, carefully read and follow these safety cautions.
Ensure filters are inserted before running unit
Running the unit without filters can shorten the unit's life and cause electric shock or injury.
Be sure foreign objects are NOT inserted into the vents on the unit Objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with wet hands The high voltage may cause electric shock.
Ensure unit intake and outlet vents do not become blocked
Blockage may lead to increased internal temperatures causing product failure and derformation.
Do not use the unit as a step stool or place heavy objects on it
Personal injury may occur or product failure and deformation.
Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit.
Do not pull on the power cord when unplugging the unit.
Do not tie or knot the power cord when unit is in operation.
If the unit becomes submerged in water, unplug it and contact customer service.
Do not unplug or move the unit while in operation.
Do not plug additional appliances into the same outlet or power supply.
Do not touch the plug with wet hands.
Do not place unit closer than 30 cm from the wall during operation. It may cause condensation to the wall and the surrounding area.
Unplug the unit when not in operation for extended periods of time.
Cord can become damaged by forcefully bending, pulling, twisting, bundling, pinching or placing heavy objects on it.
- If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
- This appliance is not intended for use by a person (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
SAFETY INSTRUCTIONS
Thank you for purchasing a Winix air purifier. This product is for household use only.
IMPORTANT CAUTIONS FOR USING YOUR AIR PURIFIER
Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire.
- Do not repair or modify the unit unless specifically recommended in this manual. All other repairs should be completed by a qualified technician.
- Do not use if the power cord or plug is damaged or the connection to the wall outlet is loose.
- Use AC 220 - 240 V only.
- Do not damage, break, forcefully bend, pull, twist, bundle, coat, pinch, or place heavy objects on the power cord.
- Periodically remove dust from the power plug. This will reduce the risk of shock due to humidity build up.
- If the power plug is damaged, it must be replaced by the manufacturer or a qualified technician.
- Remove the power plug from the outlet before cleaning the unit. When removing the power plug, grasp by holding the plug itself, never hold by the cord.
- Remove the power plug from the outlet when not in use.
- Do not handle the power plug with wet hands.
- Do not operate the unit when using indoor smokegenerating insecticides.
- Do not clean unit with benzene or paint thinner. Do not spray insecticides on the unit.
- Do not use the unit where it is humid or where the unit may become wet, such as the bathroom.
- Do not insert fingers or foreign objects into air intake or outlet.
- Do not use the unit near flammable gases. Do not use near cigarettes, incense, or other sparkcreating items.
- Unit will not remove carbon monoxide emitted from heating appliances or other sources.
- This appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play with the appliance.
IMPORTANT PRECAUTIONS FOR USING YOUR AIR PURIFIER
- Do not block the intake or outlet vents.
- Do not use near hot objects, such as a stove.
- Do not use where the unit may come into contact with steam.
- Do not use the unit on its side.
- Keep away from products that generate oily residue, such as a deep fryer.
- Do not use detergent to clean the unit.
- Do not operate without a filter.
- Do not wash and reuse the True HEPA Filter or the Deodorization Filter.
- Hold the handle on the back of the unit to transport.
- Do not hold by the front panel.
FREQUENTLY ASKED QUESTIONS
Problem | Check / Actions to take |
It does not turn on at all. | - Is the plug securely attached to the outlet?
- Make sure the outlet has power going to it, and ensure the plug is secured.
- Is there a power outage?
- Check to see if other lights and electrical equipment are working and try again.
|
It doesn't work in Auto Mode. | - Has Auto Mode been selected?
- Press the Mode button until Auto Mode is selected.
- Is the sensor blocked or clogged?
- Wipe Odour Sensor with wet cloth, then dry.
|
It vibrates and makes a lot of noise. | - Is it running on a slanted or uneven surface?
- Move the unit to a hard, flat, even area of the floor.
|
The power plug and outlet feel hot. | - Is the plug securely plugged in?
- Make sure the plug is properly plugged into the outlet.
|
There is a strange smell. | - Is it being used in a place with a lot of smoke, dust, or odours?
- Clean the air intakes on either side and clean the Pre-Filter.
- Clean or change the filter.
|
The fan strength is weak. The unit is not purifying the air. | - Is the Check Filter indicator light on?
- Change the filters as required.
|
The display panel is dim. | - Is the Light Sensor blocked by debris?
- When Auto Mode is on, Sleep Mode is automatically activated when the Light Sensor detects that the room is dark.
|
UNIT SPECIFICATIONS
Model Name | AUS-1050AZBU |
Power Voltage | 220 - 240 V, 50 / 60 Hz |
Power Rate | 35 W |
Recommended room capacity | 38.2 m2 |
Weight | 7 kg |
Dimensions | 380 mm(W) x 208 mm(D) x 600 mm(H) |
Replacement Filter | FILTER GI, item: 1712-0090-01 |
※ The exterior, design, and product specifications may be changed without prior notice to improve product performance.
PRODUCT WARRANTY
Product Name | Air Purifier |
Model Name | AUS-1050AZBU |
Purchase Date | |
Warranty period | Two (2) Years |
Place of purchase | |
Place of purchase Tel. | |
Customer | Address | |
Name | |
Tel. | |
※ After purchase, be sure to complete all of the above information.
To purchase replacement Winix filters:
FILTER contact our authorized distributor 'Ausclimate' or visit the below web site
AUSCLIMATE FILTER CLUB
For exclusive savings on
replacement filters
ausclimate.com.au/replacement-filter-club
Contact for product related inquiries and customer service | To expedite service, please specify the model name and number, the nature of the problem, your contact information, and your address. |
Distributed by Ausclimate Pty Ltd | After sales and warranty enquiries, visit website or call 1800 122 100 Website: www.ausclimate.com.au / www.winixaustralia.com.au |
2610-0209-01 Rev.02
