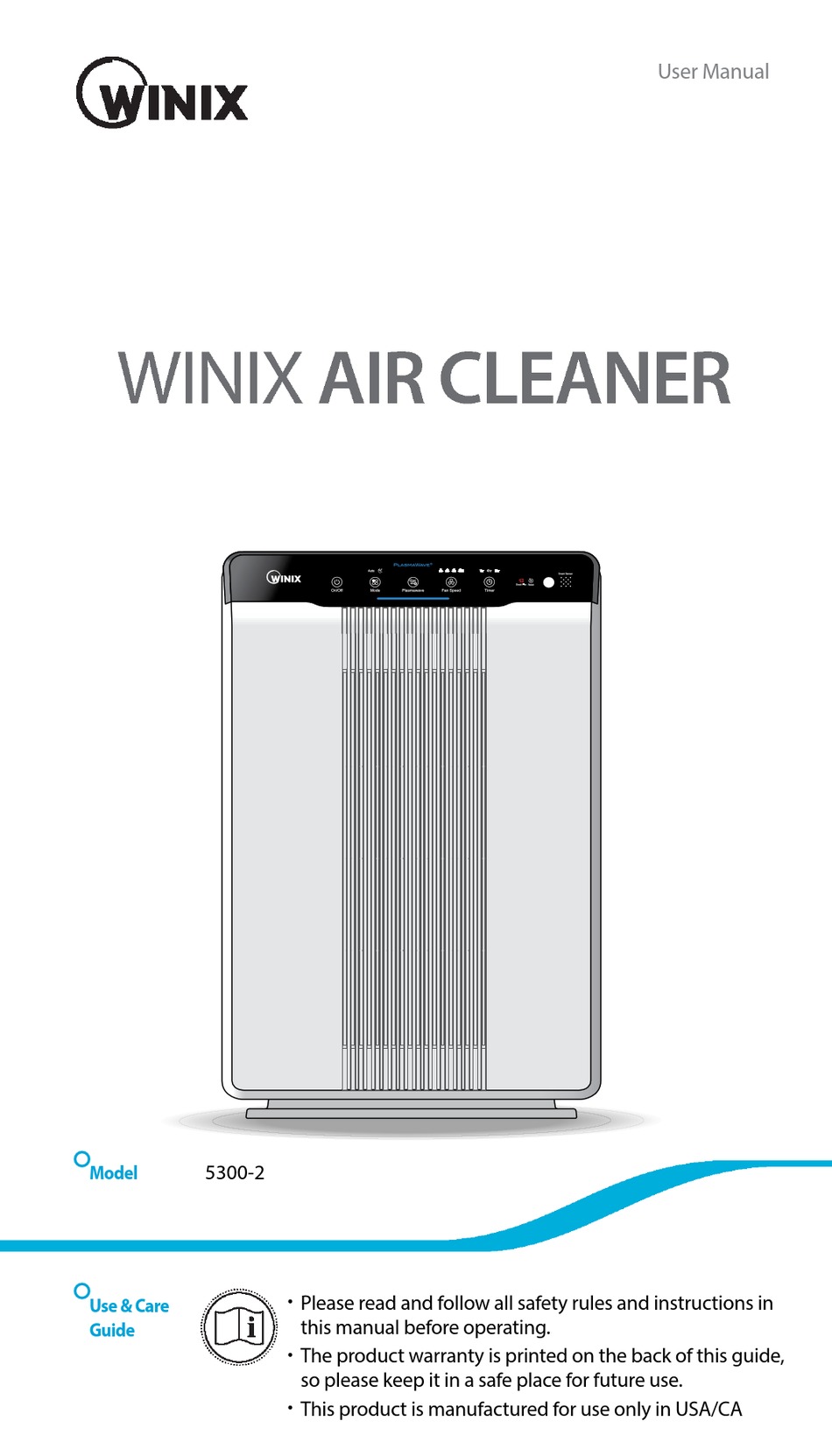

- Page 1 User Manual Model 5300-2 x Please read and follow all safety rules and instructions in Use & Care this manual before operating. Guide x The product warranty is printed on the back of this guide, so please keep it in a safe place for future use.
-
Page 2: Table Of Contents
Installing the filters Safety Instructions Safety and Cautions Operation Initial Operation Modes of Operation Features and Settings Care and Maintenance Filter Care Cleaning Care Troubleshooting Frequently Asked Questions Unit Specifications Product Warranty This product is suitable for 120V only. English 5300-2... -
Page 3: 3-Stage Air Purification
➊ Odor Absorbing Carbon Filter Pre-filter Power cord with plug (This product is suitable for 120V only.) Front panel PACKAGE CONTENTS ➊ Unit ➋ Pre-filter / (4) Odor Absorbing Carbon Filters / True HEPA Filter ➌ User Manual English 5300-2... -
Page 4: Controls
Enables Manual operation of the 소피아 2 영문 Change Filter Indicator unit. Press to cycle through and LED light indicates when it is time to set the desired fan speed (Low, change the filter. Medium, High, Turbo). English 5300-2... -
Page 5: Where To Use
(aerosols, fuel, gases etc.) Do not place in excessively humid areas Do not place below any electrical outlet where unit may become wet This unit is not intended to be used to preserve documents or in art conservation. English 5300-2... -
Page 6: Installing The Filters
• O perating the unit without removing filters from plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating. Note • R efer to pages 17 - 18 for details on how to replace filters. English 5300-2... - Page 7 12 months ※ Intervals between filter replacement may vary depending on environment. ※ For optimal use, Pre-filter can be cleaned once every 14 days which can extend the life of other filters. To purchase replacement Winix filters: (877)-699-4649 www.winixamerica.com English 5300-2...
-
Page 8: Safety And Cautions
Do not touch the plug with wet hands same outlet or power supply Cord can become damaged by forcefully Unplug unit when not in operation for bending, pulling, twisting, bundling, extended periods of time pinching or placing heavy objects on it English 5300-2... -
Page 9: Initial Operation
• W hen the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through ® PlasmaWave , it is normal and does not signify product ® failure. To disable PlasmaWave , see page 12. English 5300-2... -
Page 10: Modes Of Operation
• When Sleep mode is selected, the fan speed is automatically Note set to Low. The fan speed can be manually changed by pressing the Fan Speed button, changing the unit into manual mode. • When Sleep Mode is activated, the Air Quality Indicator LED light is disabled. English 5300-2... -
Page 11: Features And Settings
•When the Timer LED light will indicate the selected length of operation. • E very time the Timer button is 소피아 2 영문 pressed, The Timer LED light will cycle through the settings, (1hr, 4hr, 8hr, [NO TIMER]). 소피아 1 English 5300-2... - Page 12 소피아 1 • Air quality level is displayed on the indicator, based on the Note Smart Sensors. Depending on the immediate environment, the indicator may change frequently in color or stay the same for lengthy periods of time. English 5300-2...
-
Page 13: Filter Care
※ Intervals between filter replacement may vary depending on environment. ※ For optimal use, Pre-filter can be cleaned once every 14 days which can extend the life of other filters. To purchase replacement Winix filters: (877)-699-4649 www.winixamerica.com Carbon filter / True HEPA filter • The filters’... - Page 14 • O perating the unit without removing filters from plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating. NOTICE • F or optimal performance, only Winix filters should be used with this unit. English 5300-2...
- Page 15 5. Resetting The Unit After replacing the filters, turn the ① power onto the unit and then use a thin object, such as a paper clip, to press the RESET switch for 5 seconds. English 5300-2...
- Page 16 •Allow the filter to dry for 24 hours or more before using. If the pre-filter becomes damaged or in any way needs replacement: Please contact Winix (877)-699-4649 www.winixamerica.com • D o not use benzene, alcohol, or other volatile fluids, which NOTICE may cause damage or discoloration.
-
Page 17: Cleaning Care
• Never disassemble, repair, or modify this unit yourself. • D o not use flammable sprays or liquid detergents. •Do not allow children to clean or maintain the unit. • B efore cleaning or maintaing, ensure unit is unplugged. English 5300-2... -
Page 18: Frequently Asked Questions
• H as Auto Mode been selected? - Press the Mode button until Auto Mode is selected. It doesn’t work in Auto Mode. • I s the sensor blocked or clogged? - Wipe Odor Sensor with wet cloth, then dry. English 5300-2... - Page 19 - Change the filters as required. purifying the air. • I s the Light Sensor blocked by debris? The display - When Auto Mode is on, Sleep Mode panel is dim. is automatically activated when the Light Sensor detects that the room is dark. English 5300-2...
-
Page 20: Unit Specifications
UNIT SPECIFICATIONS 5300-2 Model Name Power Voltage AC120V/ 60Hz Power Rate Room Area Served 360ft Dimensions 14.9 in(W) x 7.8 in(D) x 23.6 in(H) Weight 17.6 lbs Replacement Filter Filter A / Item: 115115 Pre-Filter Part #: 4521-0012-03 ※ The exterior, design, and product specifications may be changed without prior notice to improve product performance. - Page 21 SAFETY INSTRUCTIONS Thank you for purchasing a Winix air purifier. This product is for household use only. IMPORTANT CAUTIONS FOR IMPORTANT PRECAUTIONS FOR USING YOUR AIR PURIFIER USING YOUR AIR PURIFIER x x Do not block the intake or outlet vents.
-
Page 22: Product Warranty
3. The warranty must be presented upon bringing the product for service. 4. Store the warranty in a safe place, as it cannot be reissued. 5. This warranty is valid only in the USA and Canada. Air Purifier Product Name 5300-2 Model Name Purchase Date One (1) year Warranty period Place of purchase Place of purchase Tel. - Page 24 Developed in partnership with Drexel University (Philadelphia, PA, USA) 151311 Rev.A Contact for product To expedite service, please specify the model name and number, the related inquiries and nature of the problem, your contact information, and your address. customer service x Dedicated Call Center : (877) 699-4649 x Website : www.winixamerica.com...
