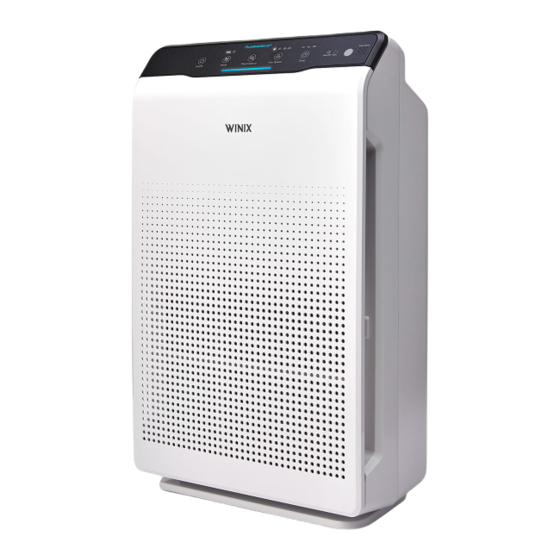

WINIX Air Cleaner C535 Manual

Use & Care

• Please read and follow all safety rules and instructions in this manual before operating.
• The product warranty is printed on the back of this guide, so please keep it in a safe place for future use.
• This product is manufactured for use only in USA/CA

PACKAGE CONTENTS

3-STAGE AIR PURIFICATION

CONTROLS

Mode Button
Press to cycle through and set the desired mode of operation (Auto, Sleep).

PlasmaWave^® Indicator
Indicates whether PlasmaWave^® is enabled or disabled.

Fan Speed Indicator
Indicates the current fan speed.

Timer Indicator
If timer has been set, the LED light indicates the set time of operation.

Reset Button
After replacing a filter, press the RESET button for at least 5 seconds.

Odor Sensor
When in Auto Mode, detects the amount of odor in the environment to adjust fan speeds.

Air Quality Indicator
Color-coded LED indicates one of three levels of air quality.

PlasmaWave^® Button
Enables or disables PlasmaWave^®.

Power Button
Turns the unit on or off.

Fan Speed Button
Enables Manual operation of the unit. Press to cycle through and set the desired fan speed (Low, Medium, High, Turbo).

Timer Button
Press to cycle through and set desired length of operation (1hr, 4hr, 8hr).

Check Filter Indicator
LED light indicates when it is time to change the filter.

Light Sensor
Detects the amount of ambient light in the environment.

WHERE TO USE

Allow 12 ~ 18 in. of space between TVs, radios, and other electronics
electromagnetic interference from certain electronics may cause product malfunction.

Place indoors away from direct sun light
direct exposure may cause product malfunction or failure.

Only place on hard, flat surfaces
flimsy or slanted surfaces may result in abnormal noise and vibrations.

Allow at least 4 in. from walls
for maximum air flow.

SAFETY AND CAUTIONS

Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit.

Before operating this equipment, carefully read and follow these safety cautions

Ensure filters are inserted before running unit
running unit without filters can shorten the units life and cause electric shock or injury.

Be sure foreign objects are NOT inserted into the vents on the unit
objects can include pins, rods, and coins.

Do not touch any part of the interior of the unit with wet hands
the high voltage may cause electric shock.

Ensure unit intake and outlet vents do not become blocked
blockage may lead to increased internal temperatures causing product failure and deformation.

Do not use the unit as a step stool or place heavy objects on it
personal injury may occur or product failure and deformation.

Do not pull on the power cord when unplugging the unit

If the unit becomes submerged in water, unplug it and contact customer service

Do not plug additional appliances into the same outlet or power supply

Unplug unit when not in operation for extended periods of time

Do not use around mist or fumes from industrial oil or around large quantities of metallic dust

Do not install in any sort of motor or transport vehicle (trucks, boats, ships, etc.)

Do not place near any flammable materials (aerosols, fuel, gases etc.)

Do not place below any electrical outlet

Do not tie or knot power cord when unit is in operation

Cord can become damaged by forcefully bending, pulling, twisting, bundling, pinching or placing heavy objects on it

Do not unplug or move the unit while in operation

Do not touch the plug with wet hands

Do not place in excessively humid areas where unit may become wet

Do not place in an area with excessive amounts of noxious gases

Do not have unit facing into wind or draft

Do not place around heating elements

*This unit is not intended to be used to preserve documents or in art conservation.

INSTALLING FILTERS

This product comes with all the required filters. The protective plastic wrap must be removed from the filters before use.

• Operating the unit without removing the plastic wrap may result in product failure.
• Unplug and make sure the unit is turned off before installing filters.

1. Remove the front panel by grasping its upper edge and gently pulling forward.

2. Remove the filters from the unit.
   They are protected inside a plastic wrap.

3. Remove filters from protective plastic wrap.
   Operating the unit without removing filters from plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating.

4. Install the filters until they fit securely in place.
   Filters must be installed in this order:

   1. True HEPA Filter (back)
   2. Carbon Filter Sheet (middle)
   3. Pre-Filter (front)
      Note
      To install the Pre-Filter, insert bottom tabs into the slots on either side of the lower part of the unit, then rotate upward to insert the upper tabs into the slots at the top part of the unit until sides audibly click into place.
5. Replace the front panel by first inserting the latch at the bottom edge into the base of the unit, then rotate the panel upward toward the top of the unit until the magnets pull the lid closed.


When to Replace Filters

When the Check Filter indicator LED is on, it is time to replace the True HEPA Filter.

Note
The filters' life varies depending on the level of particles in the air. The more dust present in the environment, the more dust accumulates in the filters, shortening the life.
If the filters are heavily soiled or have a bad odor, or if the fan strength is significantly weakened, replace filters even if the Check Filter indicator has not yet turned on.

When to service and replace filters:

Filter	Indicator Light	When to service	When to replace
Pre-Filter	none	Clean once every 14 days	Permanent
Carbon Filter	none	Can NOT be WASHED	Replace every 3 months
True HEPA Filter			Lasts Approx. 12 months

• Intervals between filter replacement may vary depending on environment.
• For optimal use, Pre-Filter can be cleaned once every 14 days which can extend the life of other filters.

To purchase replacement Winix filters:
(877)-699-4649
www.winixamerica.com

INITIAL OPERATION

1. Insert the power cord into an electrical outlet.

2. Press the "Power" button.
   During the first 30 seconds of power up, the Air Quality Indicator will cycle through Blue, Amber and Red colors.
   Smart Sensor (Odor Sensor) takes approximately 4 minutes to gauge the air quality in the environment before normal operation begins.

3. Set desired fan speed by using Auto or Manual Mode.
   By default, when the unit first powers on, the mode will be set to Auto with PlasmaWave^® enabled.


Auto Mode
Enables auto operation based on air quality Smart Sensors.

1. Press the Mode button to select Auto mode.
2. The LED 'Auto' light will indicate when Auto mode is activated, and operation will begin.

Manual Mode
Manually setting the fan speed.

1. Press the Fan Speed button to set the desired fan speed to Low, Medium, High, or Turbo.
2. When Manual Mode is selected, Auto Mode and Sleep Mode is automatically disabled.

Note
When in Auto mode the fan speed is automatically adjusted according to the indoor air quality.
As the indoor air quality improves, the fan speed will automatically be reduced. If the indoor air quality decreases, the fan speed will automatically increase.

FEATURES

PlasmaWave^®

By default, PlasmaWave^® is enabled whenever the unit is powered on.

• Press the Plasmawave button, when the unit is on, to enable or disable this feature.
• PlasmaWave^® works to remove harmful airborne contaminants.
• When the unit is running, you may hear a chirping or buzzing sound. The sound is from large particles passing through PlasmaWave^®, it is normal and does not signify product failure.

Air Quality Indicator

When the unit is on, the LED light will indicate the current indoor air quality.

• The three levels of air quality are: BLUE (good), AMBER (fair), RED (poor).
• Air quality level is displayed on the indicator, based on the Smart Sensor (Odor Sensor).
• Depending on the immediate environment, the indicator may change frequently in color or stay the same for lengthy periods of time.

Sleep Mode

When Sleep mode is selected, the fan speed is automatically set to quiet and the Air Quality Indicator LED light is disabled.

• Auto mode will automatically put unit into sleep mode when the light sensor detects it is dark enough in the environment.
• The LED "Sleep" light will indicate when Sleep mode is activated.
• When Sleep Mode is activated, the Air Quality Indicator LED light is disabled.

Timer

The timer can be set to let the unit run for a specified period of time.

• Press the Timer button to select the desired length of time.
• When the Timer LED light will indicate the selected length of operation.
• Every time the Timer button is pressed, the Timer LED light will cycle through the settings, (1hr, 4hr, 8hr, [NO TIMER]).

REPLACING FILTERS

1. Remove Used Filters
   Turn the unit power off before removing filters.

   1. Remove the front panel by grasping its upper edge and gently pulling forward.
   2. Press on the Pre-Filter tabs near the top of the filter, release and remove.
   3. Pull out the Carbon Filter and True HEPA Filter.
2. Prepare New Filters
   Remove filters from protective plastic wrap.

   NOTICE
   Operating the unit without removing filters from plastic wrap may cause abnormal noise, deformation, or fire as a result of overheating.
   For optimal performance, only Genuine Winix Replacement filters should be used with this unit.
3. Insert New Filters
   Install the filters until they fit securely in place.

   1. Insert the True HEPA Filter first, then the Odor Absorbing Carbon Filter.
   2. Insert the Pre-Filter.
   3. Put the front panel back on.
4. Resetting the Unit
   After replacing the filters, turn the power onto the unit and then use a thin object, such as a paper clip, to press the RESET switch for 5 seconds.


CLEANING CARE

Cleaning the filters

Use a vacuum cleaner or soft brush to clean the Pre-Filter.

• If it is excessively soiled, rinse in room temperature water.
• Do not use detergent or soap.
• Allow the filter to dry for 24 hours or more before using.
• Intervals between filter cleaning may vary depending on the air quality.

NOTICE

• Do not use benzene, alcohol, or other volatile fluids, which may cause damage or discoloration.
• Do not use hot water over 104ºF or volatile fluids such as paint thinner.

Cleaning the Exterior & Interior

Wipe with a soft damp cloth using room temperature water.

• Afterwards, wipe it down with a clean dry cloth.
• To keep unit in peak condition, clean every 1-2 months.

Open the front panel and clean the interior with a vacuum cleaner.

• For optimal performance, clean every 1-2 months.

NOTICE

• When cleaning the unit, always unplug the power cord first and then wait until the unit has cooled down.
• Never disassemble, repair, or modify this unit yourself.
• Do not use flammable sprays or liquid detergents.
• Do not allow children to clean or maintain the unit.
• Before cleaning or maintaining, ensure unit is unplugged.

REMOTE CONTROL

Operates in a 20 foot radius.

1. Power: Turns the unit on or off.
2. Auto: Enables Auto Mode.
3. Fan Speed: Enters into Manual Mode while selecting Fan Speed.
4. Turbo: Enters Manual Mode setting device directly to Turbo Fan Speed.

Cradle

Wall mountable storage cradle.

Battery Replacement

1. Insert the pin into the hole on the bottom of the remote control.
2. Using the pin, pull the battery cover out and remove the old battery.
3. Insert new battery, with PLUS side up.
4. Always use CR2025 3V lithium battery.

• Incorrect battery usage may cause battery fluid leakage and/or damage.
• When not using remote for extended periods of time, remove the battery.
• Avoid dropping or damaging the remote.
•
  Chemical Burn Hazard. Keep batteries away from children.
• When not using remote for extended periods of time, remove the battery.
• This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours.
• Always completely secure the battery compartment.
• If the battery compartment does not close securely, stop using the product, remove the batteries, and keep it away from children.
• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• The batteries should be disposed of properly, including keeping them away from children. Even used batteries may cause injury.

FREQUENTLY ASKED QUESTIONS

Problem	Check / Actions to take
It does not turn on at all.	Is the plug securely attached to the outlet? Make sure the outlet has power going to it, and ensure the plug is secured. Is there a power outage? Check to see if other lights and electrical equipment are working and try again.
It doesn't work in Auto Mode.	Has Auto Mode been selected? Press the Mode button until Auto Mode is selected. Is the sensor blocked or clogged? Wipe Odor Sensor with wet cloth, then dry.
It vibrates and makes a lot of noise.	Is it running on a slanted or uneven surface? Move the unit to a hard, flat, even area of the floor.
The power plug and outlet feels hot.	Is the plug securely plugged in? Make sure the plug is properly plugged into the outlet.
There is a strange smell.	Is it being used in a place with a lot of smoke, dust, or odors? Clean the air intakes on either side and clean the Pre-Filter. Replace the Carbon and True HEPA Filter.
The fan strength is weak. The unit is not purifying the air.	Is the Check Filter indicator light on? Change the filters as required.
The display panel is dim.	Is the Light Sensor blocked by debris? When Auto Mode is on, Sleep Mode is automatically activated when the Light Sensor detects that the room is dark.

UNIT SPECIFICATIONS

Model Name	C535
Power Voltage	AC120V/ 60Hz
Power Rate	70W
Verified Room Size	2 360ft
Dimensions	14.9 in(W) x 23.6 in(D) x 7.8 in(H)
Weight	14.7 lbs
Replacement Filter	Filter A / Item: 115115

The exterior, design, and product specifications may be changed without prior notice to improve product performance.

❖ Information regarding
ENERGY EFFICIENCY RATING LABEL
The energy costs indicated on the ENERGY EFFICIENCY RATING LABEL may differ from your actual energy costs, depending on your energy consumption, usage hours, and billing changes, such as utility price increases.

SAFETY INSTRUCTIONS

This product is for household use only.

IMPORTANT CAUTIONS FOR USING YOUR AIR PURIFIER

Follow the instructions in this manual to reduce the risk of electric shock, short circuit, and/or fire.

• Do not repair or modify the unit unless specifically recommended in this manual. All other repairs should be completed by a qualified technician.
• The plug for this unit is polarized with one blade wider than the other.
• Do not force the plug into an electrical outlet. Do not alter the plug in any way.
• If the does not fit into the outlet, reverse the plug. If it still does not fit, contact a qualified technician to install a proper outlet.
• Do not use if the power cord or plug is damaged or the connection to the wall outlet is loose.
• Use AC 120V only.
• Do not damage, break, forcefully bend, pull, twist, bundle, coat, pinch, or place heavy objects on the power cord.
• Periodically remove dust from the power plug. This will reduce the risk of shock due to humidity build up.
• If the power plug is damaged, it must be replaced by the manufacturer or a qualified technician.
• Remove the power plug from the outlet before cleaning the unit.
• When removing the power plug, grasp by holding the plug itself, never hold by the cord.
• Remove the power plug from the outlet when not in use.
• Do not handle the power plug with wet hands.
• Do not operate the unit when using indoor smoke-generating insecticides.
• Do not clean unit with benzene or paint thinner.
• Do not spray insecticides on the unit.
• Do not use the unit where it is humid or where the unit may become wet, such as the bathroom.
• Do not insert fingers or foreign objects into air intake or outlet.
• Do not use use the unit near flammable gases. Do not use near cigarettes, incense, or other spark-creating items.
• Unit will not remove carbon monoxide emitted from heating appliances or other sources.

IMPORTANT PRECAUTIONS FOR USING YOUR AIR PURIFIER

• Do not block the intake or outlet vents.
• Do not use near hot objects, such as a stove.
• Do not use where the unit may come into contact with steam.
• Do not use the unit on its side.
• Keep away from products that generate oily residue, such as a deep fryer.
• Do not use detergent to clean the unit.
• Do not operate without a filter.
• Do not wash and reuse the True HEPA Filter.
• Hold the handle on the back of the unit to transport.
• Do not hold by the front panel.

Battery in Remote Control

• This product contains a button battery. If swallowed, it could cause severe injury or death in just two hours. Seek medical attention immediately.

PRODUCT WARRANTY

The terms of the warranty are as follows.

1. This product is manufactured under stringent quality control and inspections.
2. Warranty void if product failure is a result of negligence or misuse by the consumer, shipping and service fees may be incurred even during the warranty period.
3. The warranty must be presented upon bringing the product for service.
4. Store the warranty in a safe place, as it cannot be reissued.
5. This warranty is valid only in the USA and Canada.

Warranty period: Two (2) years

Contact for product related inquiries and customer service

To expedite service, please specify the model name and number, the nature of the problem, your contact information, and your address.

• Dedicated Call Center: (877) 699-4649
• Website: www.winixamerica.com

Videos

Winix C535 Review Video (Performance Test and Smoke Box)

Documents / Resources

References

• Winix Air Purifiers - Healthy Home Appliances - Improve Your Indoor Air Quality

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download WINIX Air Cleaner C535 Manual
